Manufacturer Notes: 3dr, incl. Type RCoilover Type: Dynamic Pro Sport Inverted
Spring Rate Front: 8kg
Spring Rate Rear: 8kg
Top Mount Front: R/U or P/U*
Top Mount Rear: A/U
Coilover Type:Dynamic Pro Sport Inverted
Spring Rate Front:8kg
Spring Rate Rear:8kg
Top Mount Front:R/U or P/U*
Top Mount Rear:A/U

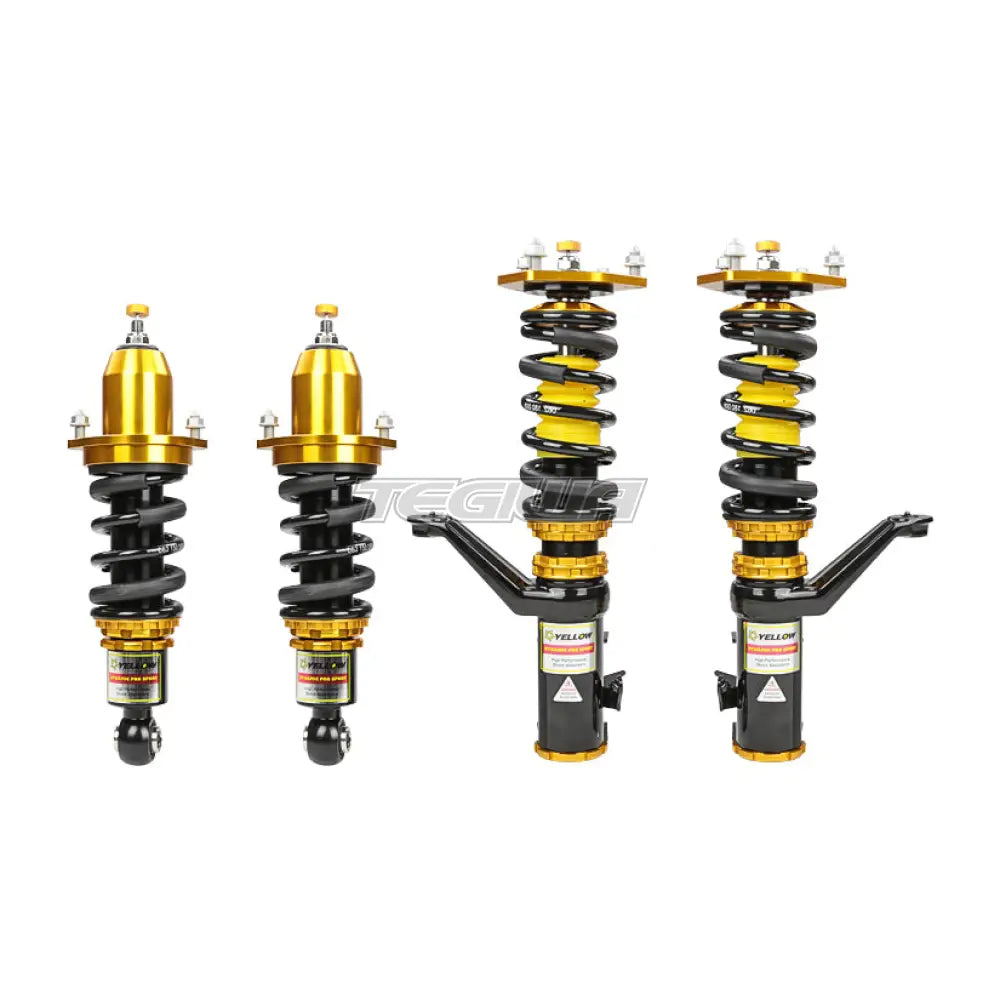

Our Inverted Dynamic Pro Sport coilovers feature similar characteristics of our popular Dynamic Pro Sport Coilovers, but with a 55mm inverted monotube shock body to increase the strength & comfort of the suspension. We are constantly testing new features, improving our design, and testing these coilovers to make sure that our kit lives up to our customer's expectations.
This kit features an inverted monotube design to improve vehicle handling and comfort, while increasing the strength of the suspension. These kits offer additional shock fluid capacity to assist with heat dissipation and the larger shock body provides exceptional strength, which prevents premature failure of shafts seals. Our Inverted Dampers feature an aluminum ring seal to resist corrosion and damage from debris by providing a perfect seal.
Inverted Pro Street Coilovers are designed to offer a superior ride quality for street driving with exceptional handling & performance for track use.
MONOTUBE INVERTED DESIGN
For suspension systems with front or rear MacPherson style struts, the damper will be provided with an inverted monotube design which is utilized to reduce the effect upon the damping oil and shock piston resulting from high temperature from the brake system. The inverted damper also can resist lateral stress more efficiently. The inverted damper reduces unsprung weight for quicker suspension response. For any suspension system with featuring a rear A-Arm suspension type, the rear damper shaft has been thickened to 20mm, which is able to support more side force stress, and ensure the vehicle will remain more controllable. In addition, the thickened damper shaft is more resistant to damage. The 55mm steel shock body is coated with a zinc plating for exceptional corrosion resistance.
33 LEVELS OF DAMPING ADJUSTMENT
1 Way Drift Spec Coilovers feature 33 levels of damping adjustment with the turn of a knob. Rebound & Compression Damping are controlled simultaneously. Inverted Dampers are adjusted from the bottom of the coilover.
REAR SUSTECH INVERTED DAMPER DESIGN
Some vehicle applications are unable to allow damping adjustment on the rear coilovers without coilover removal. With extensive testing & development, we now offer an improved rear dampening adjustment method for these vehicles. The Rear Sustech Inverted damper features a damping dial at the bottom portion of the coilover to allow simple adjustment without the need to remove any components. Sustech Inverted Dampers are included when applicable.
High quality components are adopted to ensure product durability and stability. Each application is test fit and completely road tested to guarantee perfect performance and comfort.
