Xtreme Performance - Extra Heavy Duty Sprung Ceramic/-1R
Recommended for: Motorsport Applications
-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.
Specifications:
- Torque capacity 910Nm (35% inc.)
- Clamp load Increased over standard
- Sprung Ceramic Friction Disc
- Extra Heavy Duty Pressure Plate

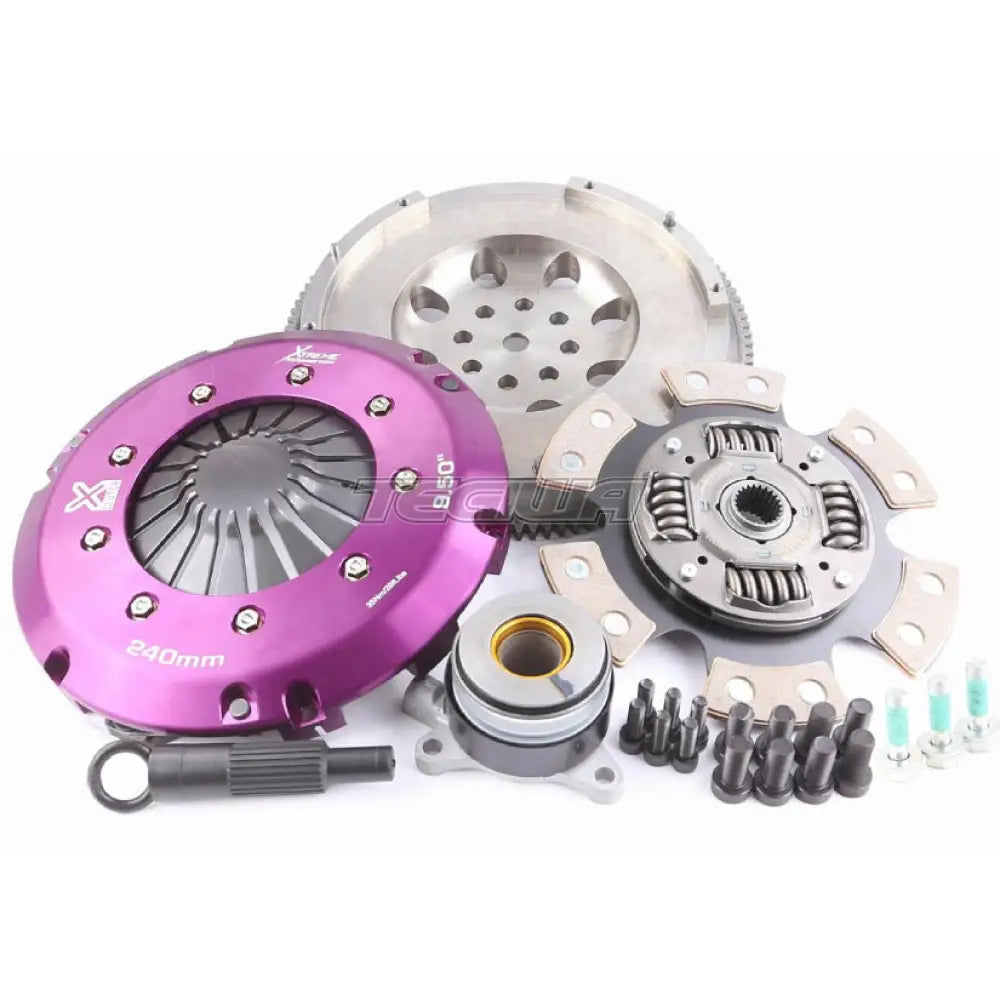

- Kit contains everything you need for a successful installation + accessories
The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.
Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
What's in the Box?
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
-
Clutch Disc Diameter (mm) - 240
-
Clutch Disc Spline Count - 23
-
Clutch Disc Spline Diameter (mm) - 26
-
Torque (Nm) - 910
-
Flywheel Step - -9.53mm
-
Design - Single Plate
-
Stage - Stage 2R
-
Recommended for - Race Vehicles - Stage 2R
-
Additional infotmation - Conversion from dual-mass flywheel to single-mass flywheel. Includes CSC
-
Weight [KG]: 14.7
