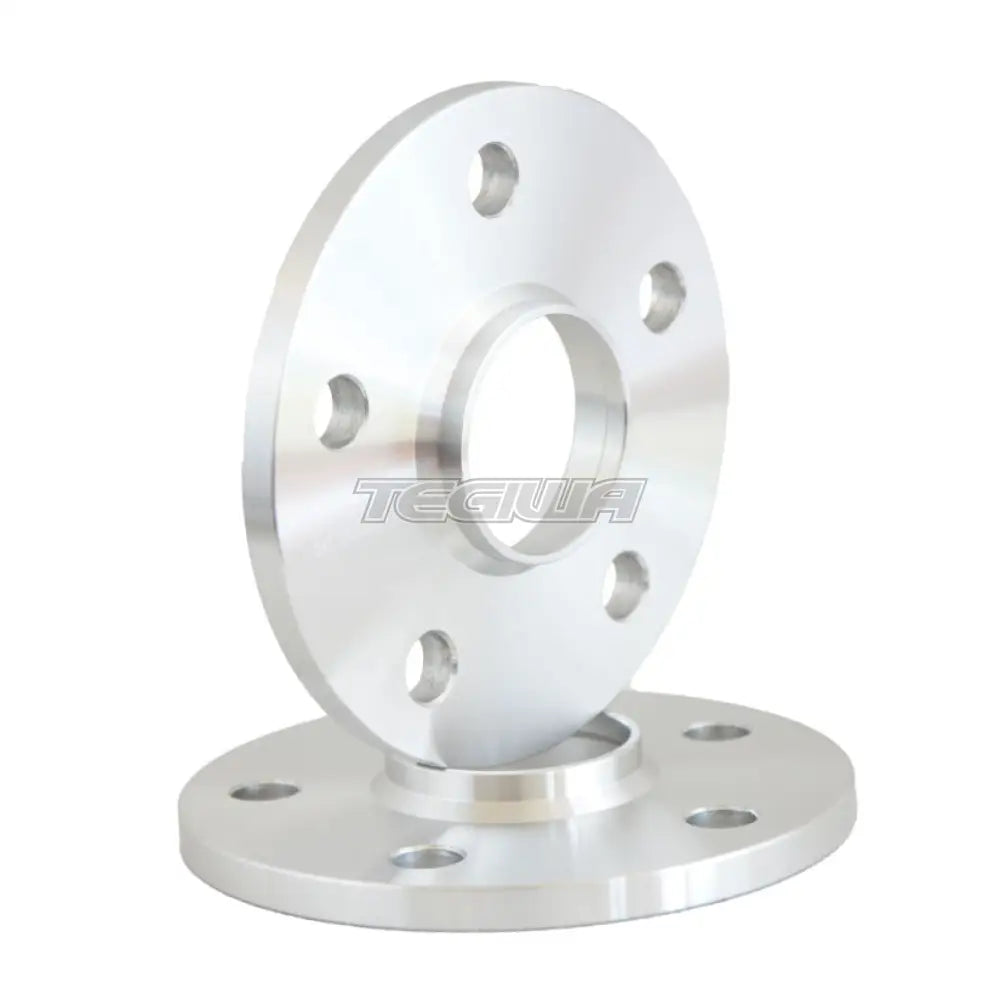

The WEILDER 5-hole wheel spacers for Audi, Volkswagen, Seat and Skoda can significantly improve the road holding of your competition vehicle. They center the wheel while widening the track.
WEILDER wheel spacers are made of high quality anodized aluminum and specially adapted to each vehicle.
WEILDER 5-hole wheel spacers are available in different thicknesses: 10, 15 or 20mm.
For the assembly of these wheel spacers, we advise you to use special studs which will be longer than the original screws.
Wheel spacers are sold in pairs.
For competition use, we recommend a stud + nut combination.
Attention, for safety reasons, it is essential to respect the pitches and lengths of the threads.
Fitting wheel spacers for Audi, Volkswagen, Seat and Skoda requires the use of longer studs: length of your original bolting + width of the wheel spacer.
Fasteners / bolts not supplied.
Advice before placing your order:
you need to measure your center distance. The center distance is measured as follows: it is the distance between the center of one of the holes in your rim and the center of your wheel, then multiply this result by 1.701.
Assembly advice:
The compatibility of our wheel spacers is only ensured for mounting on the original rims of your vehicle.
You need to check the centering length of your hub in order to choose the right wheel spacer thickness. Some vehicles having long centerings, the thinnest spacers cannot be mounted.
If the length of your centering is less than or equal to 11mm, you can mount 12mm thick wheel spacers, if it is less than or equal to 15mm, 16mm spacers and less than or equal to 19mm, 20mm wheel spacers.
Suitable for the following vehicles:
Audi A3 type 8P (04/2003 > 09/2012)
Audi A3 / Sportback / S3 type 8P1 / 8PA / 8P7 (09/2004 > 08/2012)
Audi A3 / Sportback / S3 type 8V / 8VA (09/2012 > )
Audi A4 / S4 type B5 (1994 > 2000)
Audi A4 / S4 type 8E(B6) (2001 > 2003)
Audi A4 / S4 type 8E(B7) (2004 > 2007)
Audi RS4 280 Kw type B5 (1999 > 2001)
Audi RS4 309 Kw type B6 (2005 > 2009)
Audi A6 type 4B (1997 > 2004)
Audi A6 type 4F (2004 > 12/2010)
Audi S6 type 4B (1997 > 2004)
Audi S6 type 4F (2005 > 2010)
Audi RS6 type 4B (2003 > 2007)
Audi RS6 II type 4F (2008 > 2010)
Audi TT II Coupé type 8J (07/2006 > )
Audi TTS Coupé type 8J (06/2008 > )
Audi TTS Roadster type 8J (06/2008 > )
Audi R8 type 42 (08/2007 > )
Audi Q3 type 8U (06/2011 > )
SEAT Leon / Leon Cupra type 1P (2006 > )
SEAT Leon / Leon Cupra type 5F (2012 > )
VOLKSWAGEN Eos type 1F (2006 > )
VOLKSWAGEN Golf V type 1K (11/2003 > 11/2008)
VOLKSWAGEN Golf V R32 type 1K (11/2003 > 11/2008)
VOLKSWAGEN Golf VI type 1K (11/2008 > 10/2012)
VOLKSWAGEN Golf VII type AU (11/2012 > )
VOLKSWAGEN Golf VII GTI type AU (2013 > )
VOLKSWAGEN Golf VII R type AU (2013 > )
VOLKSWAGEN New scirocco type 13 (09/2008 > )
