Vibrant Performance Oil Drain Flange (with 5/8"" Male Barb) for Garrett T3/T4/GT40
T6061 Billet Aluminum, CNC Machined
Includes M8 x 1.25 bolts for bolting to turbo
Not intended for GT15 - GT35 turbochargers. For those models, please refer to part # 2894
Vibrant Performance Aluminum Oil Flange for Garrett GT37-GT55R (Tapped - 1/2"" NPT)
T6061 BILLET ALUMINUM
Application: Garrett GT37, GT40, GT42, GT45, GT47, GT50 and GT55.
Bolt Hole Center to Center Dimension: 2""
- Includes a pair of M8 x 1.25 button-head cap screws.
- Tapped for 1/2"" NPT Male Fittings.
- Matching gasket sold separately #2853G

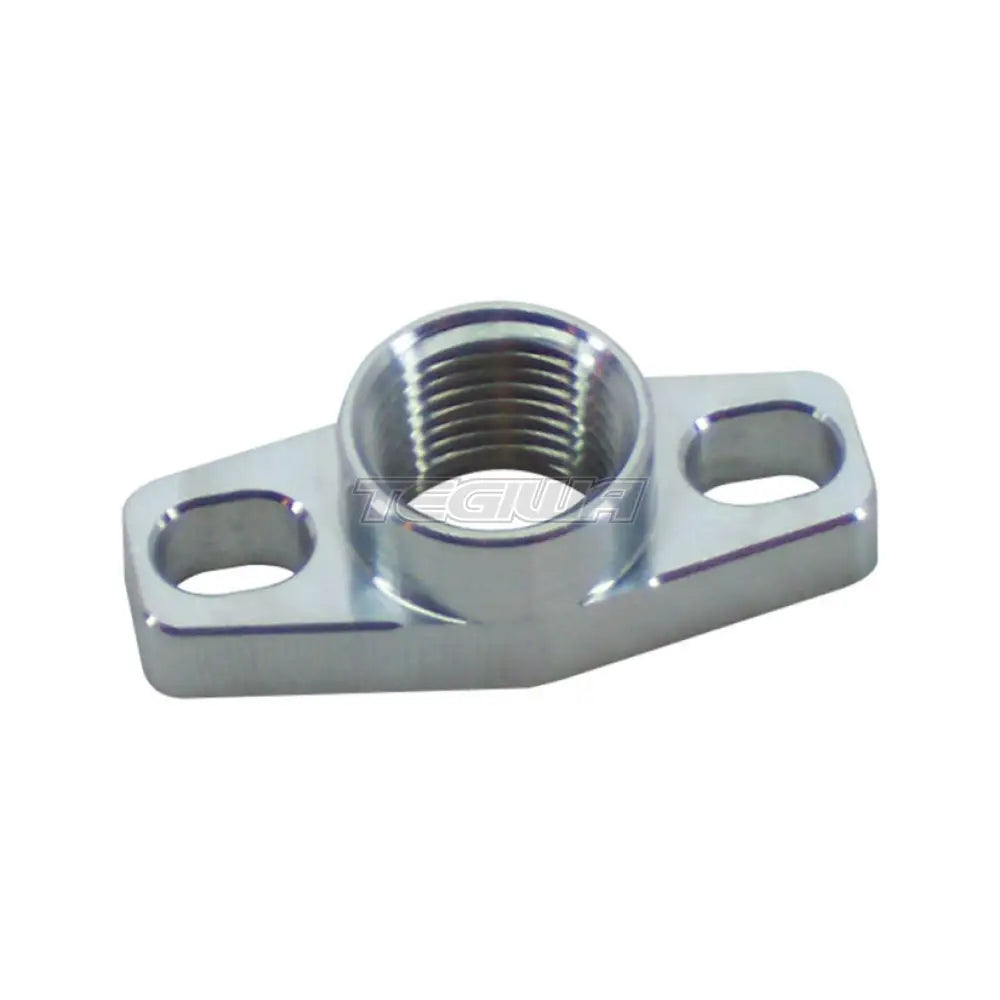

Vibrant Performance Oil Drain Flange for use with Garrett GT series BB Turbos
T6061 Billet Aluminum
Application: Garrett GT15, GT20, GT22, GT25, GT28, GT30 and GT35 and Borg Warner EFR 6258, 6758, 7064, 7163 and 7670 (all types).
Bolt Hole Center to Center Dimension Range: 1.50"" to 1.75""
- Includes a pair of M8 x 1.25 button-head cap screws.
- Tapped for 1/2"" NPT Male Fittings.
- Matching gasket sold separately #2889G

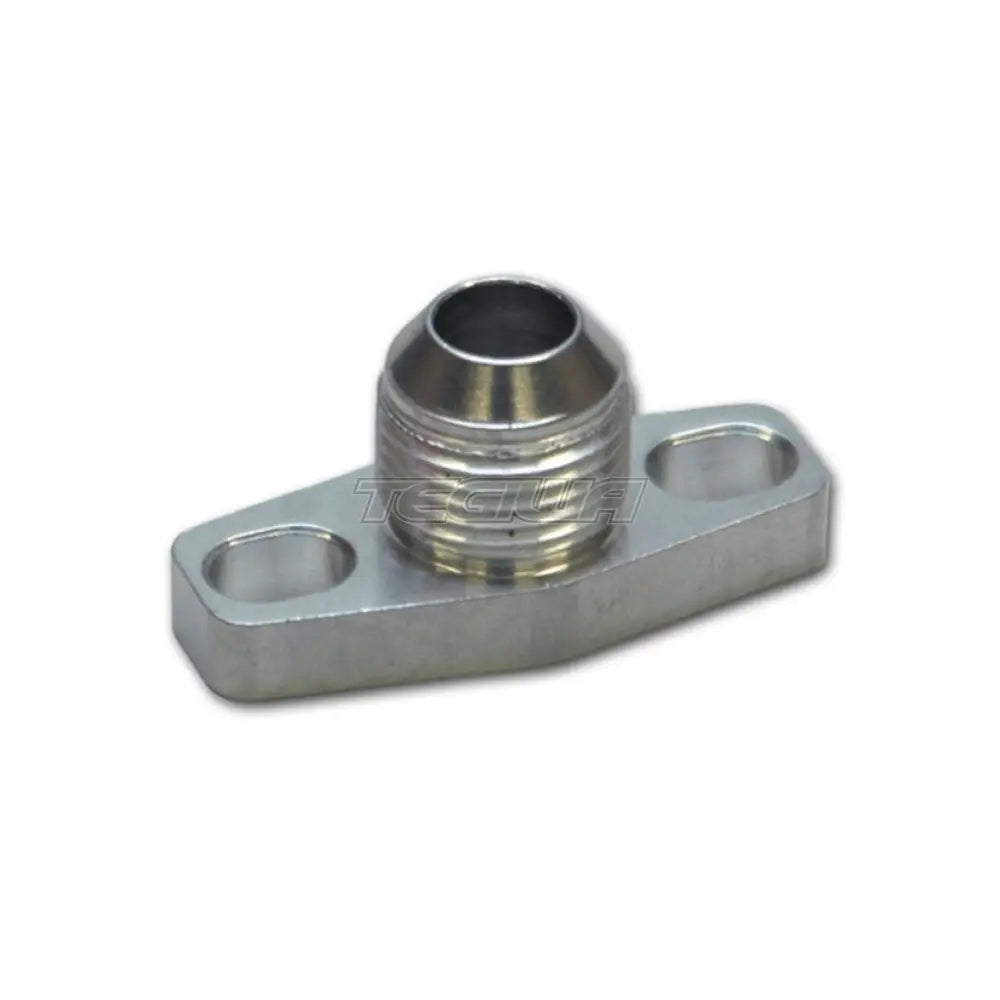

Vibrant Performance Oil Drain Flange w/ integrated -10AN Fitting for Garrett GT15-GT35 Turbos
T6061 Billet Aluminum, CNC Machined
Application: Garrett GT15, GT20, GT22, GT25, GT28, GT30 and GT35 and Borg Warner EFR 6258, 6758, 7064, 7163 and 7670 (all types)
Bolt Hole Center to Center Dimension Range: 1.50"" to 1.75""
- Includes a pair of M8 x 1.25 button-head cap screws.
- Matching gasket sold separately #2893G

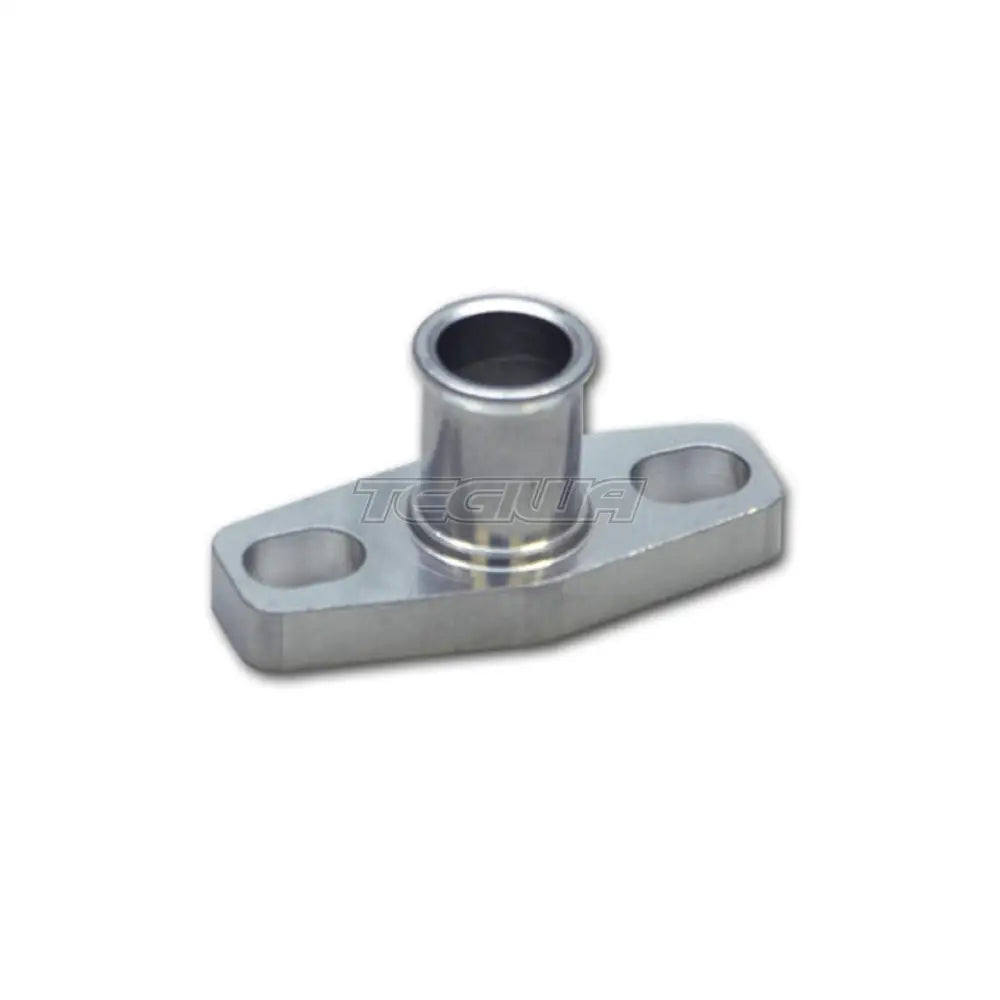

Vibrant Performance Oil Drain Flange w/ 5/8"" OD Male Neck for Garrett GT15-GT35 Turbos
T6061 Billet Aluminum, CNC Machined
Application: Garrett GT15, GT20, GT22, GT25, GT28, GT30 and GT35 and Borg Warner EFR 6258, 6758, 7064, 7163 and 7670 (all types)
Bolt Hole Center to Center Dimension Range: 1.50"" to 1.75""
- Includes a pair of M8 x 1.25 button-head cap screws.
- Matching gasket sold separately #2894G

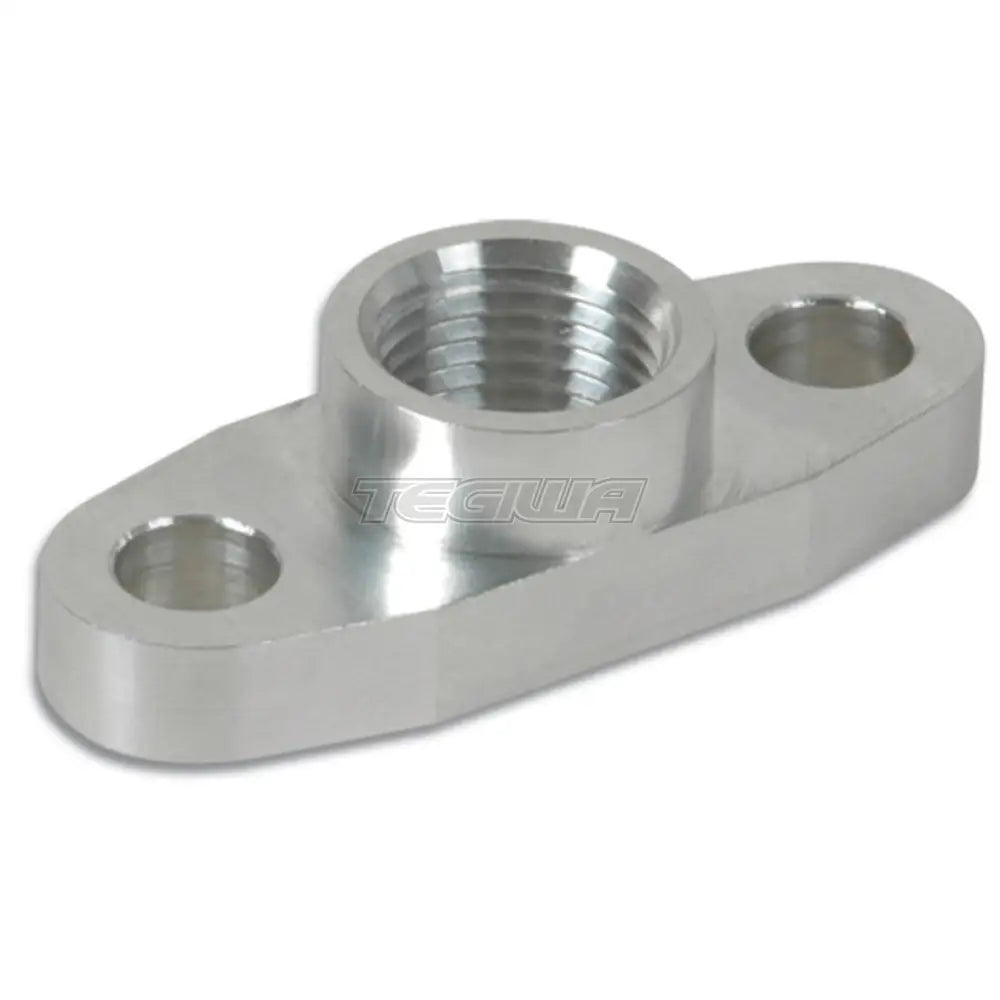

Vibrant Performance Oil Drain Flange for Garrett T3/T4/T04 Turbos
T6061 Billet Aluminum
Application: Garrett GT3271R and generic T3, T3/T4 and T4.
Bolt Hole Center to Center Dimension: 2""
- Includes a pair of M8 x 1.25 button-head cap screws.
- Tapped for 1/2"" NPT Male Fittings.
- Matching gasket sold separately #2898G

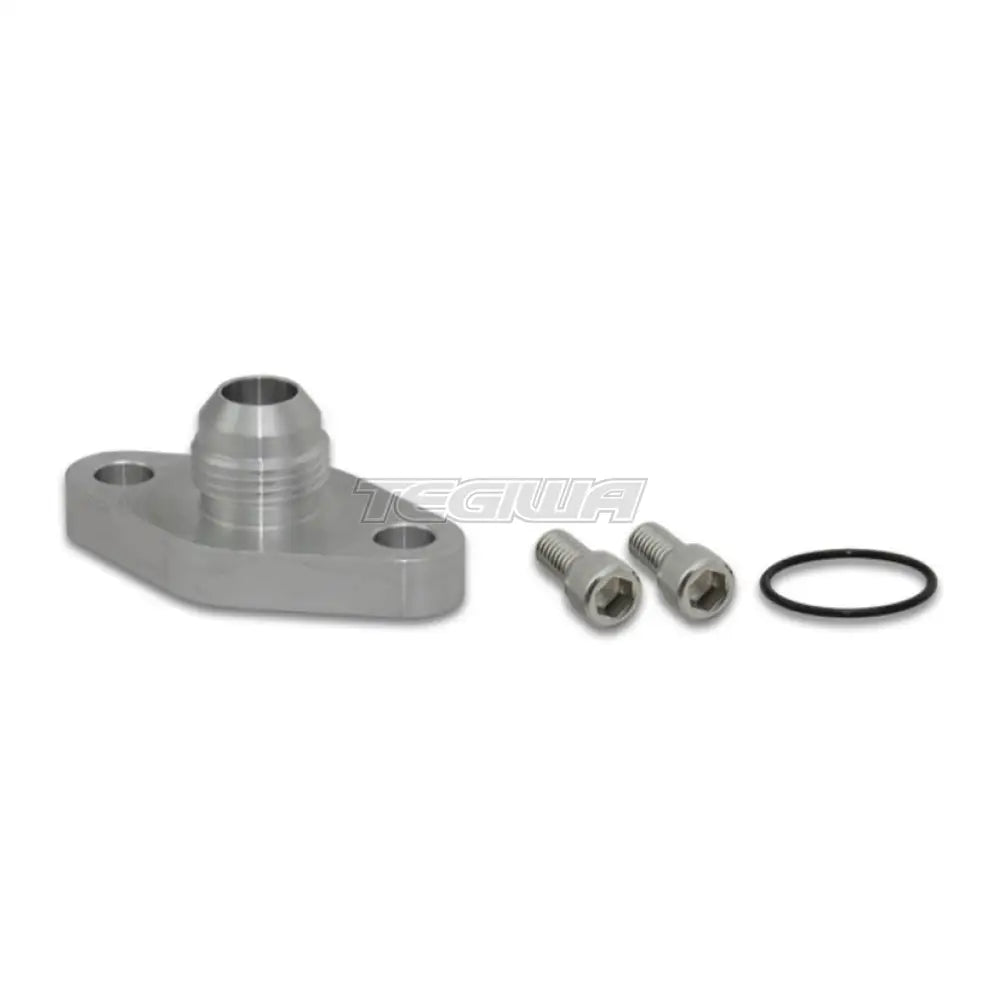

Vibrant Performance Oil Drain Flange with -10AN Male for Garrett GT6041
6061 Aluminum
Thickness: 0.393""
Bolt Hole Diameter: 0.374""
Bolt Hole Spacing: 2.06""
Total width: 1.50""
10AN Male Fitting
O-Ring supplied
Vibrant Performance is a leading manufacturer of high-quality fabrication components for the performance aftermarket. Founded in 1997, the company has grown alongside the industry, expanding its product range to cater to a diverse clientele, from race cars to motorcycles. With a strong commitment to innovation, Vibrant Performance continually develops new solutions to meet the evolving needs of performance enthusiasts and industry professionals alike.
