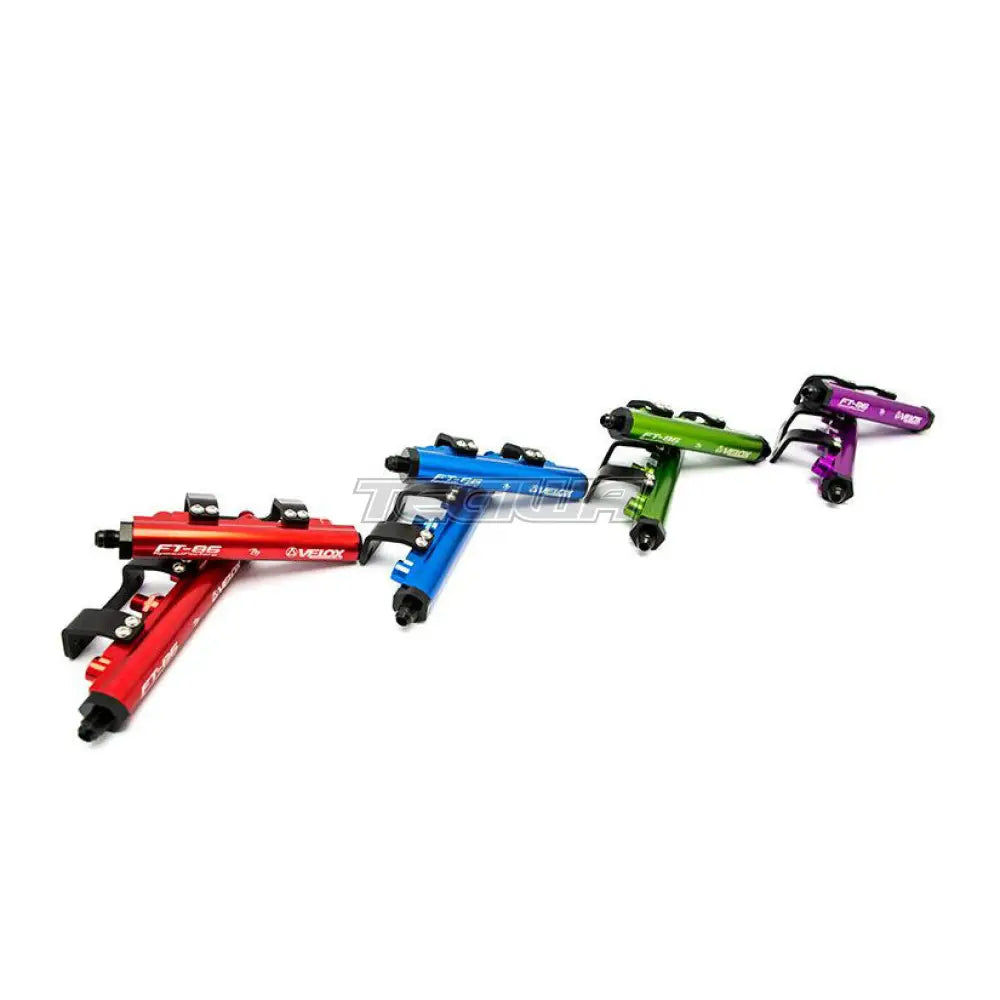

Careful planning and considerations has gone into the development of the Fuel Rails by Verus . The end result is a pair of 0.69" ID bore fuel rails that are a direct bolt-on replacement for the original OEM rails.
Construction:
- Machined 6063 aluminum
- Laser cut and CNC bent aluminum
- Billet fuel damper adapter
- Highest quality stainless and Poly braided lines in racing for crossover hose
- From metal hardline is high end push lock hose and hose end
Features:
- 0.69" ID bore, significantly larger than OEM
- Stainless Hardware
- E85 compatible
- -8AN O-Ring Bosses (ORB) on both sides of the rail
- Multiple adapters can be used
- Various configuration are possible
- -6AN ORB for the fuel damper adapter
- Can use adapter for use with OEM fuel damper
- Can block off if you don’t want to use adapter
Designed directly off OEM CAD (highlighted in blue) for an OEM fit. Fuel rail features injector clocking tabs (circled in yellow)
OEM fuel injectors need clocked as they feature a dual cone spray pattern
Necessary to keep good drivability on the FA20
Features 0.69” Inside Diameter (ID)
Significantly larger than OEM (OEM shown in blue below)
OEM would actually fit inside these aftermarket units
BMRS crossover hose – stainless or polyester braid
Typically characterized by blue and gold hose ends
Used in Formula 1, IndyCar, WEC, NASCAR, and more
Extremely Flexible
Lightweight
High Heat Resistance
Durable and Long Lasting
Teflon Coated for e85 Compatibility
Full size drawings to aid in cutting of OEM brackets
All components are anodized for superior resistance to petroleum and ethanol
