Mitsubishi Lancer EVO VII-IX Front Tubular Wishbones

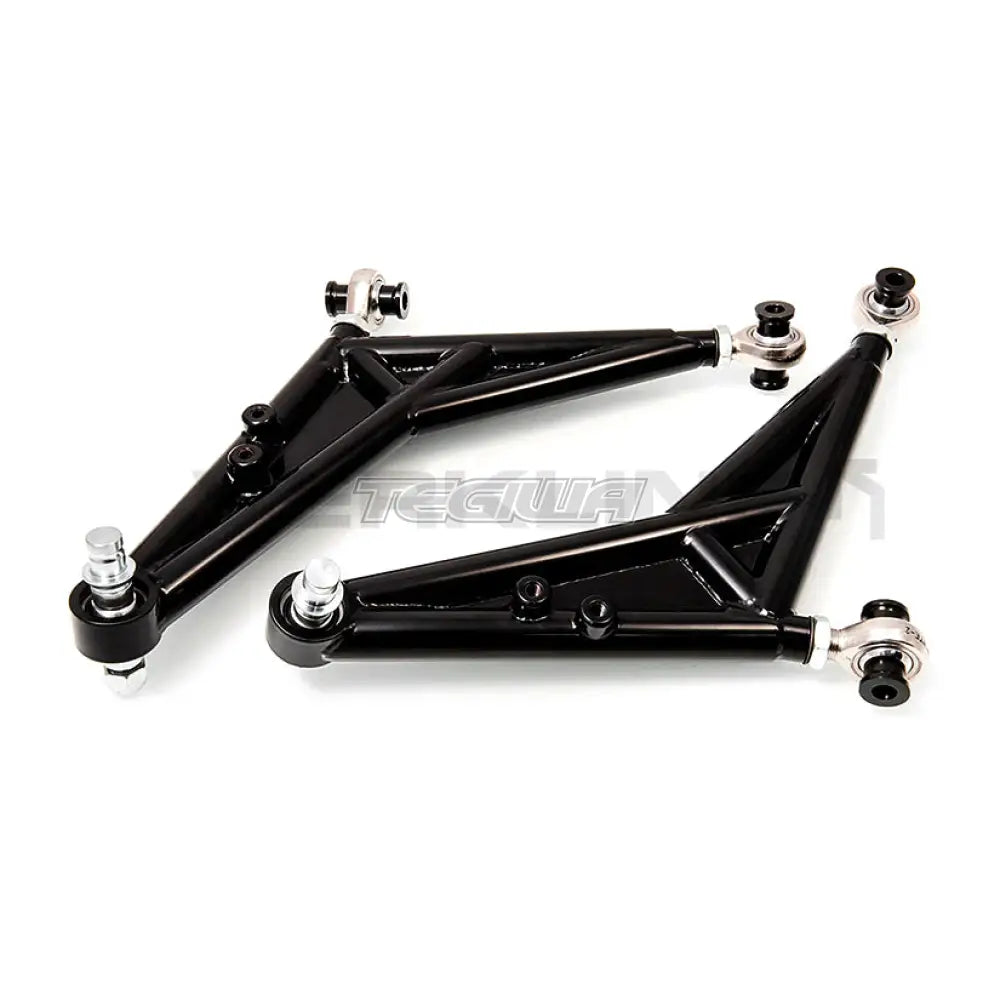

The kit consists of all the parts visible on the pictures:
– Front light weight tubular wishbones (left + right)
– Two adjustable pins for uprighs.
– Four M18 motorsport rod ends same as used by Rally Art. They are made in Europe, not in China.
– Four M18 half size screw locking nuts.
– Four spacer sleeves for assemble of the rod ends in the front subframe.
– Two M22 teflon lined spherical plain motorsport bearings vibration/resonance resistant.
Features:
– Comes preassembled ready for fitment in the car
– Pin is tilted to allow more suspension travel
– Allow increased caster and camber adjustment
– Can be used with standard front subframe
– Greater strength over OEM wishbones
Technical details
– Full 3D CAD designed
– FEA Tested and additional reinforcement to the original design was made
– Manufactured from T45 tubing and S355 steel
– All pins made from C45 and Galvanized Silver
– Tig Welded
OEM wishbone weight is 3.10 kg. Our wishbones are 2.95 kg but provide much more rigidity.
Wishbones are powder painted in black as standard. Other color options available at 50 euro additional cost at customer request. RAL paint code must be provided.
