Mitsubishi Lancer EVO X Front Aluminium Wishbones set

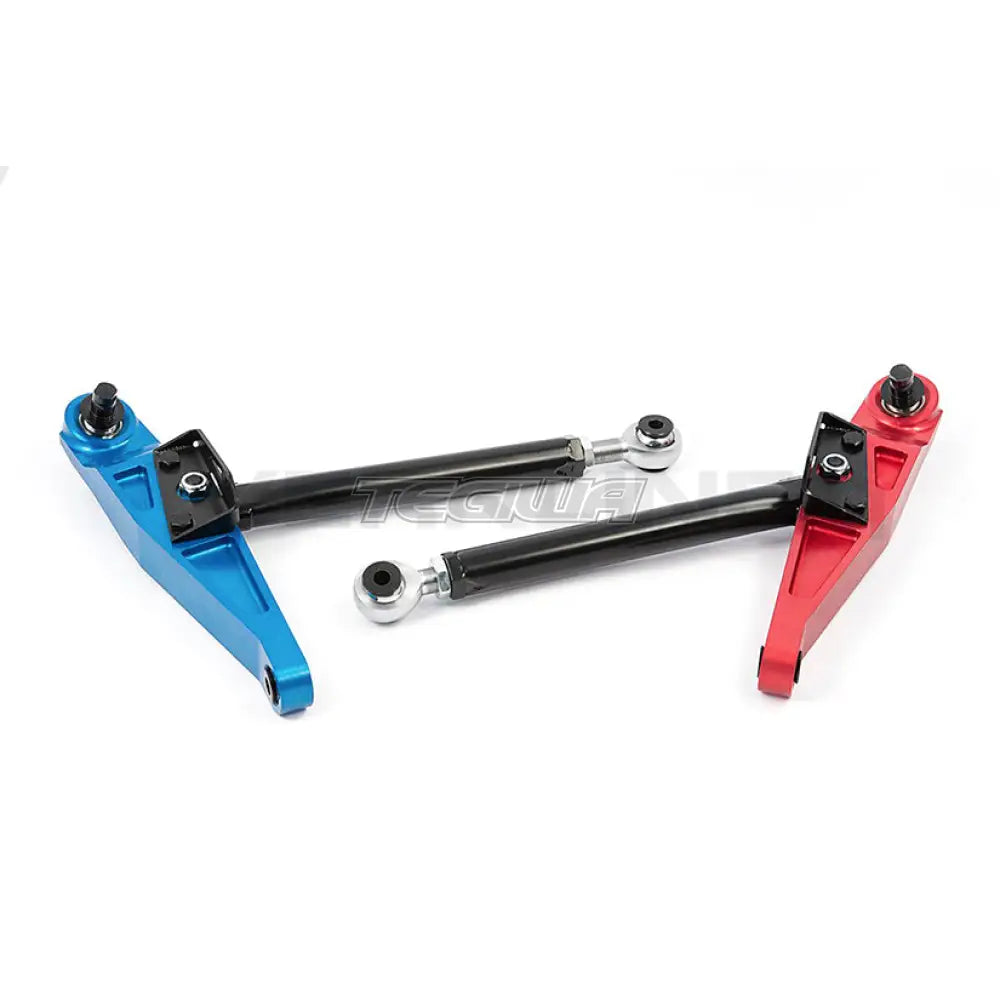

The kit consists of all the parts visible on the pictures:
– Front light weight aluminium wishbones (left + right)
– Two pins for uprighs
– Two M22 motorsport rod ends
– Two M22 half size screws
– Four motorsport bearings
– Two arm antiroll brackets
– Spacer sleeves for assemble of the rod ends in the front subframe
– Six 10.9 bolts used
– Four 10.9 screws used
Features:
– R4 spec front suspension arm
– Comes preassembled ready for fitment in the car
– Allow increased caster and camber adjustment
– R4 rally kit compliant (meats FIA homologation rules for Lancer EVO X)
– Same rod end suppler as for original R4 kit
– Greater strength over OEM wishbones
– Wishbones are anodized in red and blue colors
Technical details
– Manufactured from 7075 aluminium on 5 axis CNC
– T45 pipiing used
– All pins made from C45 and Galvanized Silver
– Tig Welded
– Full 3D CAD designed
– FEA Tested and additional reinforcement to the original design was made
