Mitsubishi Lancer EVO IV-IX Toe Links

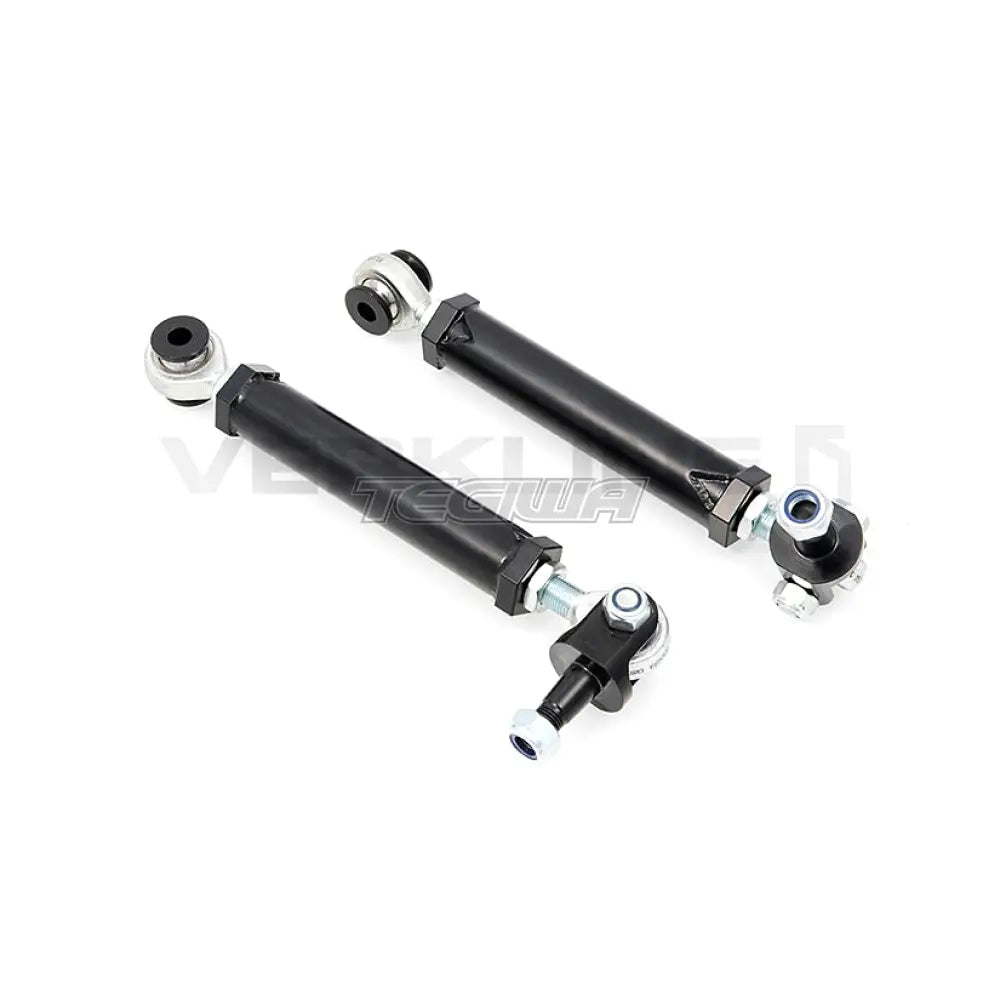

The kit consists of all the parts visible on the pictures:
– Rear light steel T45 35 mm rear toe link wishbones (left + right)
– Two arm fixing C45 steel mounts
– Four M16 rod ends forged steel body, pre-loaded tight fit, motorsport quality
– Four M16 half size screw locking nuts
– Four spacer sleeves for assemble of the arms in the rear subframe
Features:
– Comes preassembled ready for fitment in the car
– R4 rally kit compliant (meats FIA homologatiuon rules for Lancer EVO IX)
– Allows massive increase in toe adjustment
– Can be used with standard front subframe and uprights pickup points
– Greater strength over OEM wishbones
Technical details
– Full 3D CAD designed
– FEA Tested and additional reinforcement to the original design was made
– Manufactured from T45 steel
– Powder painted black
