AVAILABLE FOR ALL AGES OF CAR, INCLUDING 06-09 DRIVE BY WIRE
TTS PERFORMANCE have developed this superb supercharger conversion to give awesome power gains yet better drivability then the standard car. This conversion enables the car to pull hard through its entire power band with no glitches, no fuss, no throttle lag, just seamless power.
This conversion requires very little maintenance. The front mounted inter-cooler optimises the performance by keeping the intake charge temperature down.
The conversion is available for air conditioned and none air conditioned cars. Left or right hand drive. Although the F20/22 engine and transmission is extremely durable, it may be necessary to replace the clutch. This conversion works well with the AEM FIC unit. AEM EMS, Hondata K-pro or Flash-pro.
It is recommended that water/methanol injection is used to maximise the performance gains available. 93 OCTANE (MON X RON/2 METHOD) OR 97 OCT RON. Minimum. 'Power Pour' or similar octane boosters will enhance the performance still further.
Running a full 18psi (1.2bar). It is recommended that a performance clutch is fitted and a minimum of a Decat. 1000 cc injectors and a 340 lt/hr in tank fuel pump are included as part of the kit. With water/methanol injection installed 150% power gains are possible. To upgrade from Supersport to Full Race all that is required is change out the intercooler, pipework, 4 bar map sensor and supercharger pulley.
PERFORMANCE
500+ BHP
295 ft.lb of TORQUE
0-60 less than 5 Seconds
0-100 less than 9 Seconds
1/4 mile less than 12 Seconds
170 mph

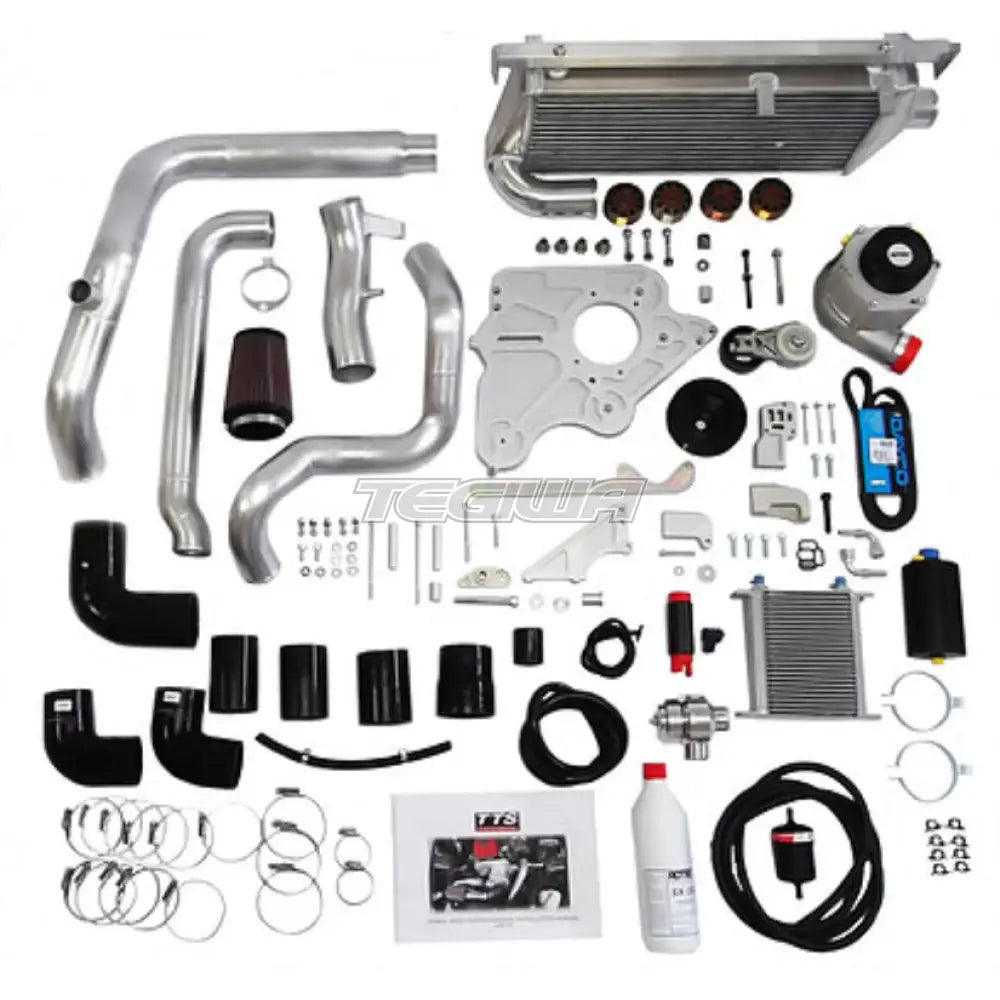

PARTS LIST
- ROTREX C38-91 SUPERCHARGER
- SUPERCHARGER PULLEY
- ALLOY MAIN SUPPORT BRACKET
- MOUNTING BRACKETS AND BOLTS
- 4 X IDLER PULLEYS WITH MOUNTS
- 1560MM DPK 7 RIB BELT
- LIGHTWEIGHT ALLOY CRANK 125MM 7PK PULLEY
- TTS AUTO BELT TENSIONER
- TTS CUSTOM FRONT MOUNTED INTERCOOLER (LARGER FOR FULL RACE)
- TTS AIR FILTER INDUCTION KIT
- ALL ALLOY CONNECTING PIPES
- ALL SILICON HOSES AND CLAMPS
- DEATSCH WERKS INJECTORS AND ADAPTER PLUGS
- AEROMOTIVE FUEL PUMP
- 4 BAR MAP SENSOR (FULL RACE)
- FITTING INSTRUCTIONS
