Notes:FOR EUROPE
Front Spring Rates (kg):10
Rear Spring Rates (kg):8

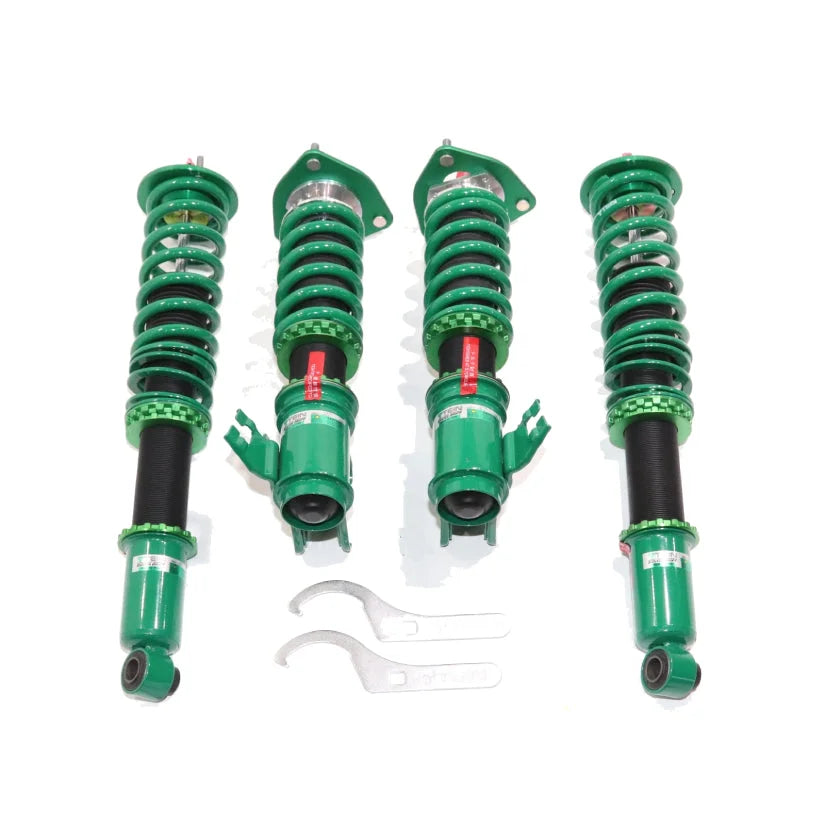

TEIN's support of competition D1 drivers and vehicles has led to the development of Super Drift dampers. Which were specifically developed for the avid drifter. Spring rates and damping force characteristics were chosen to increase car control in a drift, and to aid in initiating a slide. Full length and 16 level damping force adjustment allow suspension tuning for drivers at all skill levels. Pillowball upper mounts with front camber adjustment plates are included*. EDFC compatible for quick and hassle free dampening force changes. Super Drift is the suspension of choice for all levels of drifters.
Additional Features:
- Steel Construction
- Twin Tube internal construction
- Ride Height adjustable via threaded body and spring seats
- 16 way adjustable dampers, compression and rebound combined
- Special damping force curves to improve drift control
- Pillow ball upper mounts for increased steering feel
- Upper camber adjustment on front for strut type vehicles
- Larger piston diameter for strut type front and rear (22mm)
- EDFC (Electronic Damping Force Controller) compatible
- Anodized brackets with Teflon coated shock body for heavy duty rust prevention
Contents of Damper Kit:
- Adjustable Shock Absorber × 4
- Main Spring × 4
- Some applications include helper springs
- Pillow ball Upper Mount × 4
- Lower Spring Seat × 4
- Seat Lock × 8
- Bump Rubber × 4
- Hook Spanner × 2
- Dust Cover × 4
- Instruction Manual × 1
- Sticker Sheet × 1
