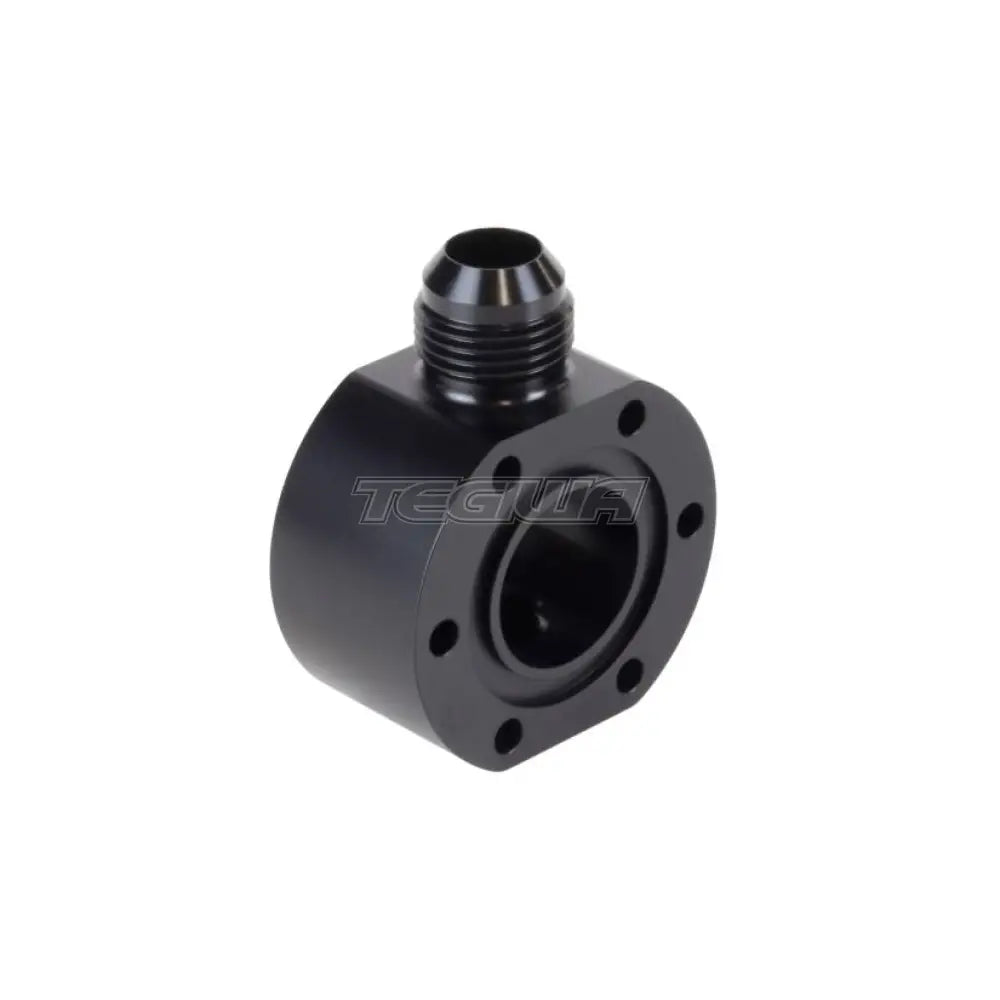

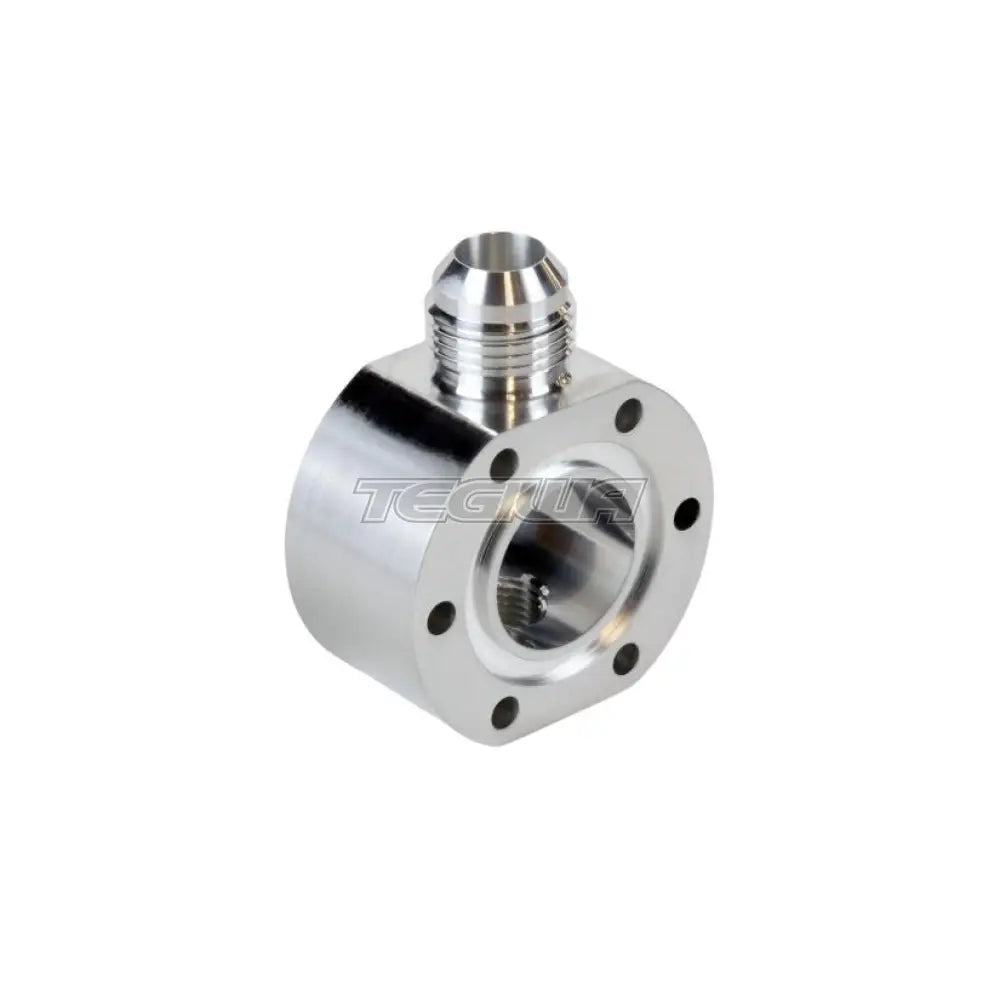

The T7Design AN10/ORB06 heater hose return adapter allows you to run up to 2 additional cooling or heater circuits with your Davies Craig EWP80 or EWP130 pumps. This adapter can be used for heater circuits, water-based oil coolers, Turbo cooling circuits and more. The adapter features a thread milled AN10 male port on one side, and an ORB06 female on the opposite side. The AN10 has the largest ID of both connections and would be the preferred choice for a heater return. AN fittings can be used if you want to run braided hoses, or AN to barb adapters are available to match many sizes of standard rubber heater hose.
FEATURES
- Compatible with Davies Craig EWP80 and EWP130 pumps.
- AN10 Male connection for larger cooling/heating circuits. .
- ORB06 Female connection for smaller cooling/heating circuits, can be blanked with the included ORB06 plug if not required.
- Fully CNC machined from billet 6061-T6 Aluminium; a high strength, low weight alloy.
Kit Contents
Quantity |
Description |
1x |
Billet heater hose adapter block |
1x |
O-Ring |
6x |
M5 x 45mm BZP Cap Head Bolts |
1x |
ORB06 Blanking Plug |
