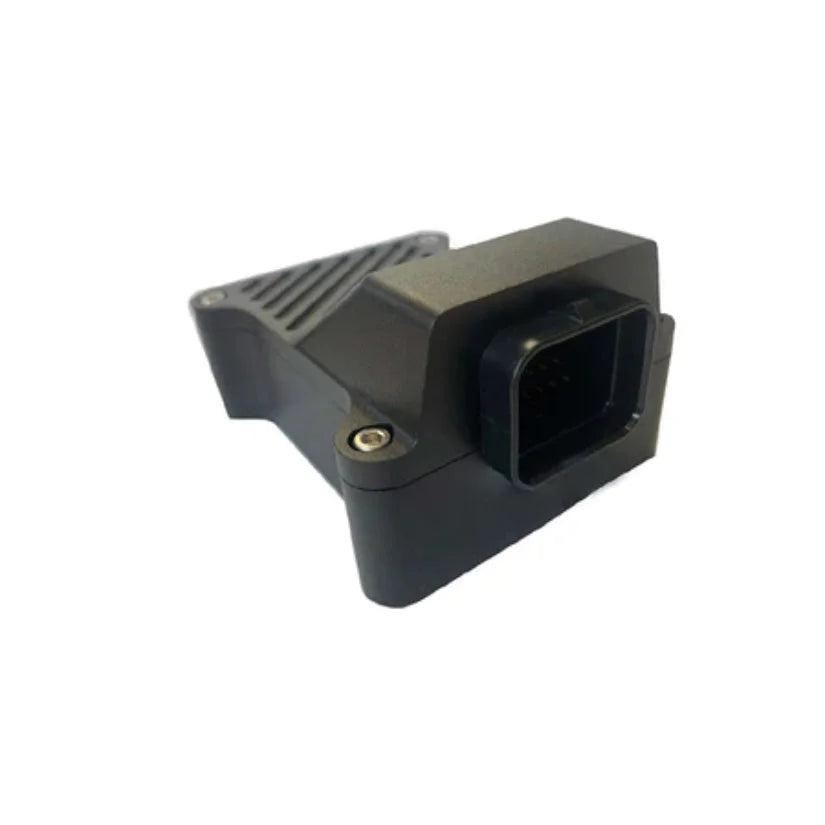

Introducing the Syvecs X4 Expander, a compact yet powerful expansion unit designed to significantly enhance the input and output capabilities of powertrain electronics installations.
Key Features:
Versatile Output Capabilities:
- The X4 Expander features four Half Bridges drivers that can drive Low, High, or be paired as a full bridge motor driver.
- Each of the four H-Bridge Outputs includes a current monitoring circuit that can be strategically employed in Syvecs Engine Controllers or serve as Current Limiting functions in other applications.
Simplified ABS Sensor Reading:
- Four MagnetoResistive circuits make reading ABS sensors found in modern automotive applications effortless.
- Only one side of the sensor needs to be connected to the X4, with the other side connected to Ground.
Flexible Analog Inputs:
- The unit includes four 0-5V analog inputs suitable for monitoring switches, pressure transducers, positional sensors, and more.
- Please note that these inputs do not support frequency detection.
Robust Build Quality:
- Built to withstand demanding conditions and high temperatures, the X4 Expander is a reliable solution for various applications.
- Whether for external Drive By Wire support, electronic wastegates, fuel pump control, and more, the X4 delivers optimal performance.
Enhanced Communication Interfaces:
- Two CAN 2.0B interfaces are equipped on the X4, designed for Slave Control with Syvecs ECU models (S7, S8, S12) or XCan Support for other ECU brands.
- A Kline interface is also included for versatile communication capabilities.
Specifications:
-
Outputs: 4 Half Bridge Outputs (Supports: Full Bridge, Lowside, or HighSide Drive)
-
Current Capacity: 15Amp Peak (100ms) 8Amp Continuous
-
Current Monitoring: Each pin supports current monitoring
-
Inputs: 4 x Analogue or switch inputs (0-5V), 4 x MagnetoResistive Wheel Speed Sensor Inputs
-
Interfaces: USB for Updates and Configuration, 2 x CAN 2.0B interfaces, 1 x Kline Interface
-
Power Supply: 6 to 26V input voltage range, Ignition Switch Logic with high current supply
-
Physical: IP67 Sealed (Automotive Spec), Operating Temperature -40°C to 125°C, 34-way Superseal 1.0 connector, Dimensions: 85mm x 70mm
The Syvecs X4 Expander stands as a powerful solution for expanding the capabilities of powertrain electronics installations, providing advanced output options, simplified sensor reading, and versatile communication interfaces. With its compact and robust design, it's ready to elevate the performance of your vehicle electronics.
