Introduction

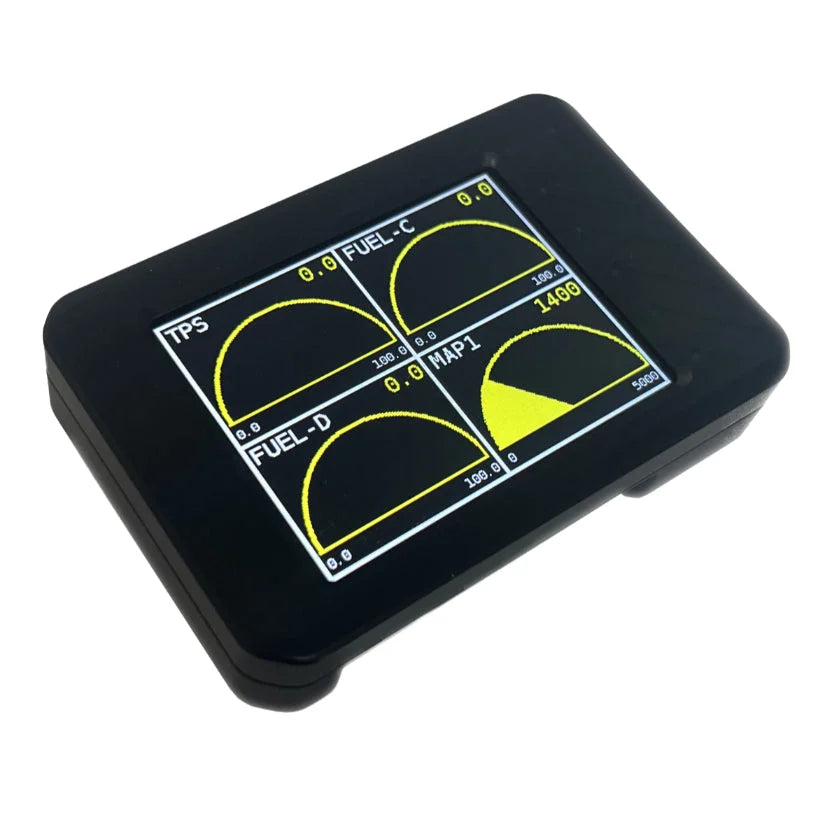

The TinyDash V2 is a compact and powerful display designed to offer customers vital real time information from their vehicles electronics in off-road, In-car and marine environments.
Designed to be used in the harshest environments the TinyDash V2 Includes a pressure resistive touch panel allowing users the ability to change layouts and calibration settings from the panel directly.
TouchScreen
The V2 TinyDash has a resistive touch screen panel allowing users to be able to change the internal CalSelect on the TinyDash, the internal Cal Select as default changes the display layout but also allows for different calibration changes inside the Tinydash for on-board strategies like boost control.
Pressing in each top corner of the screen changes the CalSelect up and down.
Pressing the middle of the screen activates the Map Switching function of the TinyDash and will make the items EcuCalSelect, AlsSelect and TCSelect update. These can these be transmitted by CANBus to your Engine Control Module.
Extensive CAN integration
Syvecs is known industry wide for our OEM/ECU CAN data abilities and the TinyDash is no exception. We have taken our most popular CAN database decoders and placed them within the TinyDash allowing for direct communication to many powertrain CAN buses. This enables users to get information quickly from their vehicle or after-market ECU displayed on the screen without the limitations of the ODBII protocol. A list of supported vehicles/Ecus can be found below.
Should a vehicle/ECU not be listed installers can use our Generic CAN receive and configure their own.
WaterProofing
The V2 version of the TinyDash is now sold in a waterproof case allows it to be used in even tougher environments for ATV and Marine applications
Connectivity
Two low current PWM outputs are included within the TinyDash. These are user configurable via our SCAL software. We have even included a Wastegate strategy and Custom PWM strategy to compliment them.
Three analogue inputs are also onboard, each with software selectable pull-ups and allow for many standard analogue and temperature sensors. It is even possible to send this sensor data to your engine controller via CAN increasing system I/O, for example a Calibration Switch.
Keypad Interface
The TinyDash V2 also has the ability to be a Keypad, allow custom buttons to be created which have the option to be toggled as a momentary button or latched.
These buttons can then be renamed in Scal and assigned to custom maps in Scal or Transmitted over CANBus to other modules.
Customisation, Warnings and Alerts
The TinyDash has many customisable display options allowing for tighter integration into existing vehicle colour schemes along with an adjustable backlight which can be controlled via a CAN or an available analogue input.
Users are also able to configure warnings and alerts for temperature, lambda and more.
Intuitive PC Software
Advanced, yet easy to use software . Flexible Input and Output functions, Full CAN BUS configuration, Alarm setups, Layout adjustments
Firmware and Software gets updated regularly, check out http://www.syvecs.com/forum/ to make sure you have the latest!
Instant Layout Changing
Via the use of wired switches or CAN messages the TinyDash is able to jump between layouts instantly to allow users multiple levels of information
Adjustable Backlight - 15% Brighter on the V2 TinyDash
Adjust the Backlight based on variables into the TinyDash. A 0-100% adjustment is available for Day and Night mode, allowing users to dim the backlight when headlights are on for example
Easy to Mount
The TinyDash V2 can be fitted with many off the shelf 1/4in camera brackets offering a strong and firm installation which still allow access to the USB communication port.
The TinyDash is also a boost controller!
Wire in a Map sensor, Cal Switch and a boost solenoid and enjoy our wastegate control strategies from our ECUs with Closed loop PID targeting and Phase/Antiphase control
Specifications
Outputs
2 x PWM Outputs - 2Amp Peak (100ms) / 1Amp Continuous
1 x 5V Sensor Supply (400ma Max)
Inputs
3 Analogue/Thermistor Inputs (0-5V) with software pull-up
Interfaces
TouchScreen
USB C For Updates and Configuration
1 x CAN 2.0B, user programmable
Power Supply
6 to 26V ignition switched supply
Physical
78mm x 50mm x 20mm
Environmental
High-quality anodised CNC aluminium body with waterproofing
Tyco Spec44 wire ensures a rigorous and long-term use.
