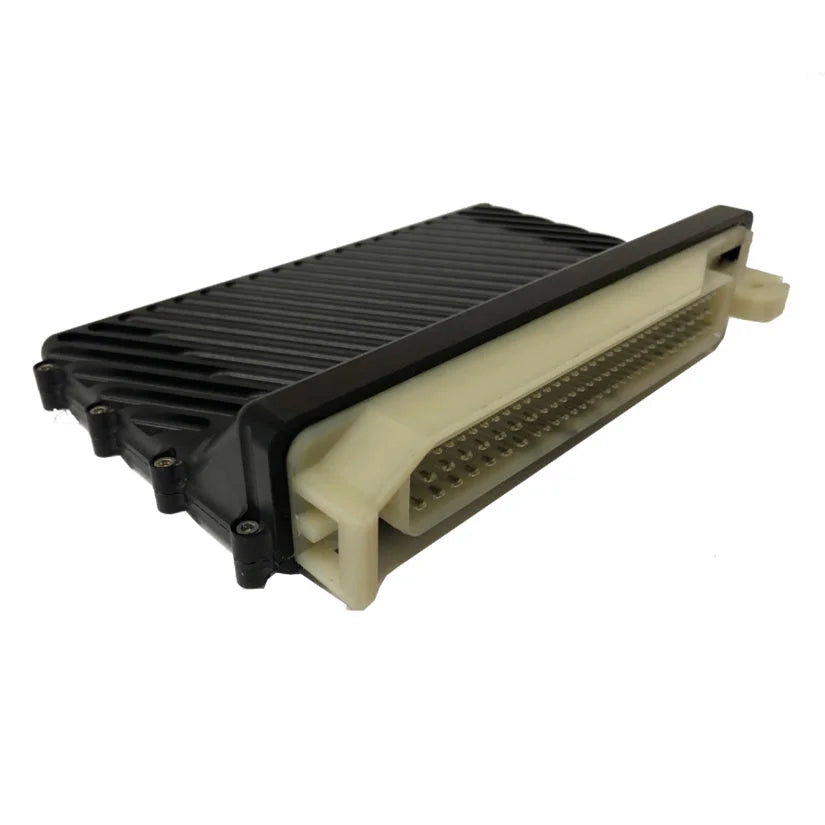

Introducing the S8 ECU: Unrivaled Precision in Engine Management (ECU)
Elevate your engine control with the S8 ECU, delivering an exceptional level of precision. Featuring a twin processor unit, it harnesses a high-speed RISC processor for code execution alongside a substantial FPGA for rapid engine position tracking. This ingenious setup enables code scheduling independent of signal patterns, enhancing flexibility, efficiency, and accuracy, especially in transient conditions. This dynamic synergy empowers advanced control algorithms while maintaining user-friendly mapping capabilities.
Encased in a sealed aluminum billet unit with a single waterproof connector (88 pins), the S8 ECU offers a plethora of features:
Inputs:
- 24 General Purpose Analogue Inputs (16 x 5V/Bipolar, 4 x 5V Sensor, 4 x Thermistor Sensor)
- 2 NTK Lambda Inputs
- 2 K-Type Thermocouple Circuits
- 2 Knock Inputs
Outputs:
- 28 High/Low Side Driver Outputs (4 x Half Bridge, 16 x Low Side Injection/PWM, 8 x TTL / IGBT Ignition Drivers)
Comms:
- 2 x Can 2.0B
- 1 x Rs232 Output
- 100 Mhz Full Duplex Ethernet for PC Programming and Data Download
Additional Highlights:
- Up to 64MB Internal Logging Memory along with Onboard Laptop Logging
- 6 to 20v input voltage range with reverse polarity protection
- 2 x regulated 5V sensor supply outputs with protection
- Operating Temperature -25 to +95°C
Dimensions: 178 x 122 x 36 mm.
Experience precision like never before with the S8 ECU – redefining Engine Management (ECU) for peak performance.
