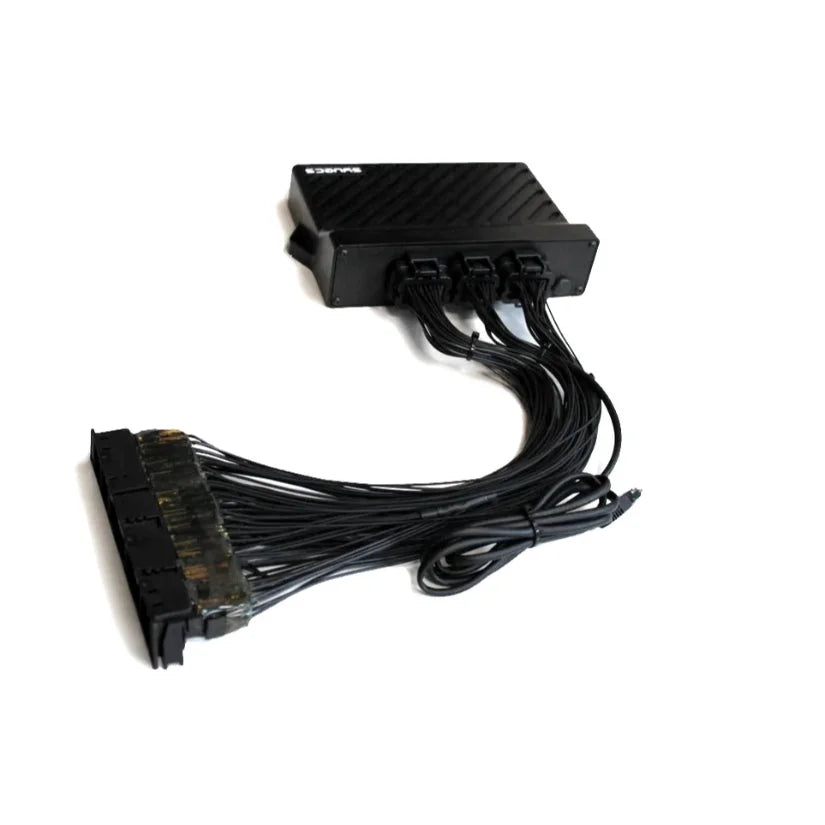

The Syvecs Mercedes M156 PnP kit revolutionizes Engine Management (ECU) control for Mercedes C63 models utilizing the M156 Engine, and also extends compatibility to later M159 engines found in SLS models.
Experience a New Level of Control:
-
Live Tuning: Unlock real-time adjustments to every facet of the engine's calibration.
-
Torque Control: Dynamically adjust Clutch Clamping and Shift points with live torque control tuning.
-
Map Selection: Tailor engine maps, boost levels, traction, and launch control via a 12 Position external switch or OEM Cruise Buttons.
-
Injector Support: Accommodate up to 16 injectors using the X10 Expander.
-
Variable Valve Timing Control: Master Full Variable Valve Timing control for optimized performance.
-
Cruise Control: Enjoy effortless speed maintenance with Cruise Control capability.
-
Full Integration: Seamlessly communicate with all other control modules in the vehicle.
-
Supercharger Bypass Control: Opt for Supercharger Bypass Control when required.
-
Launch Control: Customize launch strategies with Anti-lag capabilities and Ramp in Maps.
-
Dual Closed-Loop Lambda Control: Achieve precise air-fuel ratios using OEM Sensors.
-
Flex Fuel Control: Embrace flexible fueling with Flex Fuel control capabilities.
-
Rolling Antilag: Implement Rolling Antilag for boost buildup on the move.
-
Closed-Loop Boost Control: Attain fine-tuned boost control with launch adjustments and trims, accounting for turbo speed, air charge, coolant temp, and exhaust gas temperatures.
-
Exhaust Gas Temperature Monitoring: Monitor and adjust exhaust gas temperatures for enhanced performance.
-
Built-in Data Logging: Capture and analyze data with built-in data logging, supporting up to 8 hours of recording at data rates of up to 1000Hz.
-
Anti-Theft and Valet Modes: Secure your vehicle with built-in antitheft and valet modes.
-
Global Connectivity: Enjoy worldwide live tuning capabilities through the RJ45 Ethernet port, including remote tuning on tracks with wireless connectivity.
-
Advanced Traction Control: Refine traction control strategies based on lateral G, GPS Speed, or individual wheel speed monitoring.
-
Selectable Target Slip Maps: Opt from 4 programmable target slip maps, instantly applying torque reduction via ignition retard or fuel cut.
-
Engine Safety Trips: Configure critical engine safety parameters such as oil temperature, oil pressure.
-
Fuel Pump Control: Manage main and relative fuel pressure, with monitoring and limiting during boost.
-
Pedal to Throttle Mapping: Tailor pedal to throttle mapping using 4 customizable maps, accessible through steering wheel buttons.
-
Individual Cylinder Knock Control: Adjust knock control for each cylinder with frequency, listening windows, and gains customization. Trigger full cylinder shutdown in severe knock conditions.
-
Torque Ramp Adjustment: Optimize torque ramp after launch for improved performance.
-
Sensor Integration: Seamlessly integrate external sensors for safety and monitoring.
-
DBW Throttle Body Compatibility: Support any DBW throttle body size, including options like the Chevrolet LS7.
-
Nitrous Control: Manage Wet and Dry nitrous systems, controlling solenoids and n20 heaters via pressure monitoring.
-
External Feature Control: Effortlessly manage external vehicle features based on sensor inputs, such as adjustable rear wings linked to G force or exhaust control valves.
-
Dash Connectivity: Connect to race series dashboards or partner Touchscreen CANBUS adjustment/display units.
-
Live Data Monitoring: Gain real-time insights using the built-in scope functionality, providing live views of inputs up to 1000Hz.
Elevate your Mercedes C63's performance with the Syvecs Mercedes M156 PnP kit, delivering unmatched control, power, and capability both on the road and track.
