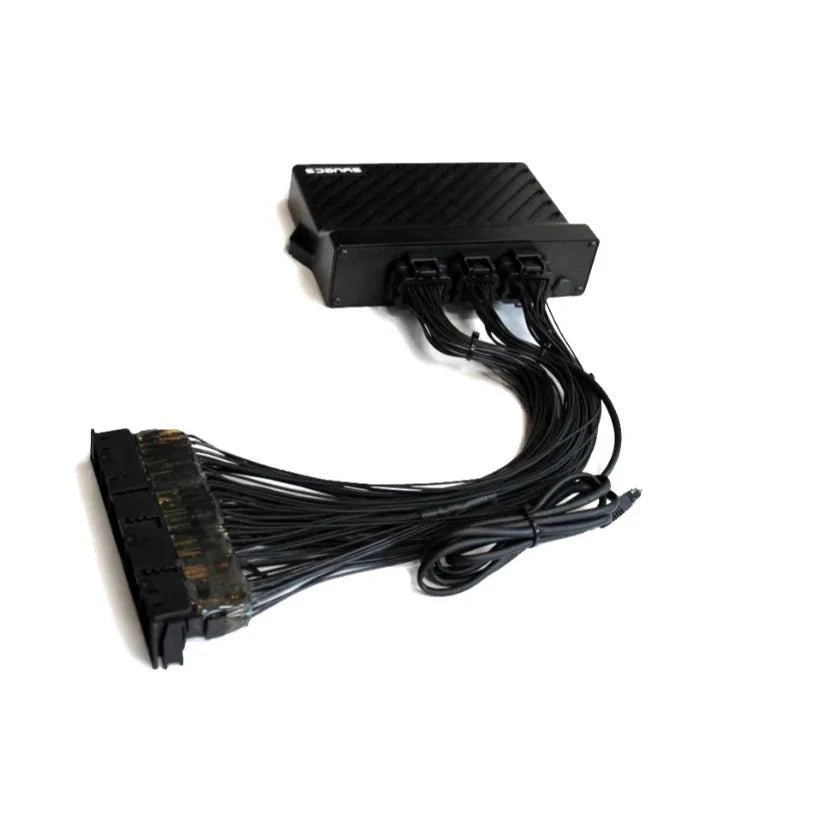

The Syvecs McLaren 720 Kit introduces an unparalleled level of Engine Management (ECU) control to the McLaren 720 platform, whether in factory configuration or for the most demanding motorsport applications.
Key Features of the Syvecs McLaren 720 Kit:
-
Live Tuning: Seamlessly adjust every facet of the engine's calibration in real time.
-
Torque Control: Fine-tune torque limiters and clutch clamping with live tuning capabilities.
-
Map Selection: Easily choose engine maps, boost levels, traction, and launch control via an External 12 Position switch or OEM Drive Mode buttons.
-
Adjustable Launch Control: Optimize launch strategy based on Speed, GPS, or Time parameters.
-
Torque Reduction Strategies: Refine torque reduction tactics for shifting, complete with clutch slip monitoring.
-
Clear DTCs: Effortlessly clear Diagnostic Trouble Codes using Syvecs Software.
-
Dyno Mode Activation: Enable Dyno Mode directly from the Syvecs Software.
-
16 Injector Support: Facilitate up to 16 injectors with the X10 Expander.
-
Flex Fuel Control: Enjoy dynamic Flex Fuel capabilities with on-dash ethanol content display.
-
Rolling Antilag: Implement Rolling Antilag strategies for boost buildup on the move.
-
Variable Valve Timing Control: Fine-tune Variable Valve Timing for peak performance.
-
Cruise Control: Maintain speed effortlessly with Cruise Control functionality.
-
Full Integration: Seamlessly interact with all other control modules in the vehicle.
-
Dual Closed-Loop Lambda Control: Ensure optimal air-fuel ratios using OEM Sensors.
-
Closed-Loop Boost Control: Attain complete mastery over boost levels with launch adjustments and various trims.
-
Exhaust Gas Temperature Monitoring: Monitor and trim exhaust gas temperatures for enhanced performance.
-
Built-in Data Logging: Utilize advanced data logging capabilities with up to 8 hours of analysis and data rates up to 1000Hz.
-
Anti-Theft and Valet Modes: Secure your vehicle with built-in antitheft and valet modes.
-
Global Connectivity: Rapidly connect worldwide via the RJ45 Ethernet port, facilitating live tuning even remotely or on track with a wireless unit.
-
Advanced Traction Control: Customize traction control strategies based on lateral G, GPS Speed, and individual wheel speed.
-
Selectable Target Slip Maps: Choose from 4 programmable target slip maps, applying instant torque reduction.
-
Engine Safety Trips: Configure essential engine safety parameters such as oil temperature, oil pressure, Lambda, fuel pressure, and crankcase pressure.
-
Fuel Pump Control: Manage both main and relative fuel pressure, with monitoring and limiting during boost.
-
Pedal to Throttle Mapping: Fine-tune pedal to throttle mapping with 4 customizable maps, accessible via steering wheel buttons.
-
Individual Cylinder Knock Control: Tailor knock control for each cylinder, with frequency, listening windows, and gains adjustments. Trigger full cylinder shutdown in severe knock conditions.
-
Torque Ramp Adjustment: Modify torque ramp after launch for optimized performance.
-
Sensor Integration: Seamlessly incorporate various external sensors for safety and monitoring purposes.
-
DBW Throttle Body Compatibility: Support any size DBW throttle body, including models like Chevrolet LS7.
-
Nitrous Control: Manage Wet and Dry nitrous systems, controlling solenoids and n20 heaters via pressure monitoring.
-
External Feature Control: Effortlessly manage external vehicle features based on sensor inputs, such as adjustable rear wings linked to G force or exhaust control valves.
-
Dash Connectivity: Connect to race series dashboards or partner Touchscreen CANBUS adjustment/display units.
-
Live Data Monitoring: Gain real-time insights through built-in scope functionality, providing live views of inputs at up to 1000Hz.
The Syvecs McLaren 720 Kit redefines control, performance, and capability for the McLaren 720 platform. Experience unmatched driving excellence on both the road and the track with this groundbreaking Engine Management (ECU) solution.
