Presenting the S7-Plus ECU: Precision and Performance Redefined
Unlock unparalleled Engine Management (ECU) control with the S7-Plus ECU. Equipped with a triple processor unit, it leverages a high-speed RISC processor for code execution and a sizeable FPGA for rapid engine position tracking. This synergistic blend allows code scheduling independent of signal patterns, enhancing flexibility, efficiency, and accuracy, even in dynamic conditions. While boasting advanced control algorithms, it remains user-friendly via our SCal software and S7 Firmware.
Built to cater to Plug and Play (PnP) kits, the S7-Plus is tailored for clients seeking programmable CAN Bus and Drive-By-Wire support.
The third processor empowers future users to create custom C code for Full Vehicle Integration via Canbus, handling unique OEM-like requirements. Though currently exclusive to Syvecs staff, this feature will soon be extended to all our dealers.

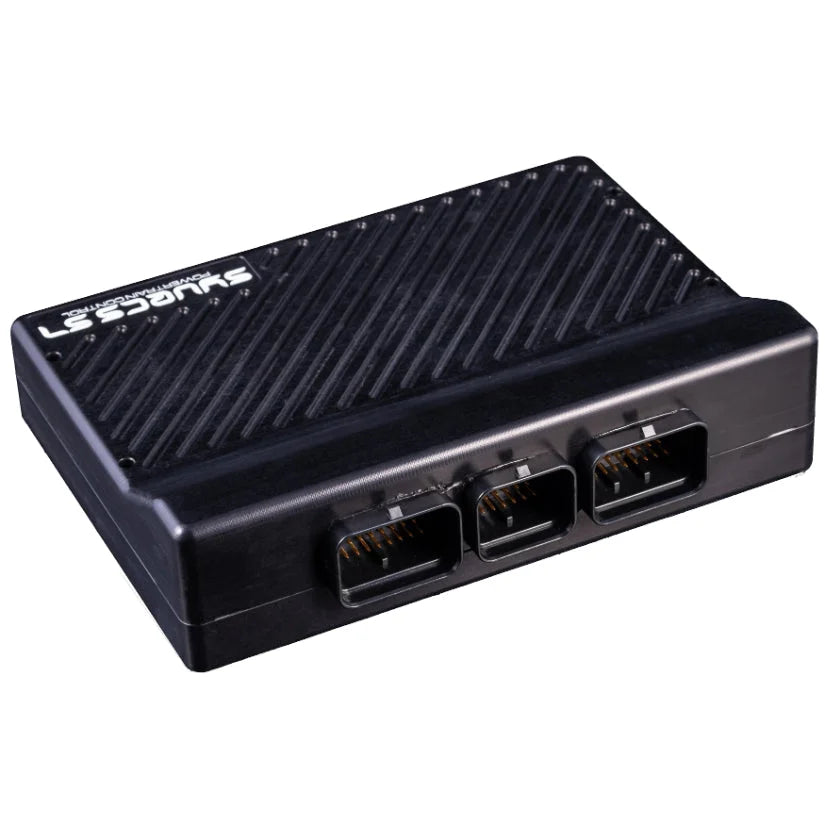

Enclosed in a sealed aluminum billet unit featuring 3 waterproof connectors (94 pins), the S7-Plus showcases an array of attributes:
Inputs:
- 22 General Purpose Analogue Inputs (5V/Bipolar, Thermistor, Sensor)
- 2 NTK / LSU4.9 / Denso AF Lambda Inputs
- 1 K-Type Thermocouple Circuit (Two available if not using 2nd Canbus)
- 2 Knock Inputs
Outputs:
- 30 High/Low Side Driver Outputs (Half Bridge, Low Side Injection/PWM, TTL / IGBT Ignition Drivers)
- Main Relay Control Circuit with Wake on Can Support
Comms:
- 3 x Can 2.0B (3rd CanBus for EGT1 Pins, Custom Use Only)
- 1 x Rs232 Output
- 1 x Kline Output
- 100 Mhz Full Duplex Ethernet for PC Programming and Data Download
Furthermore, the ECU houses 32mb onboard logging memory, operates within a 6 to 20v input voltage range with reverse polarity protection, and offers three regulated 5V sensor supply outputs with protection. Its temperature range spans from -55 to +125°C.
Dimensions: 185 x 145 x 55 mm.
Experience precision and performance like never before with the S7-Plus ECU – your ultimate Engine Management (ECU) solution.
