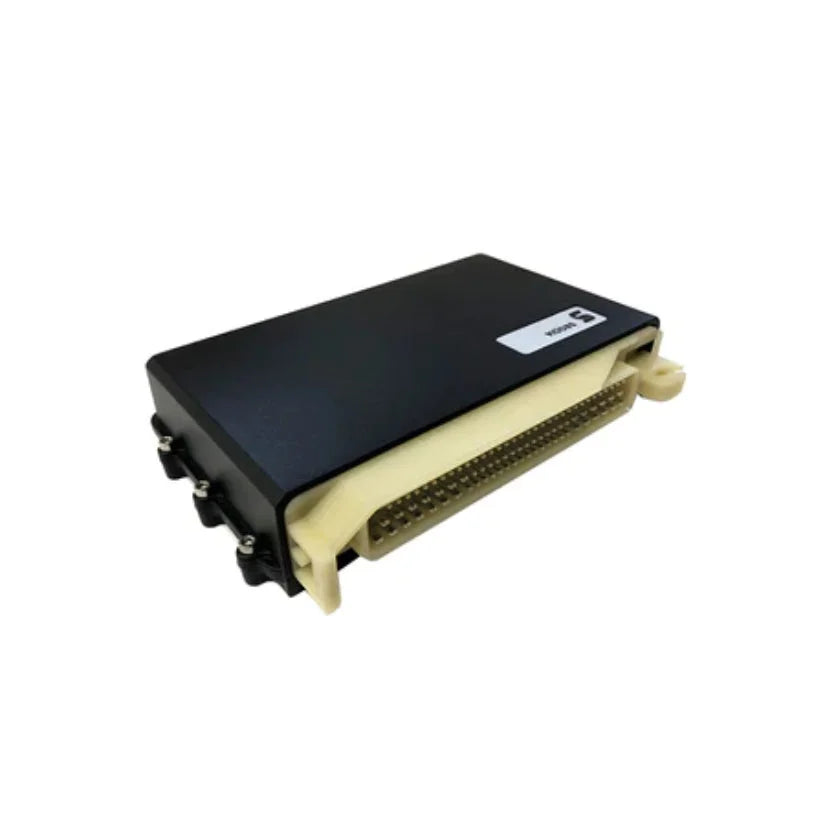

The Syvecs Plug-and-Play ECU Kit for the Toyota GR Yaris offers a comprehensive and uncompromising solution for Engine Management (ECU) control. Whether you're starting from a factory car or taking your GR Yaris to the highest level of motorsport, this kit is designed to provide superior control and performance. Litchfield has collaborated with Syvecs in the development of this powerful ECU and has firsthand experience with its implementation, offering a demonstrator with this ECU installed. Here's a detailed look at what the Syvecs Toyota GR Yaris ECU Kit brings to the table:
-
Full Direct Fit ECU Kit: The Syvecs ECU kit is seamlessly integrated with the Toyota GR Yaris, offering a plug-and-play solution that doesn't compromise on performance.
-
Maximized Performance: With the standard ECU unable to be tuned in the short term, the Syvecs ECU provides a complete solution for owners seeking to maximize performance. It can be easily reprogrammed as additional modifications are made to the vehicle.
-
Detailed Data Logging: The Syvecs ECU comes with advanced data logging capabilities, allowing tuners and drivers to quickly download and review engine performance data.
-
No Dash Warning Lights: The installation of the Syvecs ECU doesn't trigger additional warning lights on the dashboard. Different map settings are displayed on the original equipment (OE) dashboard. For cars equipped with a flex fuel sensor for ethanol usage, the ECU displays the ethanol content percentage on the instrument gauge.
-
Flex Fuel Control: The ECU supports flex fuel control, and the ethanol content is displayed on the dashboard.
-
AWD Control: The ECU enables live tuning of torque control, including adjustments to torque limiters and all-wheel-drive (AWD) operation. It also provides AWD duty and temperature monitoring. An additional standalone AWD controller is available as well.
-
Launch Control: Adjustable launch control strategies are available based on speed, GPS, or time, offering enhanced launch performance.
-
Direct Injection and Port Injection Control: The ECU provides control over both direct injection and port injection systems for optimized fuel delivery.
-
Electronic Wastegate Support: Electronic wastegate control is supported, contributing to efficient turbocharger operation.
-
IMT Functional: The ECU supports the functionality of the intake manifold tuning (IMT) system.
-
Easy Installation: The Syvecs ECU can be installed without cutting factory wires or routing cables into the cabin.
-
Additional I/O Options: The ECU offers additional input/output options via a 26-way header, including K-Type input, GDI injector output, NTK/LSU input, CAN bus connections, and spare outputs.
-
Flat Foot Shifting: Flat foot shifting functionality is integrated for seamless gear shifts.
-
Engine Safety Trips: Configure engine safety trip parameters for critical factors such as oil temperature, oil pressure, lambda (air-fuel ratio), fuel pressure, and crankcase pressure.
-
Built-In Data Logging: The ECU includes 64MB of built-in data logging capacity, supporting sampling rates of up to 1kHz for over 8 hours of data collection.
Litchfield, renowned for its expertise in Syvecs tuning, offers a full installation and mapping service to ensure that the Syvecs ECU is tailored to your GR Yaris for optimal performance. This plug-and-play ECU kit redefines Engine Management (ECU) control, enabling you to extract the most from your Toyota GR Yaris. Experience a new level of customization, control, and driving pleasure with the Syvecs Toyota GR Yaris ECU Kit.
