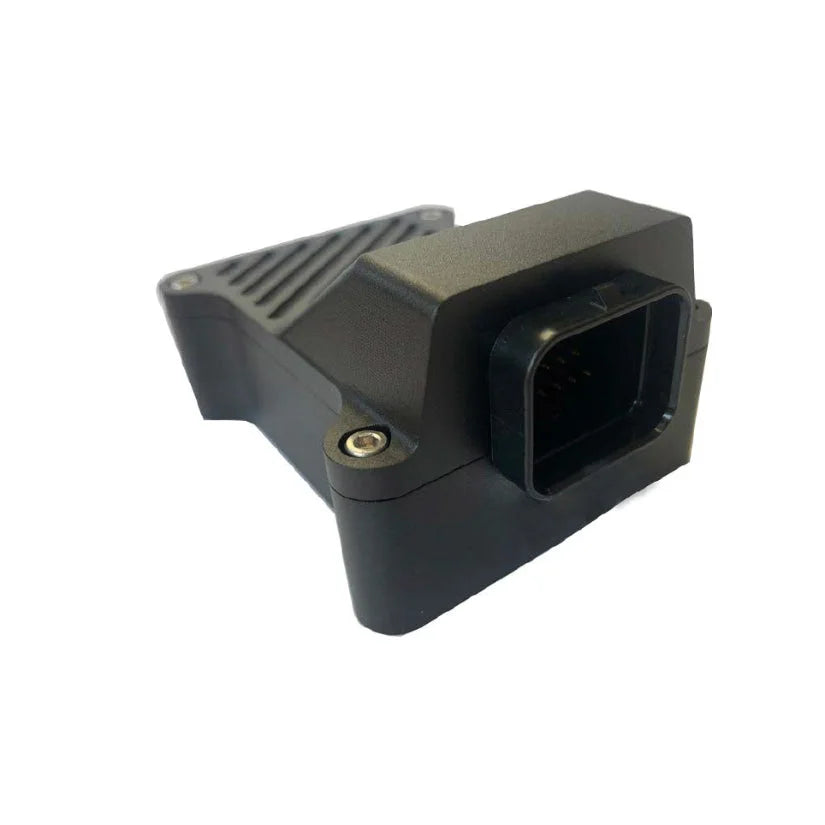

The Syvecs KT8 V2 Can Module is a specialized device designed to enhance the data acquisition capabilities of Syvecs engine control units. This module is built to accurately read temperature data from up to 8 K Type thermocouple sensors and transmit the readings over a CAN-bus connection, which operates at either 1 Mbps or 500 kbps.
Key Features:
1. Thermocouple Sensor Readings:
- The KT8 V2 Can Module is equipped with 8 channels, allowing it to read temperature data from 8 K Type thermocouple sensors simultaneously.
- K Type thermocouples are commonly used for measuring high-temperature environments, making them suitable for applications such as exhaust gas temperature monitoring.
2. CAN-bus Communication:
- The module utilizes the CAN-bus protocol to transmit temperature data to a Syvecs engine control unit or other compatible devices.
- CAN-bus is a widely used communication protocol in the automotive industry, known for its reliability and efficiency in transmitting data between different components of a vehicle's electronic systems.
3. Low Side Outputs:
- The KT8 V2 Can Module features 4 low side outputs that can be used to control low-current devices such as relays.
- These outputs provide additional functionality by allowing the module to interact with other components or systems in the vehicle.
4. Rugged Design:
- The module is built to withstand harsh environments and is housed in a lightweight CNC billet aluminum case.
- The included 34-way Superseal connector ensures a secure and reliable electrical connection.
5. Temperature Range:
- The KT8 V2 Can Module is capable of measuring temperatures in the range of 0°C to 1250°C, which covers a wide spectrum of temperature applications.
Benefits and Applications:
1. Data Acquisition and Analysis:
- The module enhances data acquisition capabilities by providing real-time temperature readings from multiple points in the vehicle.
- This temperature data can be used for analysis, diagnostics, and tuning purposes, contributing to optimal engine performance and safety.
2. Exhaust Gas Temperature Monitoring:
- K Type thermocouples are commonly used for measuring exhaust gas temperatures, which is crucial for performance tuning and monitoring engine health.
3. Customization and Integration:
- The module's ability to transmit data over CAN-bus allows for easy integration with Syvecs engine control units and other compatible devices.
- Customization of the data analysis and presentation can be done using appropriate software and interfaces.
In summary, the Syvecs KT8 V2 Can Module is a powerful tool for accurately measuring and transmitting temperature data from K Type thermocouple sensors. With its rugged design, CAN-bus communication capabilities, and low side outputs, the module provides valuable information for performance tuning, diagnostics, and monitoring of various temperature-sensitive components in a vehicle.
