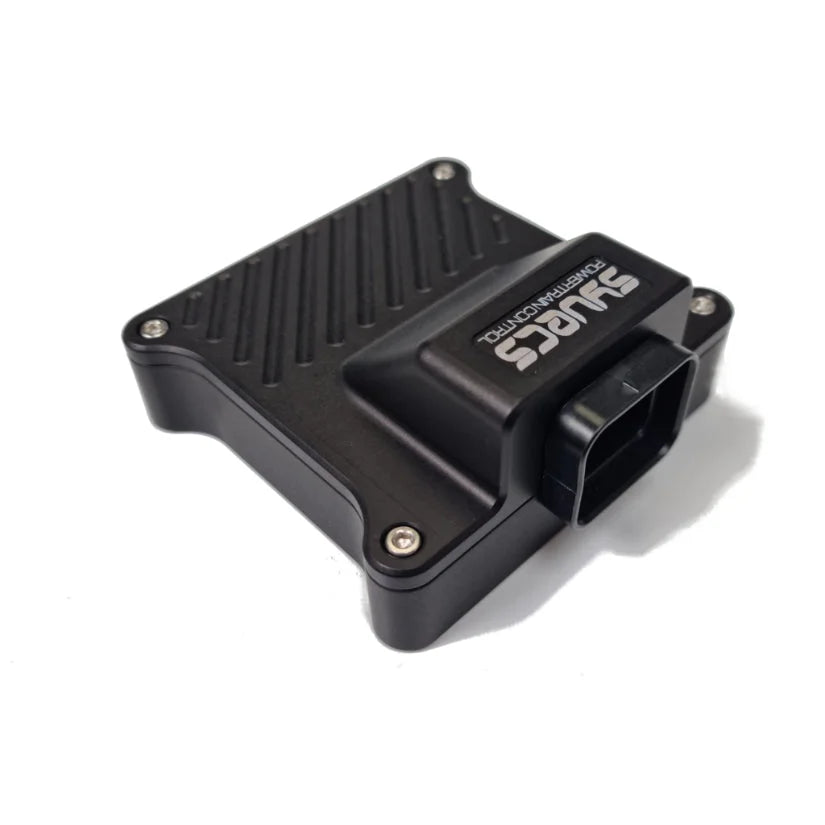

Introducing the Syvecs Generic AWD Controller, a versatile and high-performance unit designed for precision control of 4WD/AWD systems in both OEM and motorsport applications.
Key Features:
Universal Compatibility:
- The compact Generic AWD Controller seamlessly integrates into various vehicles through its configurable CANbus communication system.
- Real-time data from OEM and aftermarket systems is harnessed to execute precise operational and monitoring strategies, delivering accurate control of AWD/4WD systems.
Enhanced Functionality:
- The controller supports additional sensor integration, enabling features such as AWD Temperature, AWD Pressure, Axle Speeds, and more to further enhance performance and safety.
Custom CANbus Transmit Options:
- Advanced users have the capability to set up custom CANbus transmit options, allowing for the transmission of bits or bytes on the CANbus.
- This can be used to maintain compatibility with OEM systems, trigger warning lights, implement torque limits, and more.
Robust Output Capabilities:
- The unit features four Half Bridges drivers with low or high driving capabilities, accommodating up to 15 amps peak/8 amps continuous per output.
- Pin Sharing on specific outputs increases current capacity to 16 amps with paired outputs.
Integrated Safety Measures:
- Each Half Bridge Output includes current monitoring, contributing to the protection strategy by detecting correct solenoid operation.
- Limp flags or CAN messages are triggered in scenarios such as absence of current flow or short circuits, enhancing safety and responsiveness.
Versatile Input Options:
- Four 0-5V analogue inputs, with optional 3k 5V pull-up, cater to external components like 2WD switch, Adjustment Pot, AWD Temperature, and AWD Pressure.
- Four Magneto Resistive inputs are designed to capture speed signals from magnetoresistive 2-wire hall speed sensors.
Integrated IMU Sensor:
- A 6-Axis IMU sensor provides real-time acceleration data, which can be employed in strategies or monitored directly.
Comprehensive Adjustability:
- A multitude of maps are available, including Base Duty Tables, Adders with enable maps, Multipliers with enable maps, and various other control and safety parameters.
- The unit supports adjustments related to steering angle, AWD temperature, AWD pressure, manifold pressure, gear, post-shift, and more.
Specifications:
-
Outputs: 4 X Half Bridge Outputs
-
Current Capacity: 15Amp Peak (100ms) 8Amp Continuous
-
Current Monitoring: Each pin supports current monitoring
-
Pin Sharing: Available on specific outputs for increased current handling (16 amps)
-
Inputs: 4 x Analogue or switch inputs (0-5V), 4 x MagnetoResistive Circuits
-
Interfaces: USB for Updates and Configuration, 1 x CAN 2.0B interface, 1 x Kline Interface, 6-Axis IMU Chip
-
Power Supply: 6 to 26V input voltage range, Ignition Switch Logic with high current supply
-
Physical: IP67 Sealed (Automotive Spec), Operating Temperature -40°C to 125°C, 34-way Superseal 1.0 connector, Dimensions: 88mm x 89mm x 40mm
The Syvecs Generic AWD Controller epitomizes adaptability and performance, serving as a cornerstone for enhancing 4WD/AWD systems across a spectrum of applications. Experience unparalleled control and precision like never before.
