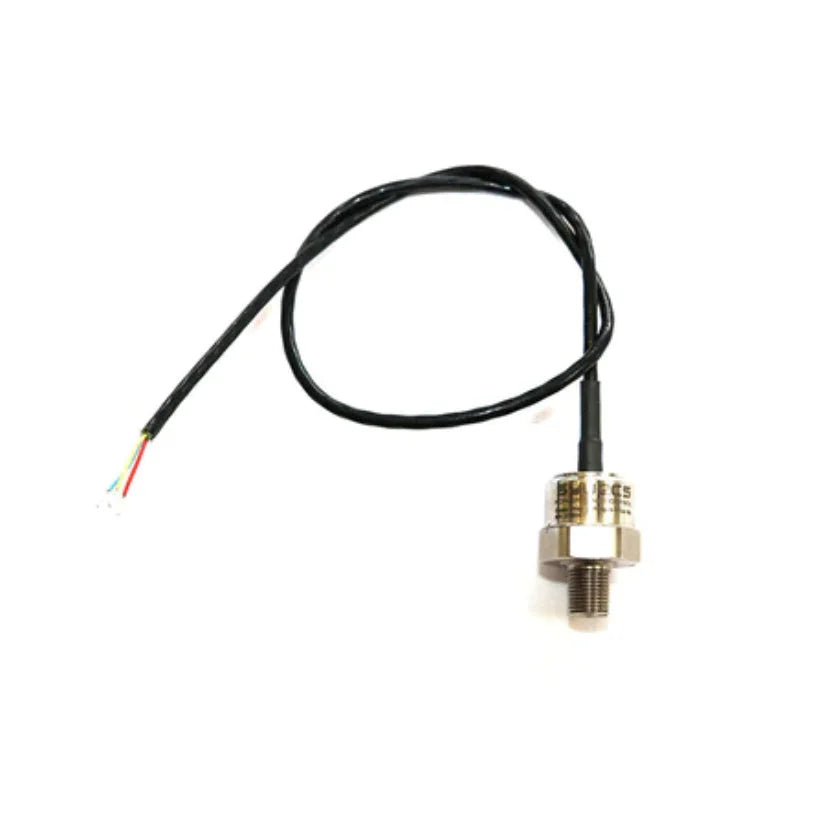

The high-quality fluid pressure sensor is engineered to provide accurate pressure measurements in both oil and fuel applications.
Key Specifications:
Process Connection:
- The sensor features a 1/8 inch NPT male process connection, ensuring compatibility with common thread types.
Safe Over Range:
- The sensor is capable of withstanding pressures up to 150% of its rated range, ensuring reliability even in high-pressure situations.
Burst Pressure:
- The sensor's burst pressure exceeds 300% of its rated range, adding an extra layer of durability and safety.
Accuracy:
- The sensor offers an accuracy of 0.5% full scale (FS), delivering precise and reliable pressure measurements.
Thermal Effects:
- The sensor's thermal effects are minimal, with zero shifting by only 0.04% FS per degree Celsius change.
Output Signal:
- The sensor produces an output signal ranging from 0.5V to 4.5V, providing compatibility with various data acquisition systems.
Supply Voltage:
- Operating on a 5V supply voltage, the sensor is suitable for standard automotive electrical systems.
Operating Temperature Range:
- The sensor is designed to operate within a specific temperature range, ensuring its performance in various environments.
Construction:
- Constructed from stainless steel, the sensor offers durability and resistance to corrosion.
Electrical Connection:
- The sensor comes with a 50cm 26AWG screened cable for convenient electrical connections.
Protection Class:
- With an IP67 protection class rating, the sensor is sealed against dust and water, ensuring reliable performance in challenging conditions.
Weight:
- The sensor has a weight of 34g, making it lightweight and suitable for various applications.
This fluid pressure sensor is a versatile solution for accurately monitoring pressure in oil and fuel systems. Its robust construction, accurate measurements, and compatibility with various systems make it an essential component for ensuring proper fluid pressure management and performance optimization.
