The full range knock sensor is a critical component for detecting engine knock or detonation, helping to ensure optimal engine performance and longevity.
Key Specifications:
Working Frequency Range:
- The knock sensor operates within a frequency range of 1Hz to 20Hz, allowing it to detect a wide spectrum of engine knock signals.
Installation:
- The sensor is installed using an M8 bolt onto the engine block. Proper installation requires the sensor to be tightened to a torque of 20 Nm, ensuring secure and accurate placement.
Included Components:

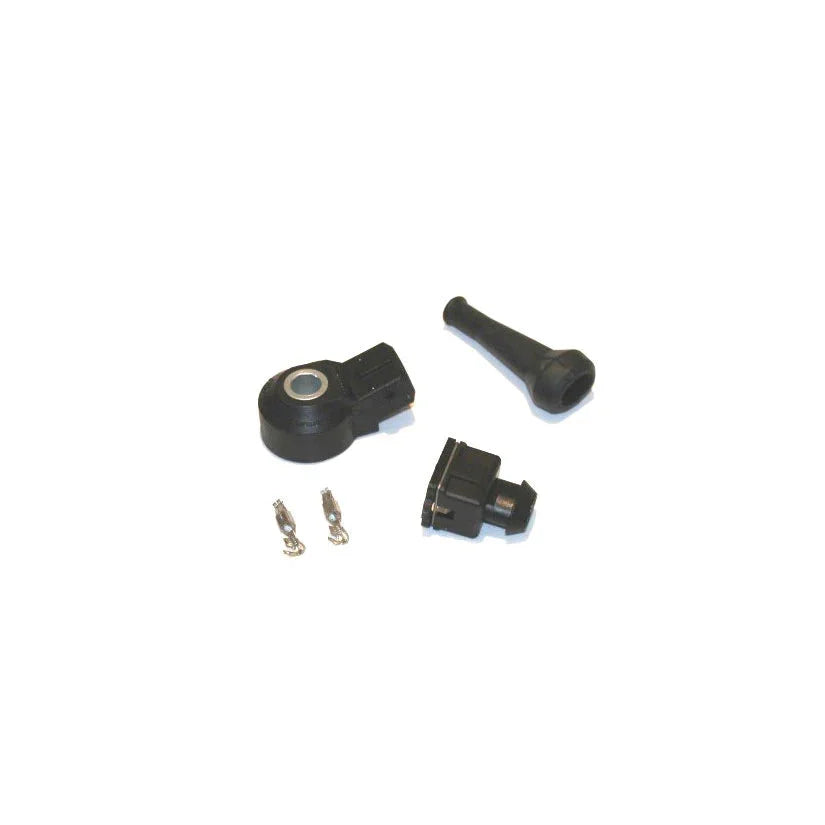

- The knock sensor comes complete with a mating connector and pins, simplifying the installation process and ensuring a reliable electrical connection.
The knock sensor plays a crucial role in monitoring the engine's combustion process and detecting any irregularities that could lead to engine knock. By detecting knock in its early stages, the sensor helps prevent potential damage and supports the engine's overall health and performance. The wide working frequency range ensures that a variety of knock events can be accurately detected and analyzed.
