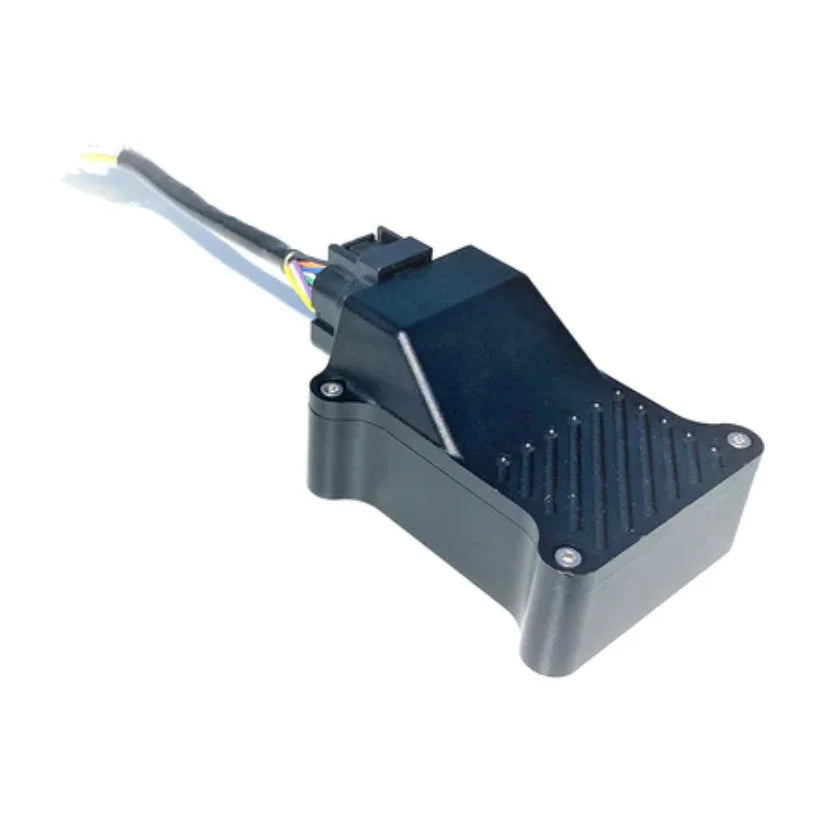

Introducing the Syvecs AWD Module for the Huracan and R8 Gen2, a cutting-edge standalone AWD/4WD/Centre Diff controller designed to revolutionize AWD system control. This module empowers users to unleash the full potential of their powertrain, optimizing control for unparalleled performance.
Key Features:
Unlock Control Potential:
- Replace restrictive OEM controllers with the Syvecs AWD Module to access a new level of control over AWD/4WD solenoids/motors, with the capacity to manage up to 30 Amps through pin sharing logic.
Enhanced Control Strategies:
- Syvecs AWD Module replicates OEM CAN information and captures essential variables from the OEM CAN network, such as Steering Angle, Brake Pressure, RPM, Throttle Position, Lateral G, Yaw, Longitudinal G, Speed, Temperatures, and mode switches.
Versatile Compatibility:
- The module works seamlessly with any Engine Management (ECU) System, ensuring that your AWD control remains optimized regardless of your chosen engine setup.
Seamless Integration with Drive Mode Button:
- The Drive Mode Button on the Huracan / R8 facilitates map switching, enabling users to shift between Awd Select 1, 2, and 3. This versatility allows adjustment of various maps below, including enabling burnout mode when hazards are active or if the handbrake is engaged.
Customization and Live Adjustment:
- Syvecs offers optional add-ons like external Burnout switches and Live adjustment potentiometers. These enhancements empower drivers to fine-tune AWD Duty while driving or effortlessly switch to 2WD mode.
Comprehensive Protection and Alerts:
- Incorporate various limp protection options, including safeguards against large slips, high current, and high temperatures. These mechanisms provide warnings to the driver while preserving AWD functionality, which is more effective than OEM controllers that shut down outputs.
Syvecs Scal Software Compatibility:
- Easily connect to the module using Scal Software, granting access to adjust over 40 maps that influence solenoids/motors controlling AWD systems.
Array of Configurable Maps:
- 4 x Base Duty Tables
- 4 x Adders with enable maps for Left Foot Braking, Front Slip, Rear Slip, and Centre Slip.
- 4 x Multipliers with enable maps for Steering Angle, AWD Temp, AWD Pressure, and AWD Potentiometer.
- Tyre Diameter adjustment under sensors for precise calibration.
The Syvecs Huracan / R8 Gen2 AWD Module introduces a new era of AWD control, providing drivers with the tools to fine-tune AWD performance to their exact preferences. Through customizable maps, dynamic adjustments, and enhanced protection mechanisms, this module empowers drivers to experience unmatched precision, power, and agility in their AWD-equipped vehicles.
