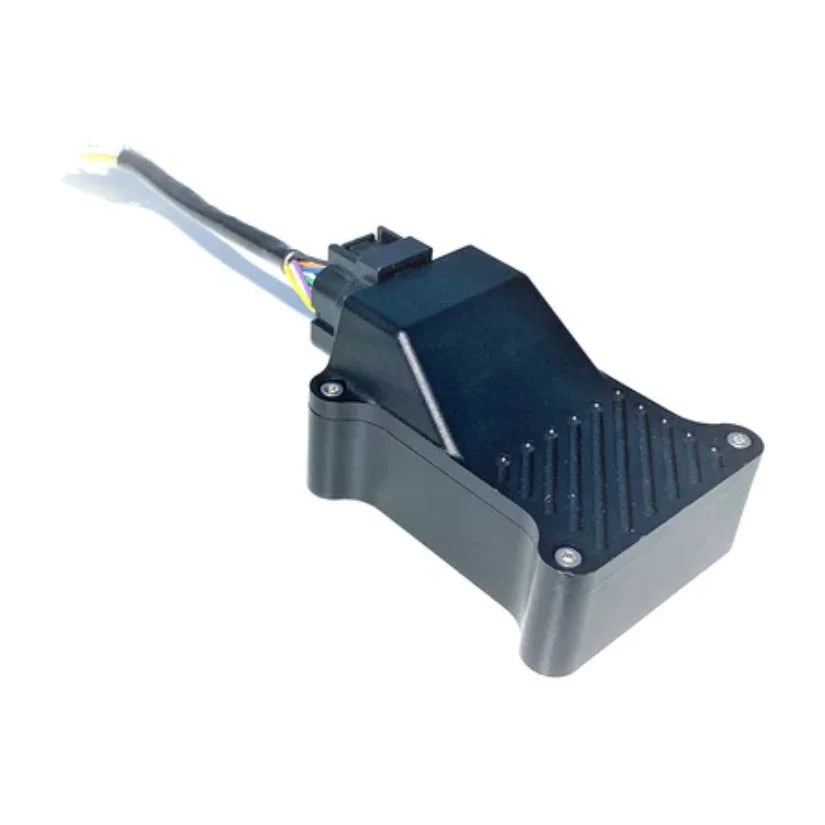

Introducing the Syvecs AWD Module designed specifically for the Porsche 991.1 and 991.2 models, offering standalone AWD/4WD control that takes performance to the next level. This innovative module provides unprecedented control over AWD/4WD solenoids/motors, capable of managing up to 30 Amps through pin sharing logic.
Key Features:
Unleash Control Potential:
- Replace restrictive OEM controllers with the Syvecs AWD Module to tap into a new realm of control over AWD/4WD solenoids/motors, enabling users to optimize performance from their powertrain.
Enhanced Control Strategies:
- The module replicates OEM CAN information and captures crucial variables from the OEM CAN network, including Steering Angle, Brake Pressure, RPM, Throttle Position, Lateral G, Yaw, Longitudinal G, Speed, Temperatures, and mode switches.
Universal Engine Management (ECU) Compatibility:
- The module works seamlessly with any Engine Management (ECU) System, ensuring that AWD control remains optimal regardless of the chosen engine setup.
Integration with Sport Mode Button:
- The Sport Mode Button on the Porsche 991.1 and 991.2 models facilitates map switching, allowing users to seamlessly transition between Awd Select 1, 2, and 3. This versatility enables adjustment of various maps, including enabling burnout mode when hazards are active or if the handbrake is engaged.
Customization and Live Adjustment:
- Syvecs offers optional enhancements like external Burnout switches and Live adjustment potentiometers, providing drivers with the capability to fine-tune AWD Duty while driving or switch to 2WD mode effortlessly.
Comprehensive Protection and Alerts:
- Implement various limp protection options, safeguarding against large slips, high current, and high temperatures. Unlike OEM controllers that shut down outputs, Syvecs' protection mechanisms warn drivers while maintaining AWD functionality, particularly useful for high horsepower applications.
Syvecs Scal Software Compatibility:
- Users can seamlessly connect to the module using Scal Software, granting access to adjust over 40 maps that influence solenoids/motors controlling AWD systems.
Diverse Range of Configurable Maps:
- 4 x Base Duty Tables
- 4 x Adders with enable maps for Left Foot Braking, Front Slip, Rear Slip, and Centre Slip.
- 4 x Multipliers with enable maps for Steering Angle, AWD Temp, AWD Pressure, and AWD Potentiometer.
- Tyre Diameter adjustment under sensors for precise calibration.
The Syvecs Porsche 991.1 / 991.2 AWD Module redefines AWD control, empowering drivers to achieve unmatched precision, power, and agility by finely tuning AWD performance to their exact specifications. With dynamic adjustments, versatile maps, and a comprehensive protection system, this module provides the tools for a truly exhilarating driving experience in AWD-equipped vehicles.
