At SPOON we think the caliper is not just to stop the car, but also the first action to make it turn.
Braking is the first thing you do to slow down to the right speed, transfer the vehicle weight and create the best cornering position in order to make a turn.

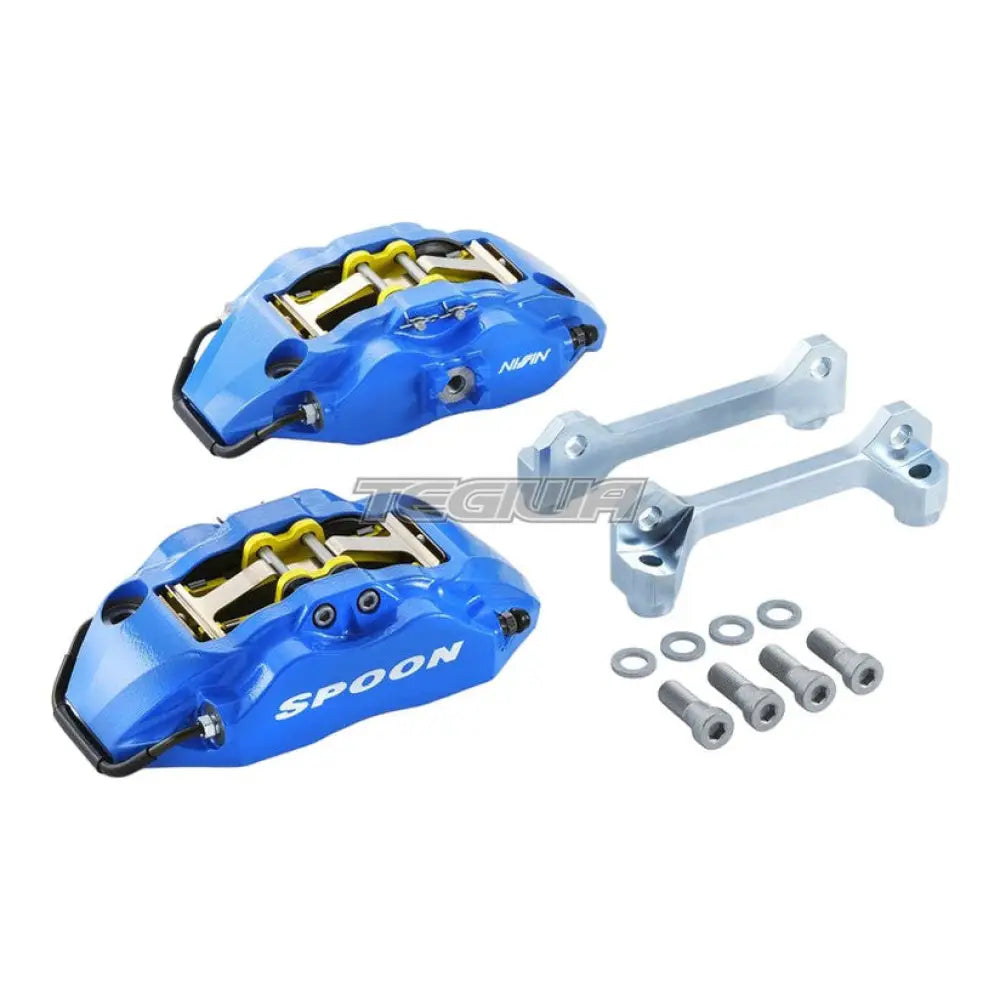

The brake part we made is a 4 pot aluminium caliper that is meant to make your car turn.
Using a 1 pot caliper with a strong brake pad will sure be enough if you need to slow the vehicle down, precise brake control however will be difficult, especially when it comes to cornering.
Tire size, vehicle weight and other multiple tests led us to the conclusion that 4 pots are the best. And here is why: the multi pot caliper response to the pedal is a lot more accurate which obviously makes it a choice for the sports driving. Pressing the brake pad with multiple pistons from the left and right is more precise and allows more control over vehicle’s attitude when making a turn.
This caliper has a capless full monocoque body structure made with angle head processing machine that is also used to make racing calipers for MotoGP. Its features include high body rigidity and minimized risks of pressure loss and fluid leakage.
The pistons feature dust boots making daily maintenance and use easy and safe.
The rotor diameter is 260mm, which is 30mm larger than normal, making it more stable in a long run and giving you a great pedal feel.
Better than ever braking ability and precise control over every turn you may make, just try it yourself.
The following parts are required for the upgrade:
45020-JG3-000 FULL MONOCOQUE CALIPER SET
45251-JW5-000 BRAKE ROTOR【Fr】JW5 FOR MONO ×2pcs
45022-MJW-000 BRAKE PAD[FRONT]JW5 For MBK
01460-JG3-000 BRAKE HOSE SET,JG3
STD wheel are NOT compatible.
Recommended/compatible SPOON wheels:
42703-1555-38 SW388 15″5.5J+38 4H100
---
Remarks & special notes
FULL MONOCOQUE CALIPER KIT for JG3 requires the following 3 parts.
1: Product name: BRAKE ROTER [Front] JW5 For MONOCOQUE
Product number: 45251-JW5-000
Required number: 2
2: Product name: BRAKE PAD [Front] JW5 For MONOCOQUE
Product number : 45022-MJW-000
3: Product name: BRAKE HOSE SET JG3
Product number: 01460-JG3-000
Note) To fully demonstrate the performance of FULL MONOCOQUE CALIPER Since they are all specially designed, genuine brake discs, pads and hoses cannot be used.
