CURRENT ESTIMATED MANIFOLD MANUFACTURING TIME IS 3-6 WEEKS.
SpeedFactory H-Series Forward Facing Outlaw Turbo Manifolds are for EXTREMELY high powered applications where maximum torque and horsepower are desired on high-revving racing engines fitted with larger T4 turbochargers.
Our custom, ultra-long merge collectors create a turbulent-free area for the exhaust gas to enter the turbine housing in even pulses at high velocities- making it the ultimate drag race manifold. Precise boost control is enabled by the properly merged and truly divided 60MM wastegate flange, allowing for large amounts of wastegated exhaust flow and better traction.
Our Forward Facing manifold is constructed from high quality 1.5†Schedule 40 polished stainless steel, and is TIG-Welded and back purged to ensure that you are receiving the highest quality product possible. Our cylinder head and turbine inlet flanges are CNC machined from ½†plate 1018 Steel and all mating surfaces are machined flat ensuring a perfect seal.
- Available with Tial's 60mm Wastegate Flange or TurboSmart's Power Gate 60mm Wastegate Flange
All fabricated components are built to order. Feel free to call us and check our current manifold inventory at (253)566-4331.
CURRENT ESTIMATED MANIFOLD MANUFACTURING TIME IS 3-6 WEEKS.
SpeedFactory H-Series Forward Facing Outlaw Turbo Manifolds are for EXTREMELY high powered applications where maximum torque and horsepower are desired on high-revving racing engines fitted with larger T4 turbochargers.
Our custom, ultra-long merge collectors create a turbulent-free area for the exhaust gas to enter the turbine housing in even pulses at high velocities- making it the ultimate drag race manifold. Precise boost control is enabled by the properly merged and truly divided 60MM wastegate flange, allowing for large amounts of wastegated exhaust flow and better traction.
Our Forward Facing manifold is constructed from high quality 1.5†Schedule 40 polished stainless steel, and is TIG-Welded and back purged to ensure that you are receiving the highest quality product possible. Our cylinder head and turbine inlet flanges are CNC machined from ½†plate 1018 Steel and all mating surfaces are machined flat ensuring a perfect seal.
- Available with Tial's 60mm Wastegate Flange or TurboSmart's Power Gate 60mm Wastegate Flange
All fabricated components are built to order. Feel free to call us and check our current manifold inventory at (253)566-4331.

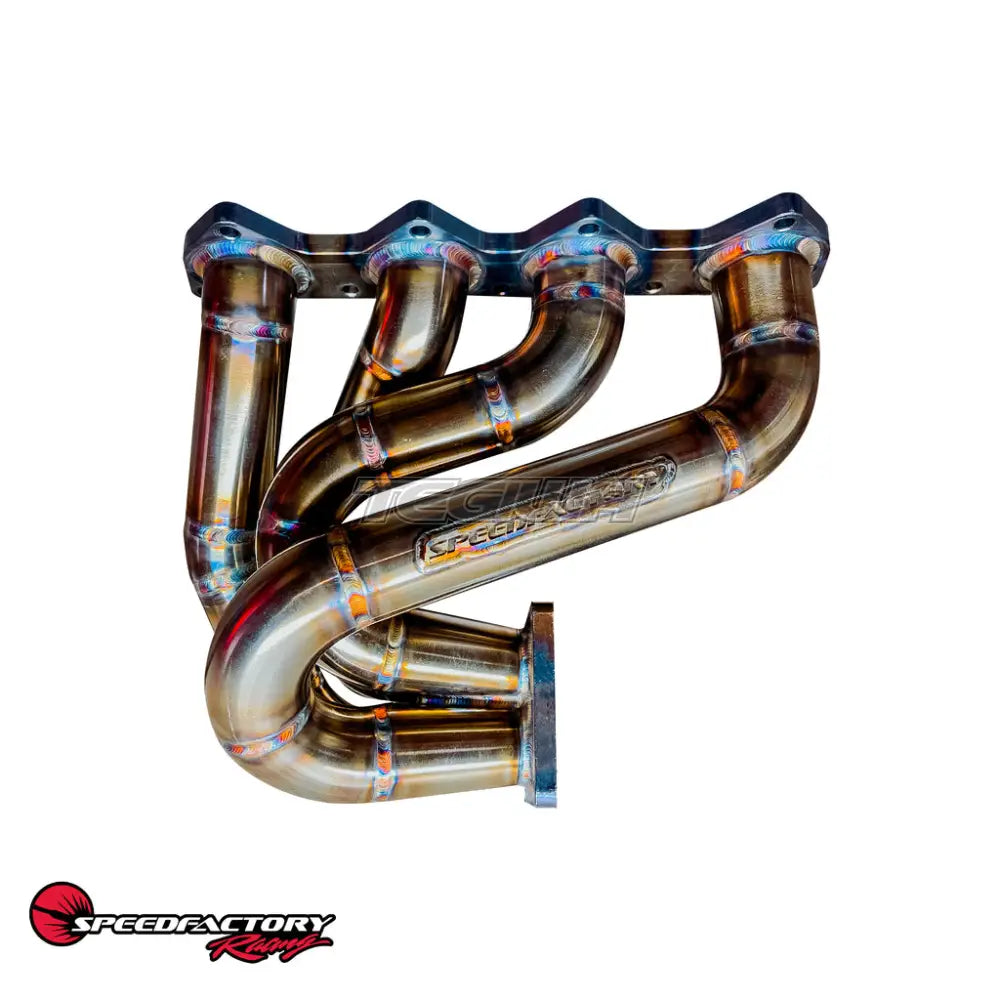

The SpeedFactory Turbo Manifold in Forward Face Style for H Series engines, featuring a divided T4 flange with a single 60mm wastegate, is a specialized aftermarket component designed for optimal turbocharger placement and performance. This precision-engineered manifold is crafted to enhance exhaust gas flow efficiency and turbo response. The divided T4 flange ensures compatibility with various T4 turbochargers, providing versatility for enthusiasts seeking a customized setup. The inclusion of a single 60mm wastegate provision allows for effective exhaust gas recirculation control. Tailored for H Series engines, this SpeedFactory Turbo Manifold offers a reliable solution for enthusiasts aiming to maximize turbocharging efficiency and achieve substantial power gains in their modified setups.
