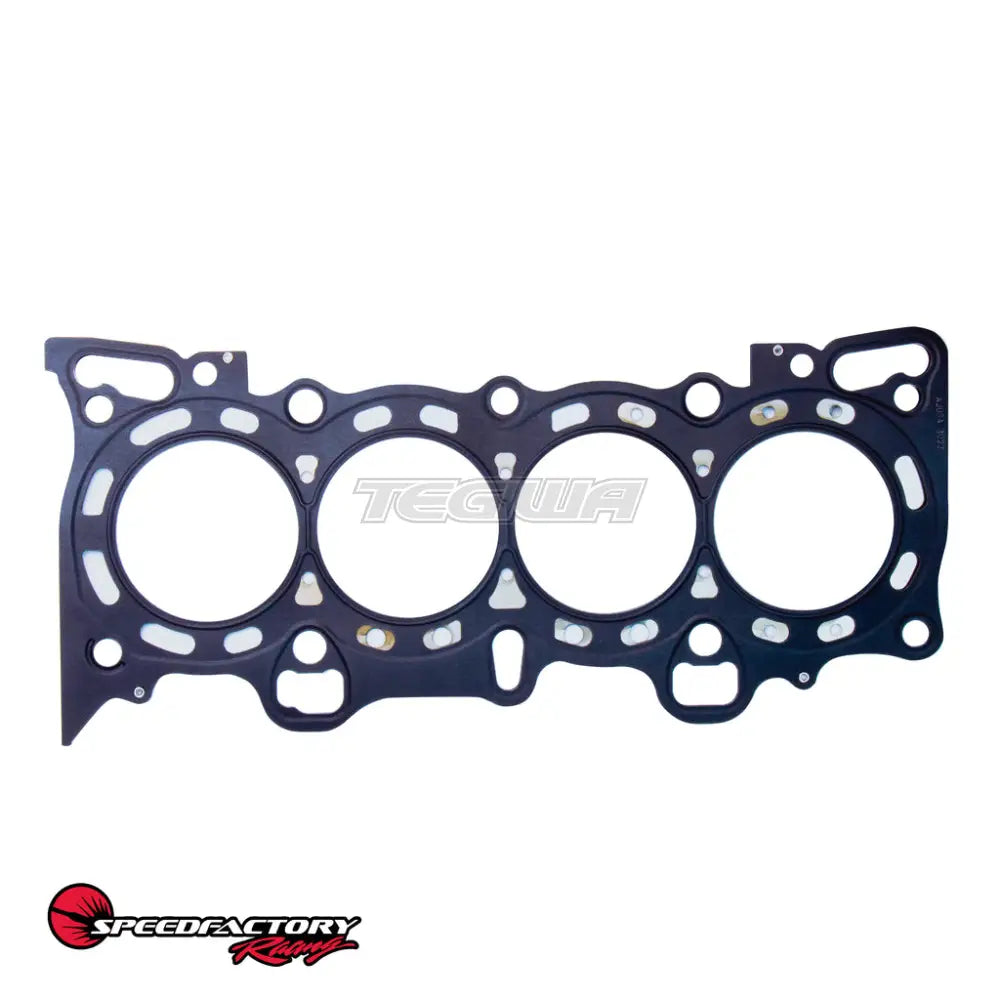

Speedfactory High Performance MLSS-HP Head Gasket for Honda D16 VTEC Engines - 76mm Bore .040" Thickness

SpeedFactory High Performance MLSS-HP Head Gaskets for Honda/Acura D-Series VTEC Engines

Fits: Civic / CRX with D-Series VTEC Engines

SpeedFactory Racing is proud to release our own high-performance Honda D-Series VTEC MLS head gasket!

These MLS gaskets have been purpose-built to provide an excellent seal on ALL SOHC D-Series VTEC applications, from factory setups to high compression / nitrous / turbocharged / supercharged engines.

Most turbo D-Series SOHC VTEC enthusiasts utilize a stock engine block & cylinder head with upgraded internal components, generating power levels in the 200-500whp range. Upgraded head studs are a must, but many still struggle with head gasket sealing issues. For these D16 applications, adding a stopper ring provides enough additional sealing stress around the cylinders for a reliable combustion seal. If running beyond the ~500whp range a sleeved block with O-rings is recommended.

The 0.036” gasket thickness makes up for cylinder head and block surfacing vs the OEM 3-layer 0.028” thickness and allows us to utilize a 4-layer design with specialized embossments that increase active combustion sealing height, ideal for high output engines that experience high levels of head lift/movement. We’ve also incorporated a unique internal silicone bead on the oiling passages for improved sealing.

FITMENT:

Honda/Acura D-Series SOHC VTEC engines

Available Sizes: 76.00mm (Use for 75.0mm-76.0mm maximum bore)

0.036”/0.914mm thickness

FEATURES:

MLSS-HP (Multiple Layer Stainless Steel + Silicone Bead) Head Gasket optimized for high performance use

4-layer MLS design with specialized embossment increases active combustion sealing height, ideal for forced induction engines that experience high levels of head lift/movement.

Unique internal silicone elastomeric sealing bead around oiling passages for improved fluid sealing.

High performance elastomeric coating to ensure the best possible seal by compensating for surface irregularities.

OE quality, OE certified manufacturer (ISO 9001, ISO/TS16949, ISO 14001 certified).
