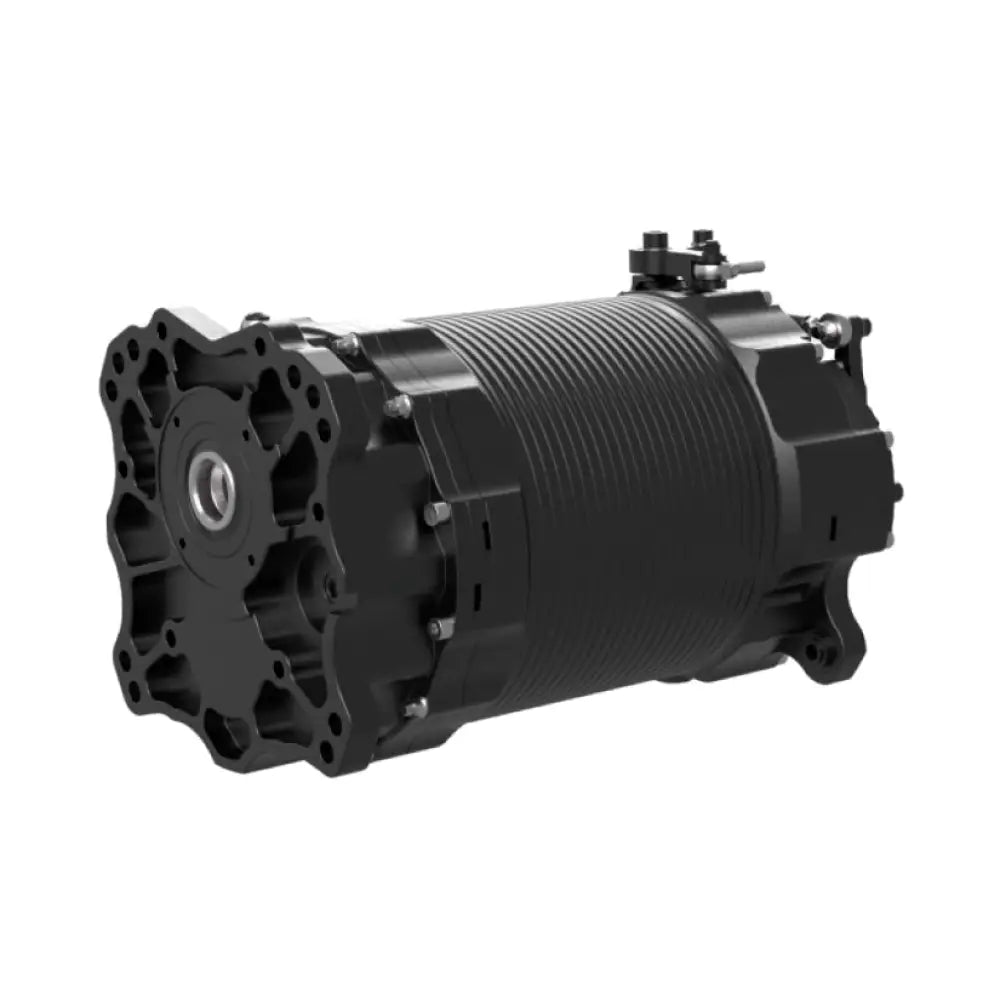

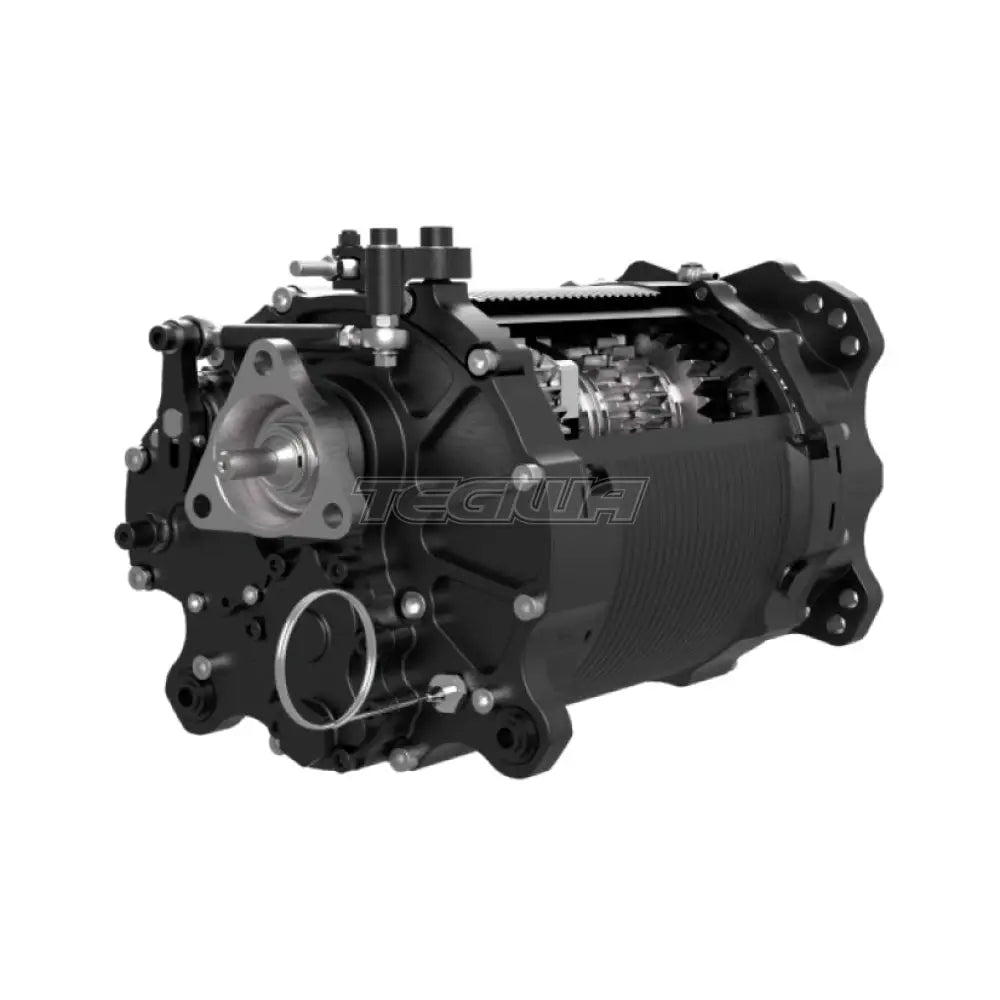

Samsonas RS90 5 Speed Sequential Gearbox

Samsonas RS90 5 Speed Sequential Gearbox. We offer a choice of gear ratios and transfer ratios, please contact us when ordering to confirm.This gearbox comes with Type 9 - 23 Spline 1" (25.4mm) input shaft, we can also supply a custom option if needed, just let us know when ordering. For spare parts or sensors, please email us.

• Quick change drop gear
• Billet CNC 7075 T6 machined casings
• Straight cut gears for minimum rolling resistance
• Super finished, shot peened gears and internals

• 5 engagement dogs for maximum fast gear change
• Weight 42kg / 92lbs Power rating: 2000 hp

Available Ratios:

• 2.462 3.000 2.462
• 1.800 2.000 1.647
• 1.471 1.500 1.250
• 1.250 1.190 1.000

• 2.462 2.462 3.000
• 1.800 1.800 2.000
• 1.471 1.250 1.500
• 1.250 1.000 1.190
• 1.087 0.833 1.000

• 3.000 3.000 3.000
• 2.000 1.800 2.000
• 1.500 1.250 1.500
• 1.190 1.000 1.250
• 0.962 0.833 1.087

• 2.462 2.462
• 1.647 1.647
• 1.250 1.250
• 1.000 1.333
• 0.875 1.042

• 2.462 3.000 3.000
• 1.800 2.000 2.000
• 1.471 1.471 1.500
• 1.250 1.160 1.250
• 1.087 1.000 1.087
• 0.962 0.875 0.962

• 3.000 3.000 3.000
• 2.000 2.000 2.000
• 1.500 1.500 1.500
• 1.190 1.190 1.190
• 1.000 0.962 0.962
• 0.875 0.833 0.760

• 3.000 3.000
• 1.800 1.800
• 1.500 1.500
• 1.250 1.333
• 1.087 1.042
• 0.962 0.962

Transfer Gears:

• 0.700
• 0.840
• 0.870
• 0.920
• 0.962
• 1.000
• 1.040
• 1.087
• 1.143
• 1.250
• 1.333
• 1.428
• 1.526
