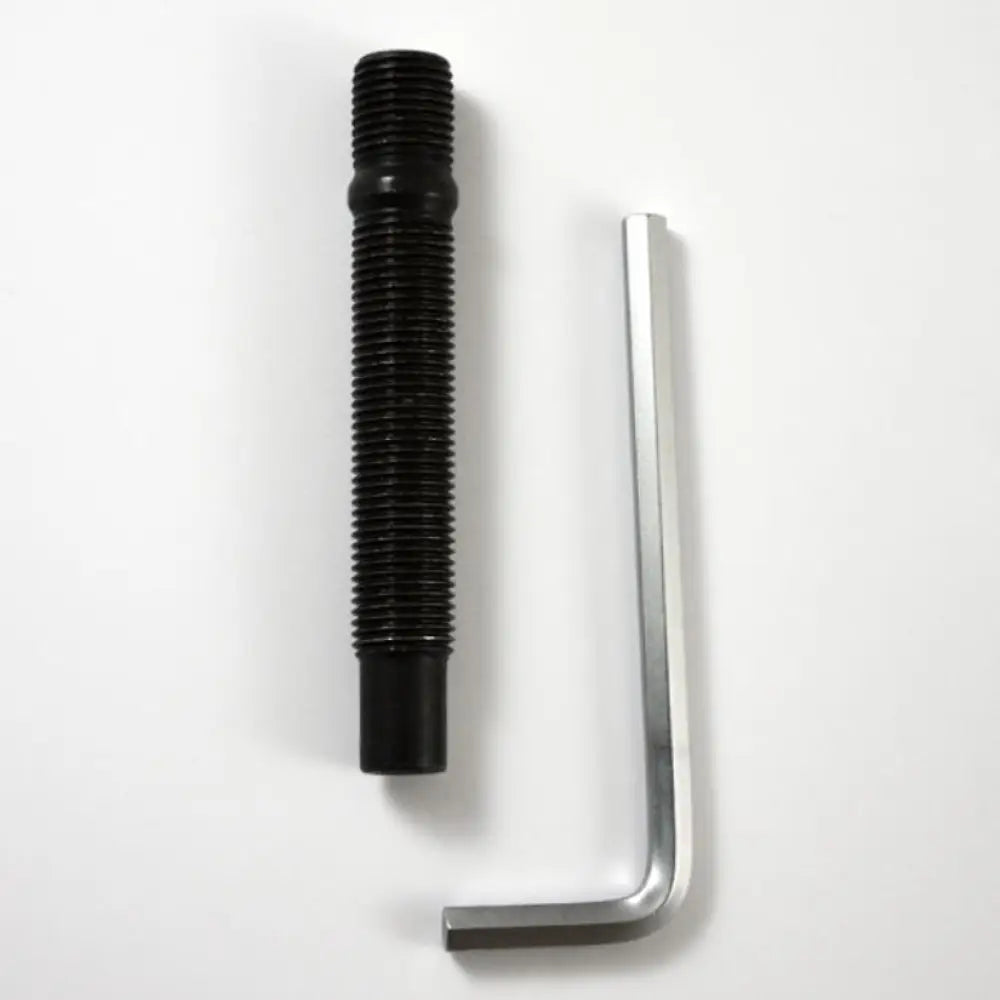

RRS Pro Competition Wheel Stud With CH5 Socket

Thread conversion stud 14x150 Length 90mm with CH5 Allen end

Root thread 14x150 - shaft threat 14x150

Length 90mm

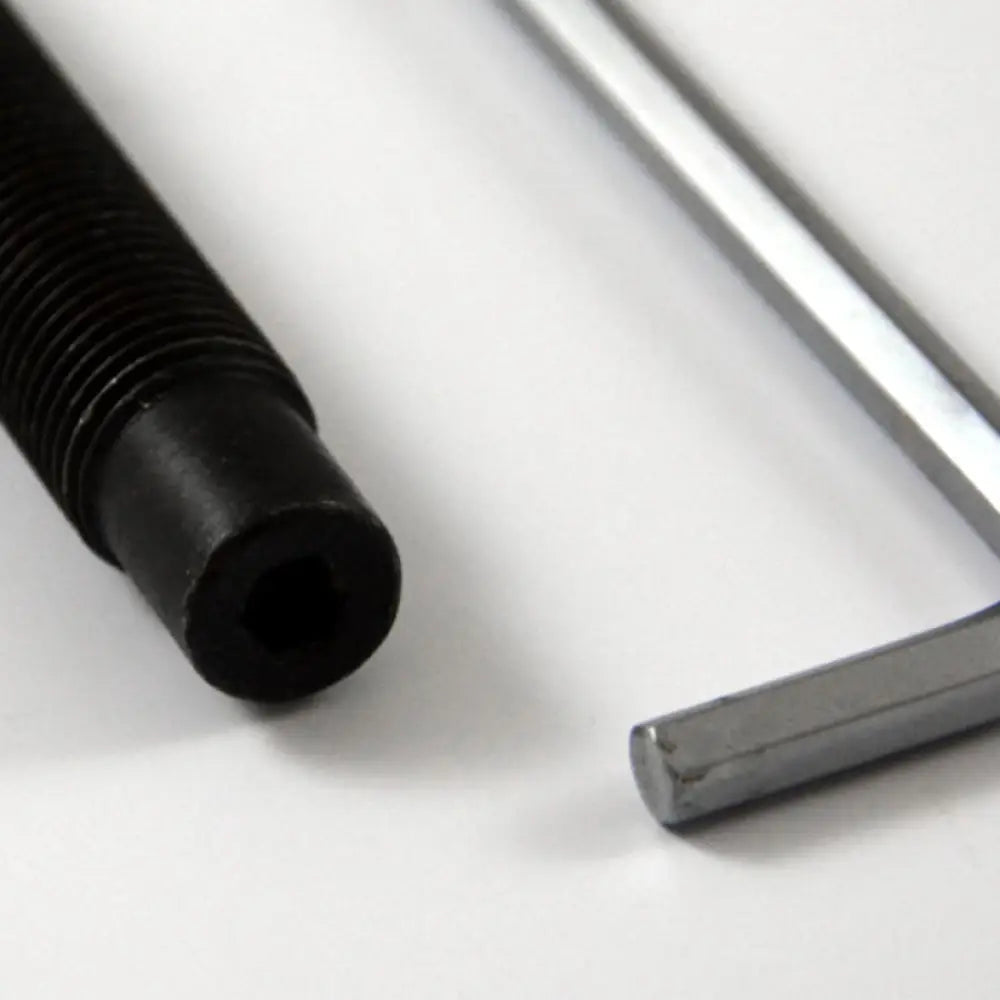

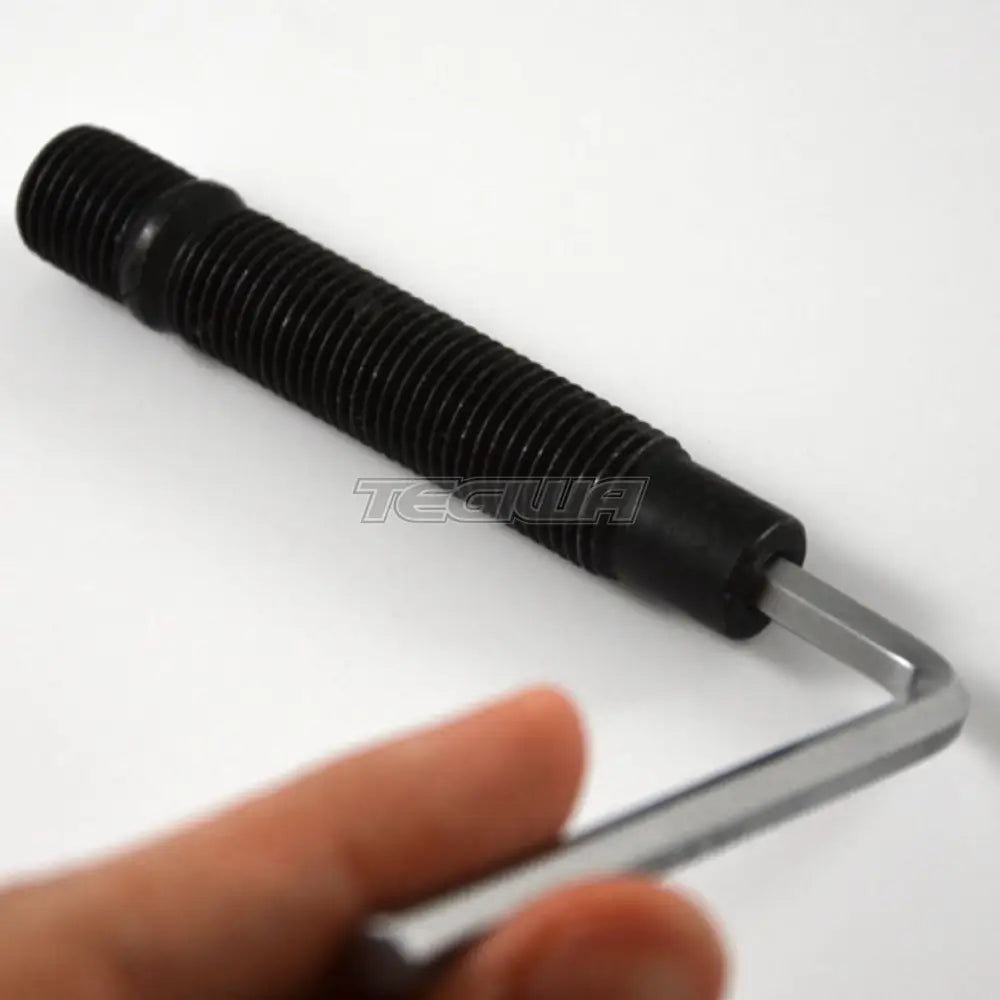

CH5 Allen end to make the screwing / unscrewing in the hub easier

Black galvanizing, cold forger part

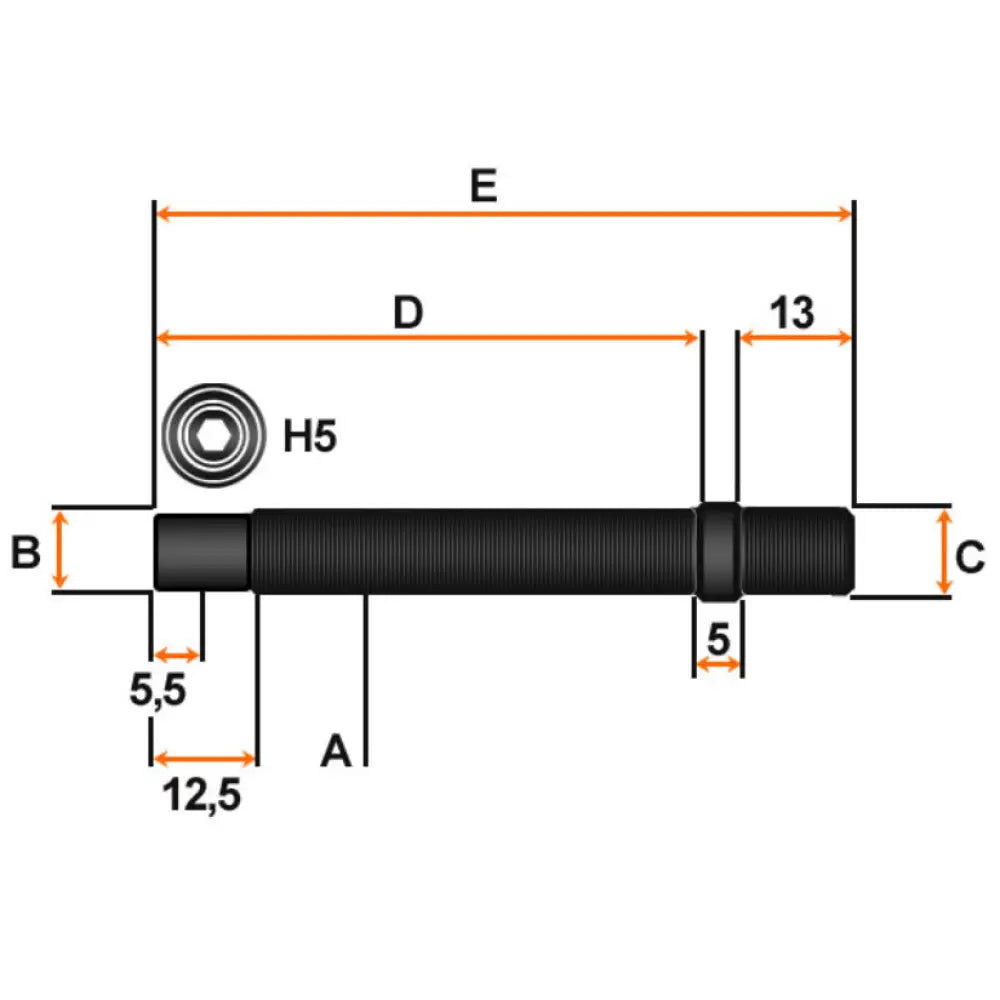

A: thread 14x150

B: 12 ​​mm

C: 14 mm

D: 72 mm

E: 90 mm

Allen key is not supplied

Thread conversion stud 14x150 Length 75mm with CH5 Allen end

Root thread 14x150 - shaft threat 14x150

Length 75mm

CH5 Allen end to make the screwing / unscrewing in the hub easier

Black galvanizing, cold forger part

A: thread 14x150

B: 12 ​​mm

C: 14 mm

D: 57 mm

E: 75 mm

Allen key is not supplied

Thread conversion stud 14x150 Length 68mm with CH5 Allen end

Root thread 14x150 - shaft threat 14x150

Length 68mm

CH5 Allen end to make the screwing / unscrewing in the hub easier

Black galvanizing, cold forger part

A: thread 14x150

B: 12 ​​mm

C: 14 mm

D: 50 mm

E: 68 mm

Allen key is not supplied

Thread conversion stud 14x150 Length 82mm with CH5 Allen end

Root thread 14x150 - shaft threat 14x150

Length 82mm

CH5 Allen end to make the screwing / unscrewing in the hub easier

Black galvanizing, cold forger part

A: thread 14x150

B: 12 ​​mm

C: 14 mm

D: 64 mm

E: 82 mm

Allen key is not supplied

Thread conversion stud 12x150 Length 90mm with CH5 Allen end

Root thread 12x150 - shaft threat 12x150

Length 90mm

CH5 Allen end to make the screwing / unscrewing in the hub easier

Black galvanizing, cold forger part

A: thread 12 x 125

B: 10 mm

C: 12 mm

D: 72 mm

E: 90 mm

Allen key is not supplied

Thread conversion stud 12x150 Length 75mm with CH5 Allen end

Root thread 12x150 - shaft threat 12x150

Length 75mm

CH5 Allen end to make the screwing / unscrewing in the hub easier

Black galvanizing, cold forger part

A: thread 12 x 125

B: 10 mm

C: 12 mm

D: 57 mm

E: 75 mm

Allen key is not supplied

Thread conversion stud 12x150 Length 68mm with CH5 Allen end

Root thread 12x150 - shaft threat 12x150

Length 68mm

CH5 Allen end to make the screwing / unscrewing in the hub easier

Black galvanizing, cold forger part

A: thread 12 x 125

B: 10 mm

C: 12 mm

D: 50 mm

E: 68 mm

Allen key is not supplied

Thread conversion stud 12x150 Length 82mm with CH5 Allen end

Root thread 12x150 - shaft threat 12x150

Length 82mm

CH5 Allen end to make the screwing / unscrewing in the hub easier

Black galvanizing, cold forger part

A: thread 12 x 125

B: 10 mm

C: 12 mm

D: 64 mm

E: 82 mm

Allen key is not supplied

Thread conversion stud 12x125 Length 90mm with CH5 Allen end

Root thread 12x125 - shaft threat 12x125

Length 90mm

CH5 Allen end to make the screwing / unscrewing in the hub easier

Black galvanizing, cold forger part

A: thread 12x125

B: 10 mm

C: 12 mm

D: 72 mm

E: 90 mm

Allen key is not supplied

Thread conversion stud 12x125 Length 68mm with CH5 Allen end

Root thread 12x125 - shaft threat 12x125

Length 68 mm

CH5 Allen end to make the screwing / unscrewing in the hub easier

Black galvanizing, cold forger part

A: thread 12x125

B: 10 mm

C : 12 mm

D: 50 mm

E: 68 mm

Allen key is not supplied

Thread conversion stud 12x125 Length 82mm with CH5 Allen end

Root thread 12x125 - shaft threat 12x125

Length 82mm

CH5 Allen end to make the screwing / unscrewing in the hub easier

Black galvanizing, cold forger part

A: thread 12x125

B: 10 mm

C: 12 mm

D: 64 mm

E: 82 mm

Allen key is not supplied
