The VBOX HD2 HDMI Track Package includes roll cage camera mounts and an un-terminated power cable instead of the standard suction camera mounts and cigar lighter power supply cable. This means easier fitment in to vehicles fully prepared for racing.

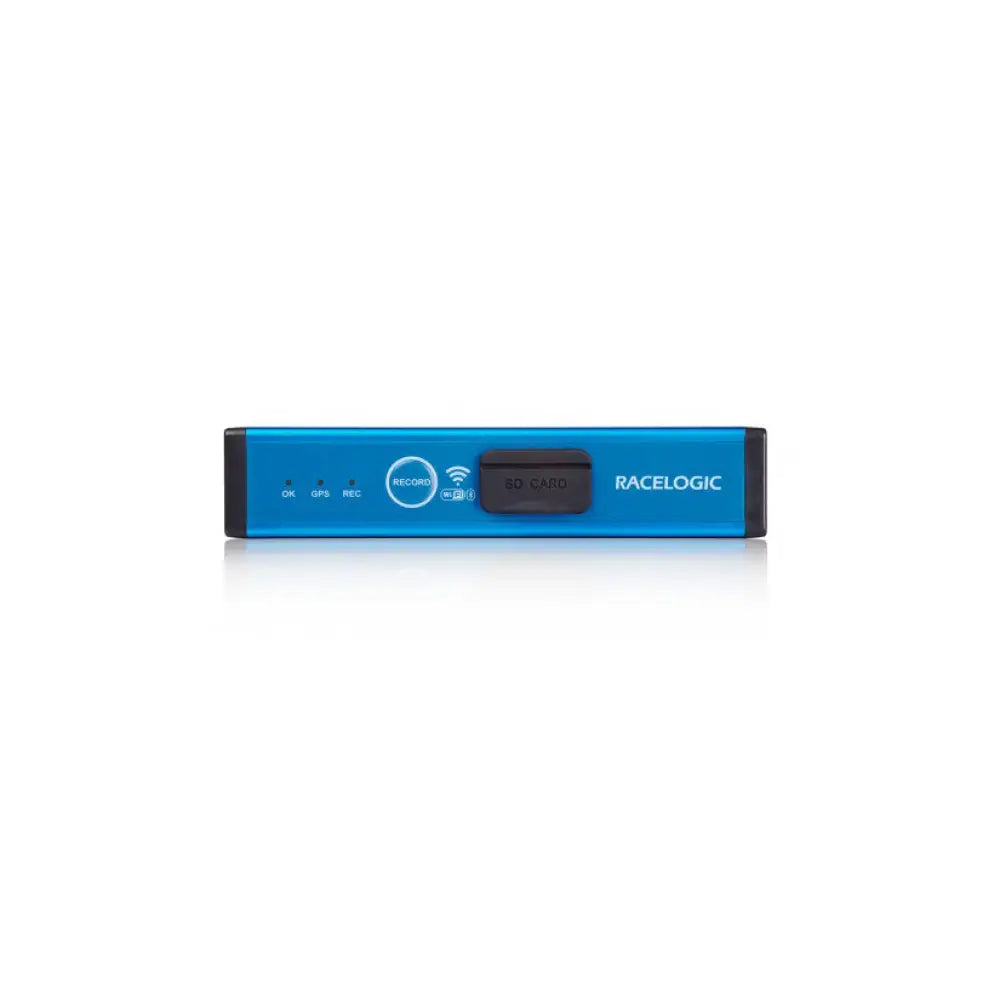

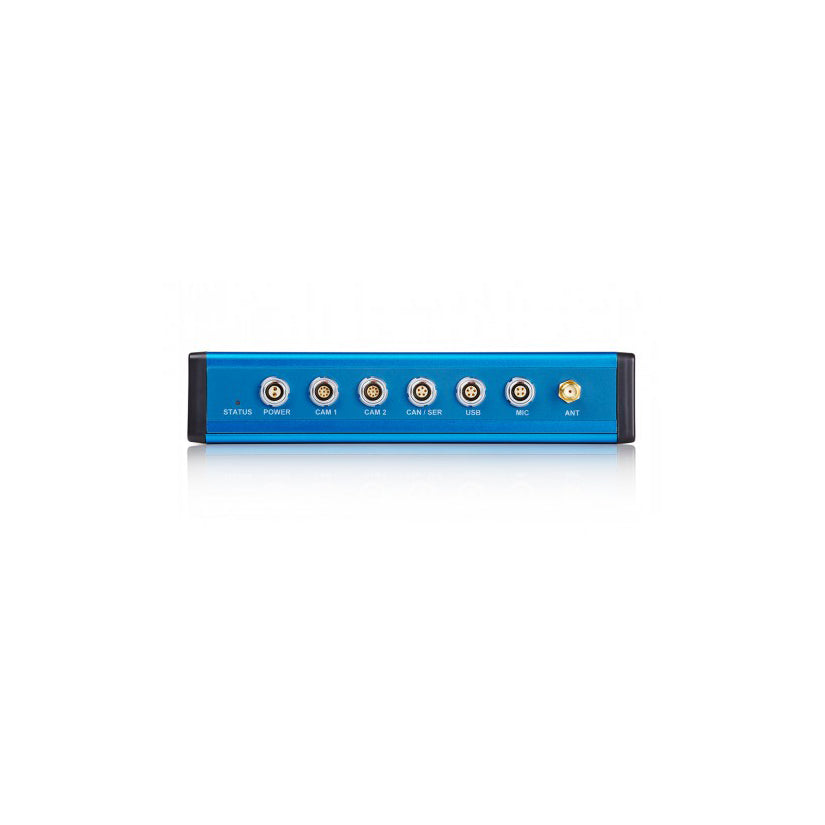

VBOX HD2 HDMI features an HDMI video output, 1080p video, real-time synchronised video/data with graphical overlay, Bluetooth and WiFi connectivity. The internal 10 Hz GPS engine recognises the race track you are driving and automatically configures the track map and lap timing. Automatic recording, a pre-record buffer and internal power backup ensure that you capture absolutely all of the race action. Video can be recorded at thirty frames per second to SD card or USB flash drive.
Download datasheet here.
You can choose between four package options.

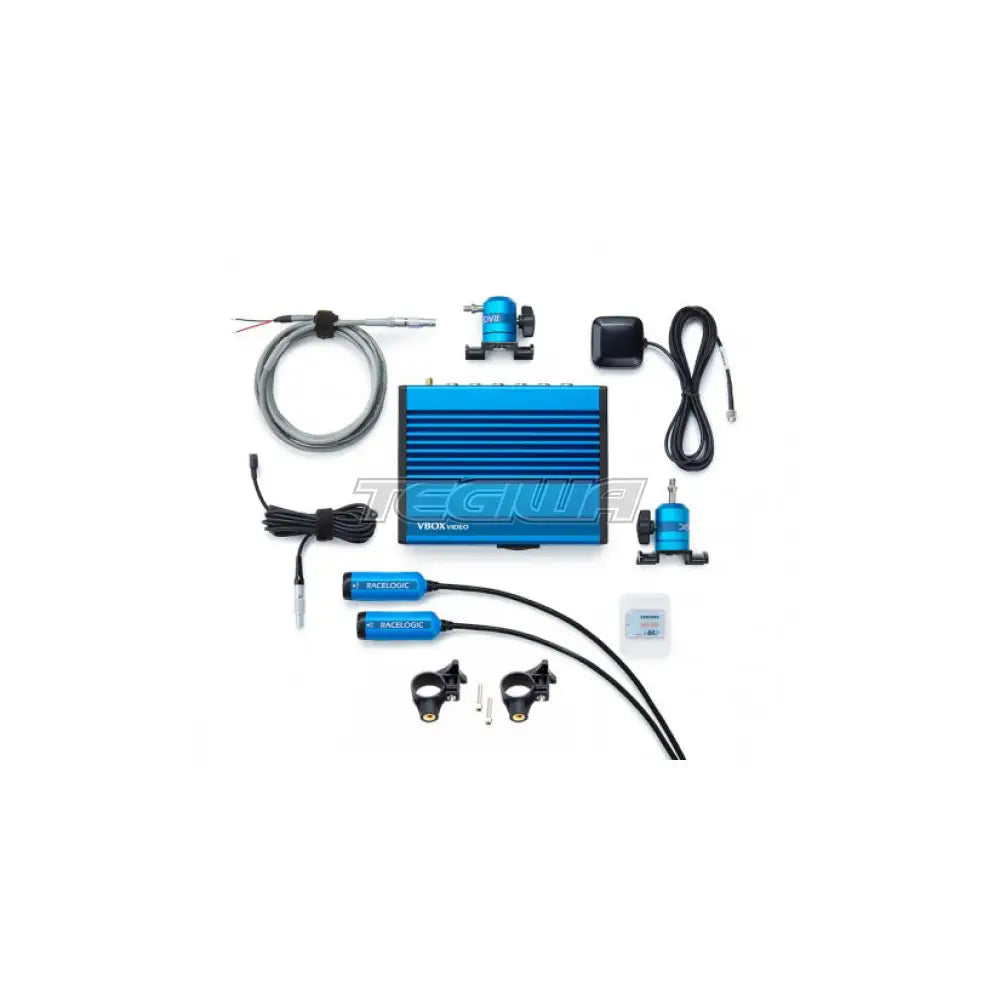

Package Contents
HD2 data logger with HDMI connector

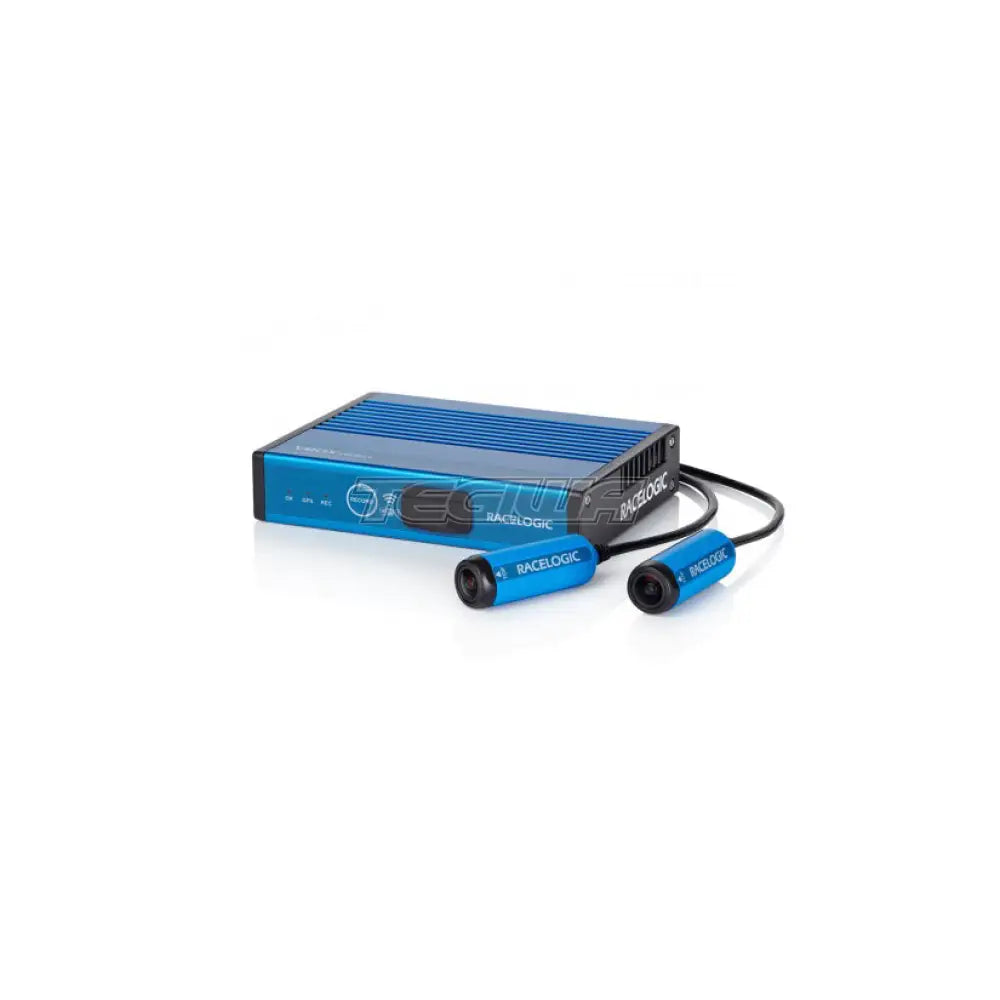

2 cameras
Microphone
2 Roll cage camera mounts
Un-terminated in-car power cable
Antenna
32 GB SD card
HDMI cable (0.9 m) with locking screws
CAN Splitter cable, only included if option 'C' is selected.
OLED Display, only included if option 'C/D' is selected.
Quality Setting & Log Rates
Low - 3.5 GB/hour
Medium (default) - 5.4 GB/hour
High - 7 GB/hour
Features
Dual Camera 1080p system
10 Hz GPS data logging
Records to SD card or USB

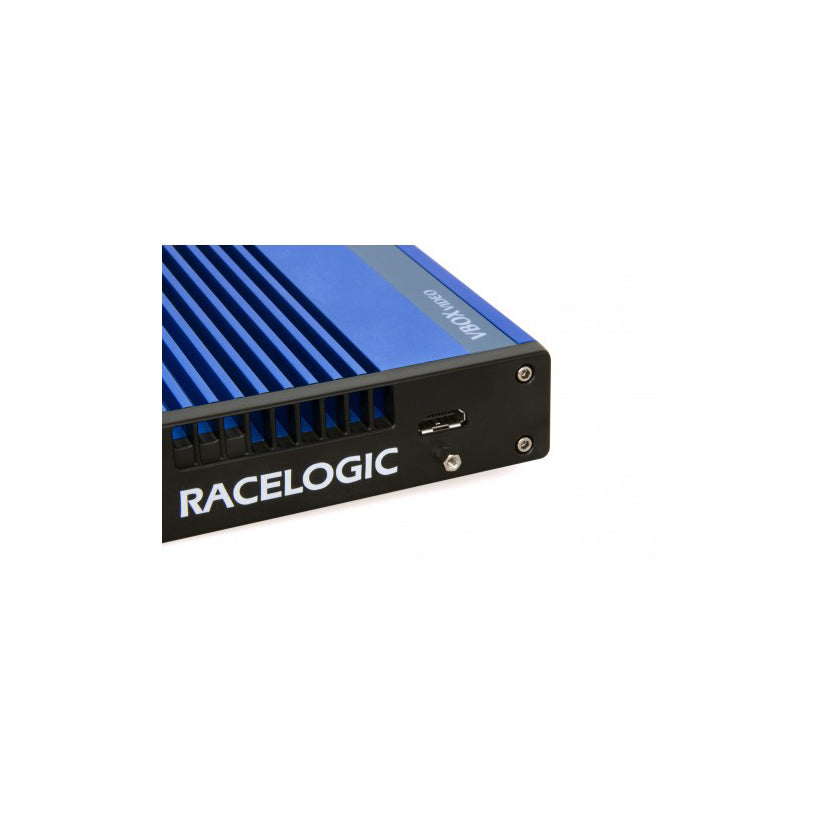

HDMI video output
Predictive Lap Timing (with OLED display)
Real-time, high-definition graphic overlay
MP4 video & audio recording
Compatible with AiM dashboards or loggers
Internal power backup for reliable recording
Powerful data analysis software
Up to 32 CAN channel inputs
USB 2.0 host interface (for recording to USB flash drive)
Camera preview over Wifi
Bluetooth LE connectivity
