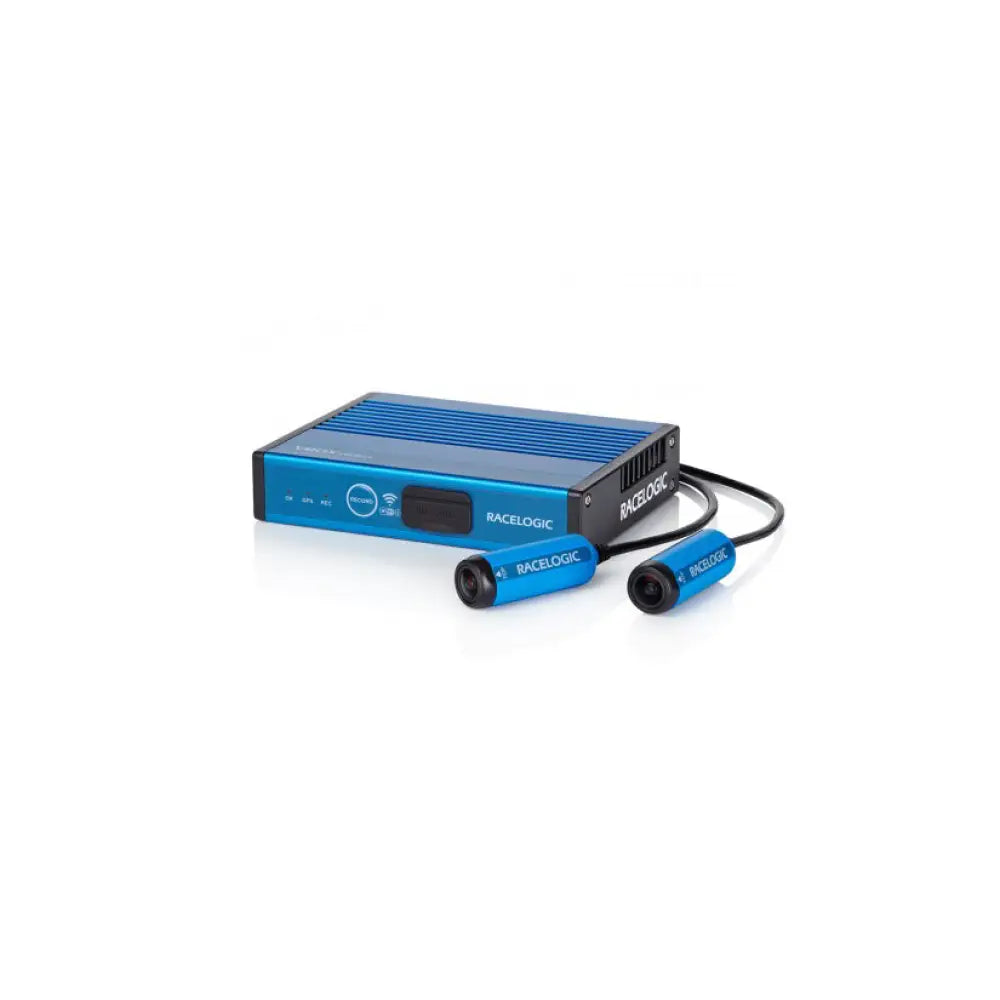

This VBOX Video HD2 system has an HDMI video output allowing you to stream real-time video to an HDMI compatible monitor, recorder or streaming device.

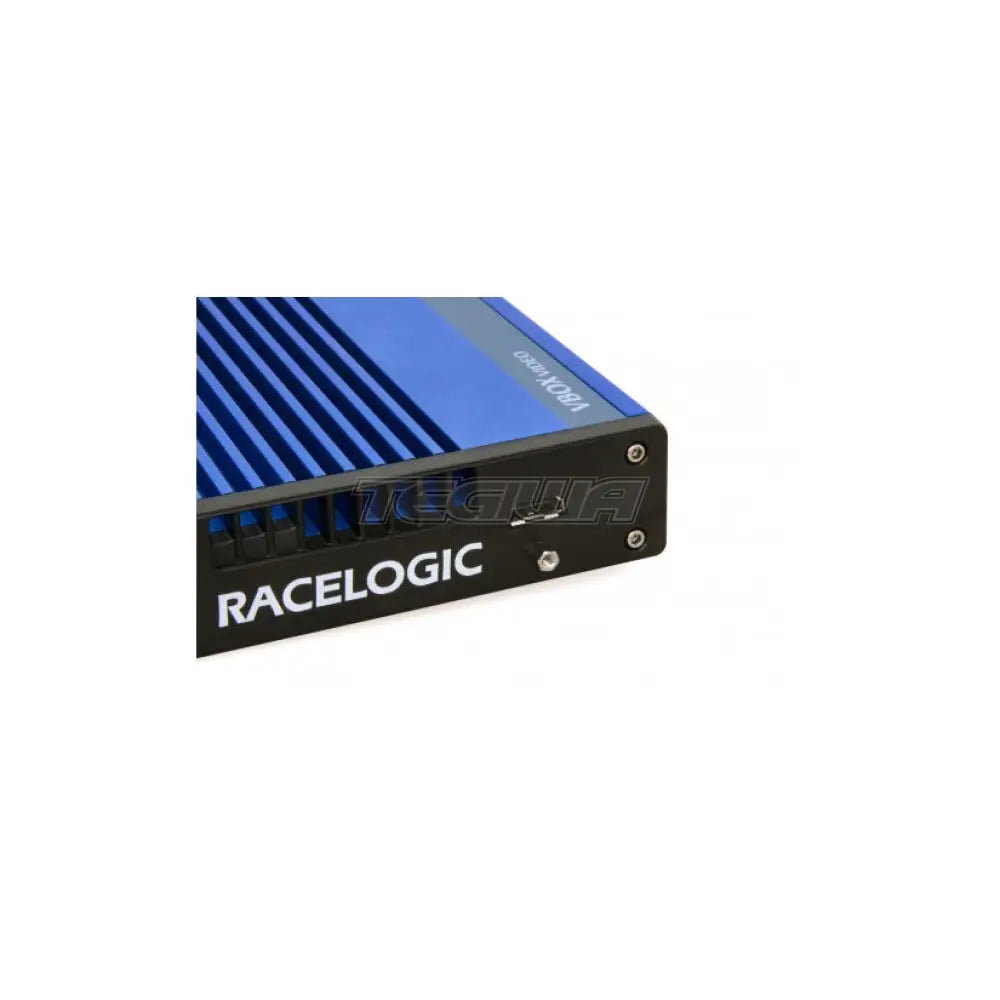

VBOX HD2 HDMI can be used to give live coverage of motorsport events for TV or social media, provide race teams with the ability to give instant driver feedback, or can act as a rear-view camera. It comes with an HDMI port and locking pin to make sure our custom cable has a secure connection.
VBOX Video HD2 features 1080p video, real-time synchronised video/data with graphical overlay, Bluetooth and WiFi connectivity. The internal 10 Hz GPS engine recognises the race track you are driving and automatically configures the track map and lap timing. Automatic recording, a pre-record buffer and internal power backup ensure that you capture absolutely all of the race action. Video can be recorded at thirty frames per second to SD card or USB flash drive.
Download the datasheet here.

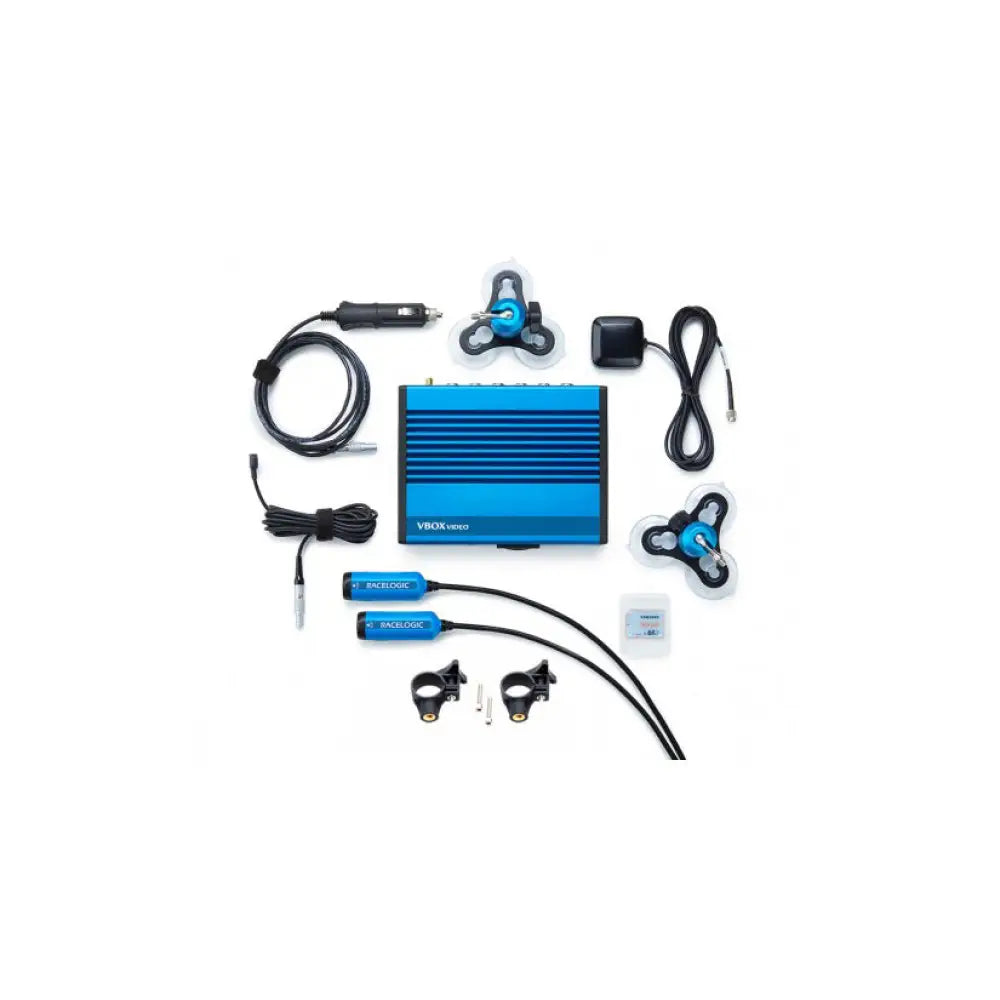

Package Contents
HD2 Logger with HDMI
1 or 2 Cameras - Depends which package you choose.
Microphone
2 Suction mounts
2 Camera clamps
In car power supply
Antenna
32 GB SD card
HDMI cable (0.9 m) with locking screws

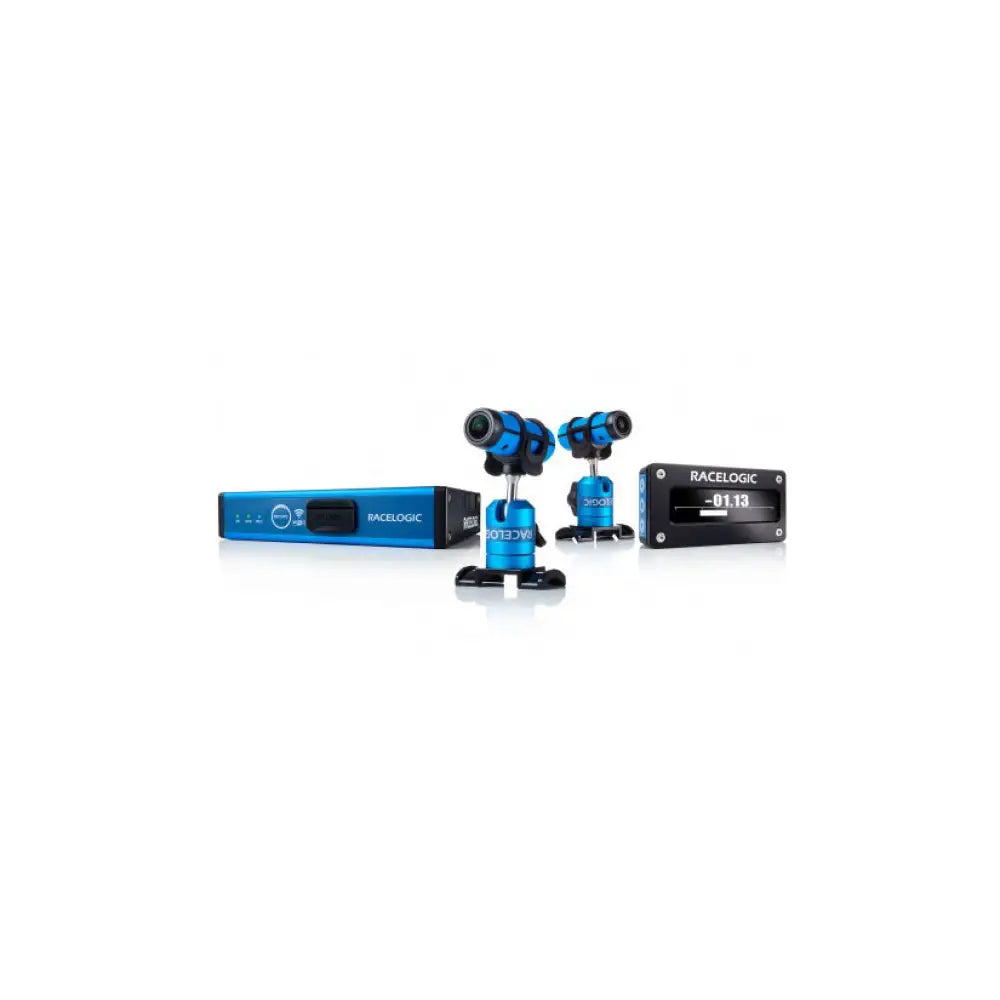

OLED Predictive Lap timing display - Only available if you select the '/D' option.
Quality Settings & Log Rates
Low - 3.5 GB/hr
Medium (default) - 5.4 GB/hr
High - 7 GB/hr
Graphics are overlaid in real time
