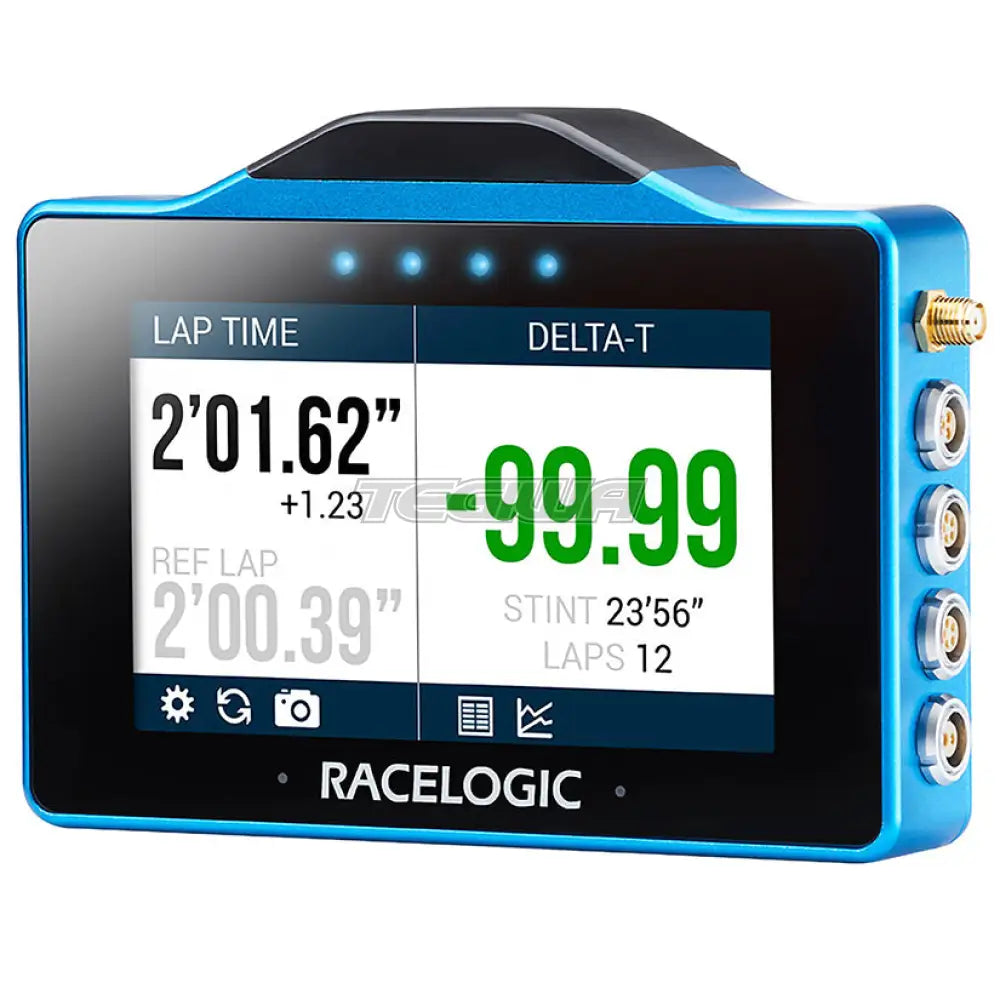

The VBOX touch Motorsport is a useful tool for improving vehicle or driver performance. Predictive lap timing shows your current lap against the best lap so you can see where time is being lost or gained. After each test session your data can be analysed using the included circuit tools software.
Touch screen performance meter, lap timer and data logger with the ability to run other applications on the same hardware.
- 4.3” colour touchscreen
- Performance, lap timing and speed display
- 10 Hz GPS data logging
- 2x CAN/Serial interface
- Digital input for brake testing
- Inbuilt GPS antenna
Features
Large Touch Screen - 4.3" TFT daylight readable capacitive touch screen, 480*800 pixels
4 Operation Modes - Choose between accel, decel, lap timing and speed mode.
Multiple Applications - Ability to run other applications on the same hardware, simply installed via an SD card.
No Data Loss - Remembers your results between power cycles
With its user-friendly interface, the VBOX Touch Motorsport can be used for a range of applications, including performance testing, lap timing or as a speedometer (pre-loaded in Performance App).
When used in conjunction with the tyre temperature sensor kit (RLACS272) or as part of the Racelogic Tyre Temperature Monitoring System (TTMS), the VBOX Touch display offers a visual representation of the surface temperature for all four tyres via 64 individual heat maps, as well as showing live temperature and maximum temperature values (Tyre Temperature Monitoring App).
The kit includes:
Un-terminated power cable, 8GB SDHC memory card, GNSS antenna, Swivel neck Richter suction mount, removable rubber cover
