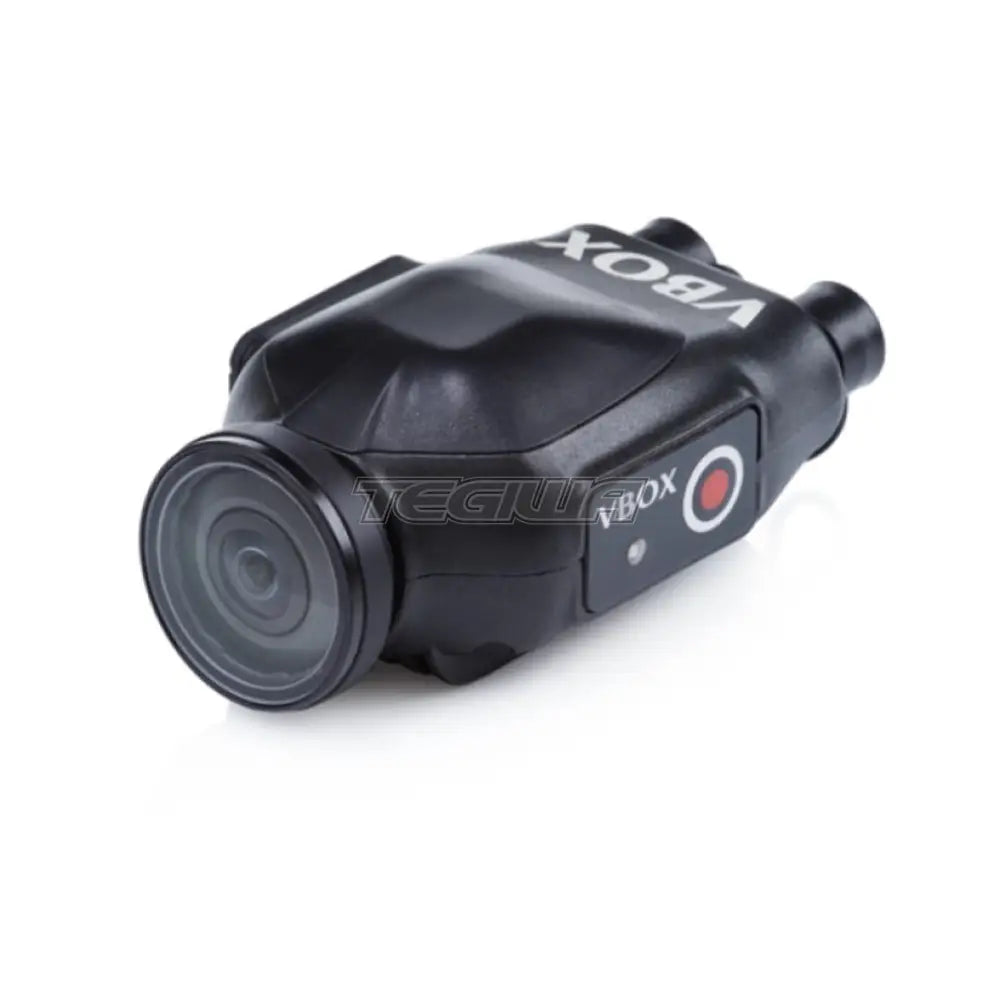

VBOX HD Lite is a miniature video data logging system for motorsport that records 1080p HD video with fully synchronised GNSS data.
GNSS data and CAN Bus data is recorded with the video, allowing in depth analysis via our intuitive Circuit Tools data analysis software, enabling the driver to quickly identify where time is being lost and where time can be gained around a circuit.
VBOX HD Lite features RACELOGIC’s reliable “only when moving” log strategy, enabling the device to start and stop logging on its own based on vehicle movement, and prevents the
microSD card filling up with static video in the paddock.
The VBOX HD Lite is also compatible with our predictive lap timing displays which show live Delta time, enabling the driver to improve whilst on track.
Features
- 1920 x 1080p @30 FPS
- 10 Hz GNSS data recording
- Internal & external GNSS antenna
- Permanent vehicle power feed - No batteries.
- Reliable record only when moving log strategy
- Fully synchronised video & GNSS data
- CAN logging – up to 8 messages
- Compatible with Circuit Tools analysis

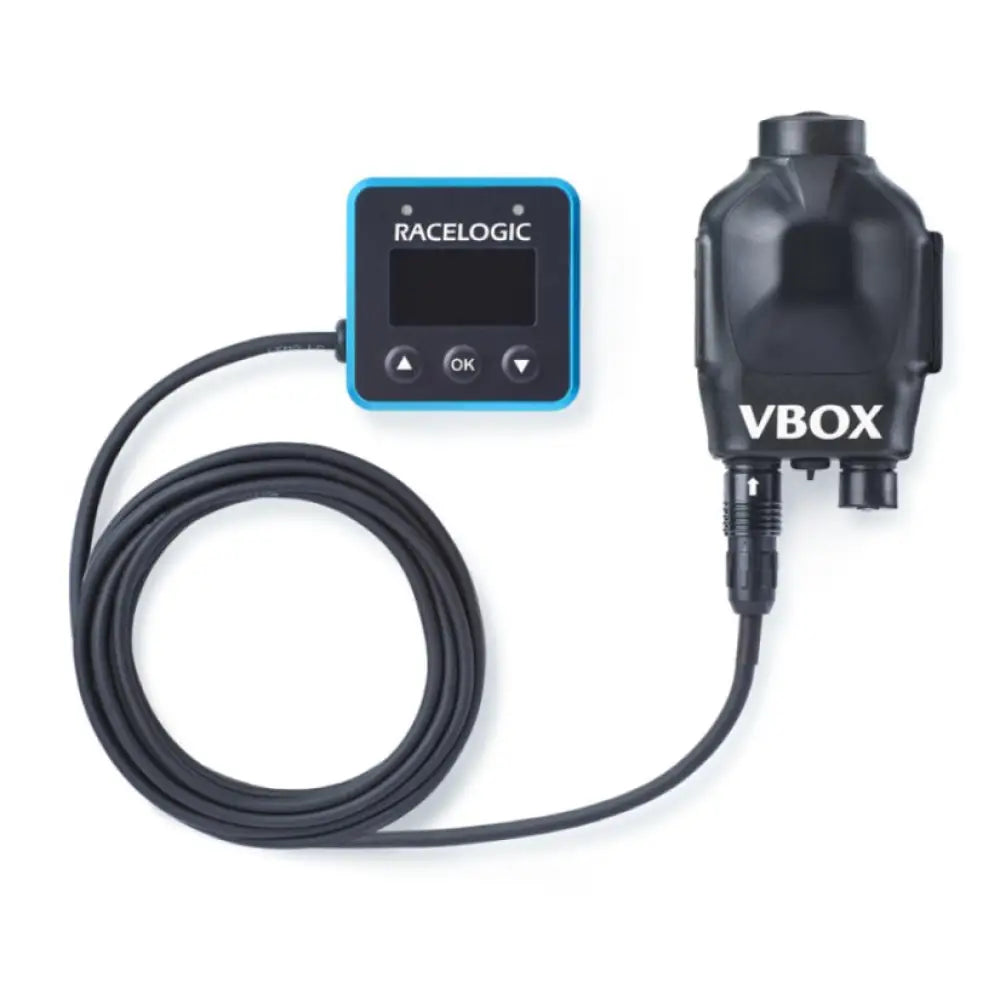

- Compatible with the OLED predictive lap timing display for live delta time.
- Mounting options via ¼” UNC
- Wide dynamic range - balanced lighting through a windscreen
- Wi-Fi preview
- Lifetime technical support
- Size: 81 mm (L) x 52 mm (W) x 37 mm (H)
- Weight: 140g
Please choose between the two options:
Standard (RLVBHDL)
- VBOX HD Lite unit
- Windscreen suction mount
- 32 GB Class 10 U3 Micro SD card
- Cigar Lighter power supply (2 m)
- Wi-Fi Dongle for video preview
- GNSS Antenna
- Protective lens cover
Race Option (RLVBHDLRACE)
- VBOX HD Lite unit
- Roll cage mount
- 32 GB Class 10 U3 Micro SD card
- Unterminated CAN & Power Cable (2 m)
- Wi-Fi Dongle for video preview
- GNSS Antenna
- Protective lens cover
