Reverse rotation units are special order and not returnable in case of mistaken orders.
Please make sure its the correct unit.

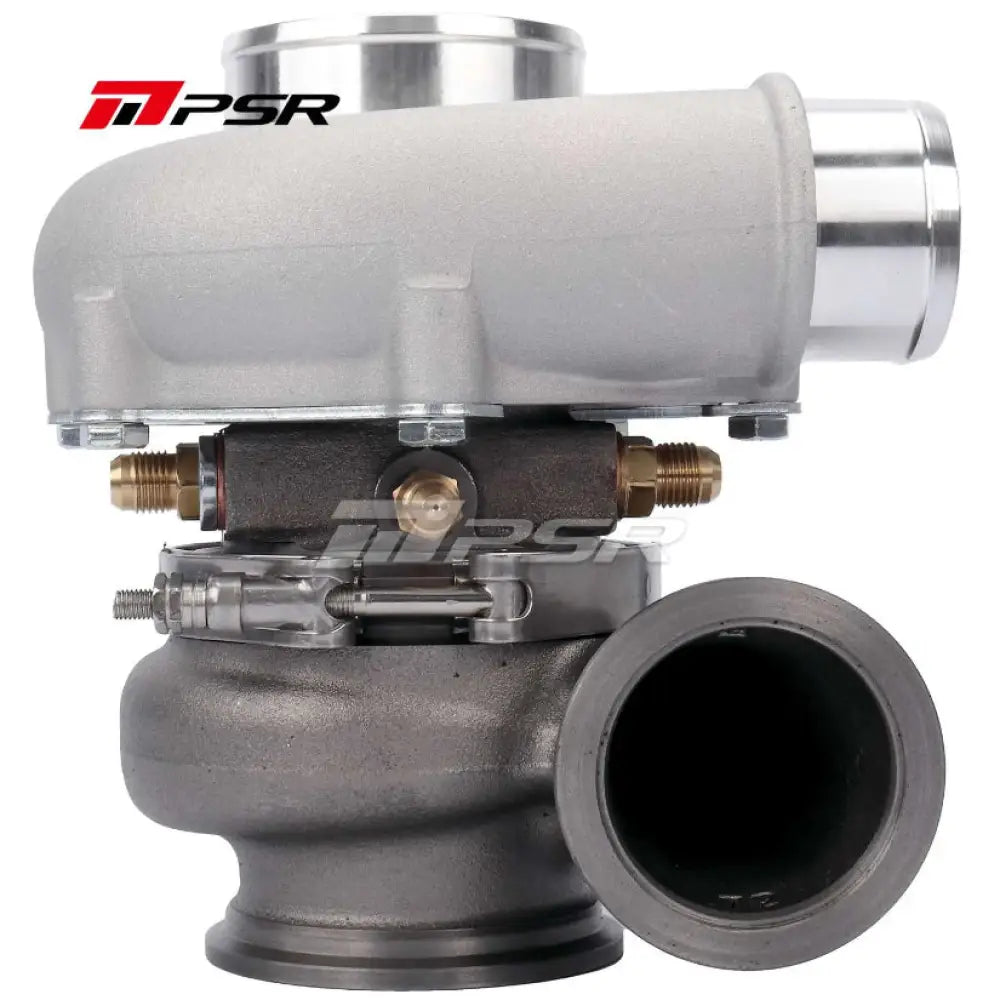

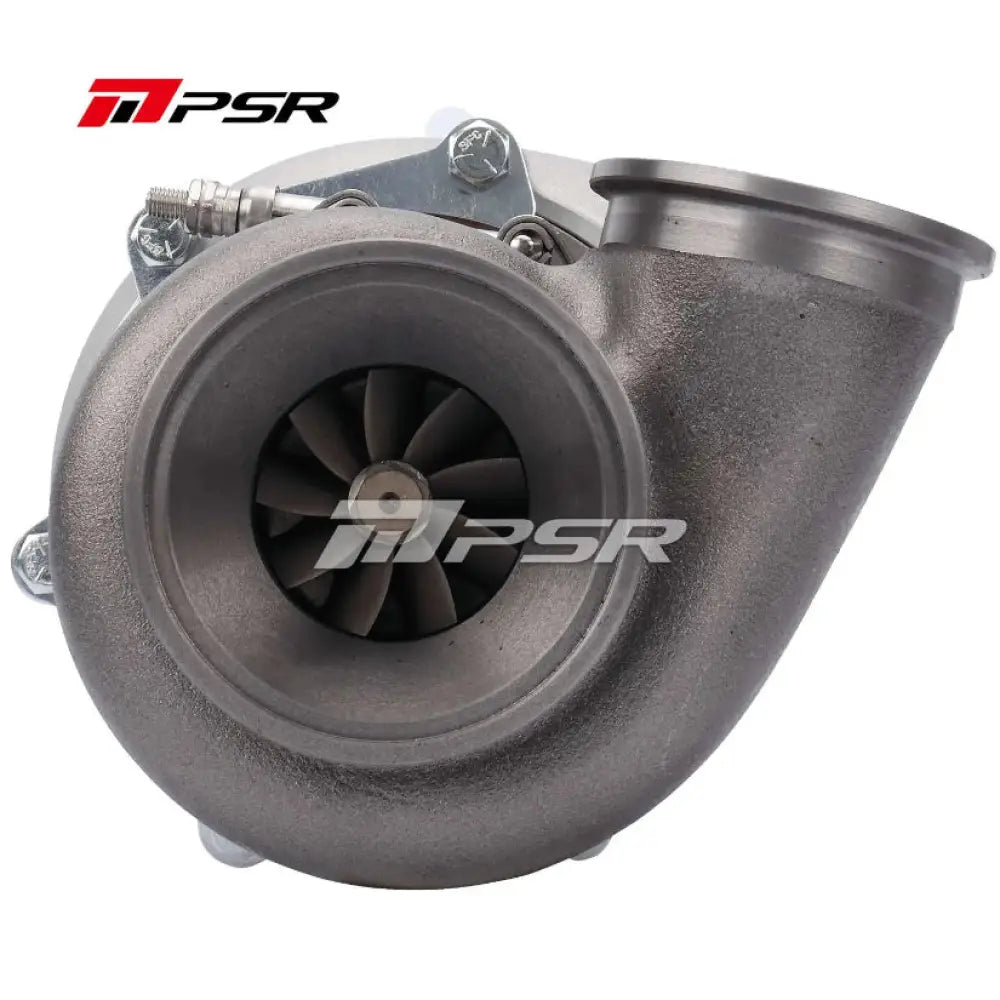

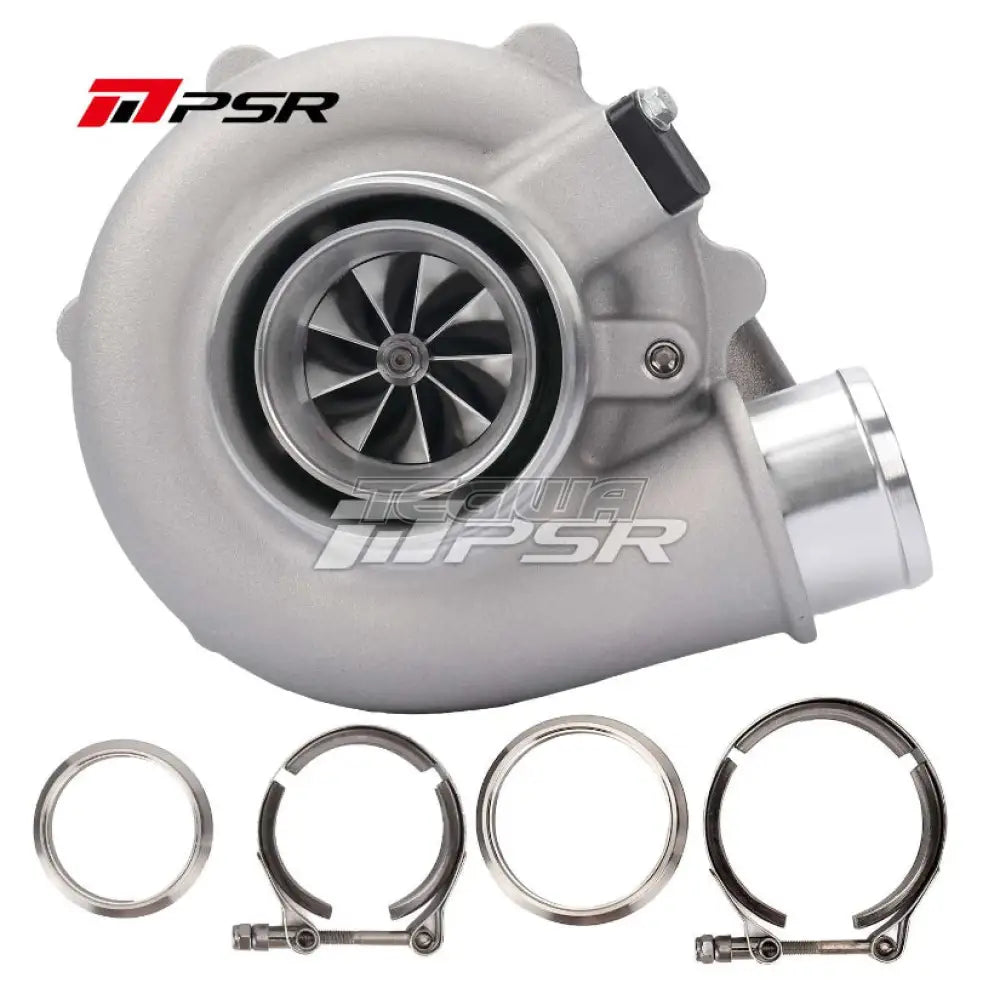

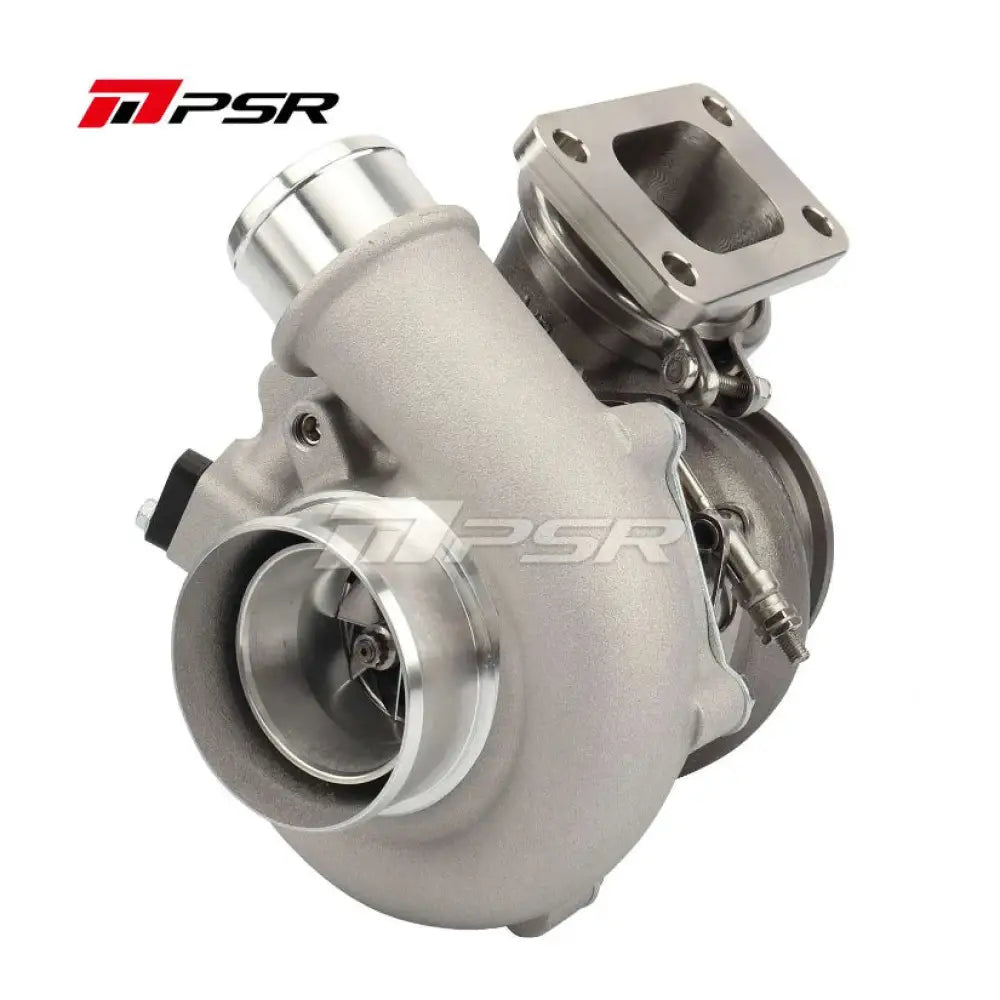

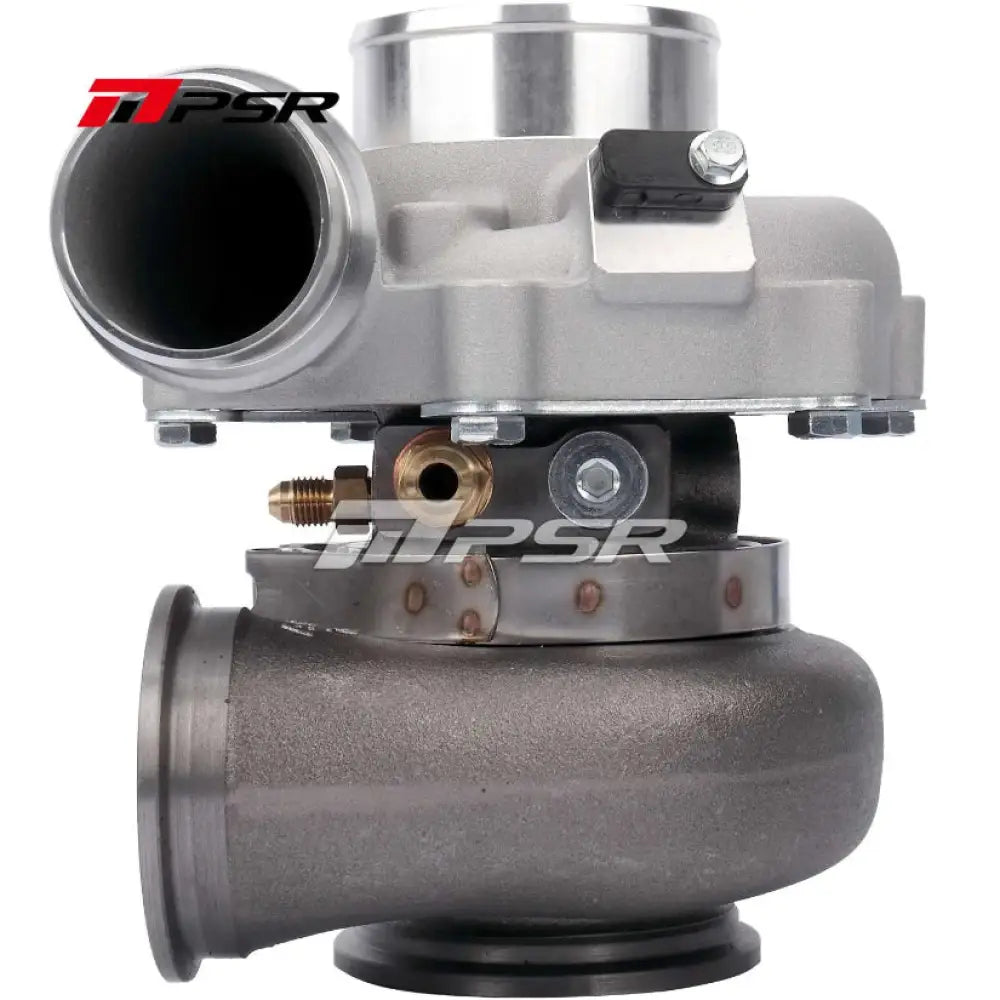

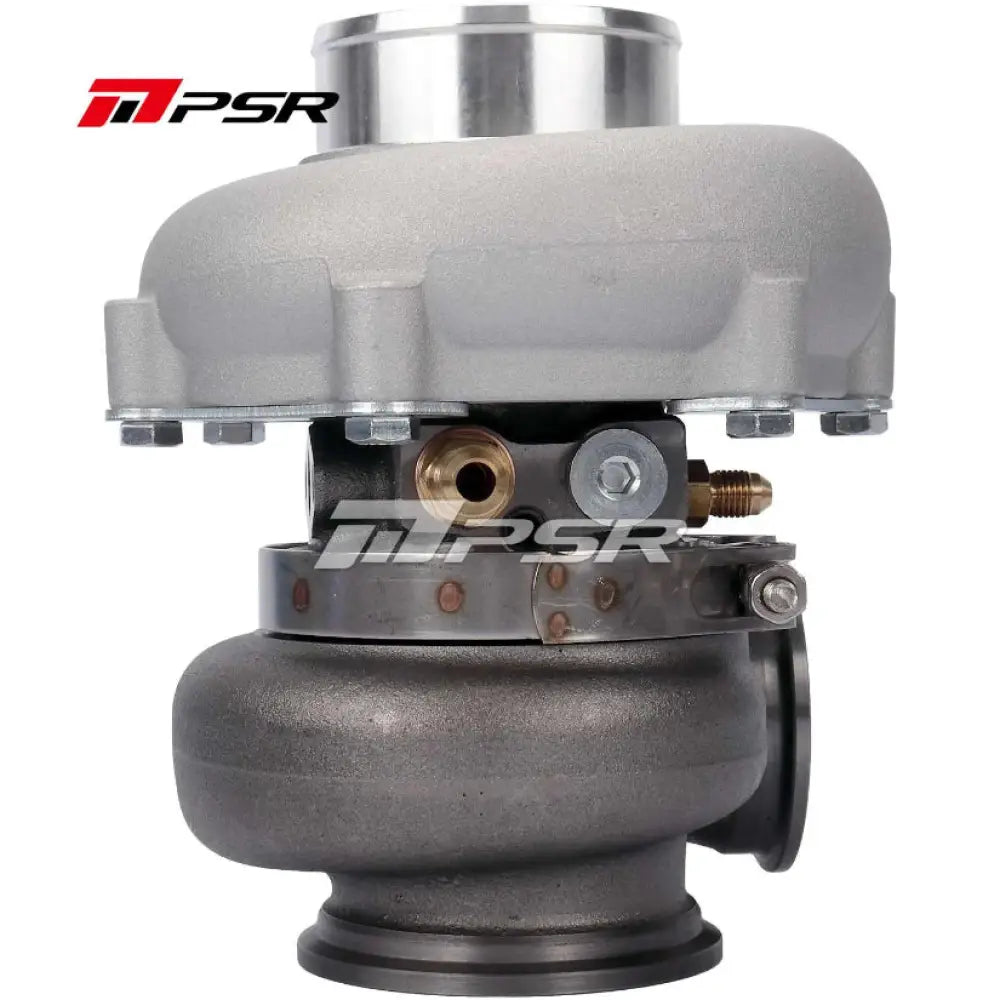

Pulsar PSR5455G Reverse Rotation
- Please note, T51R housing option requires an extra 7 days handling time
- Recommended displacement 2.0 to 3.5 litres with power outputs up to 600hp possible.
- Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing play in the shaft.
- 9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology
- 9 Blade G-Aero Inconel 713c Turbine Wheel
- Anti-Surge ported-shroud compressor inlet, cover with integrated speed sensor port
SPEC
- Compressor Wheel: 54*67mm
- Turbine Wheel: 60*55mm
- Compressor Outlet: 2″ Hose

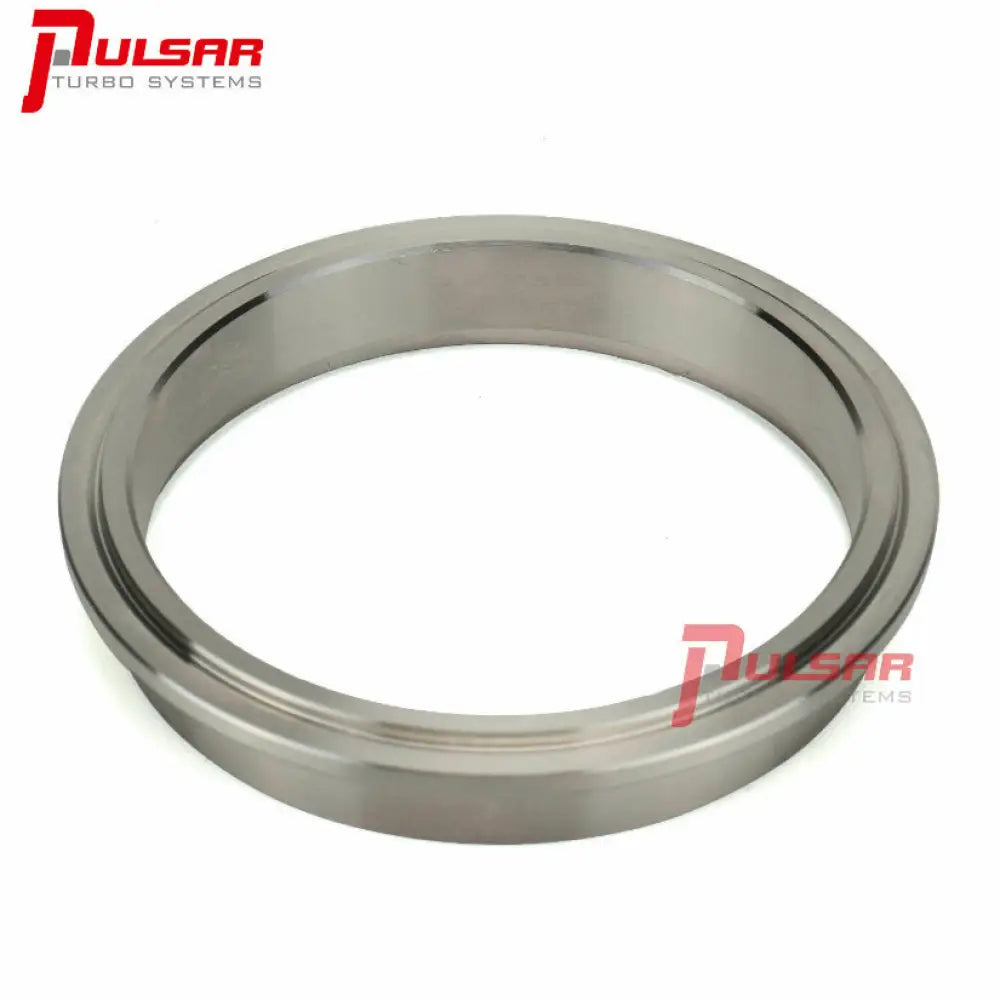

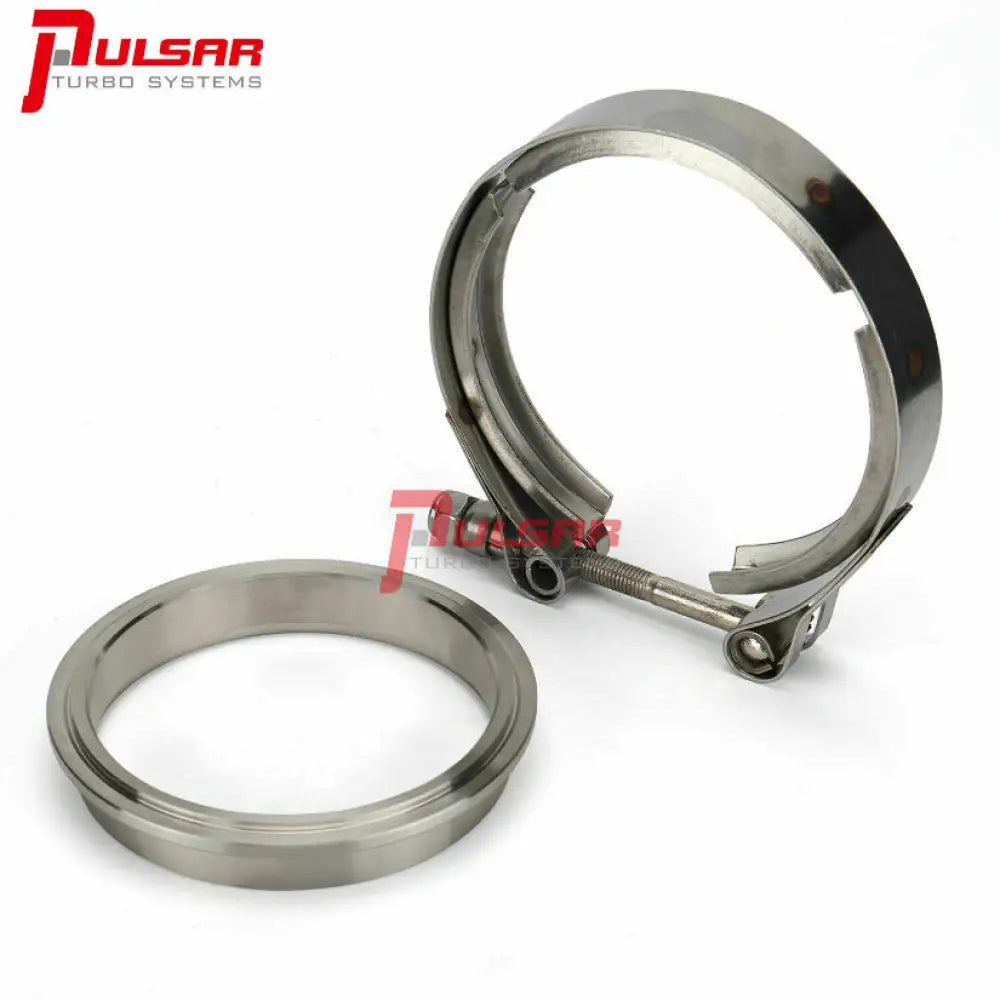

- Turbine Inlet: 2.5" Vband

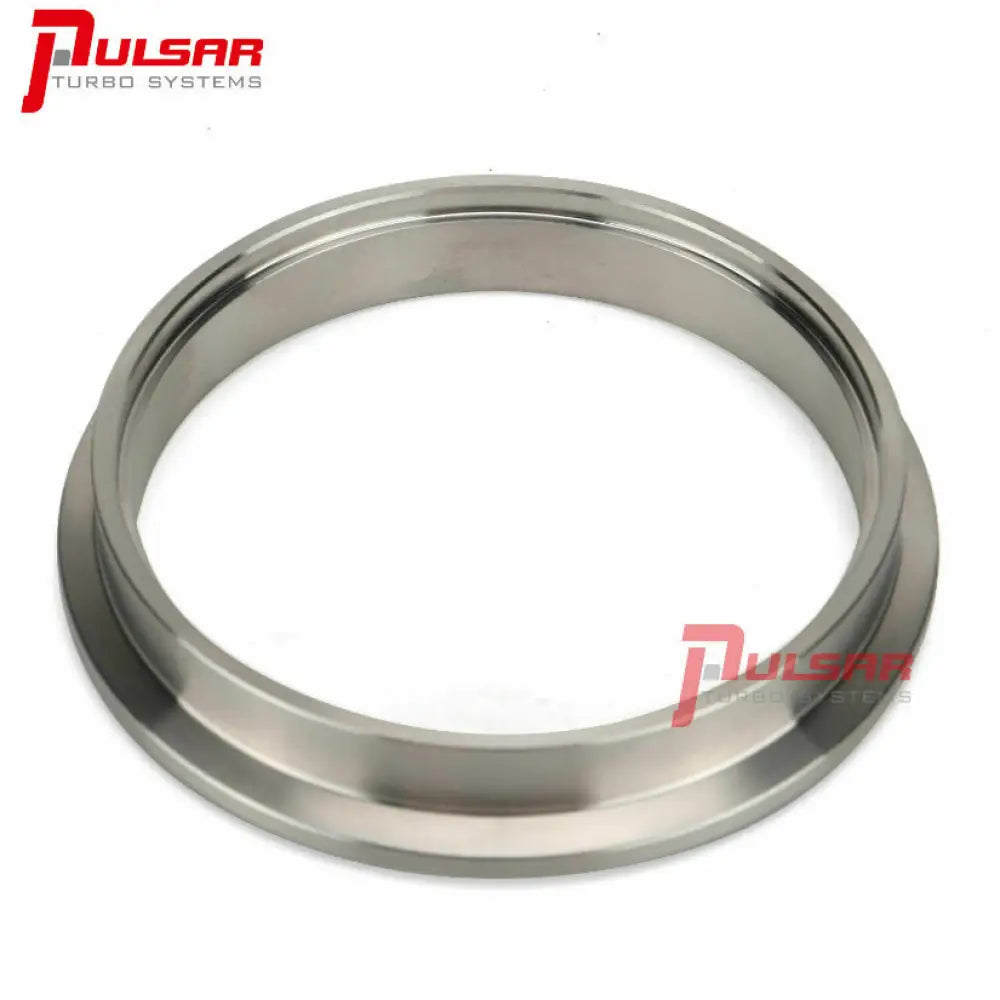

- Turbine Outlet: 3″ V-Band
- Water Ports: 2-M14 X 1.5
- Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
- Oil Outlet: Std T3 Oil Drain Flange
-
2 options of turbine housing: Dual vband 0.72A/R; Dual vband 1.01A/R.

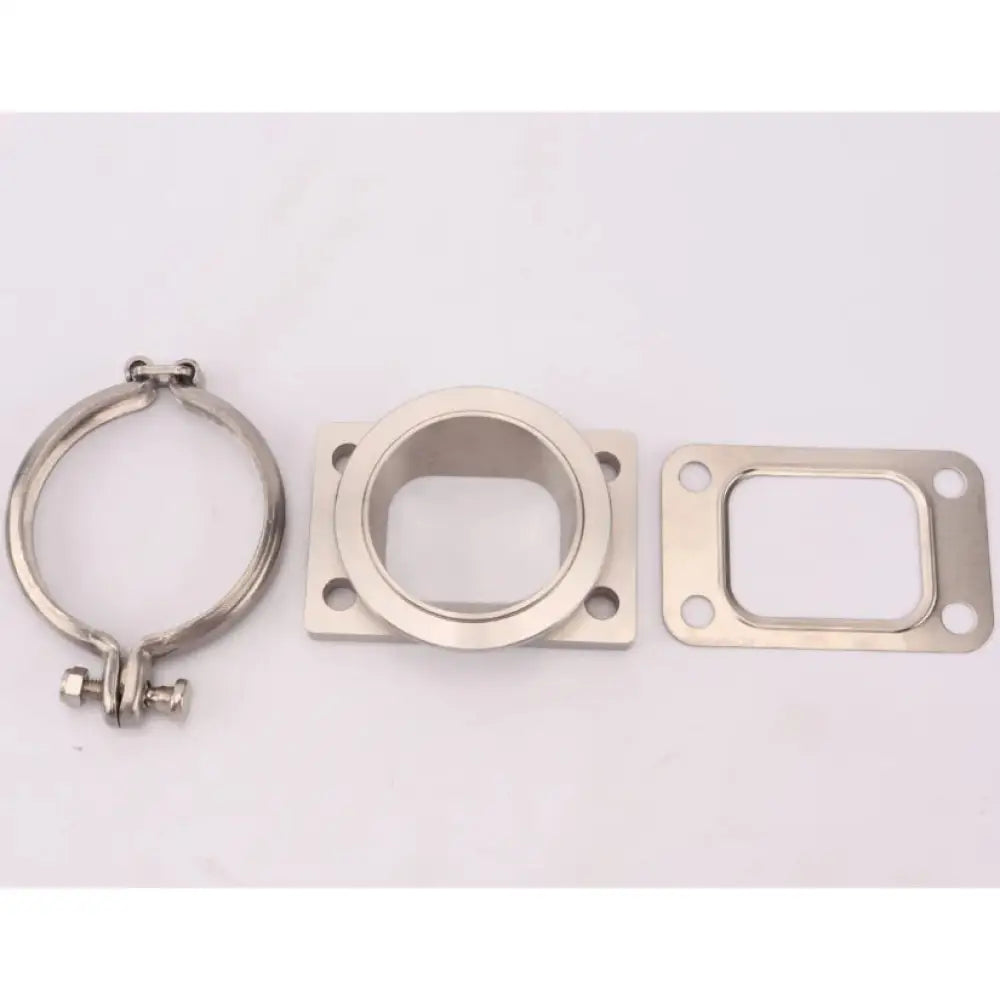

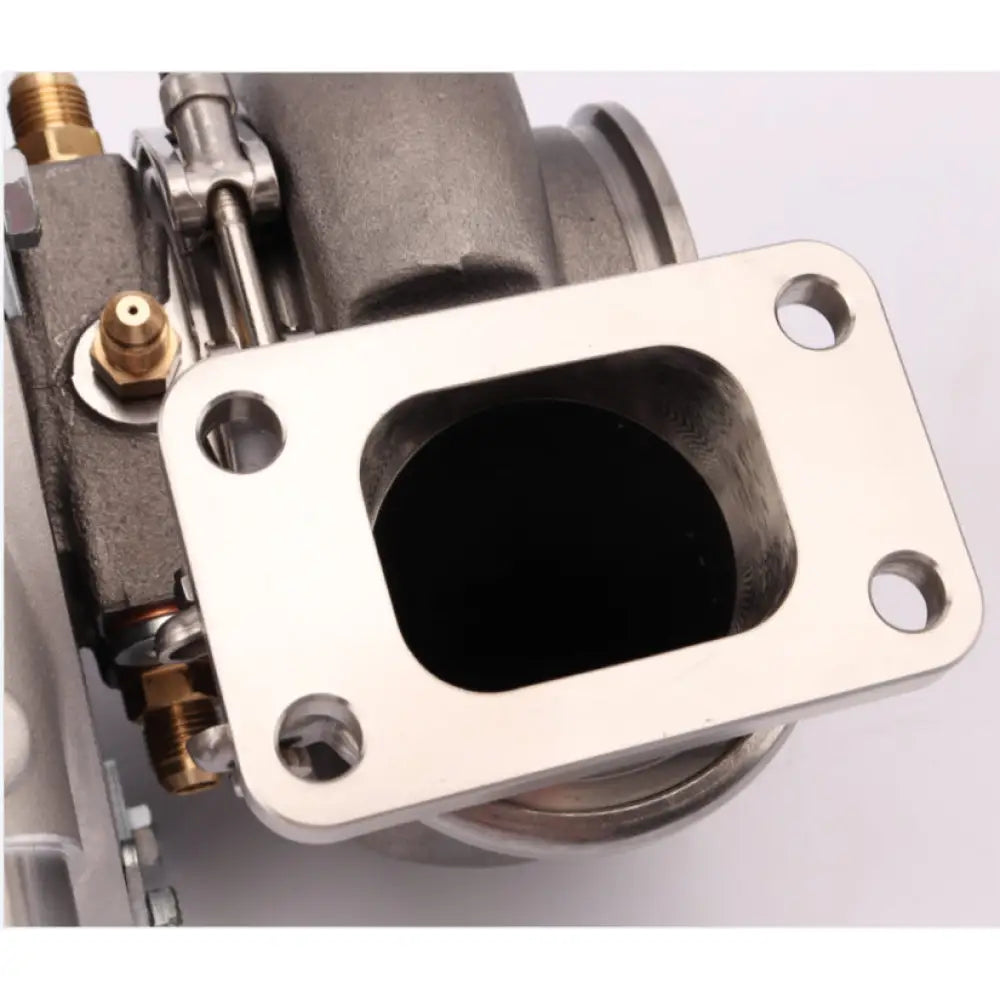

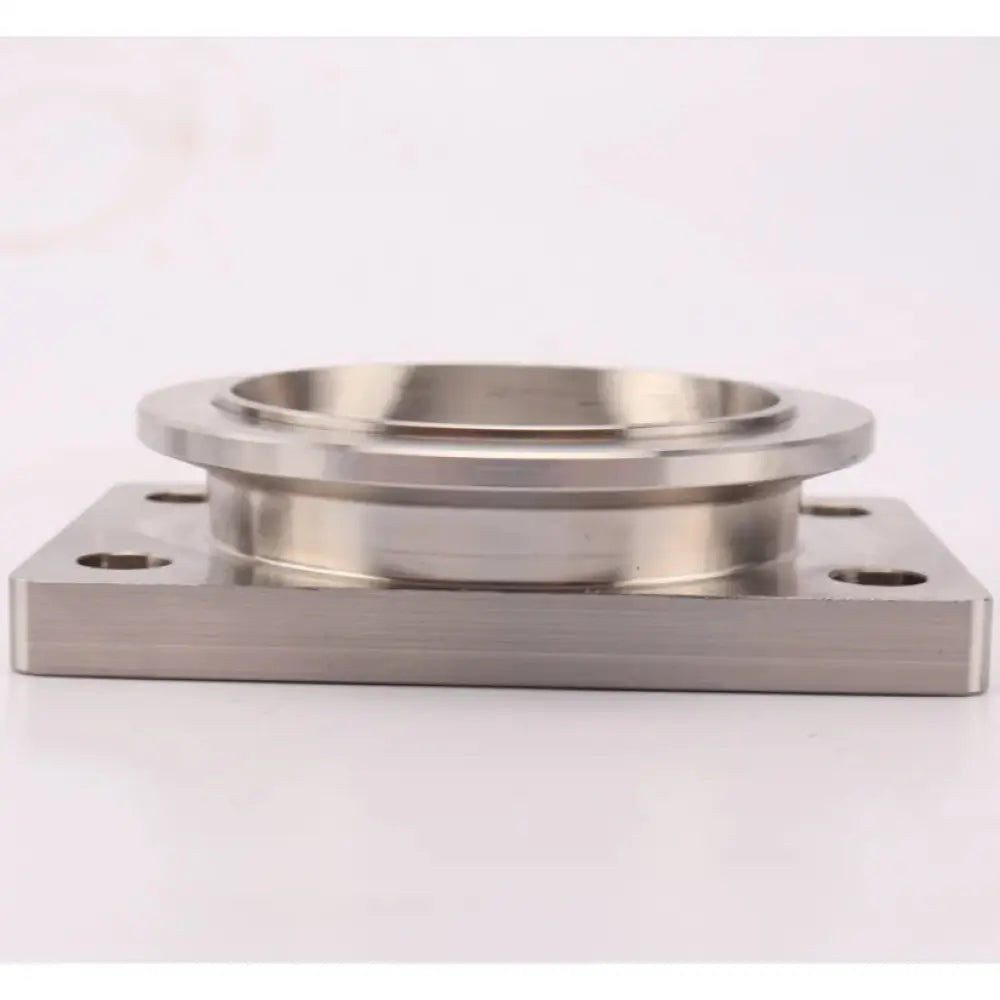

- 2 Adapters are available: Vband to T25 adapter; Vband to T3 adapter
Please note , T flange adapters are only supplied with housing options that state with adapter
It's strongly recommended to run water cooling to aid reliability.
