Reverse rotation units are special order and not returnable in case of mistaken orders.
Please make sure its the correct unit.

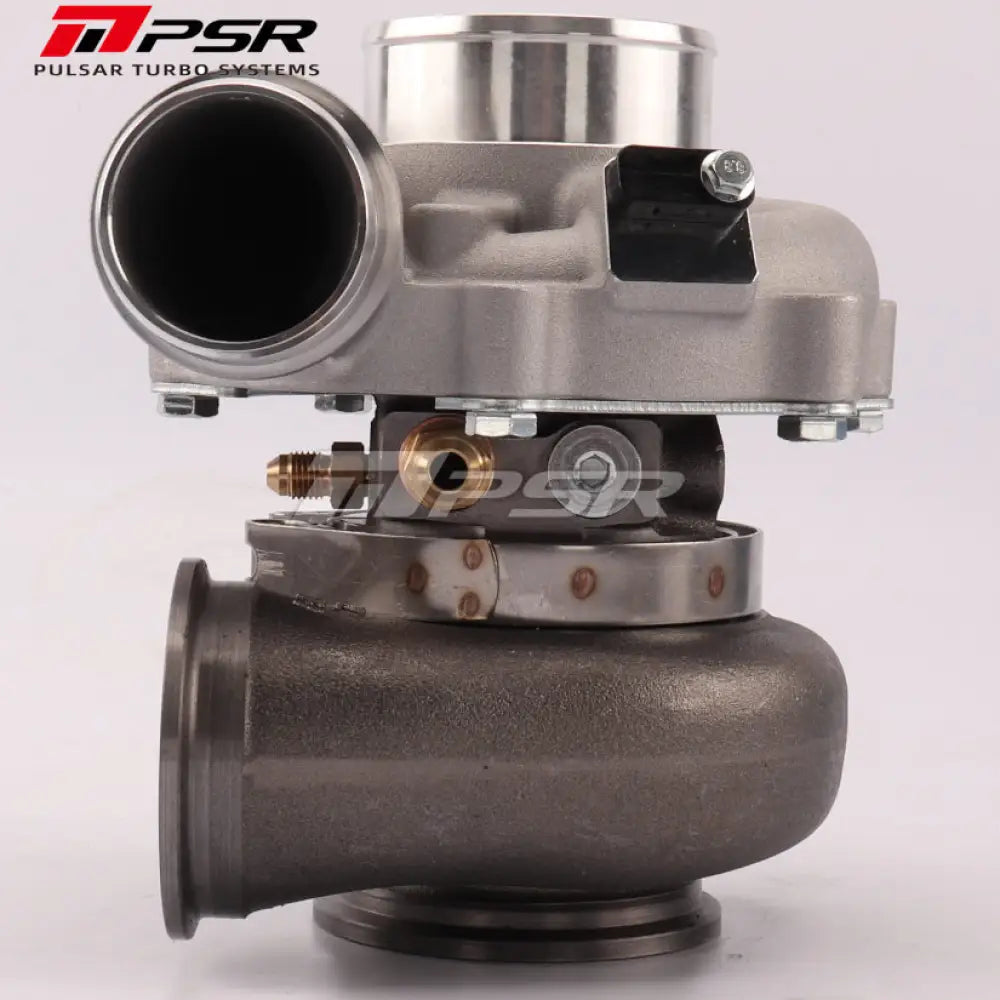

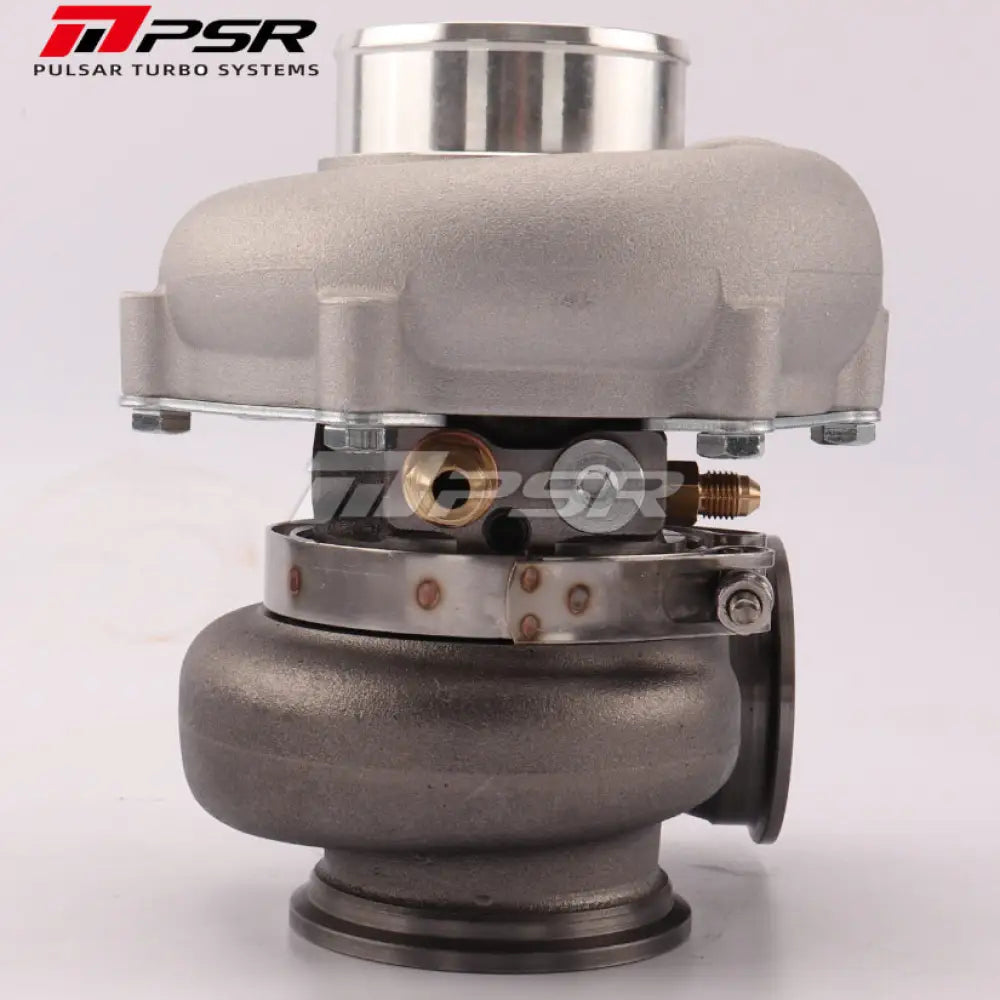

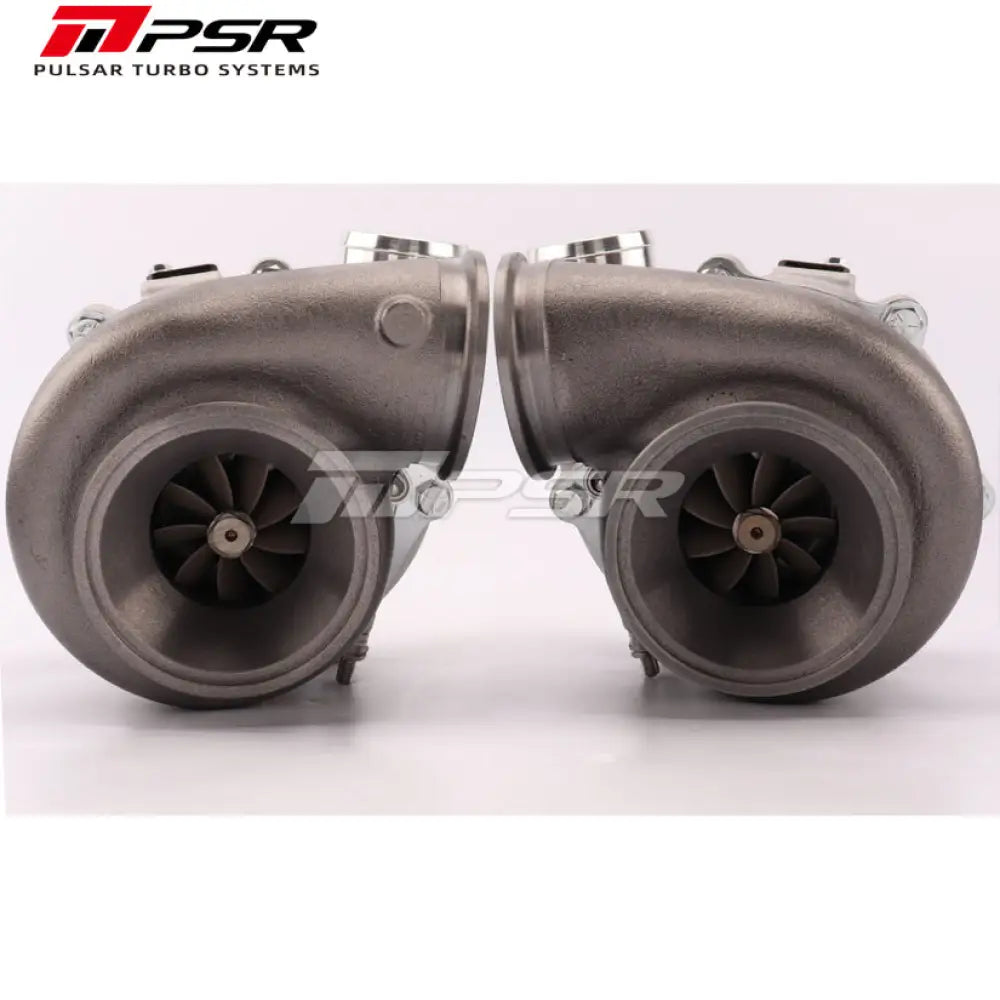

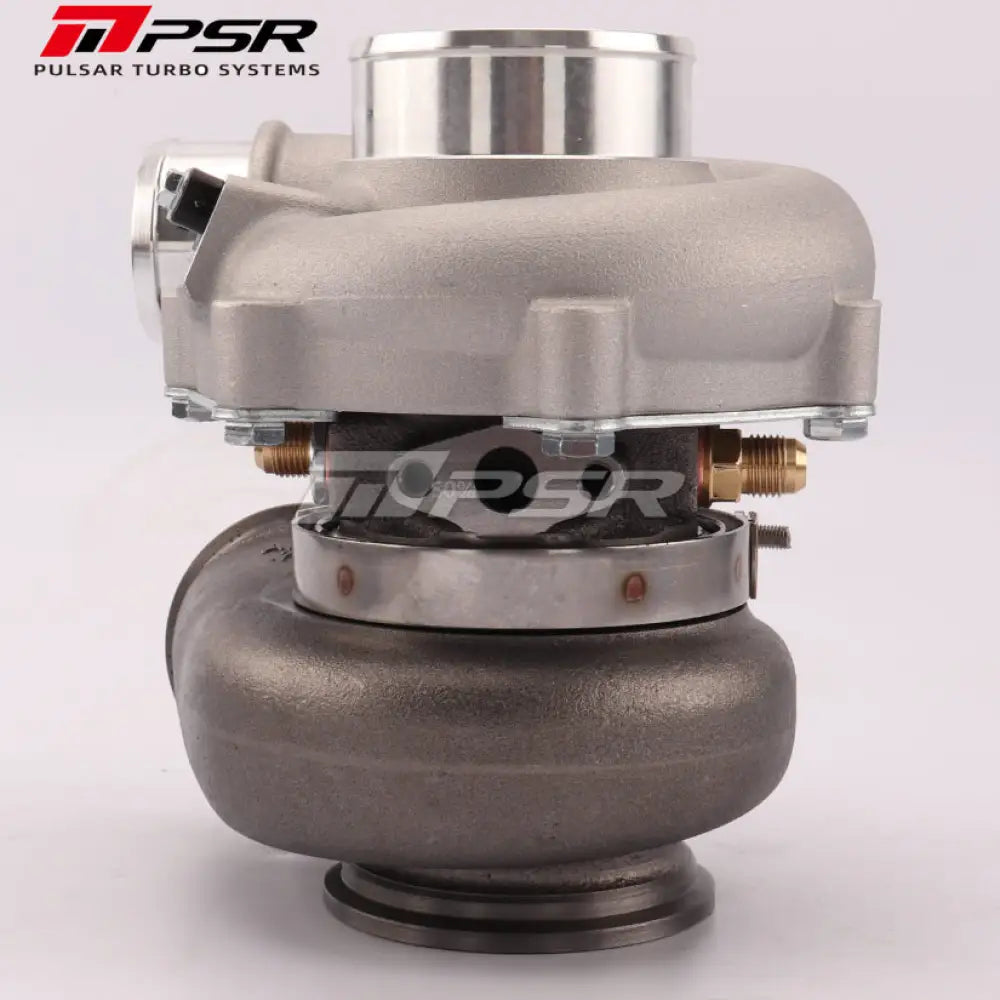

Reverse Rotation Pulsar PSR4849G
- Please note, T51R housing option requires an extra 7 days handling time
- Recommended displacement 1.6 to 3.0 litres with power outputs up to 550hp possible.
- Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing play in the shaft.

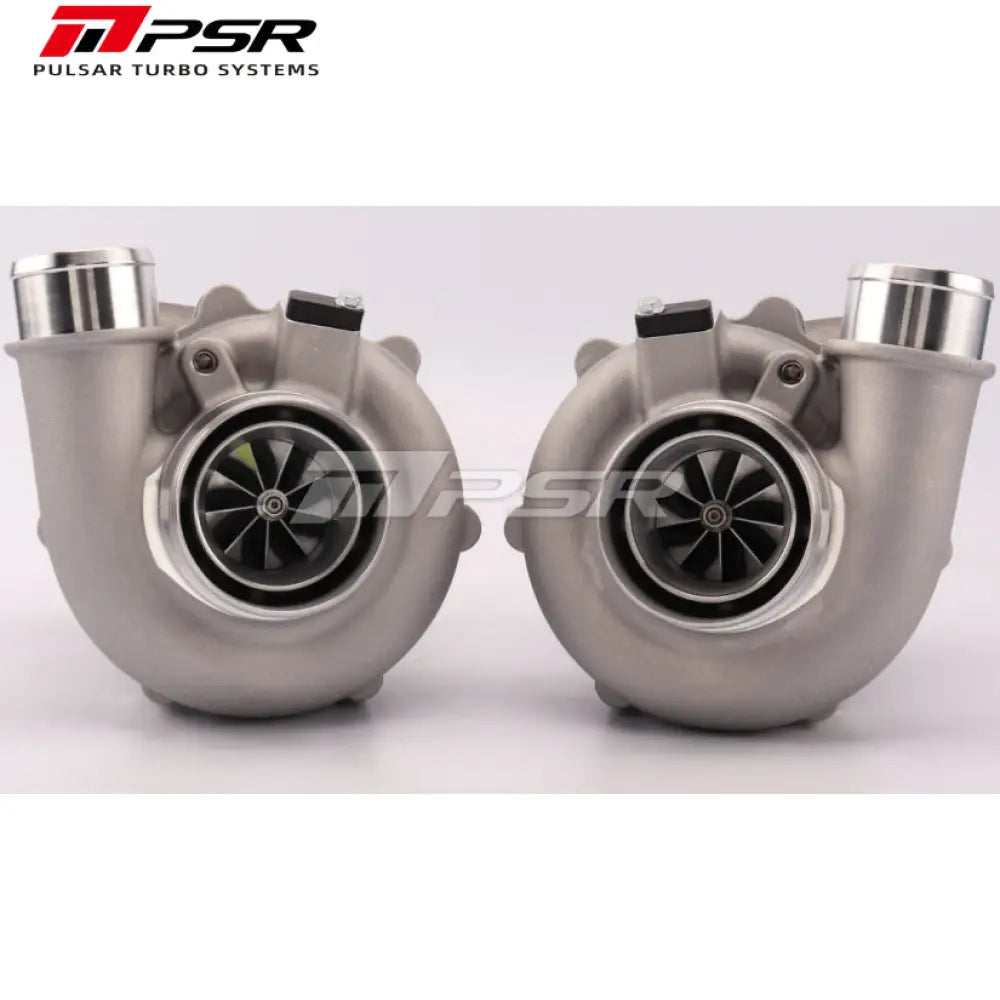

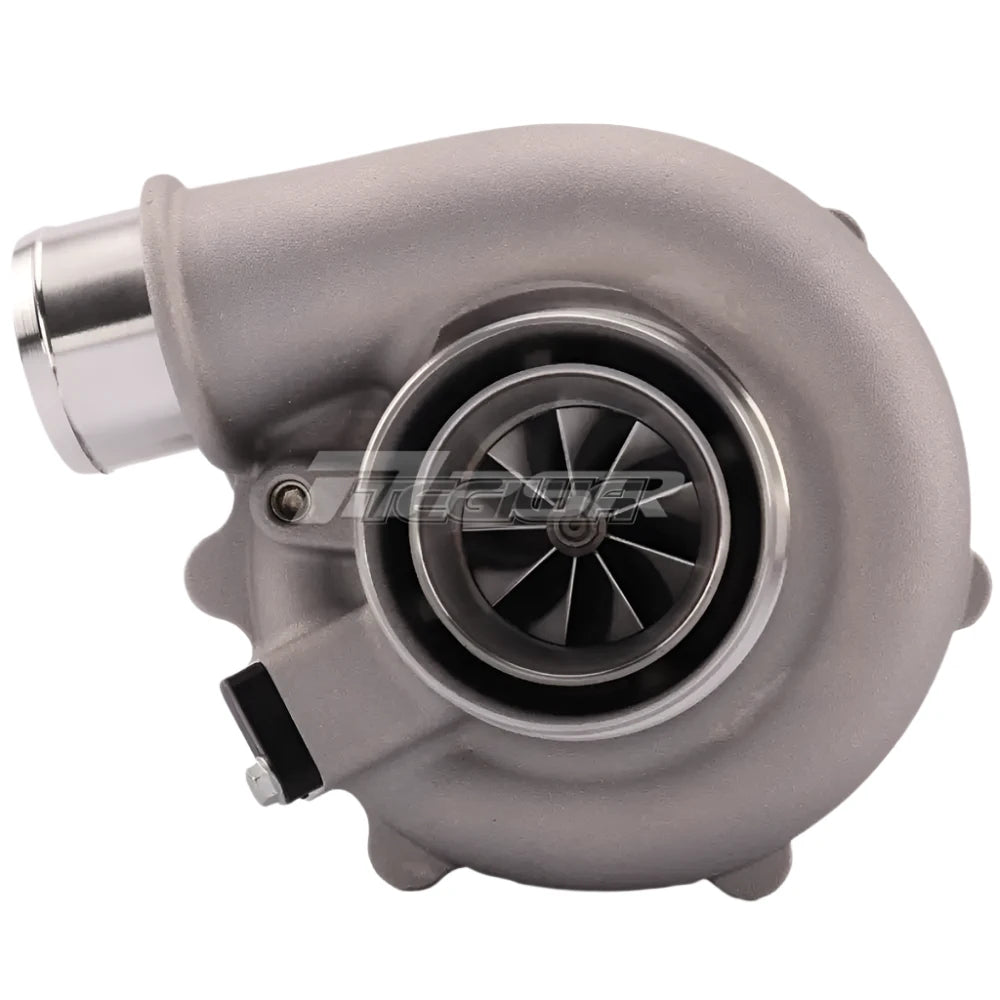

- 9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology

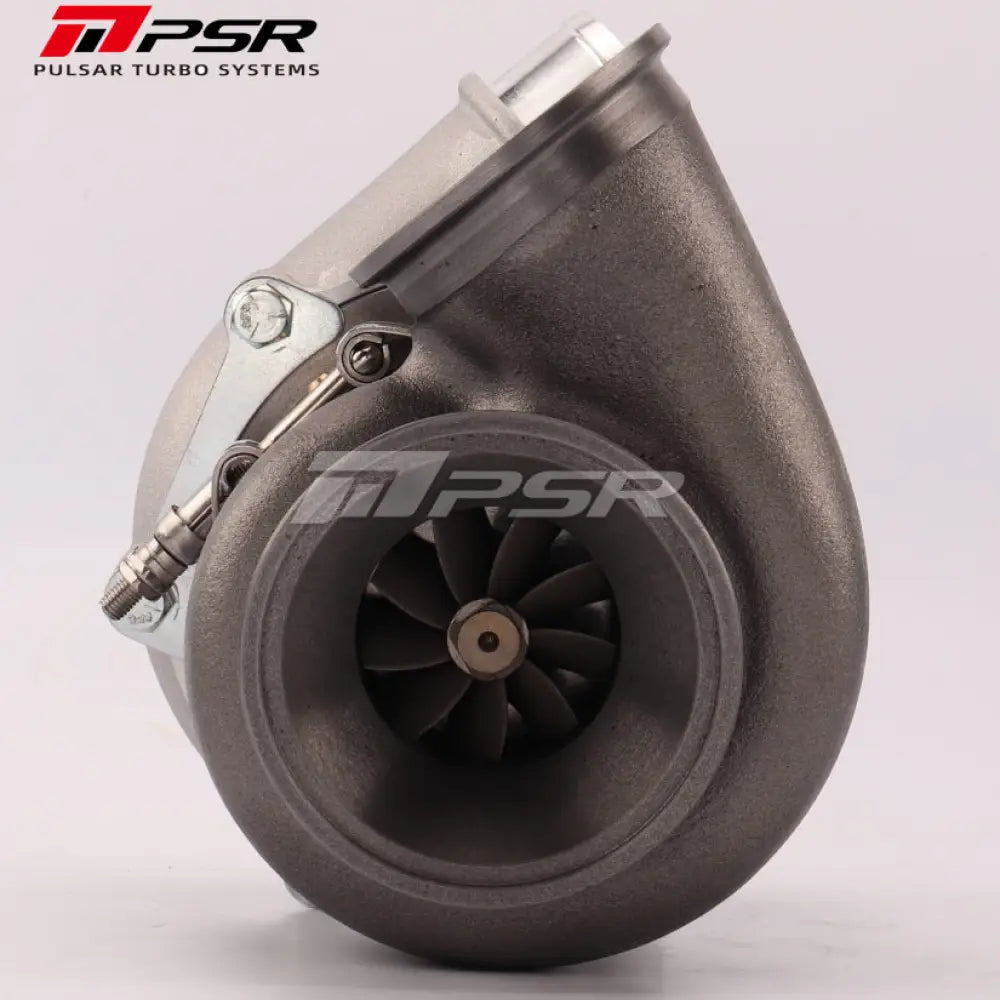

- 9 Blade G-Aero Inconel 713c Turbine Wheel

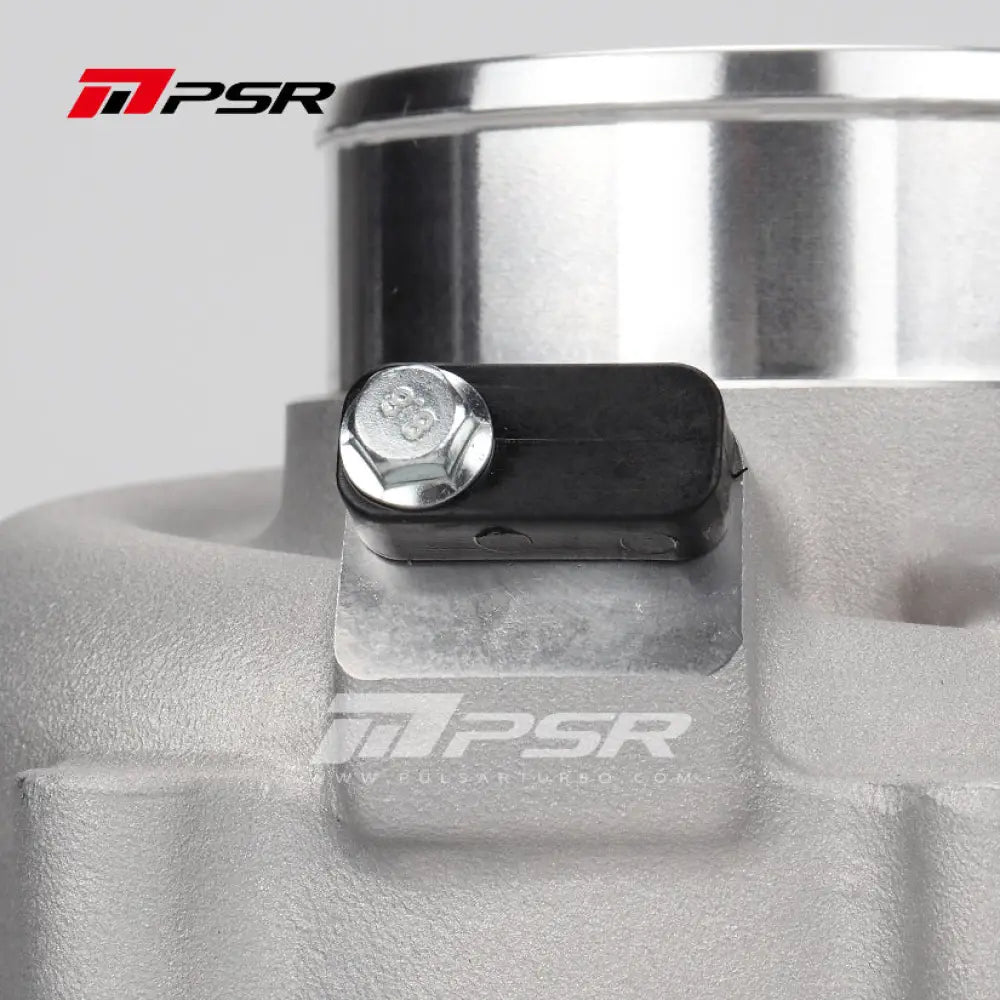

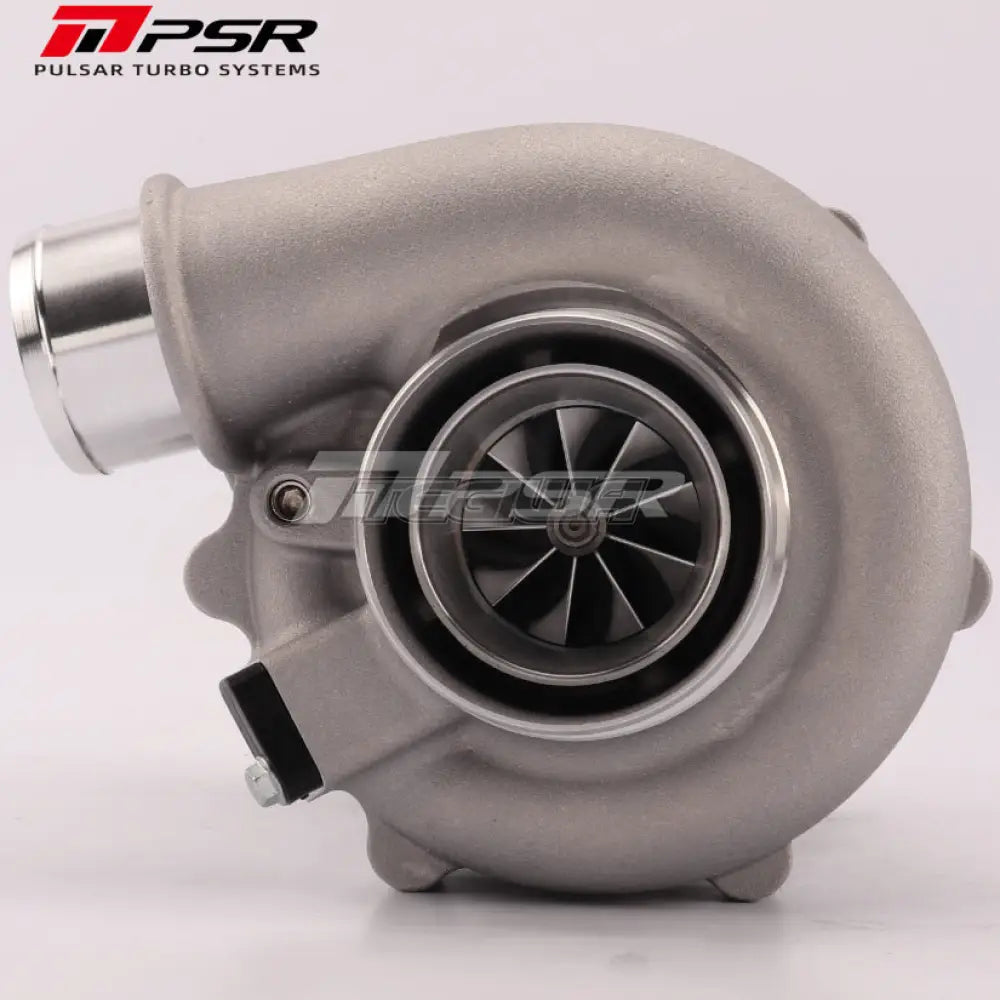

- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port

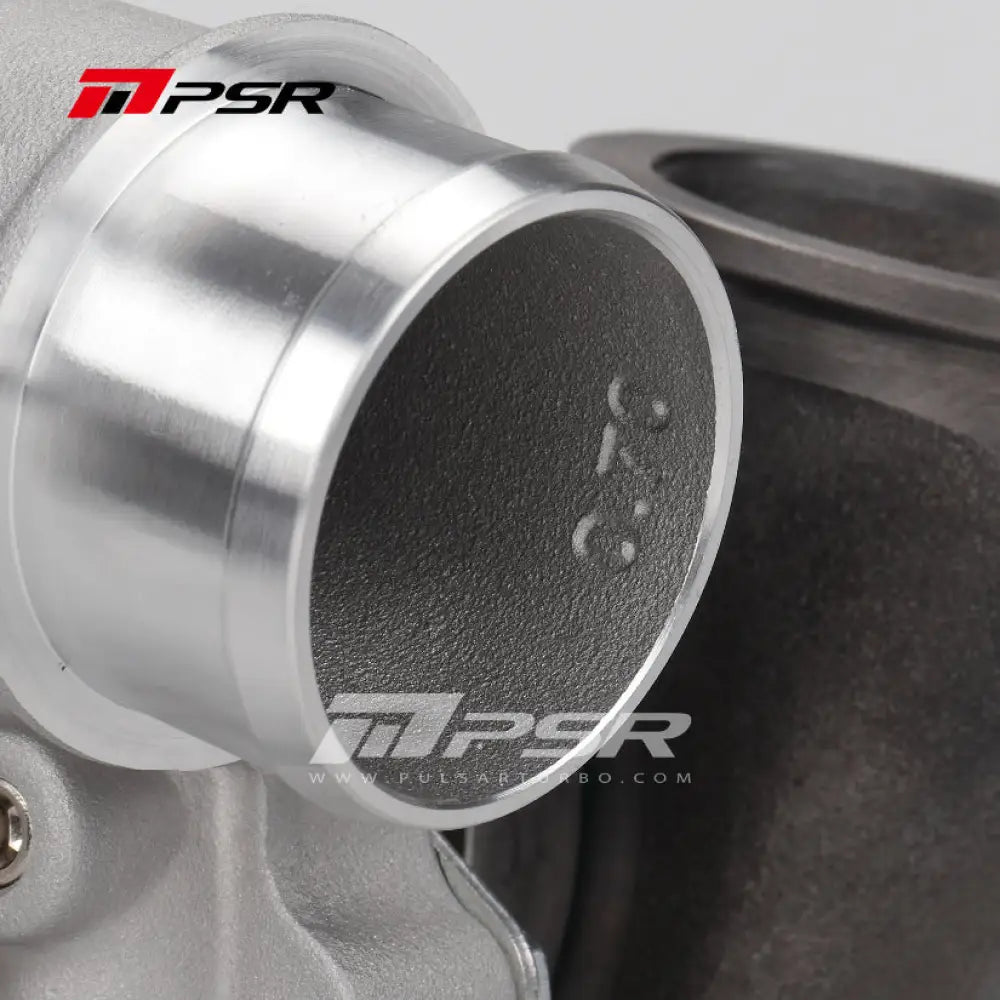

- 0.72 T3 or T25 option is supplied with a V band adapter as shown in the image
It's strongly recommended to run water cooling to aid reliability.
SPEC
Compressor Wheel: 54*67mm
Turbine Wheel: 54*49mm
Compressor Inlet: 3″ Hose
Compressor Outlet: 2″ Hose
Turbine Inlet: 2.5″ V-Band
Turbine Outlet: 3″ V-Band

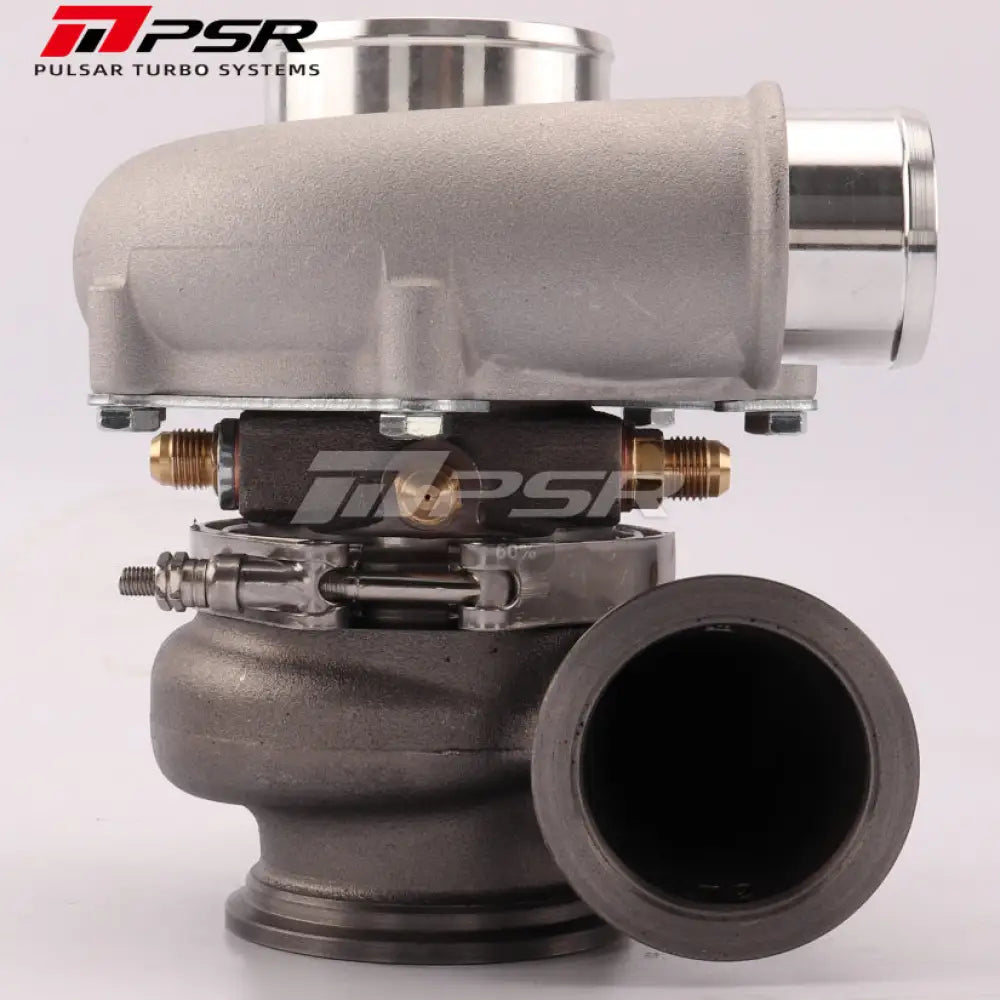

Water Ports: -6AN
Oil Feed: -4AN to the Oil Restrictor
Oil Drain: Std T3 Oil Drain Flange
T25 and T3 Option will be supplied as a V band housing and adapter.
