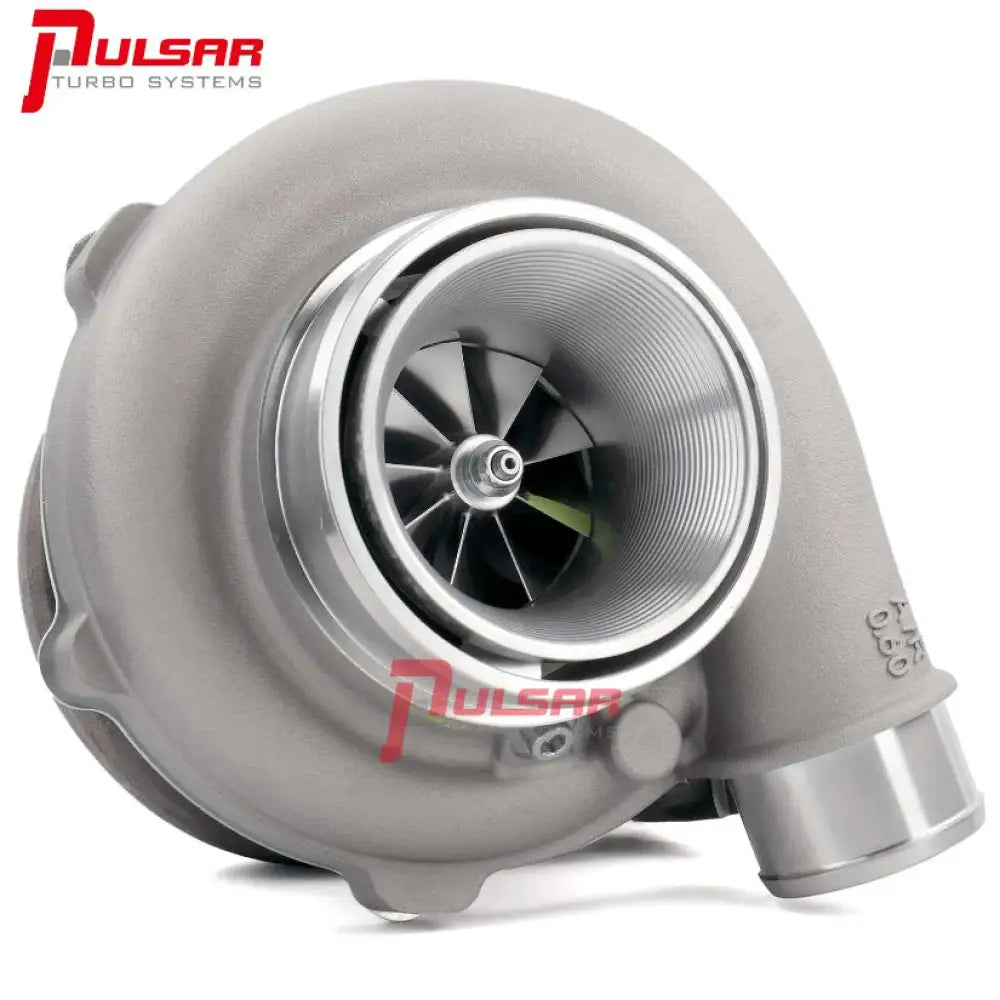

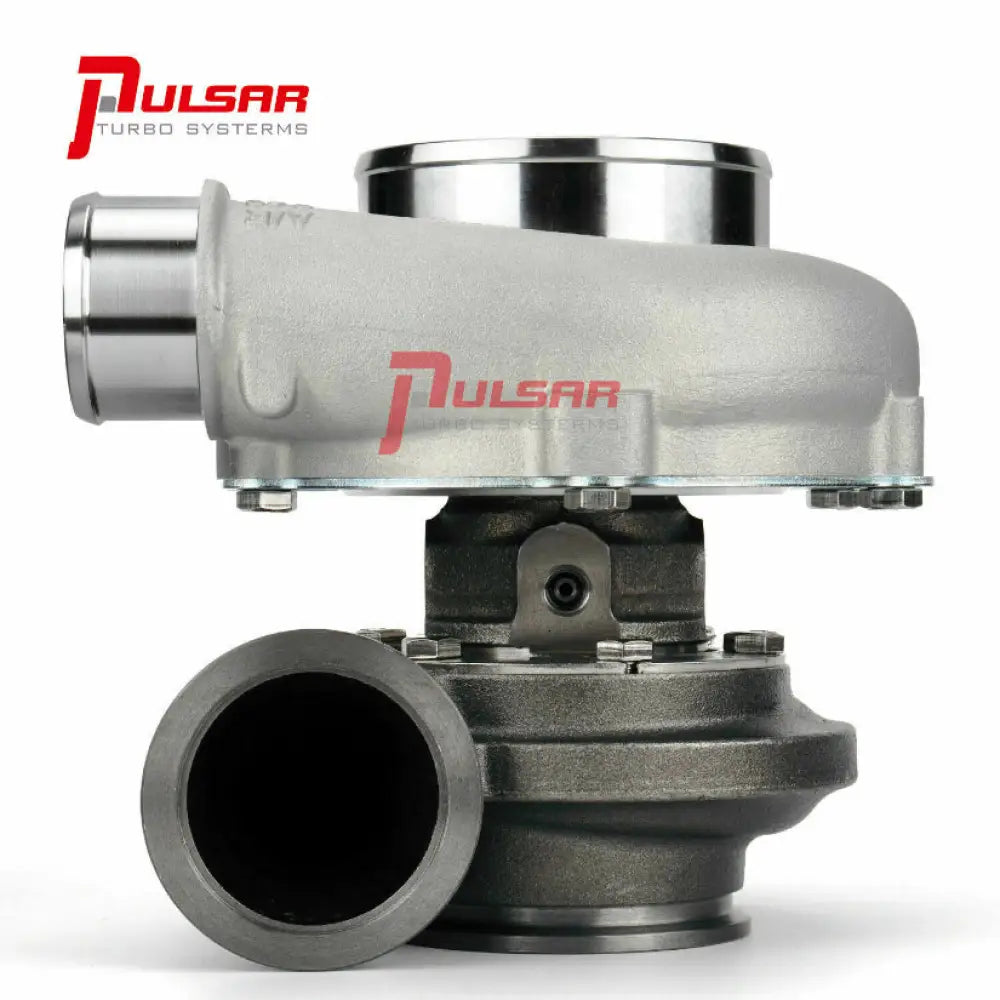

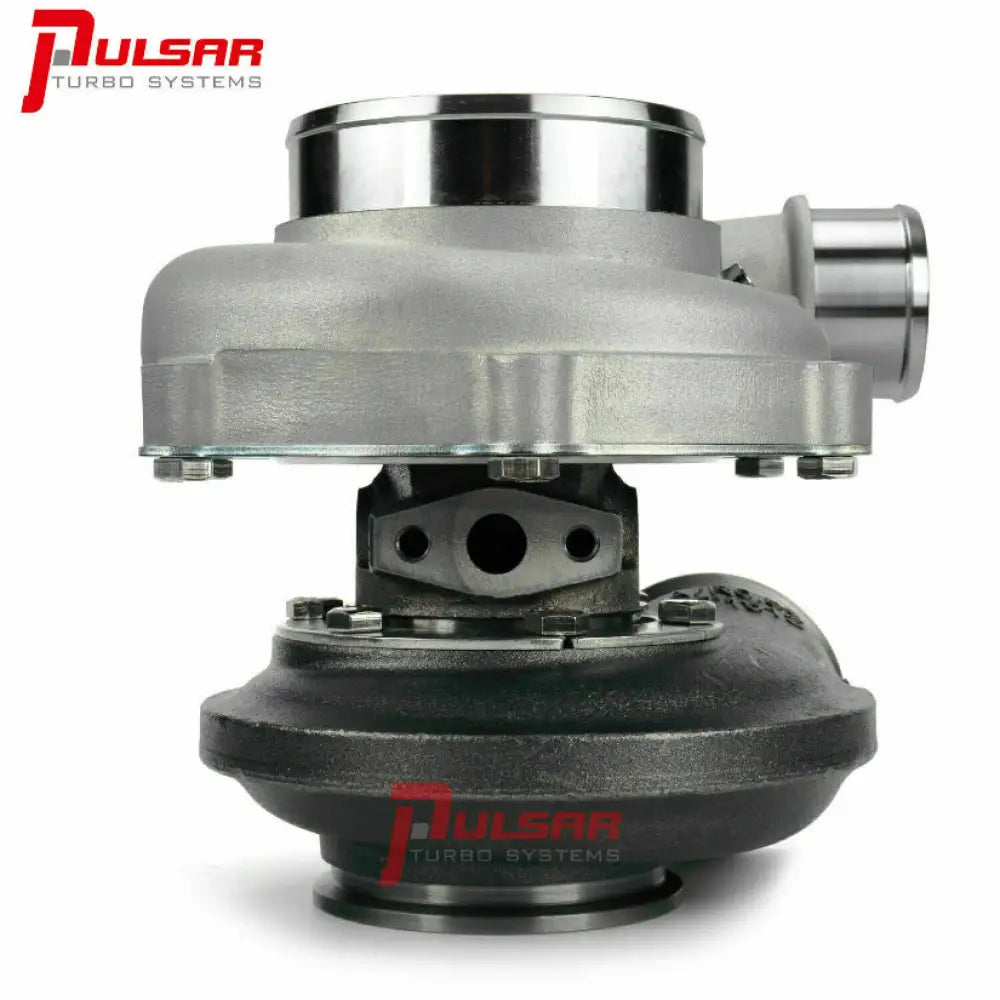

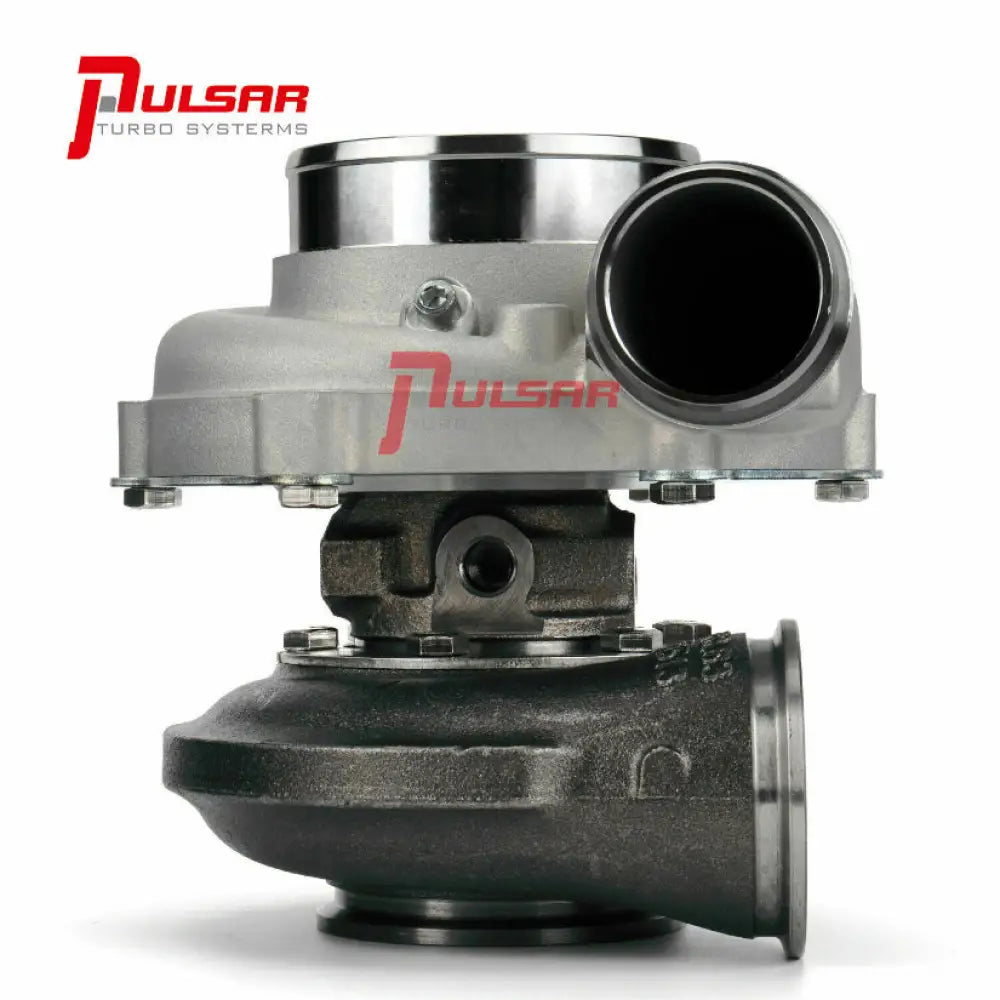

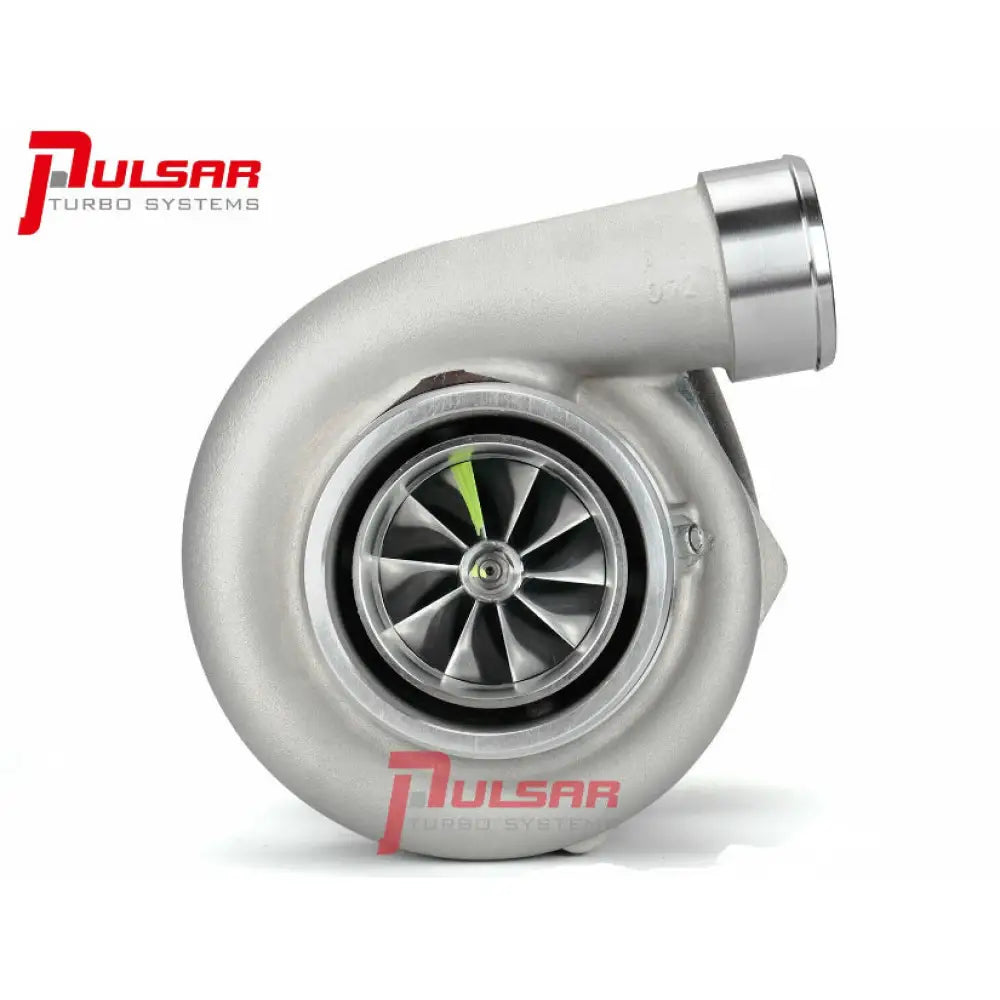

Pulsar PTX3582R Gen 2
- Please note, T51R housing option requires an extra 7 days handling time
- Recommended displacement 2.0 to 4.5 litres with power outputs up to 900hp possible.

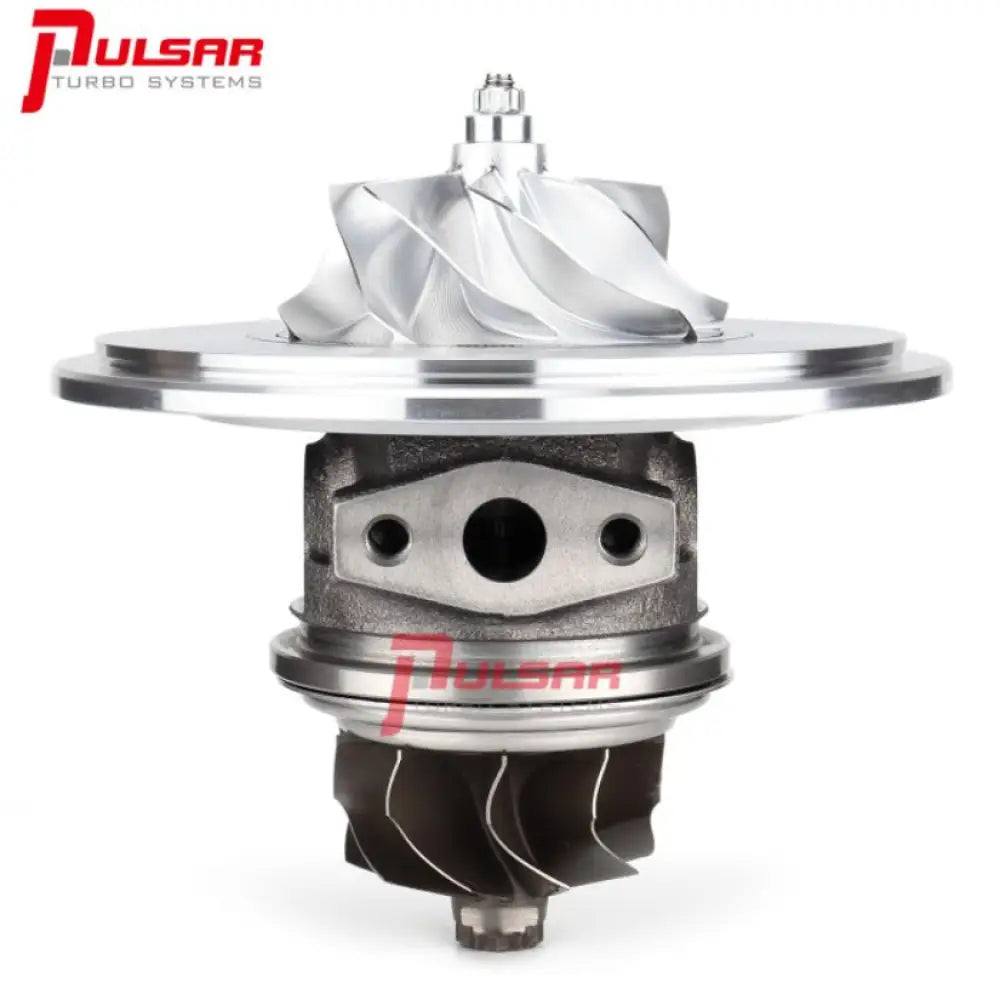

- Dual Ceramic Ball Bearing System

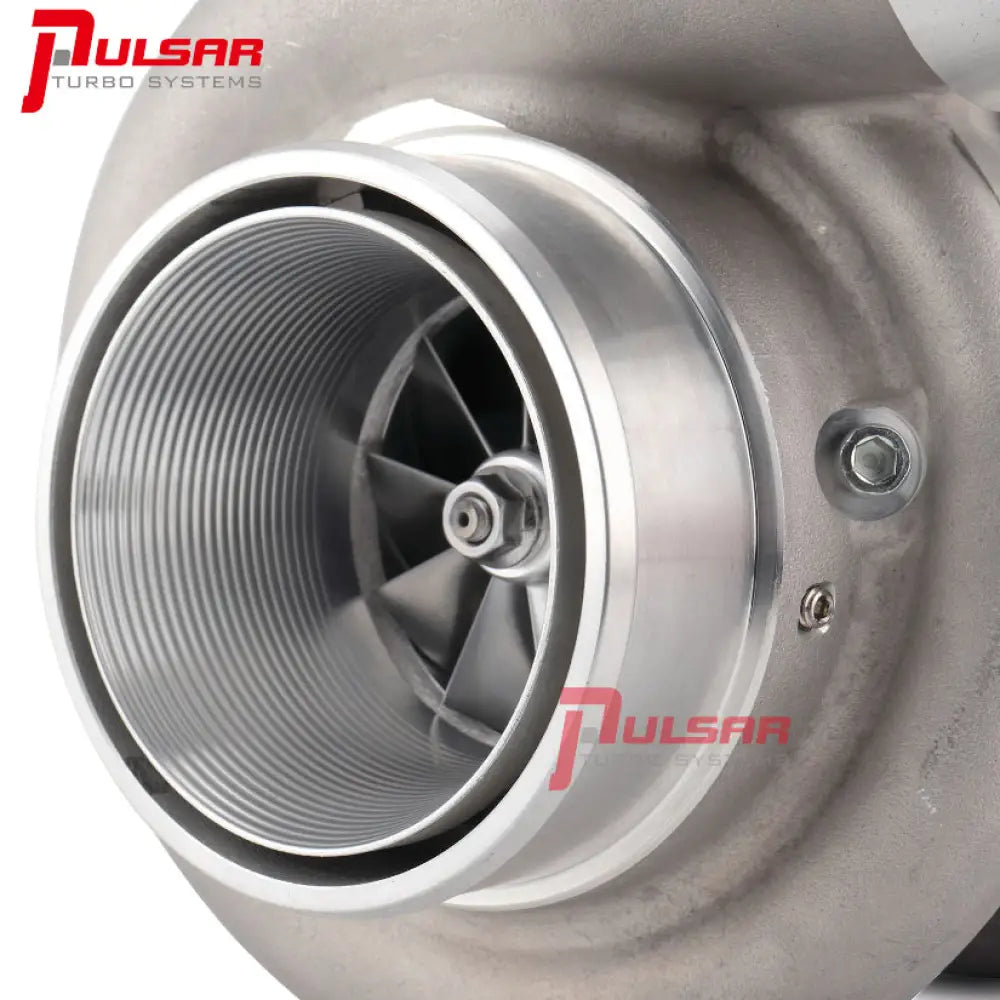

- 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology

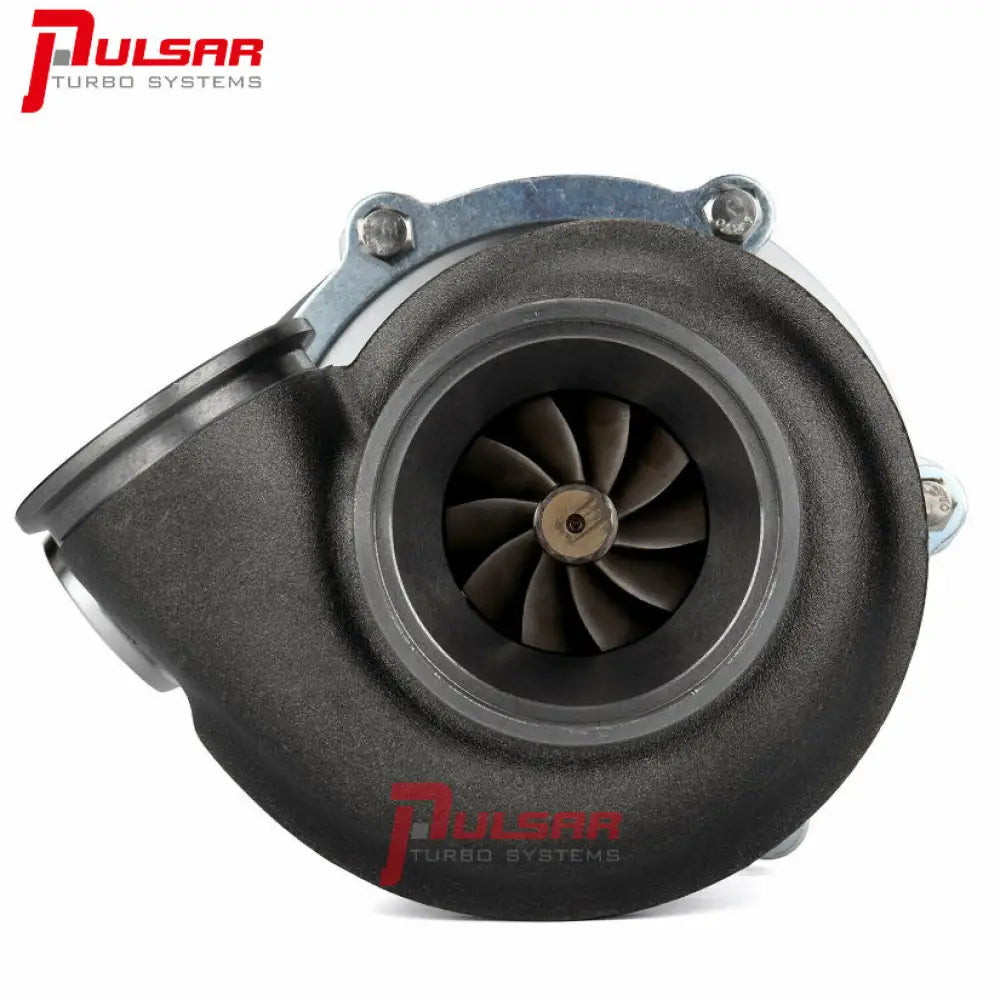

- Inconel 713c Gen2 9 Blade Turbine Wheel

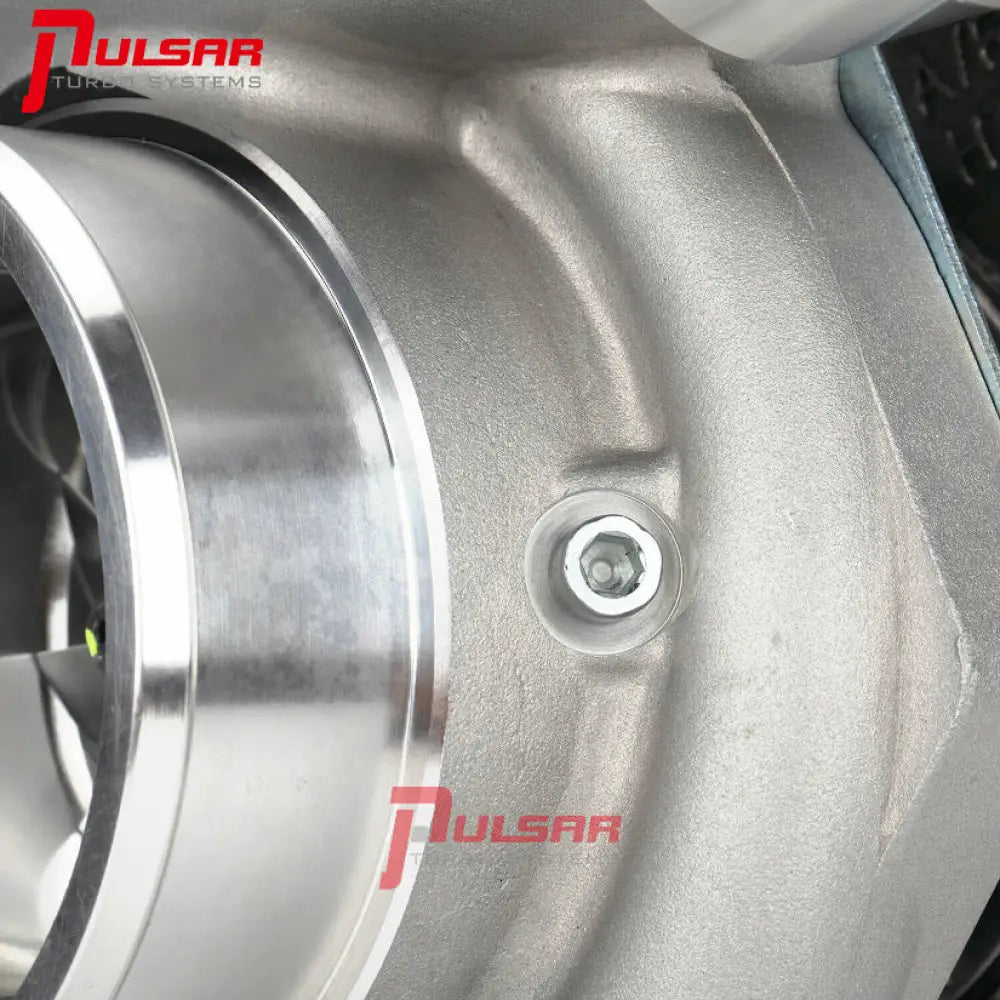

- Gen2 Cover with integrated speed sesor port.

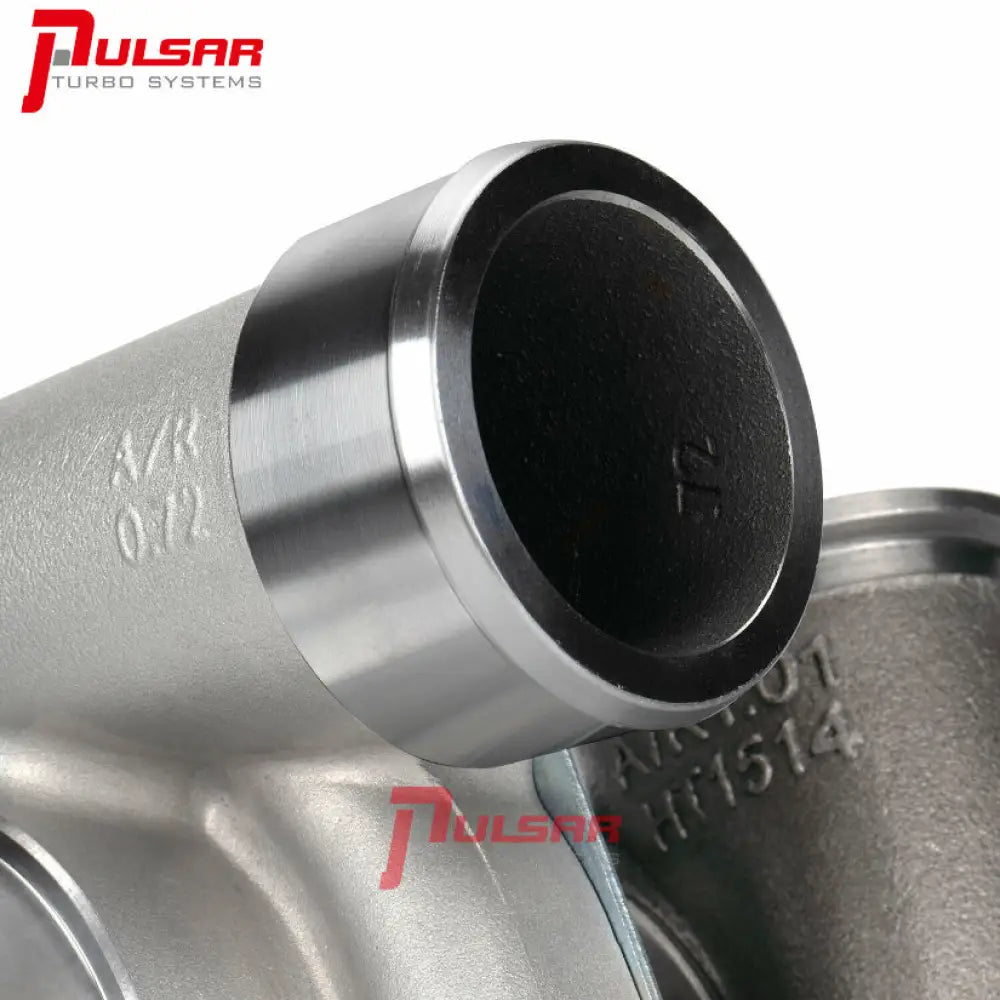

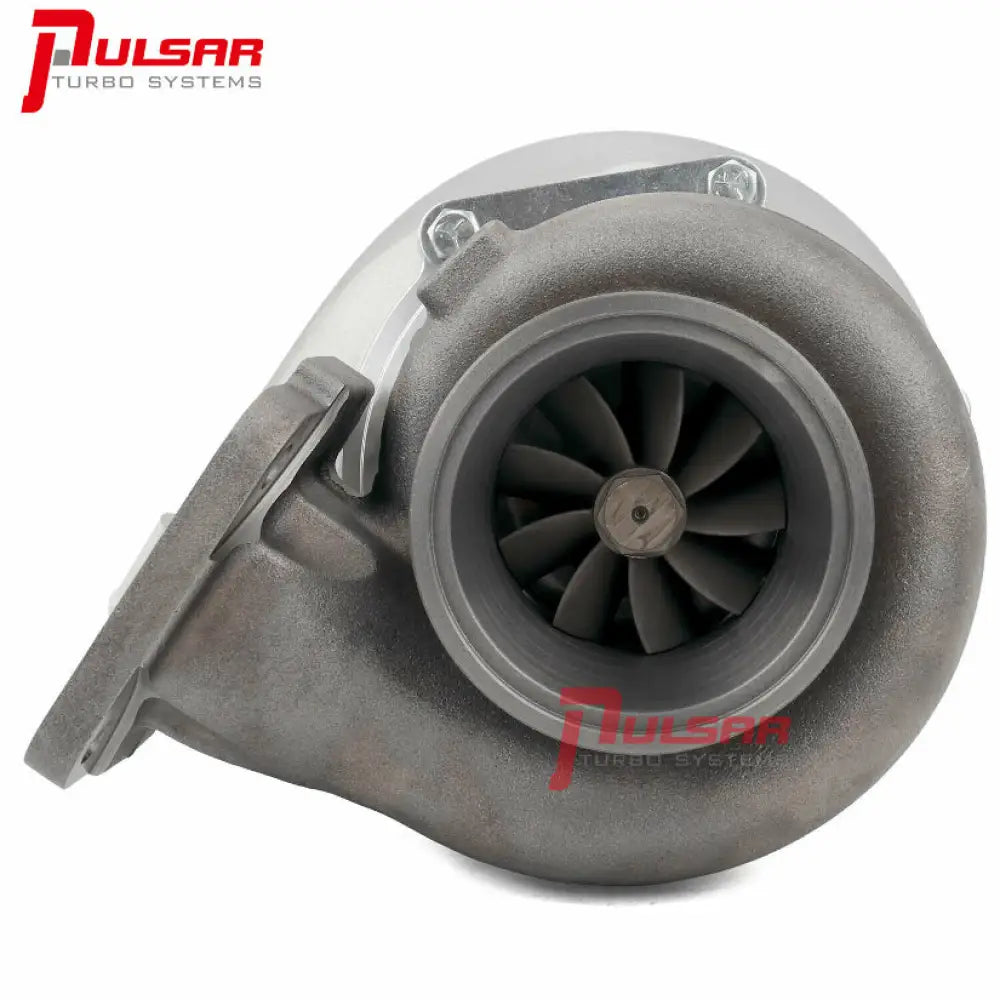

- 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet turbine housings available in options

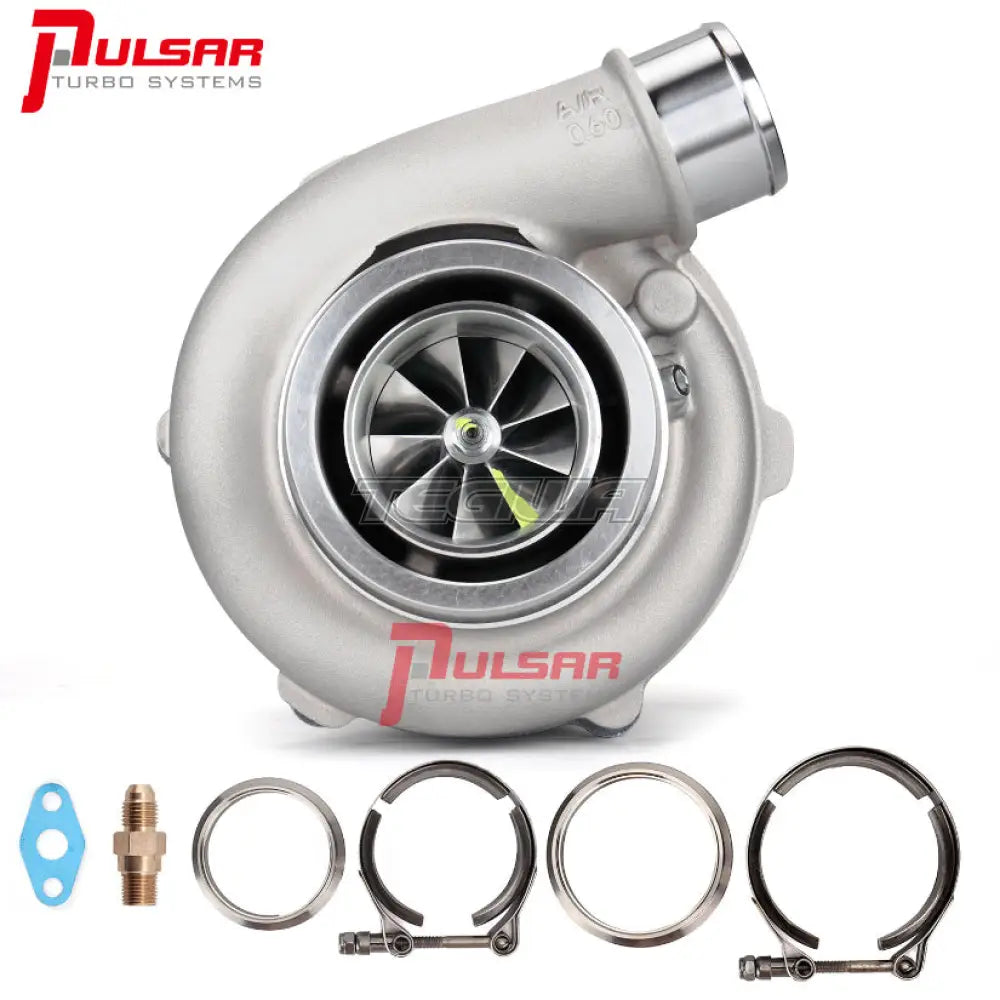

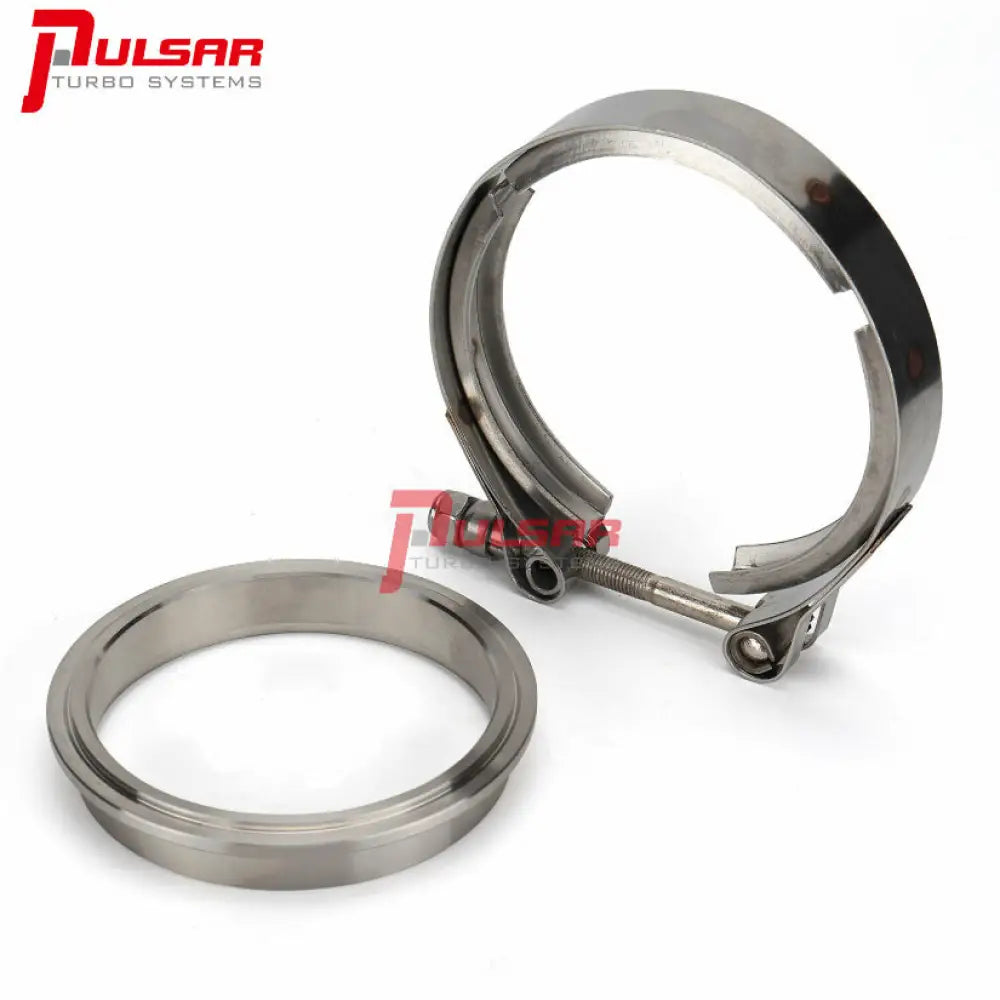

- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~85 lb/min, rated @ 880 FWHP
- SPEC
- Compressor Wheel: 66*82mm
- Turbine Wheel: 68*62mm
- Compressor Inlet: 4.0 Hose
- Compressor Outlet: 2.5 Hose
- Turbine Inlet: T3, T4 or 2″ V-Band
- Turbine Outlet: 3″ V-Band

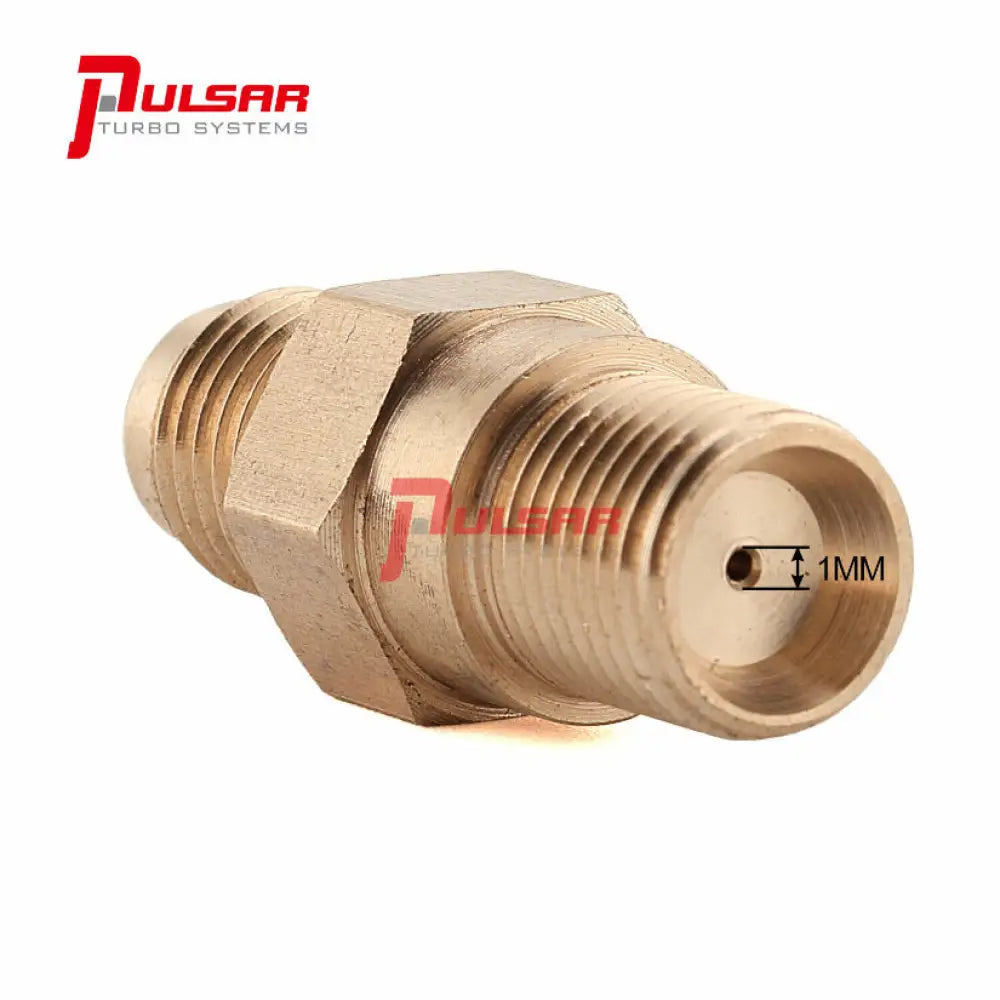

- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
It's strongly recommended to run water cooling to aid reliability.
