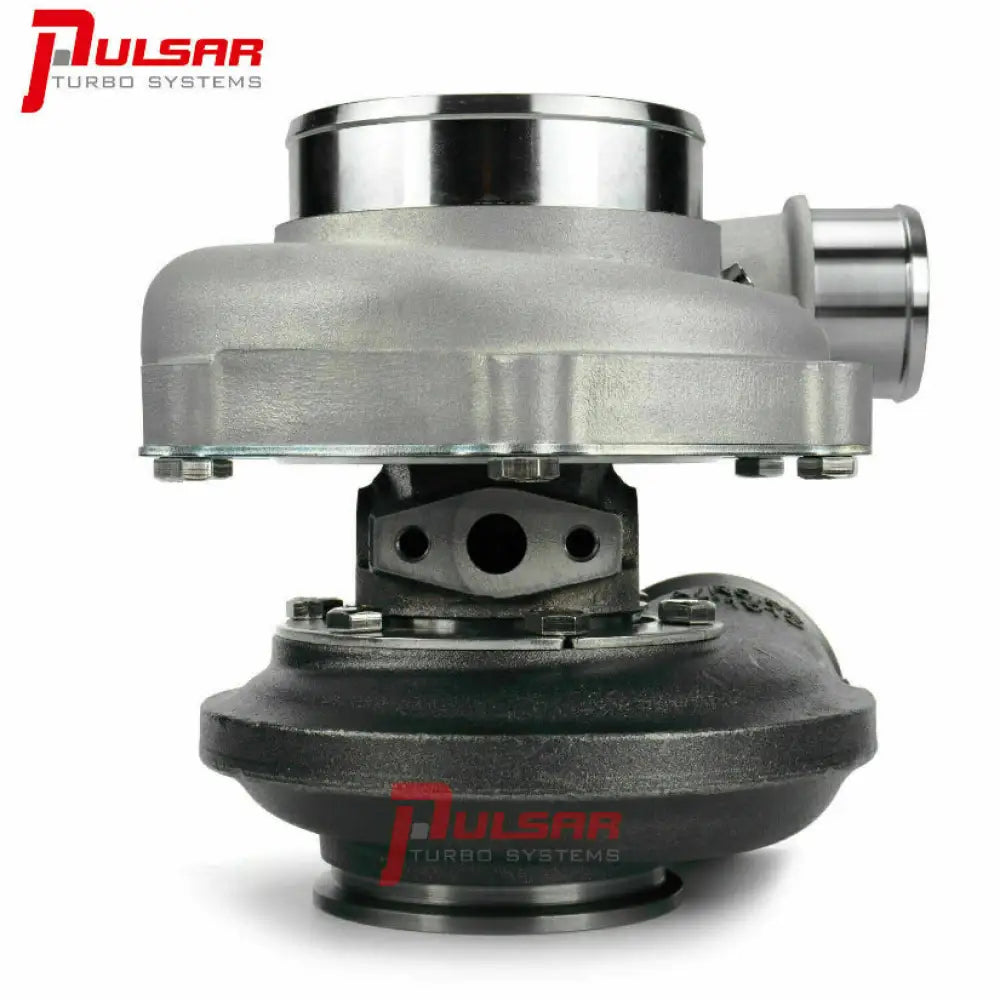

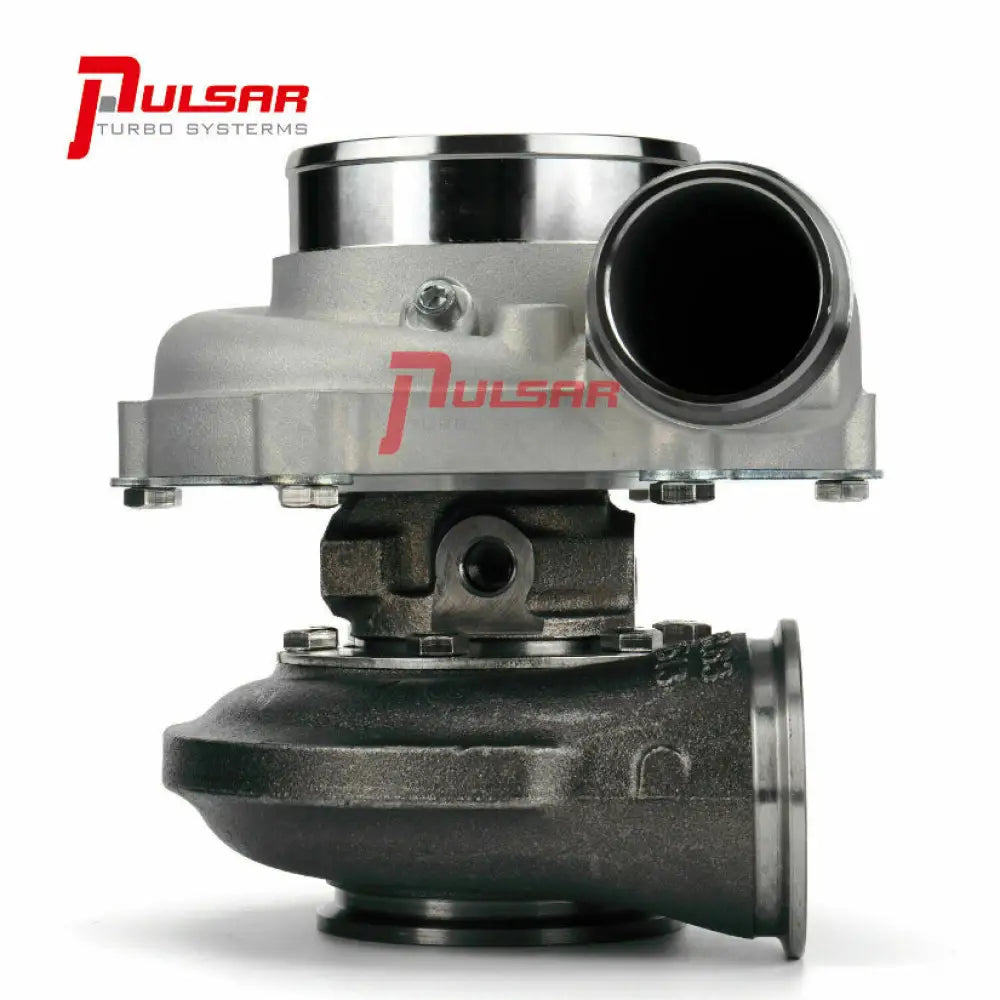

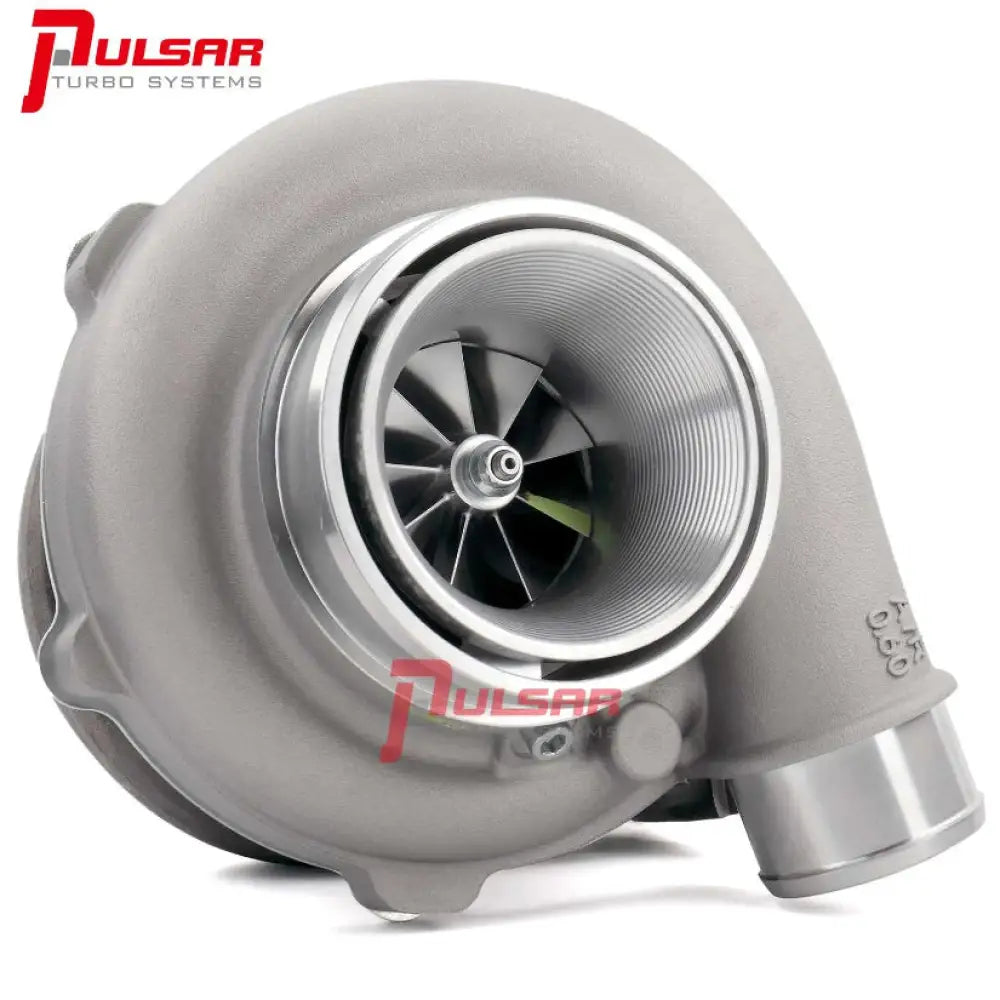

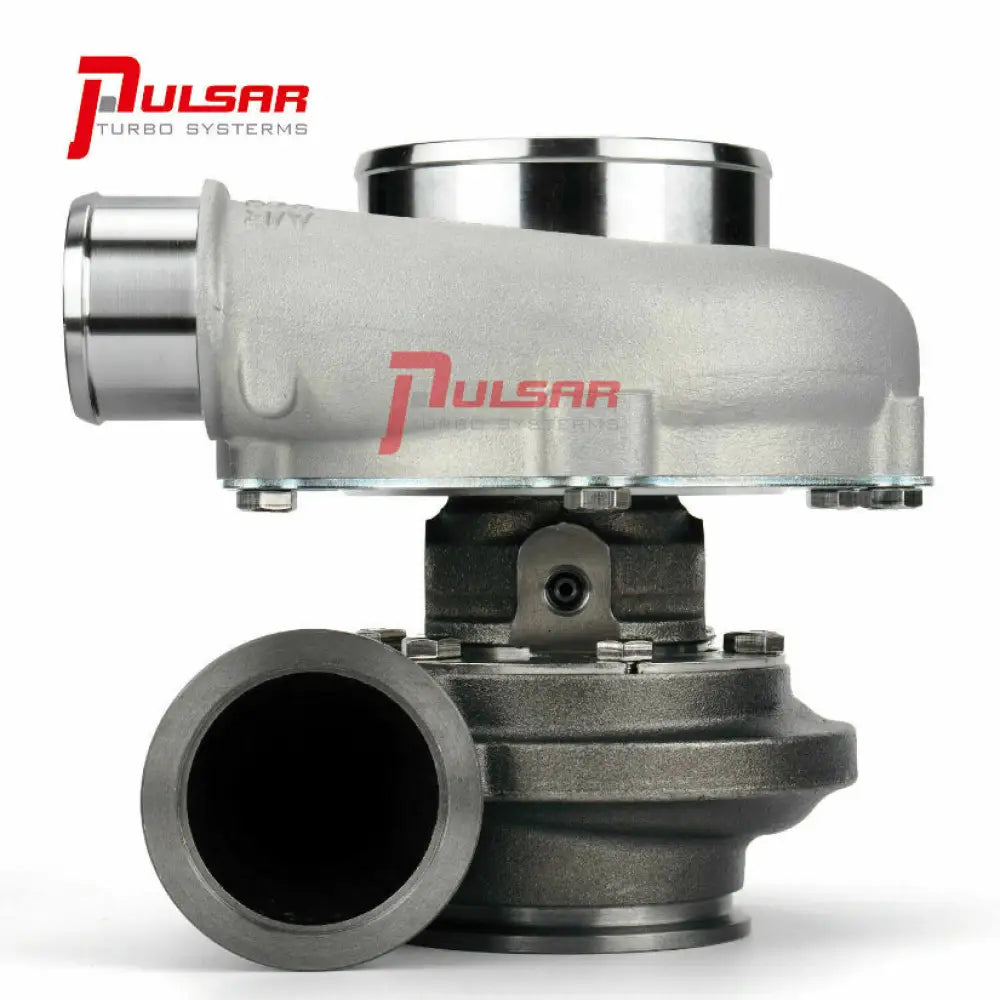

Pulsar PTX3076R Gen 2
- Please note, T51R housing option requires an extra 7 days handling time
- Recommended displacement 1.8 to 3.0 litres with power outputs up to 700hp possible.
- Dual Ceramic Ball Bearing System

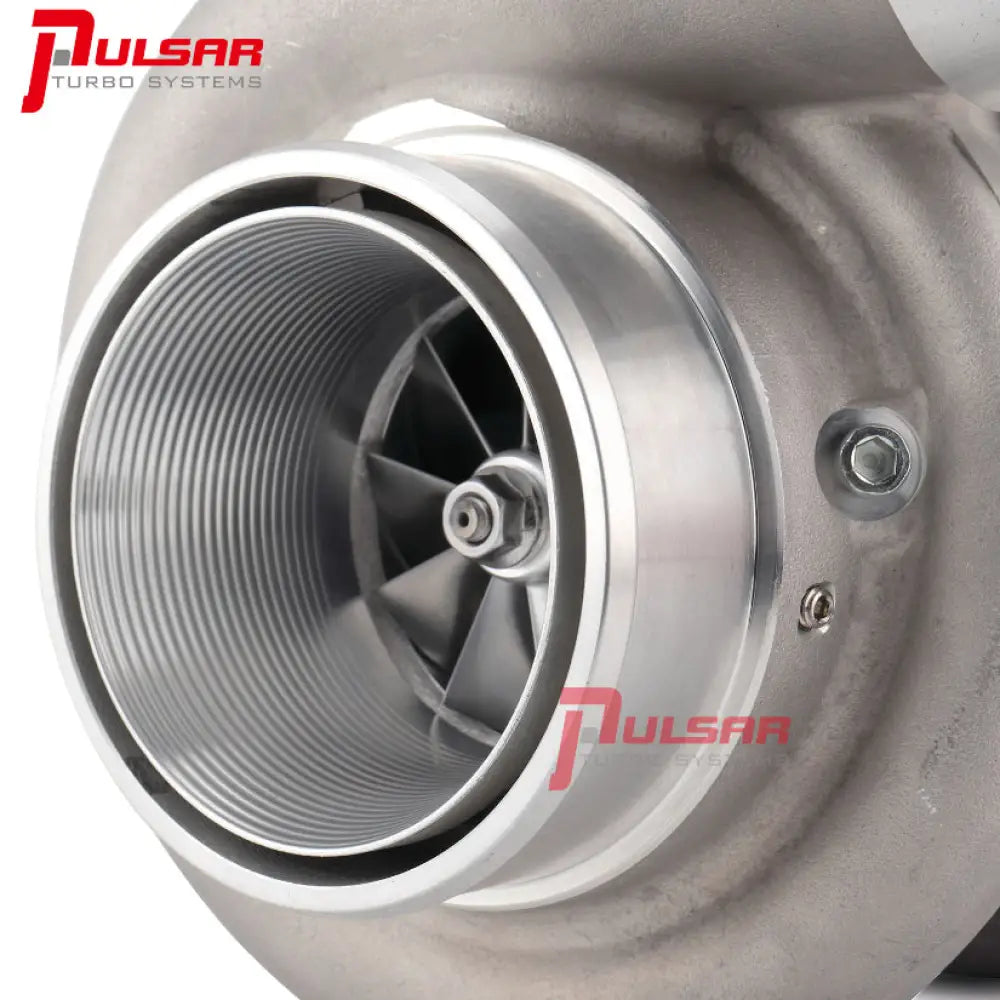

- 9 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology

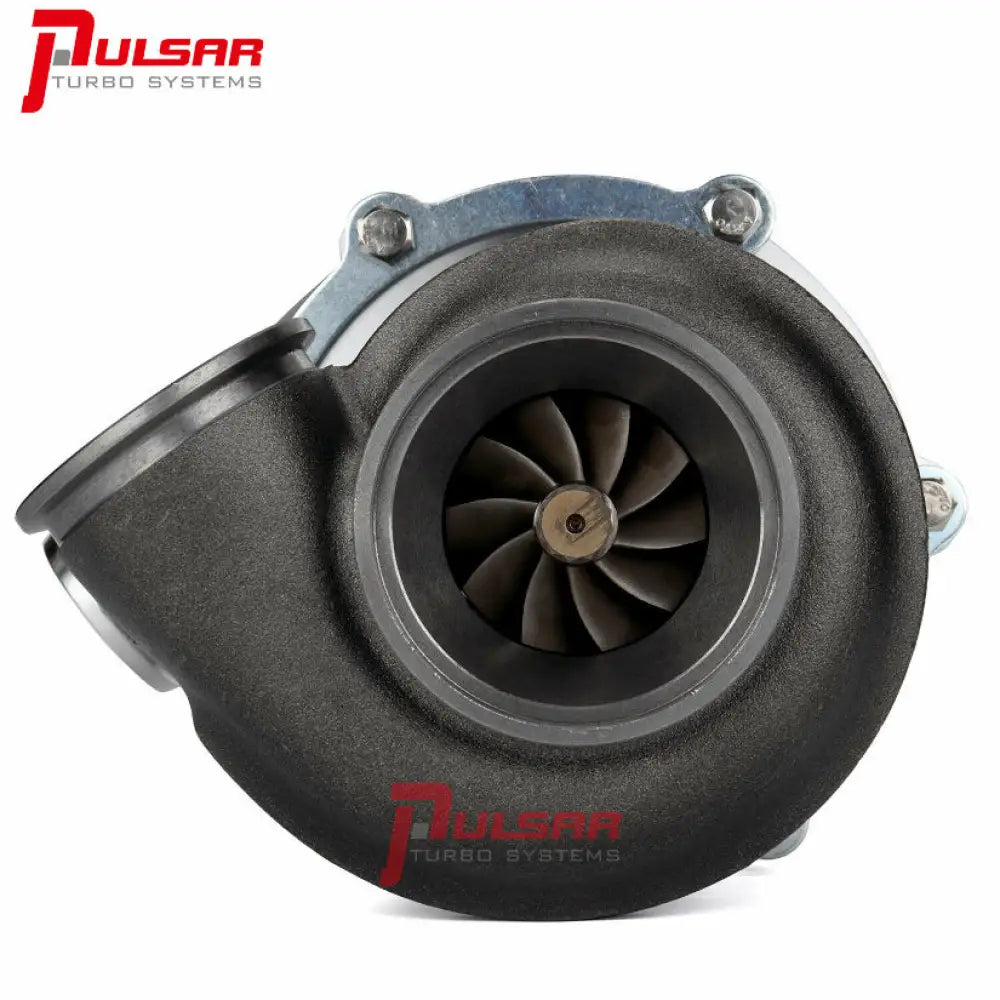

- Inconel 713c 10 Blade Turbine Wheel
- Gen2 Cover Integrated with the Speed Sensor Port
- 0.83 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet turbine housing In option

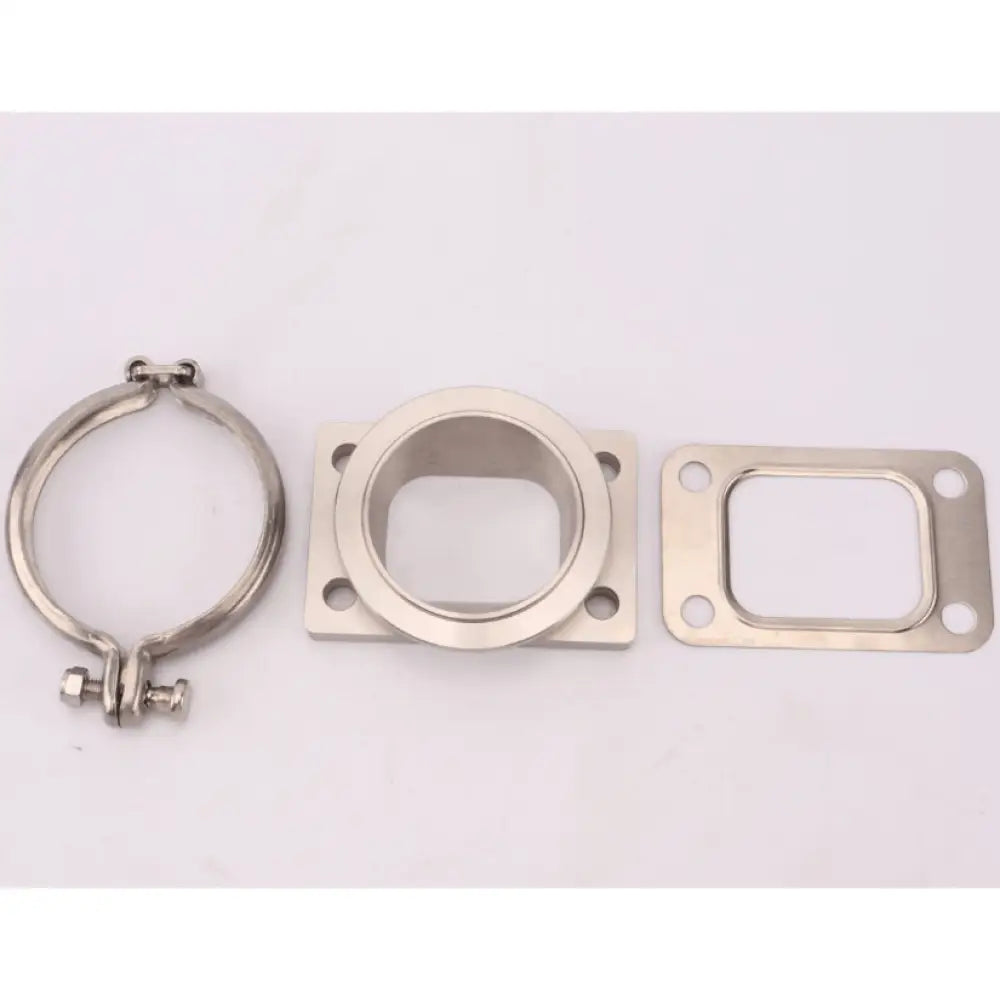

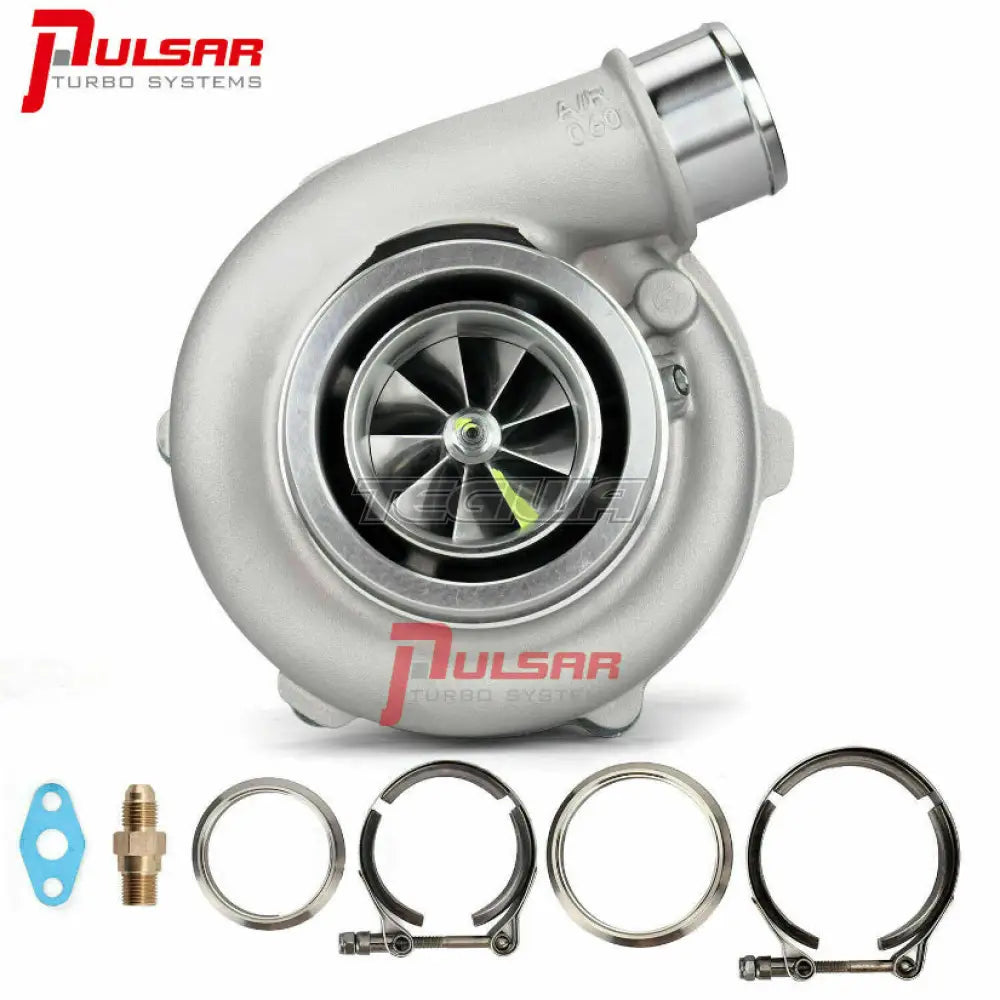

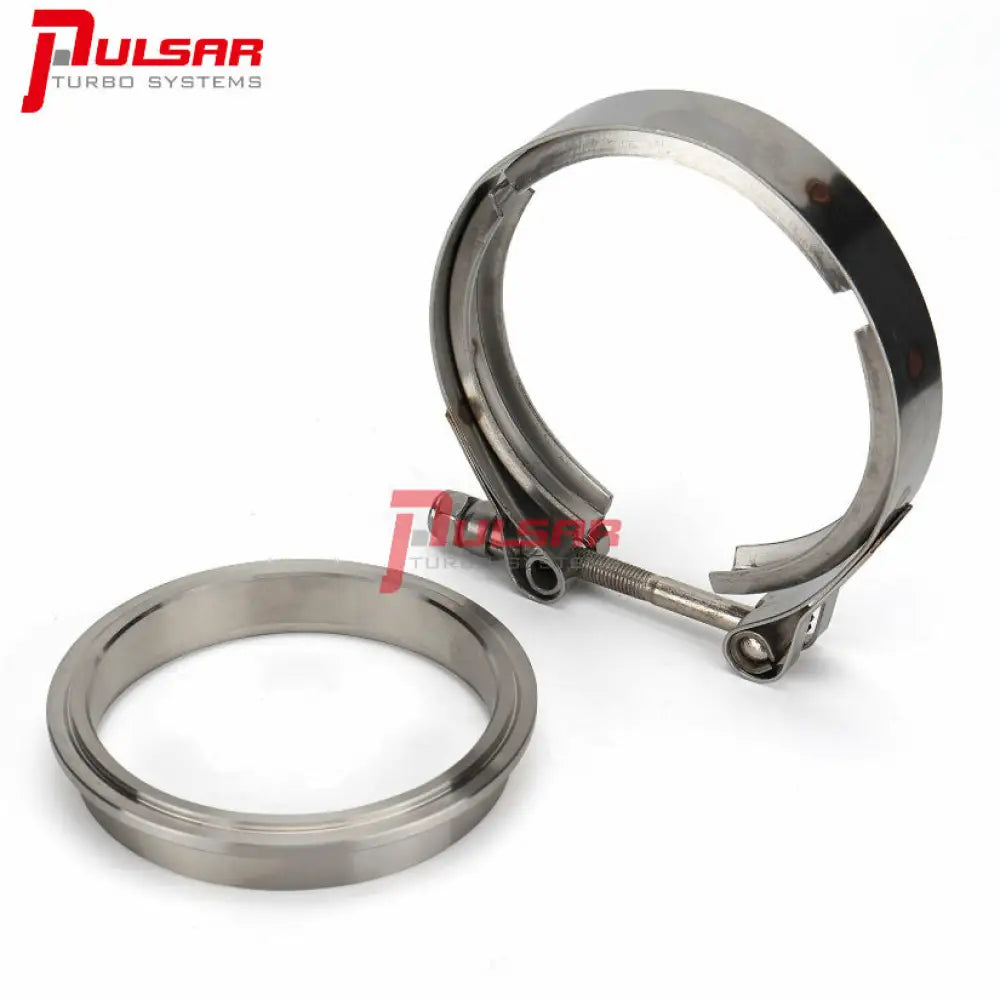

- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: 65 lb/min, rated @ 750 FWHP
- Supplied with manifold to turbine gasket and 5 bolt gasket (where applicable). Oil feed restrictor supplied (where applicable).
- Wastegate actuator supplied on internally gated units with compressor housing.
SPEC
- Compressor Wheel: 58*76mm
- Turbine Wheel: 60*55mm
- Compressor Inlet: 4″ Hose
- Compressor Outlet: 2″ Hose
- Turbine Inlet: T3, T4 or 2″ V-Band
- Turbine Outlet: 3″ V-Band(3.55″OD)
- Oil Feed: -4 AN Oil Restrictor connection.
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
It's strongly recommended to run water cooling to aid reliability.
