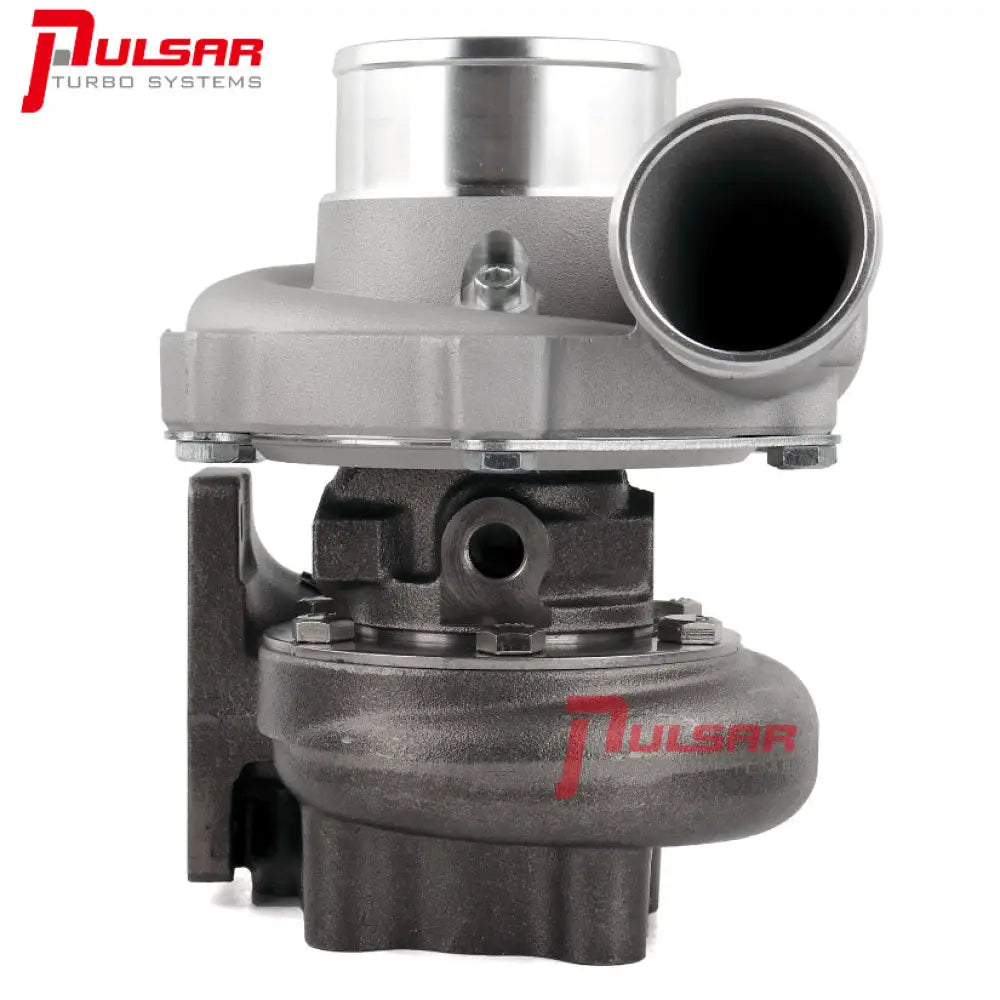

Pulsar PTX2867R Gen 2 Turbocharger

Pulsar PTX2867R Gen 2

• Please note, T51R housing option requires an extra 7 days handling time
• Recommended engine displacement 1.6 to 2.5 litres. Power outputs up to 550 hp possible.
• Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing shaft movement.

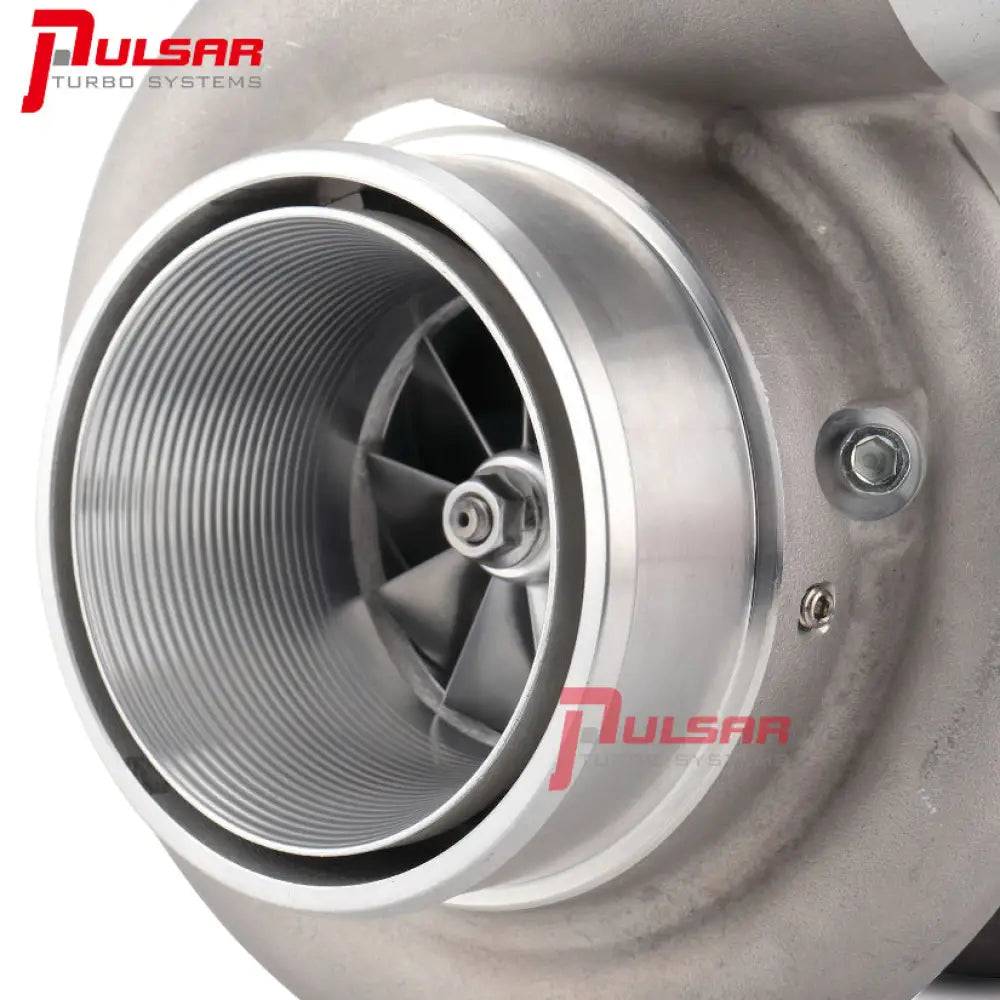

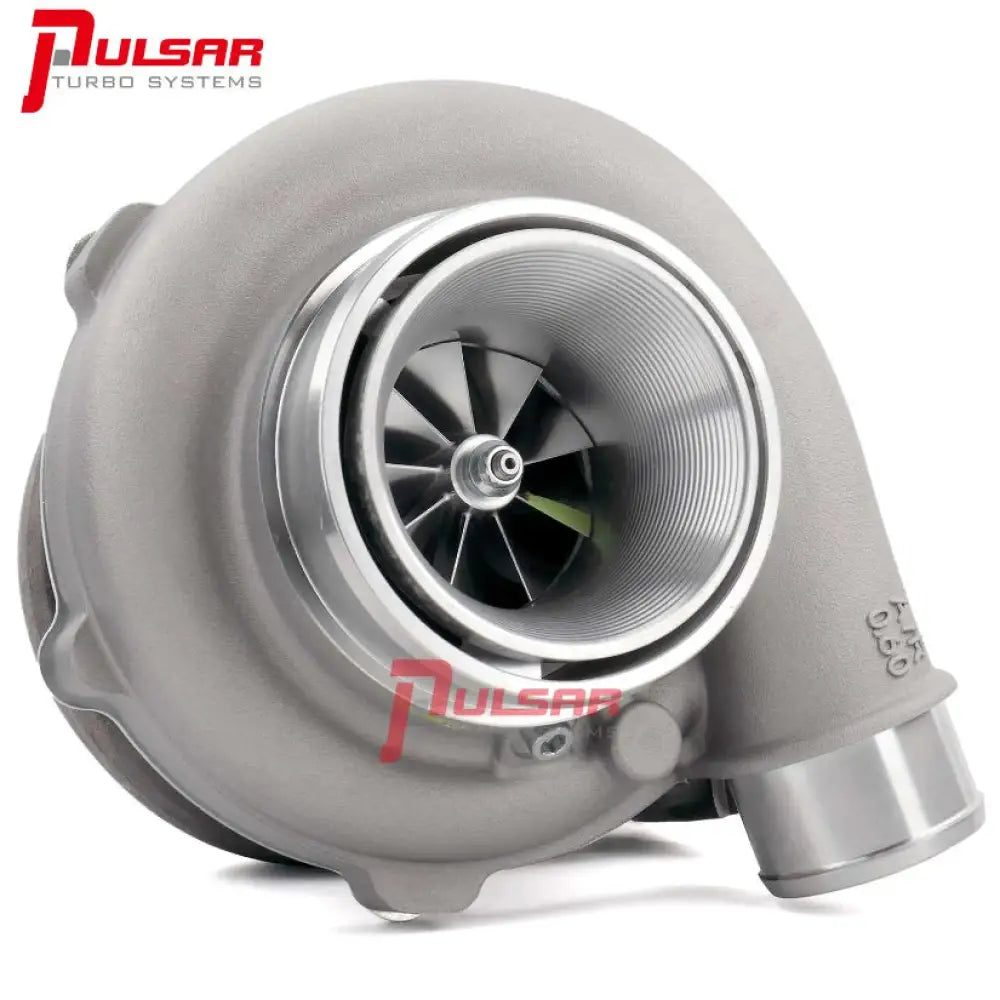

• 50 / 67mm 8 blade upgraded billet compressor wheel with better flow than the 11 blade Gen 1 wheel.
• Inconel 713c 54 / 47 mm turbine wheel

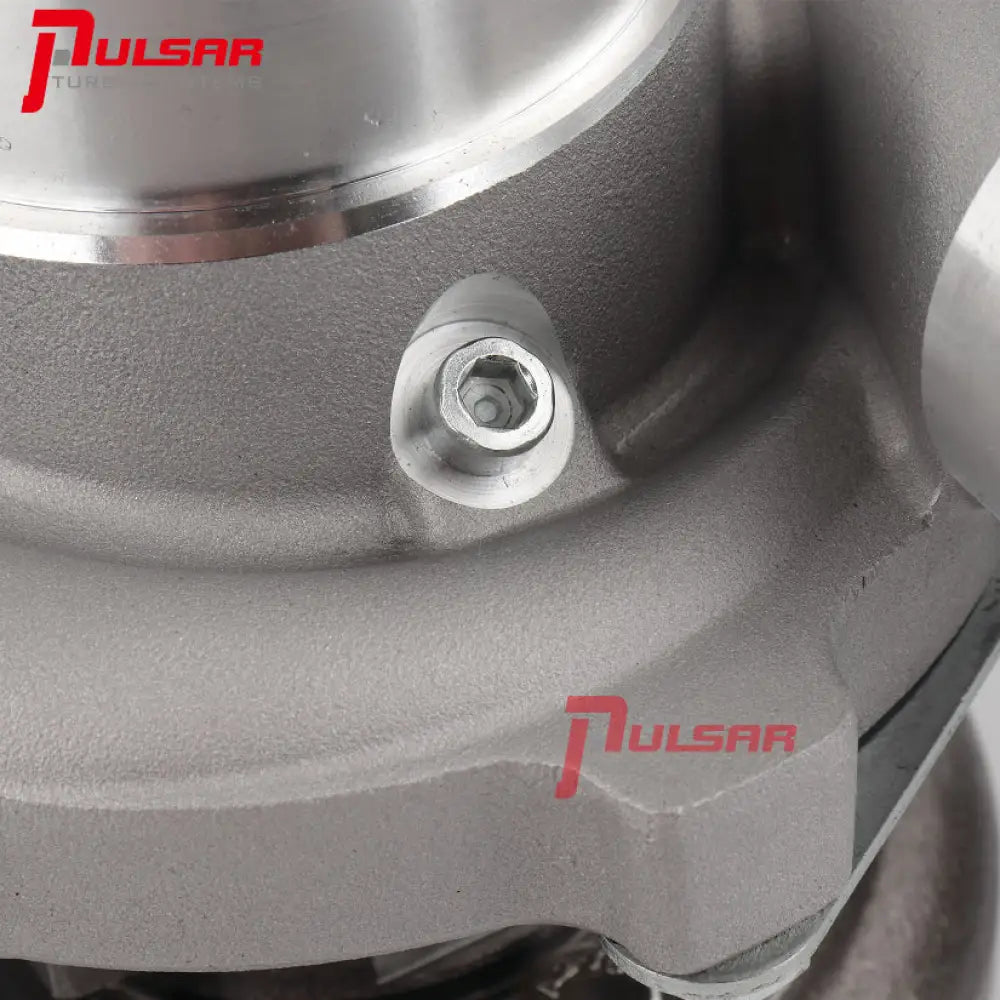

• Gen2 cover with integrated speed sensor port and anti surge.

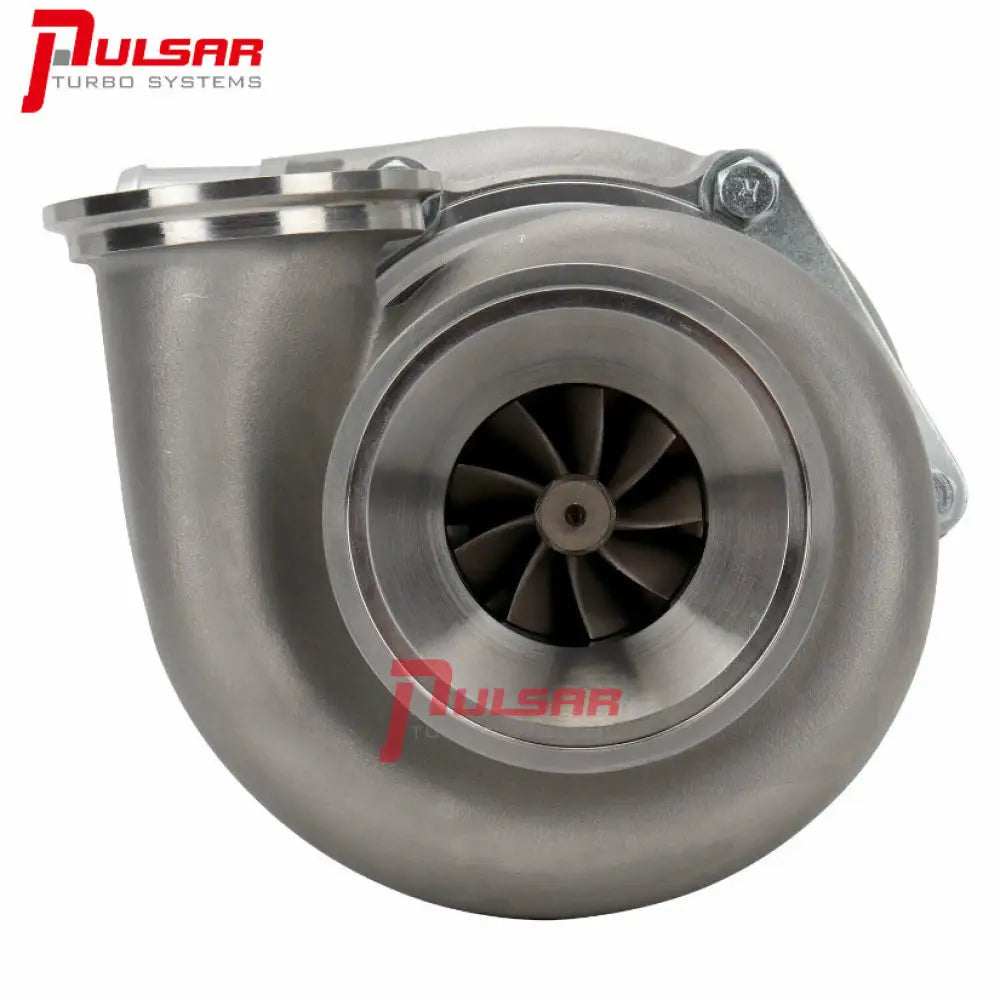

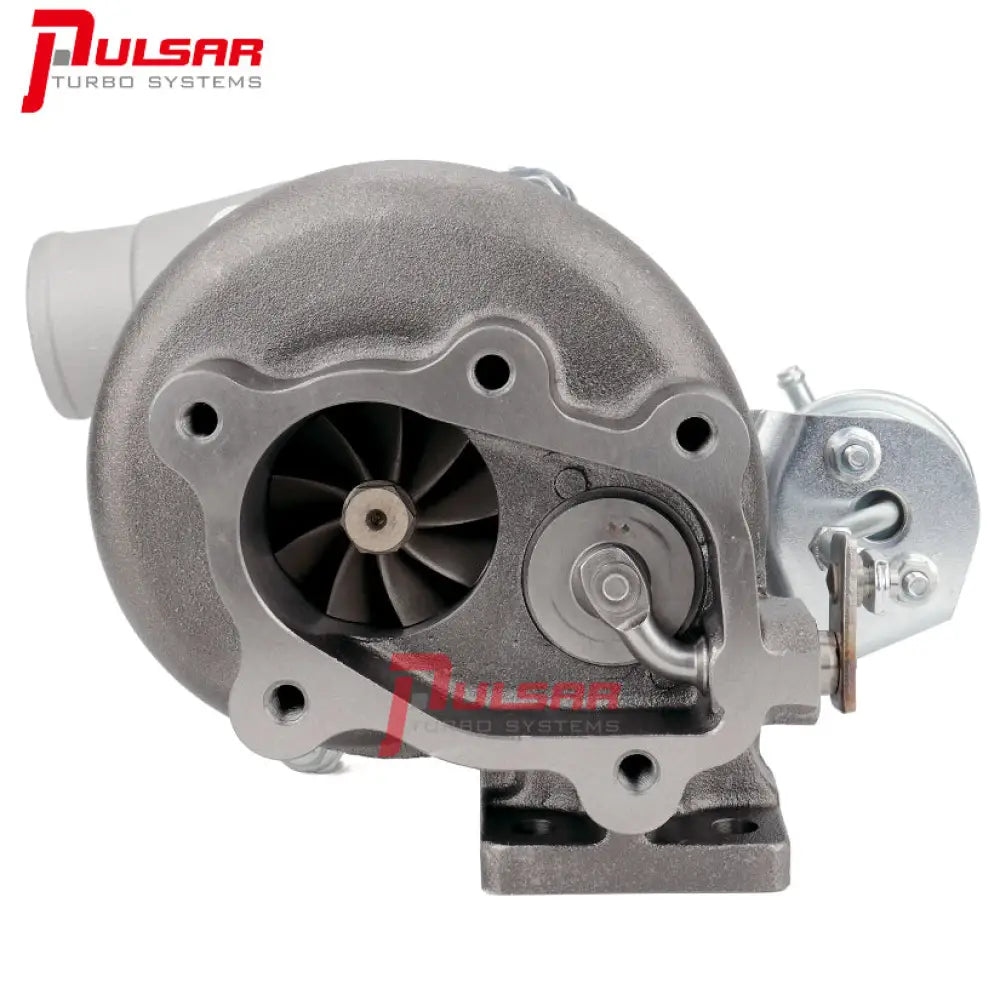

• 0.64, 0.86 A/R T25 Inlet, 5 Bolt Outlet, 0.82 A/R dual V-BAND stainless steel turbine housing options all available
• Standard or T51R mod compressor housing options available

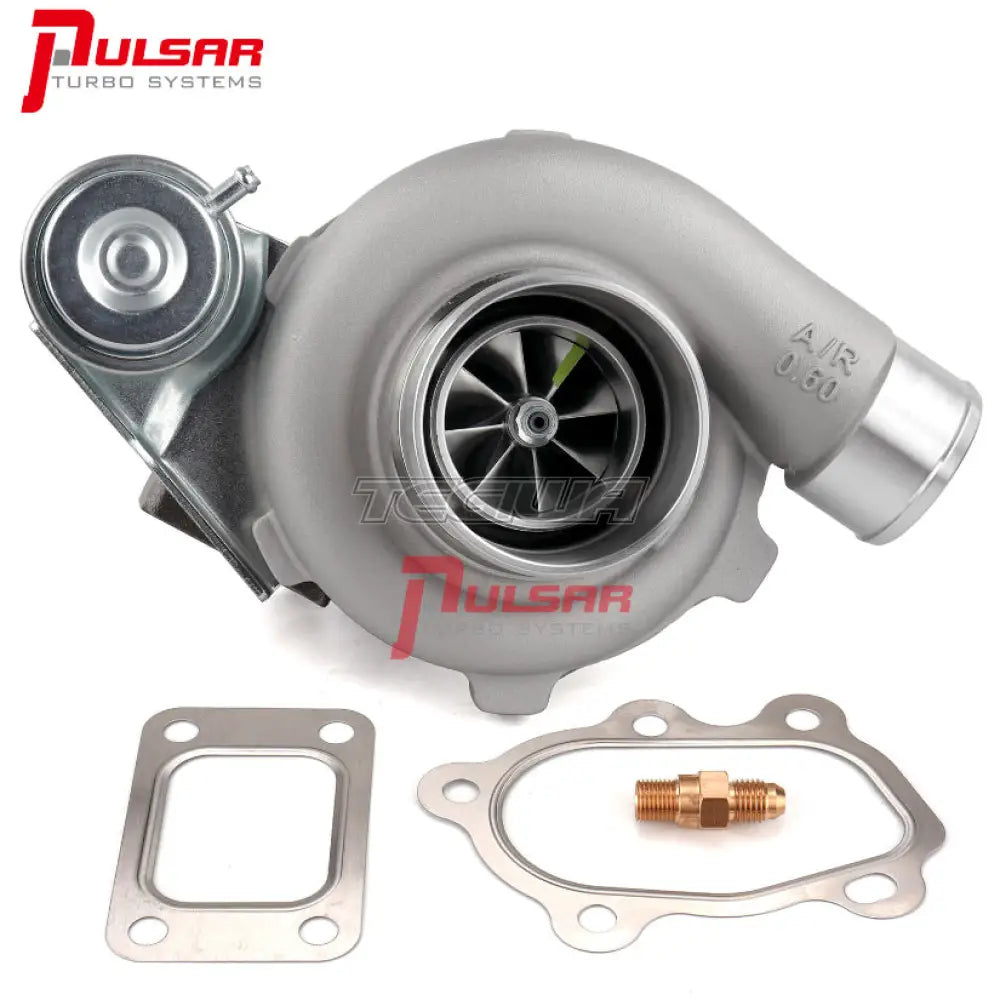

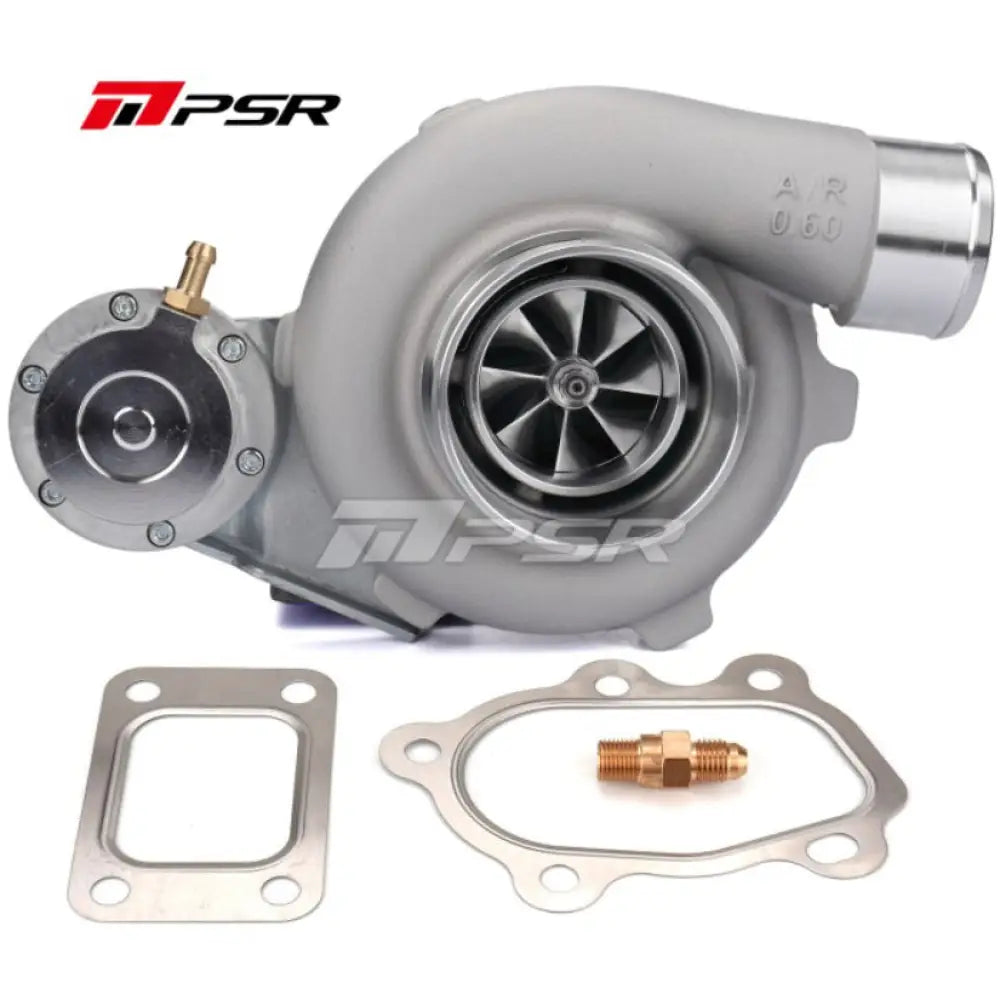

• Supplied with manifold to turbine gasket and 5 bolt gasket (where applicable). Oil feed restrictor supplied (where applicable).

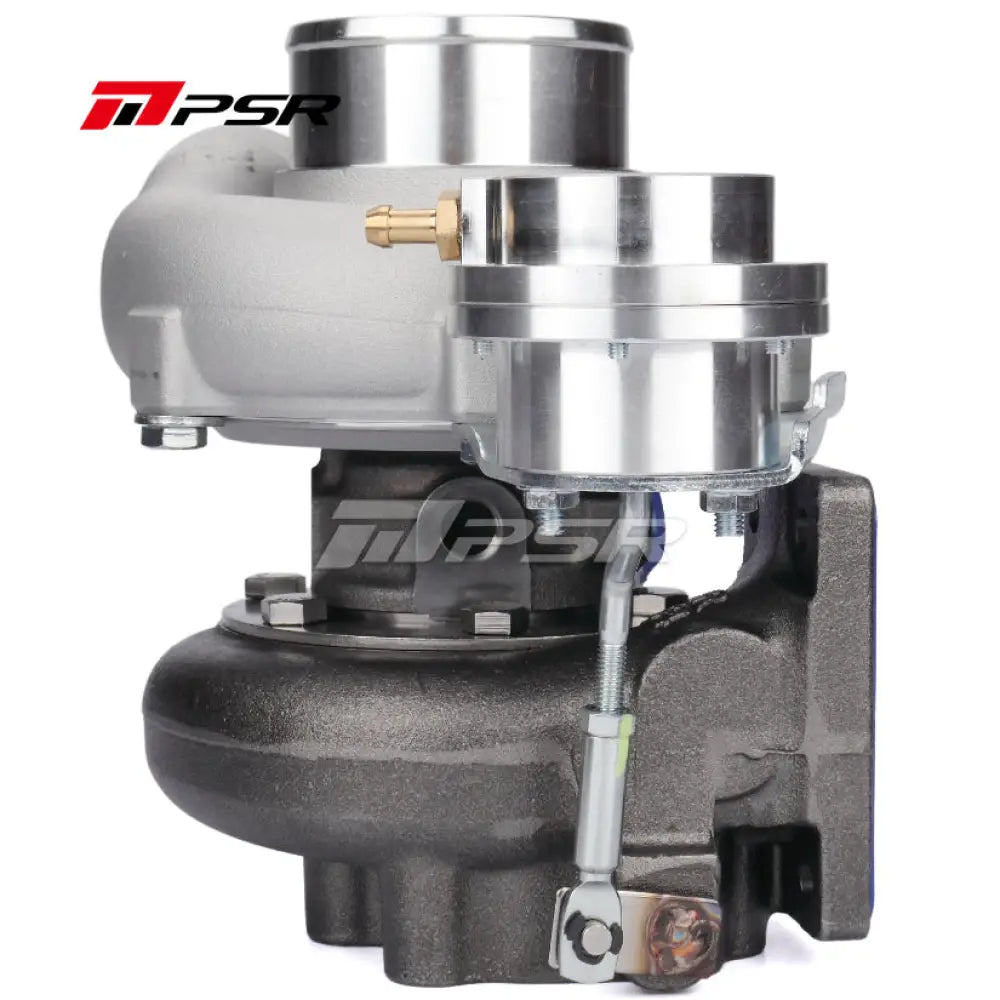

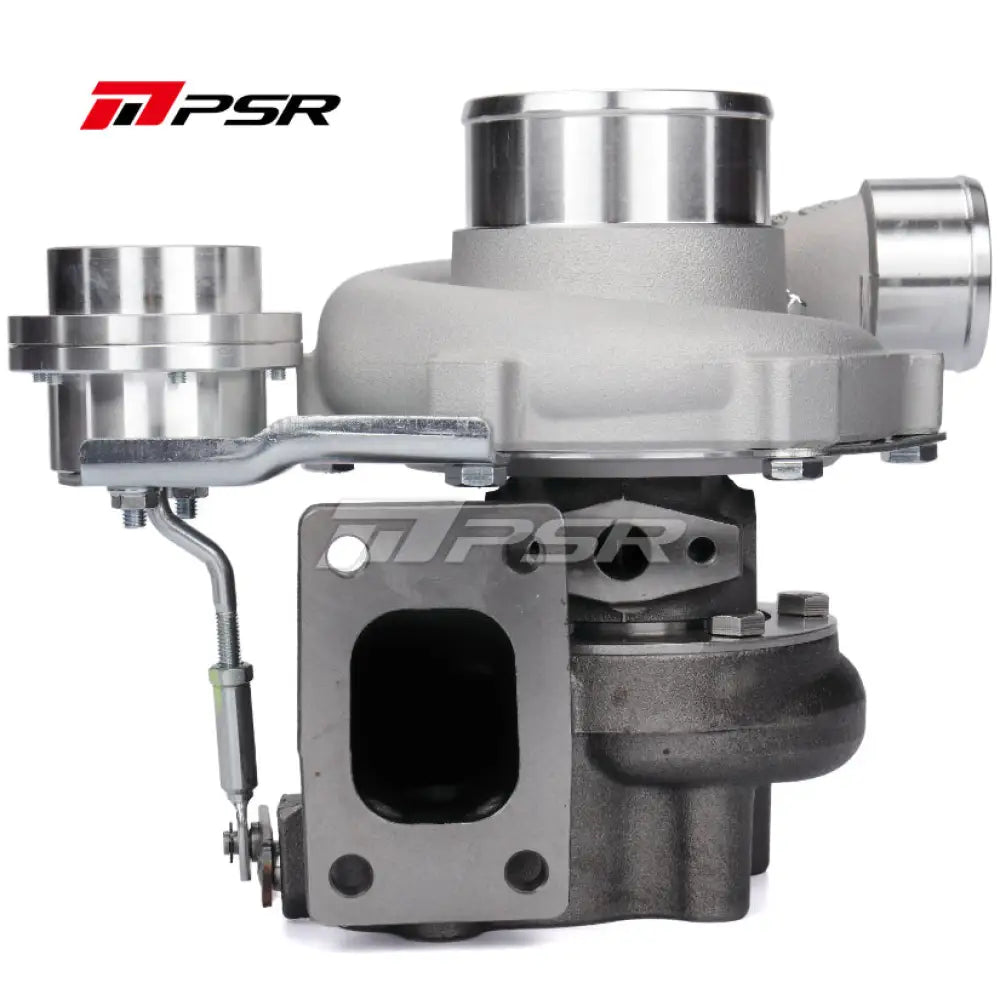

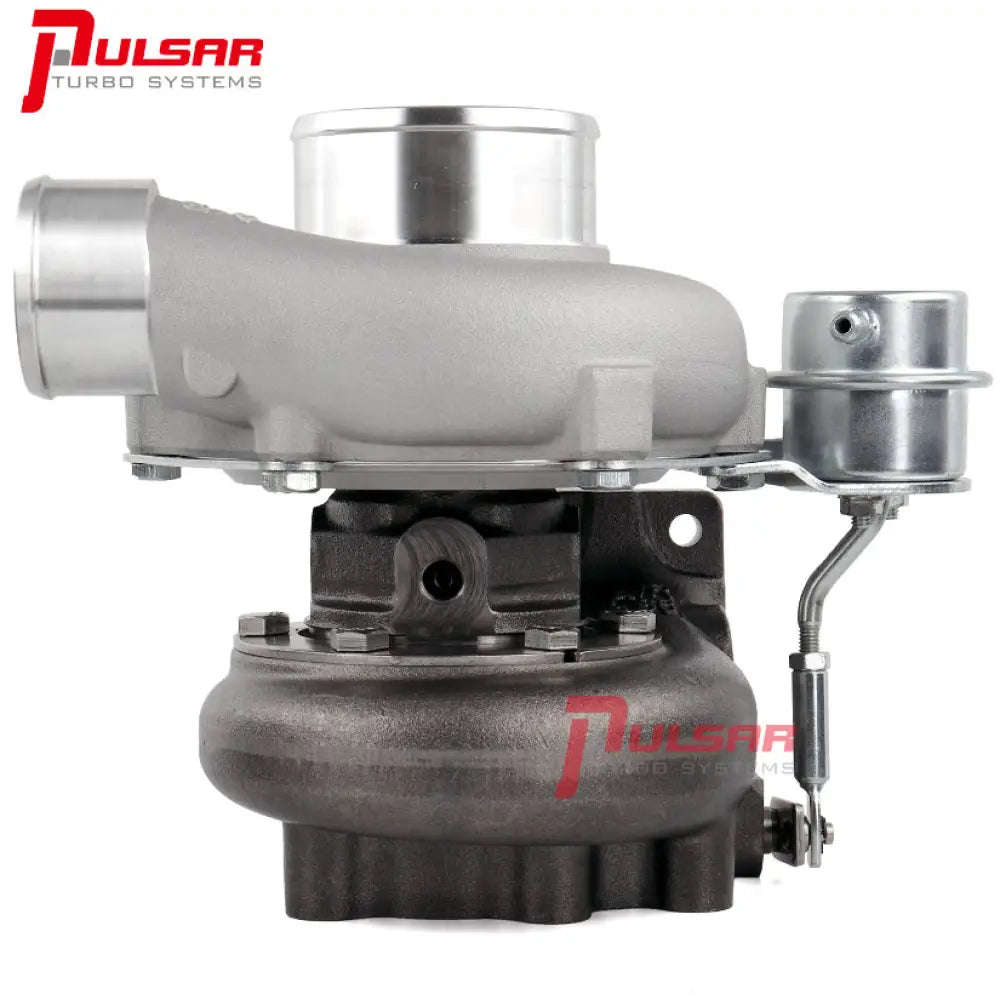

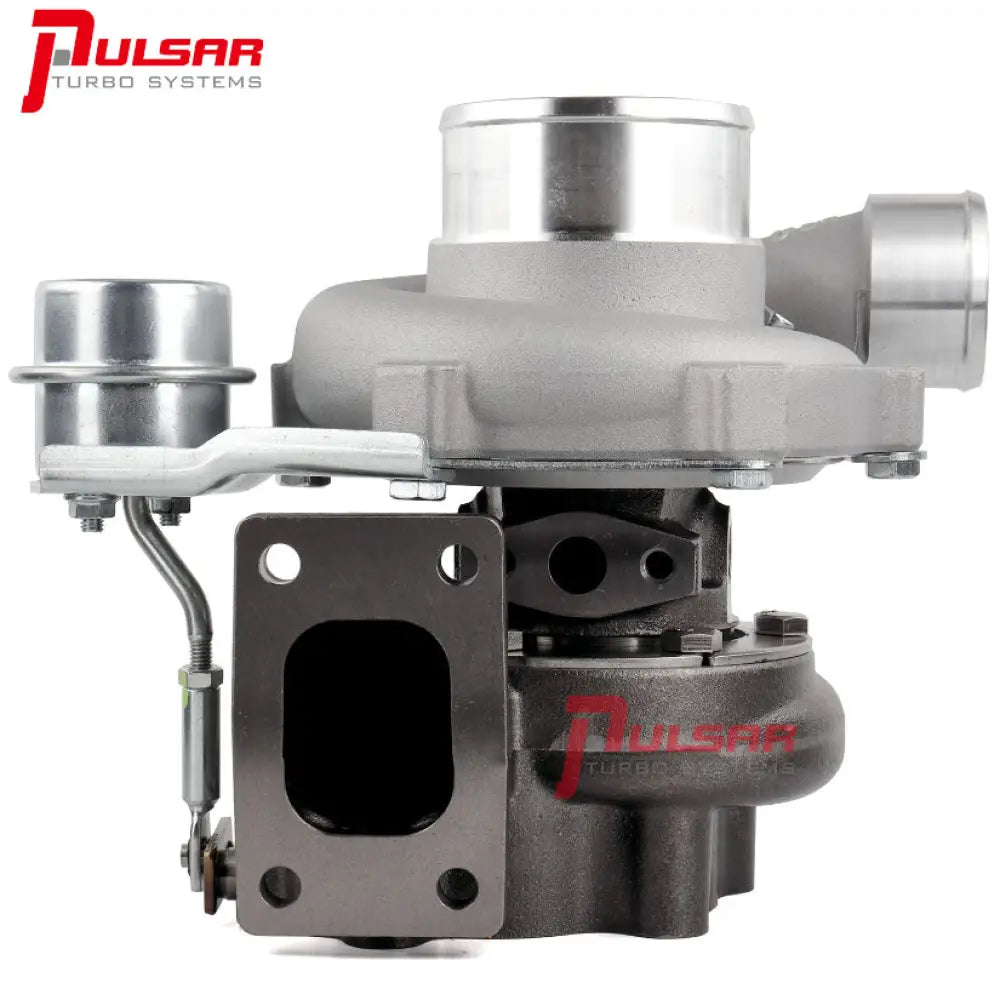

• Wastegate actuator supplied on internally gated units with compressor housing.
• Compressor Inlet :3"
• Compressor Outlet: 2"
• Oil Feed: 7/16-24 UNF
• Oil Drain: Std T3 oil drain flange
• Water In/Outlet: M14x1.5
