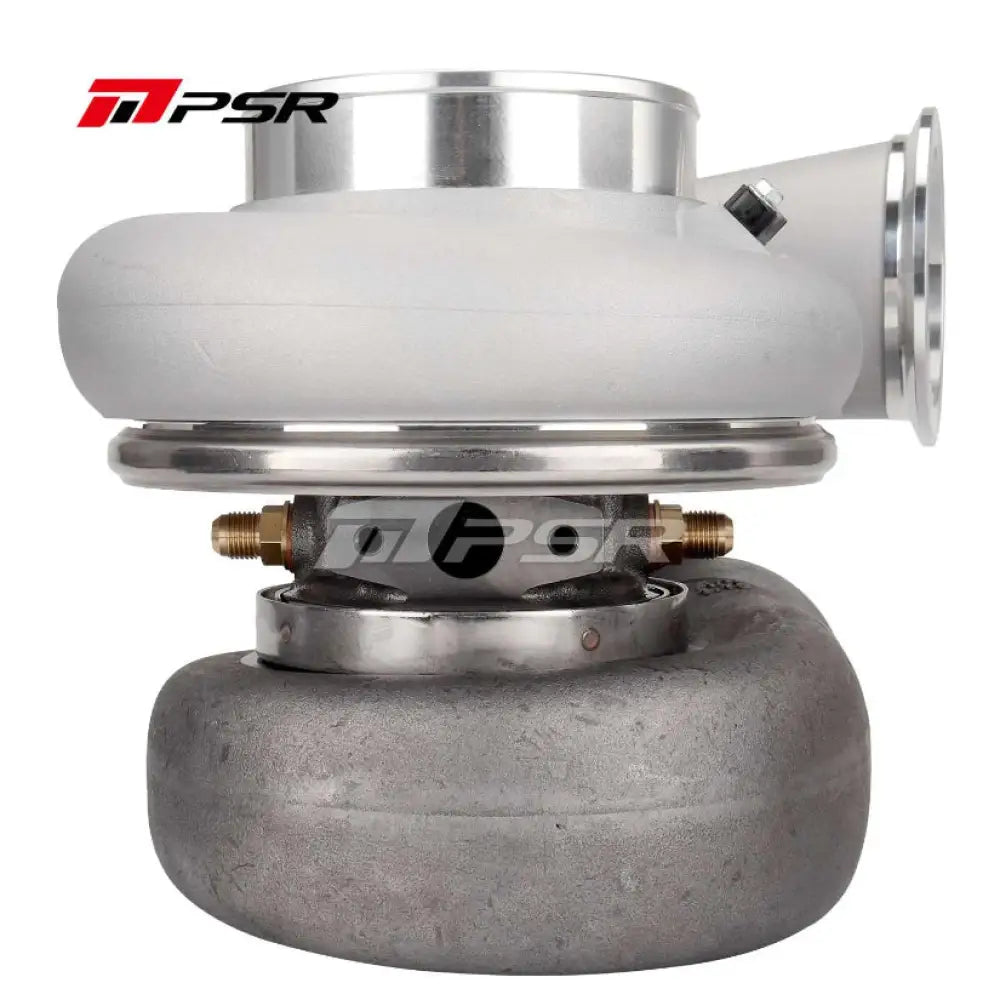

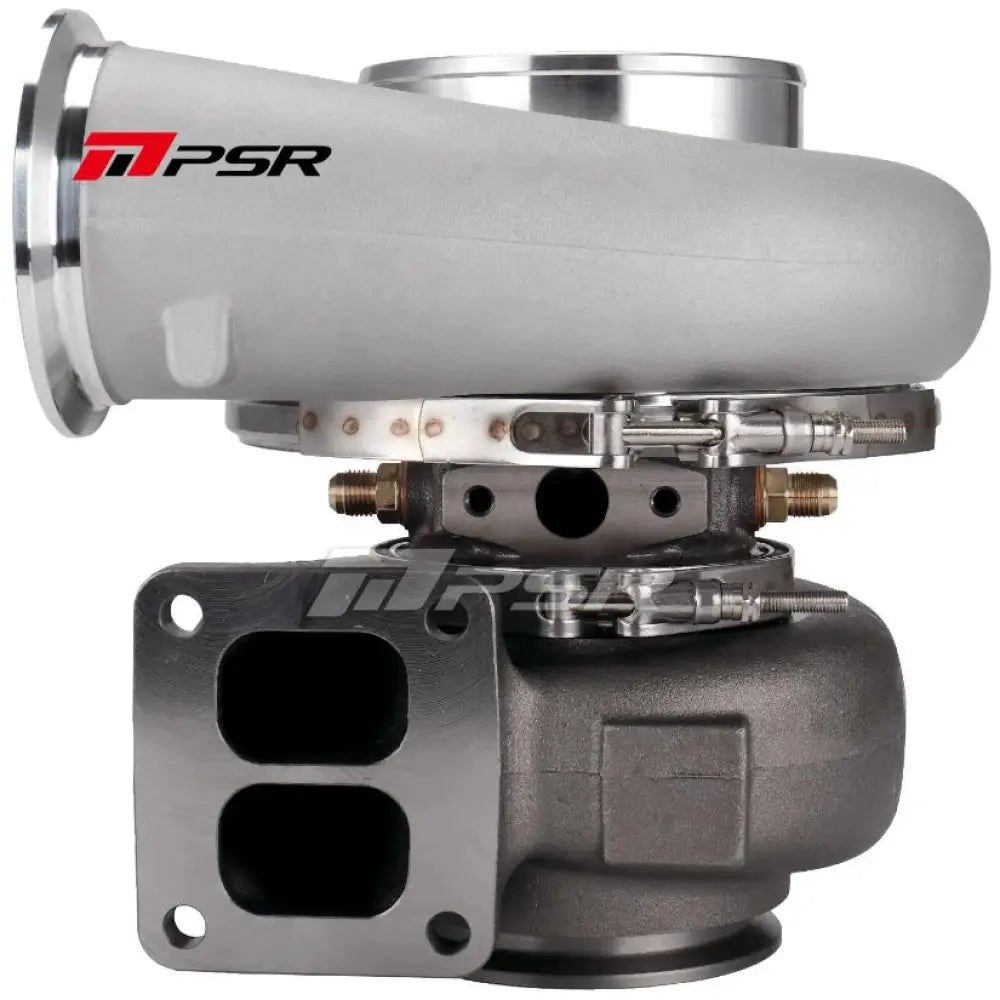

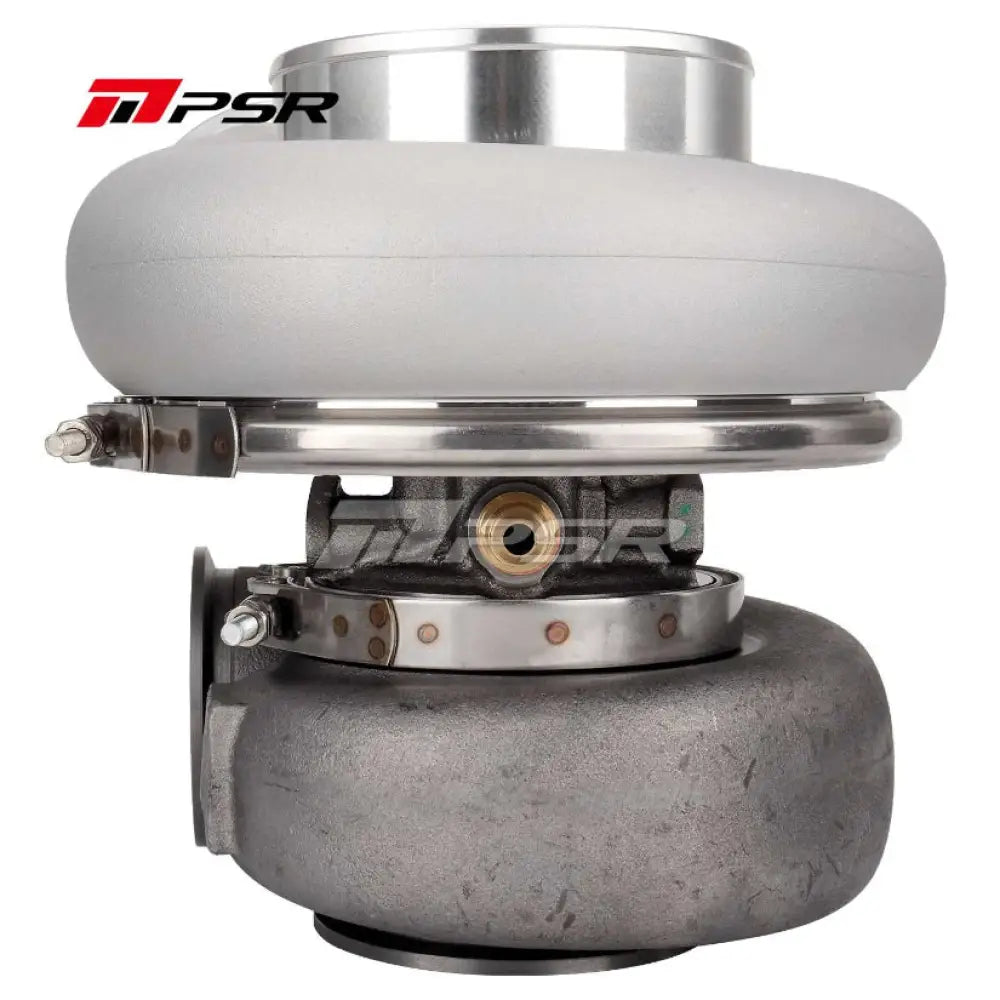

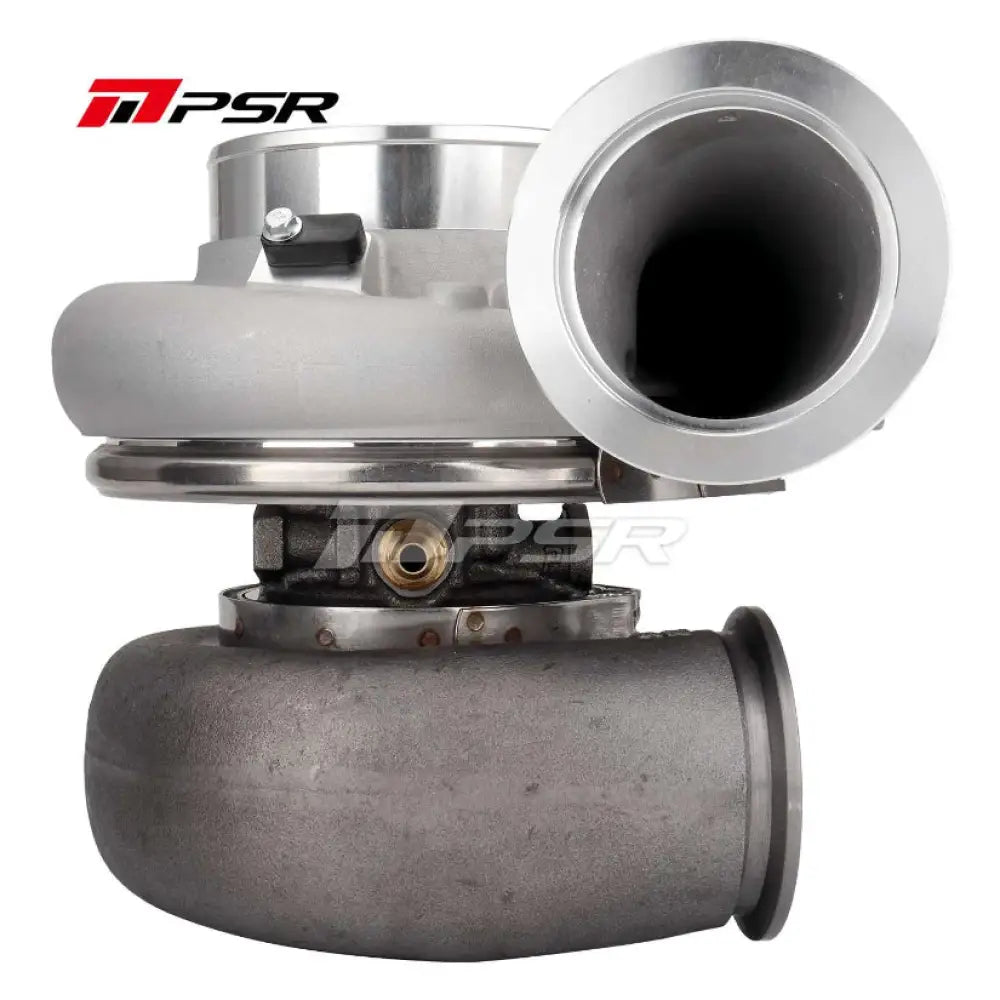

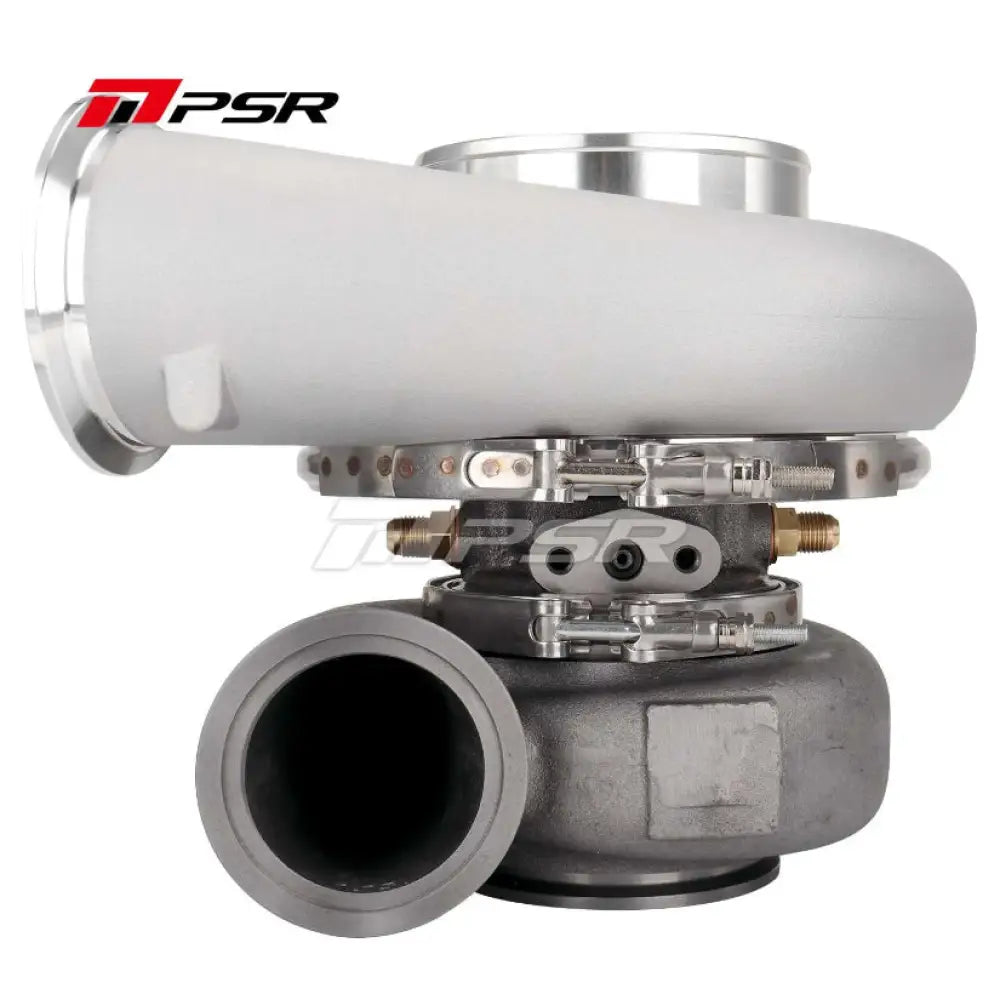

Pulsar PSR8582G Turbocharger

Pulsar PSR8582G

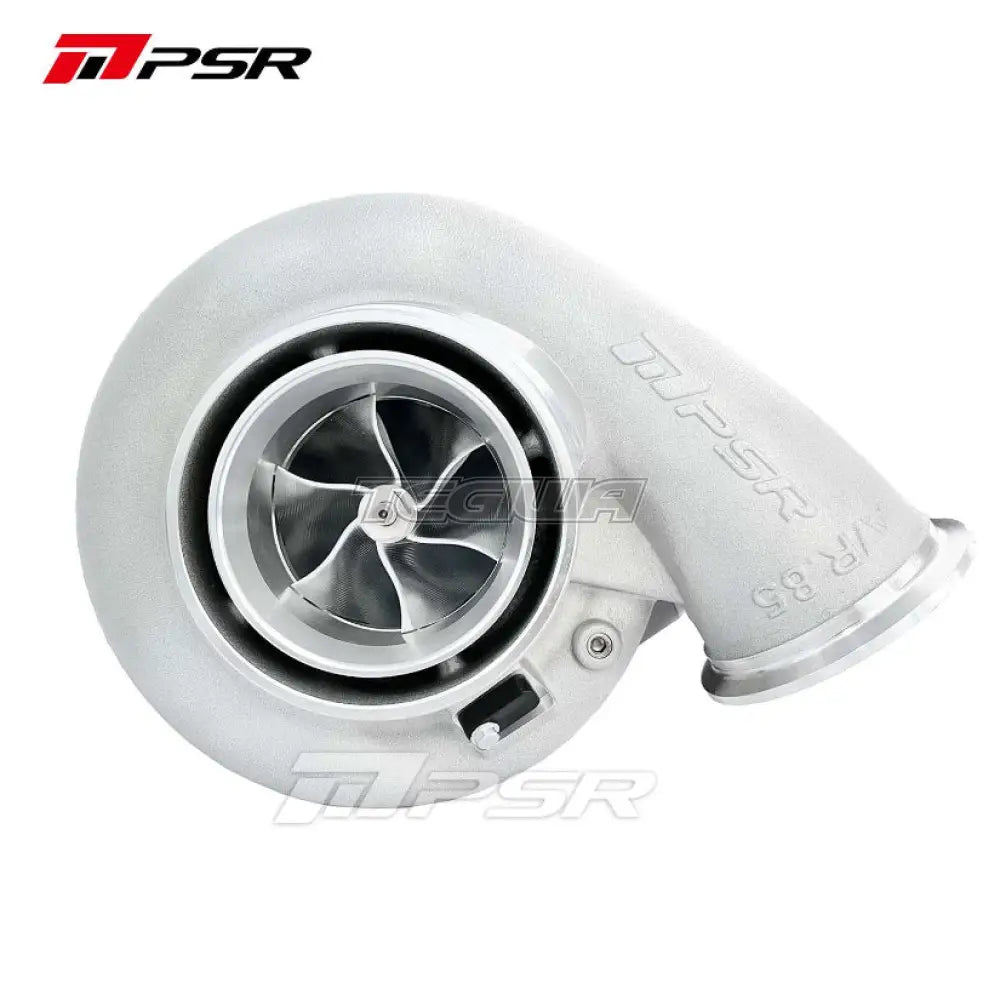

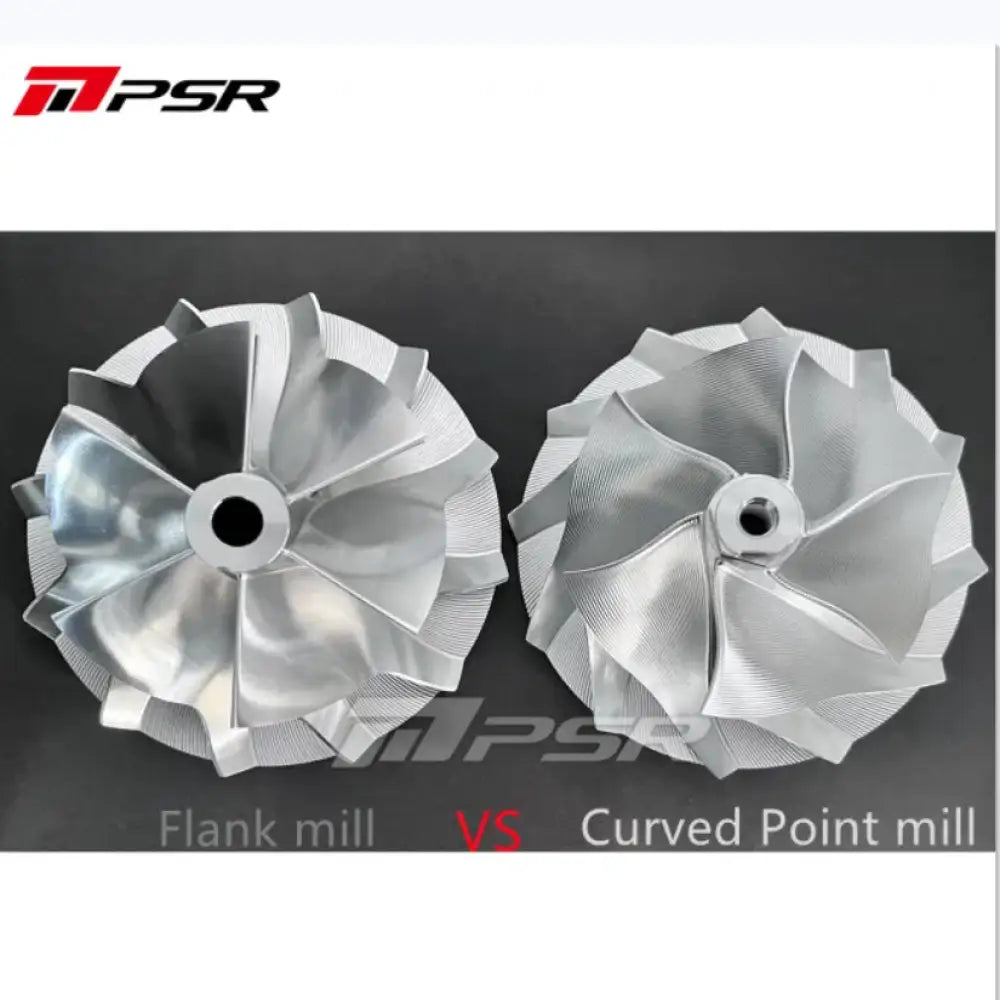

• 6+6  Blade, New design Curved point mill billet compressor wheel which can obtain the most air mass flow through the curved vanes and allow increases in engine horsepower output.
• Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing shaft play.

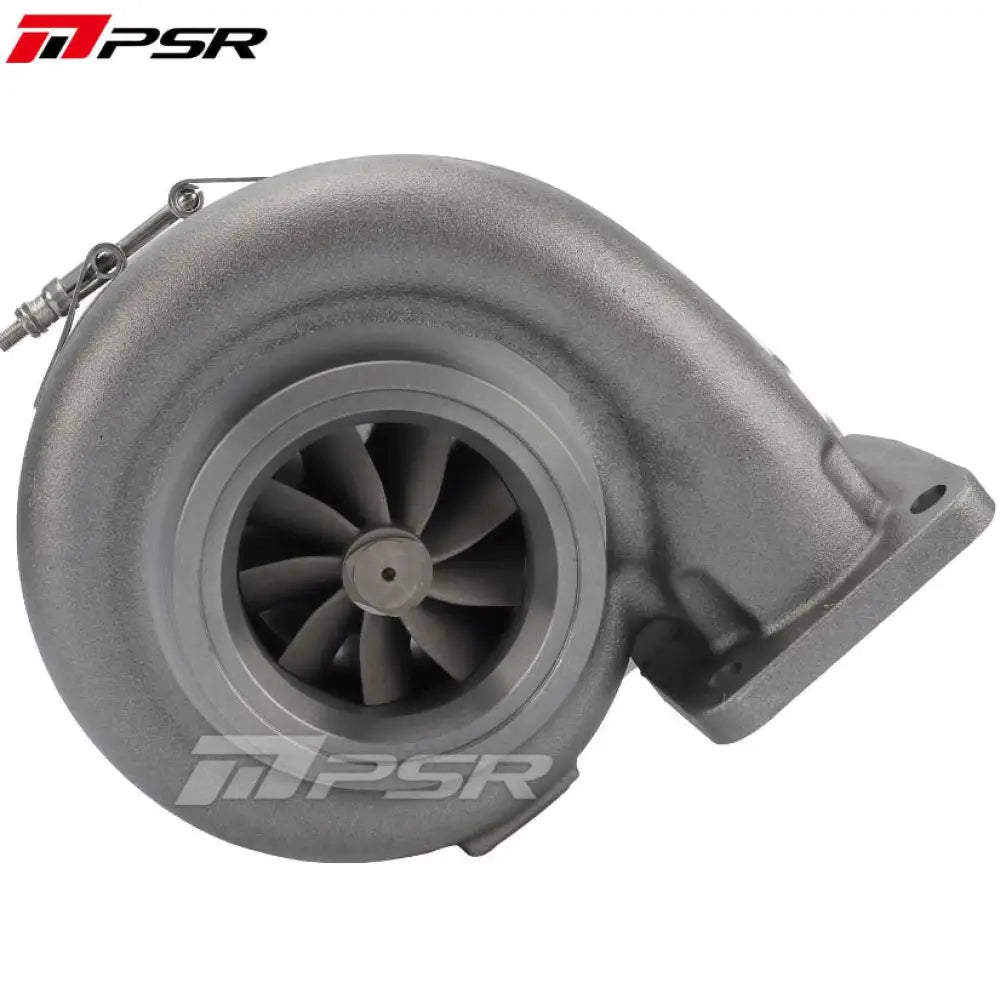

• 9 Blade G-Aero Inconel 713c turbine wheel.
• Anti-Surge ported-shroud compressor inlet  cover with integrated speed sensor and pressure ports.
• Water fittings included.
• 9 turbine housing options available.

SPEC

• Curved Point Mill Compressor Wheel: 85.15* 115*119.67mm
• Turbine Wheel: 89*81.6mm
• Compressor Inlet: 5″ Hose
• Compressor Outlet: 3″ V-Band
• Turbine Inlet: 3″ V-Band/T4 open/ T4 divided
• Water Ports: -6AN
• Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted)
• Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
•  Turbine Housing options : T4(Open) 1.15 A/R; T4(Divided) 0.95A/R, 1.01 A/R, 1.15 A/R,  1.28 A/R, 1.44 A/R; Dual v-band 1.01 A/R, 1.15 A/R and 1.28 A/R
