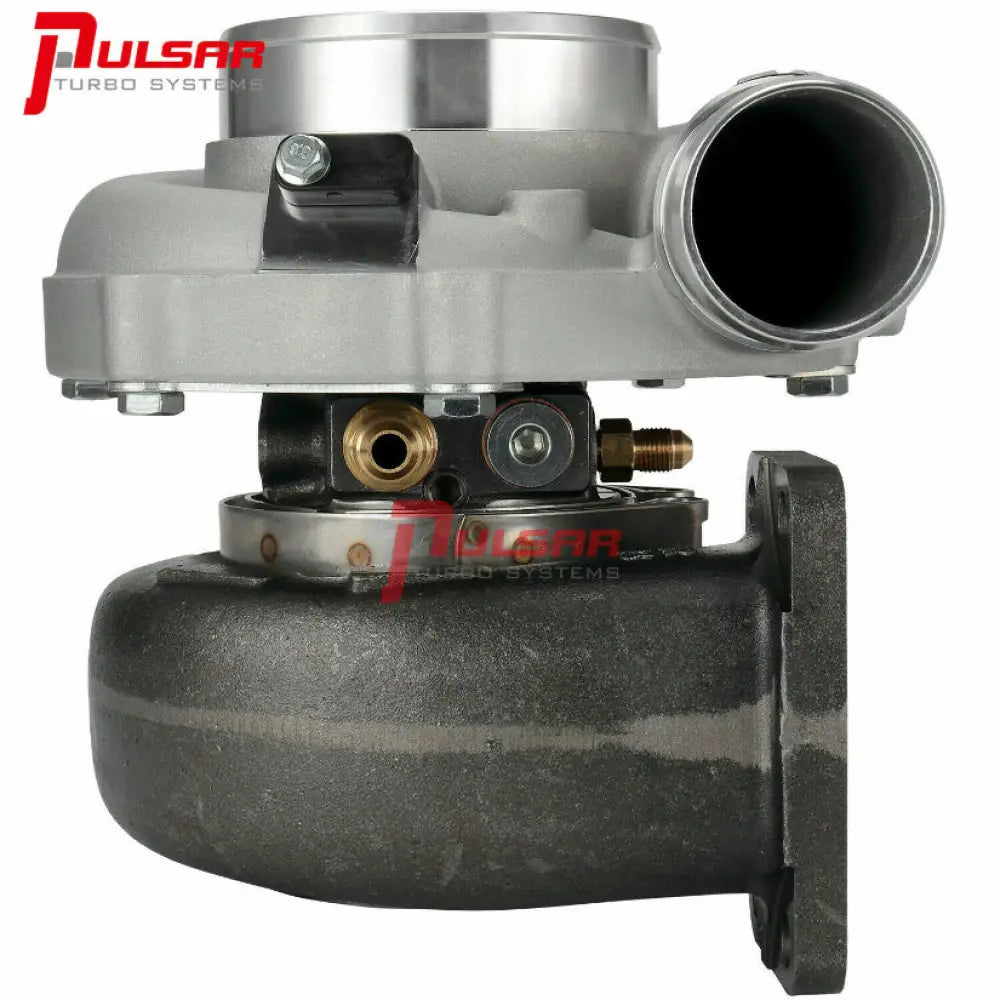

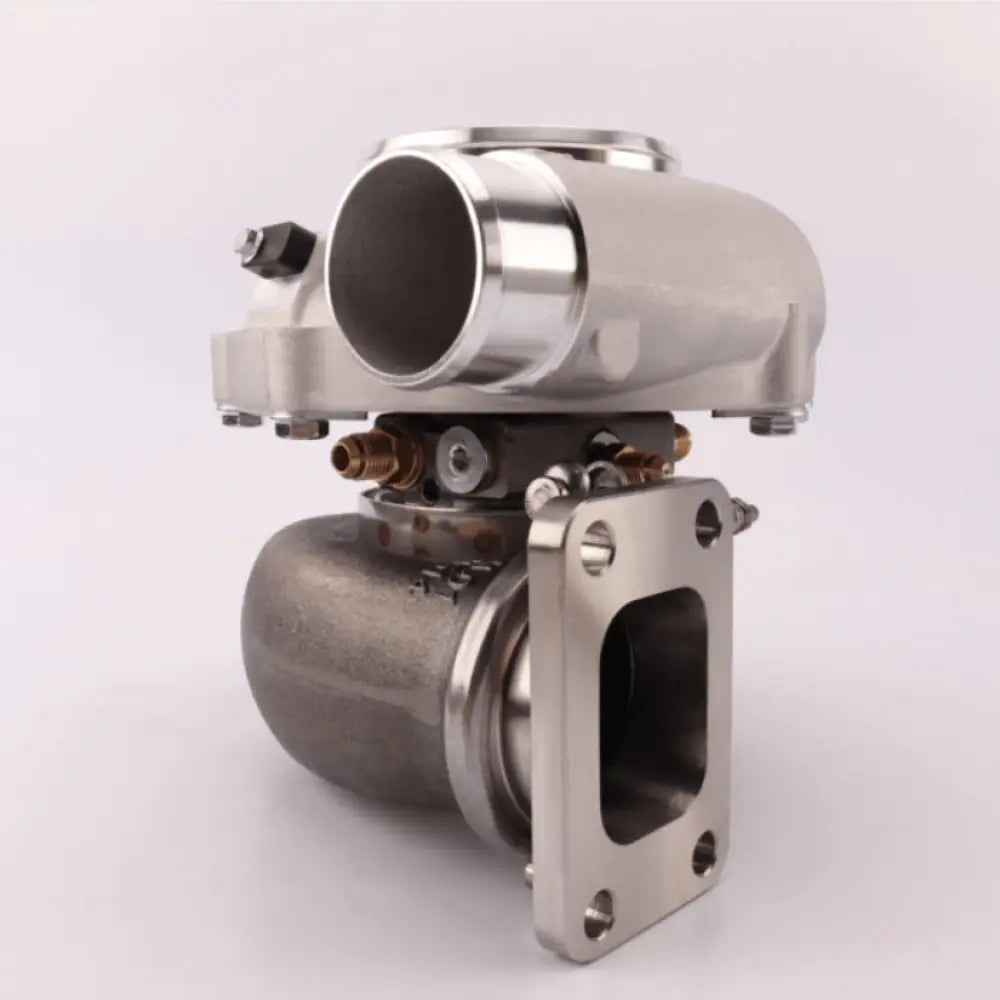

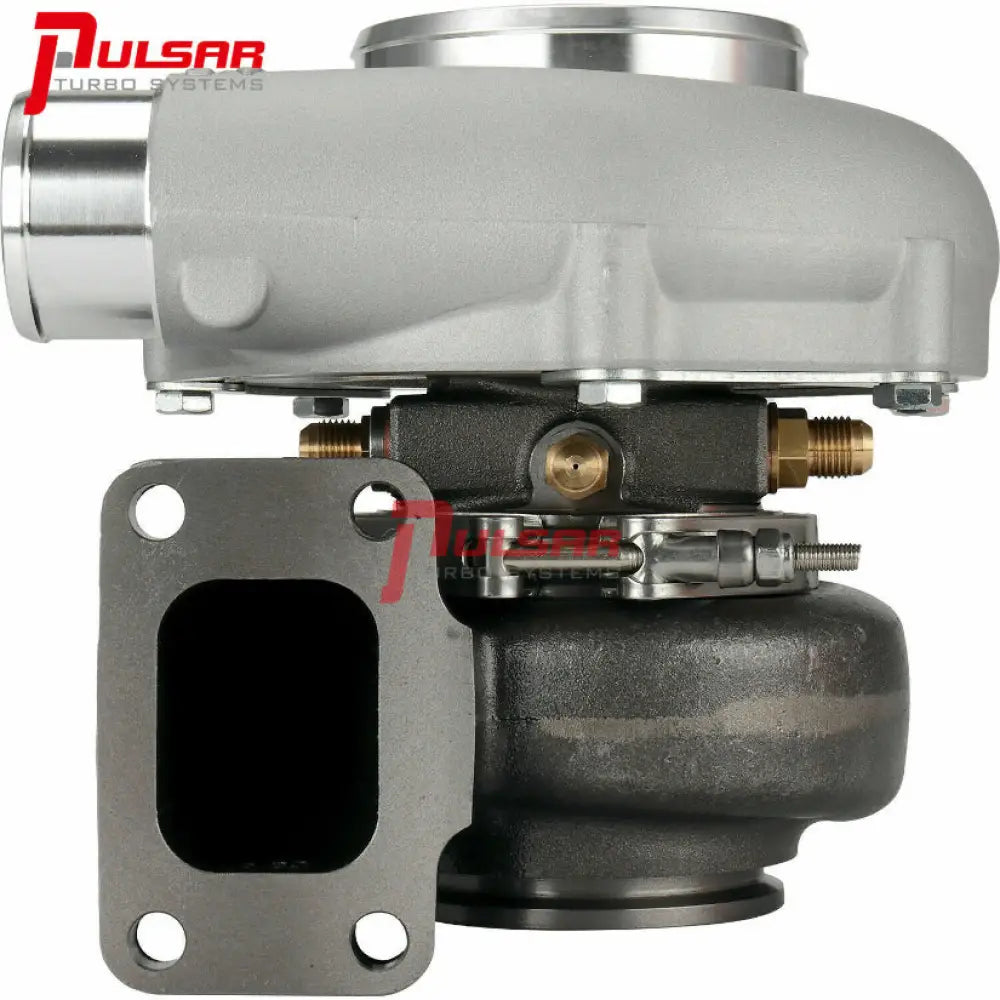

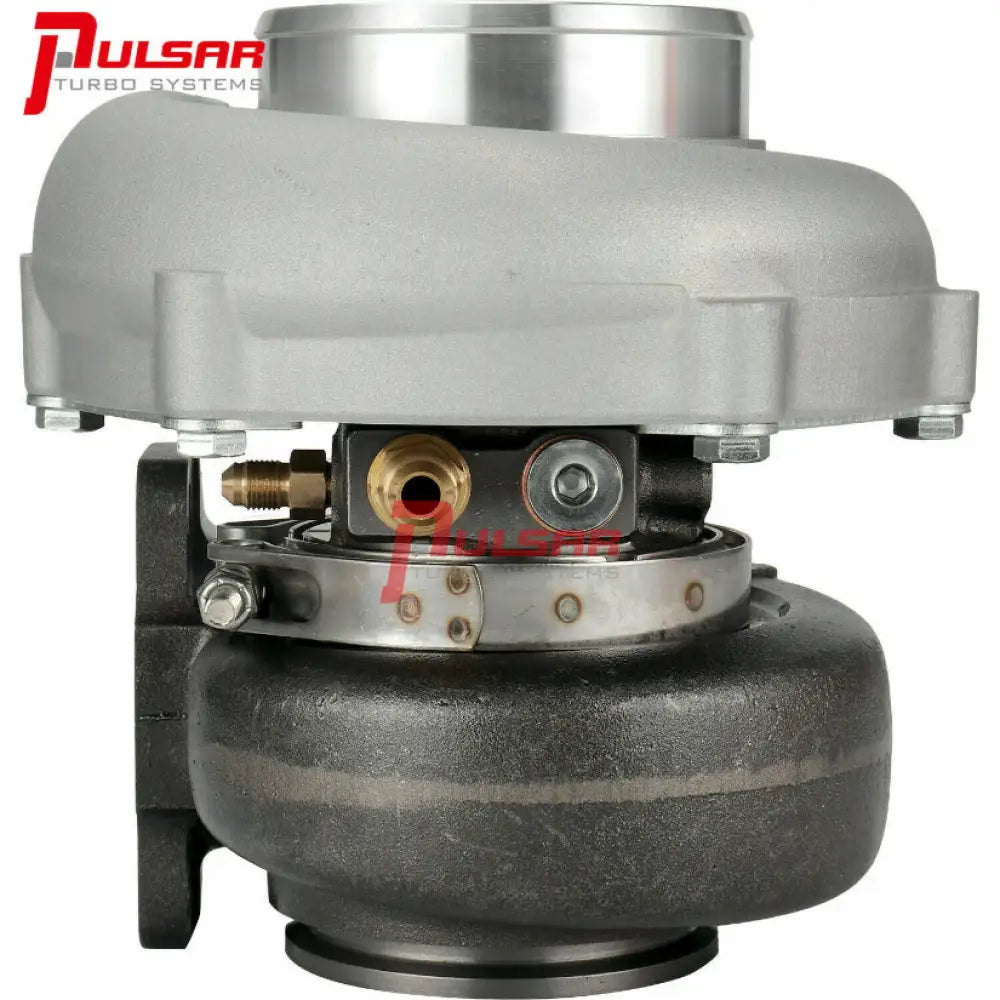

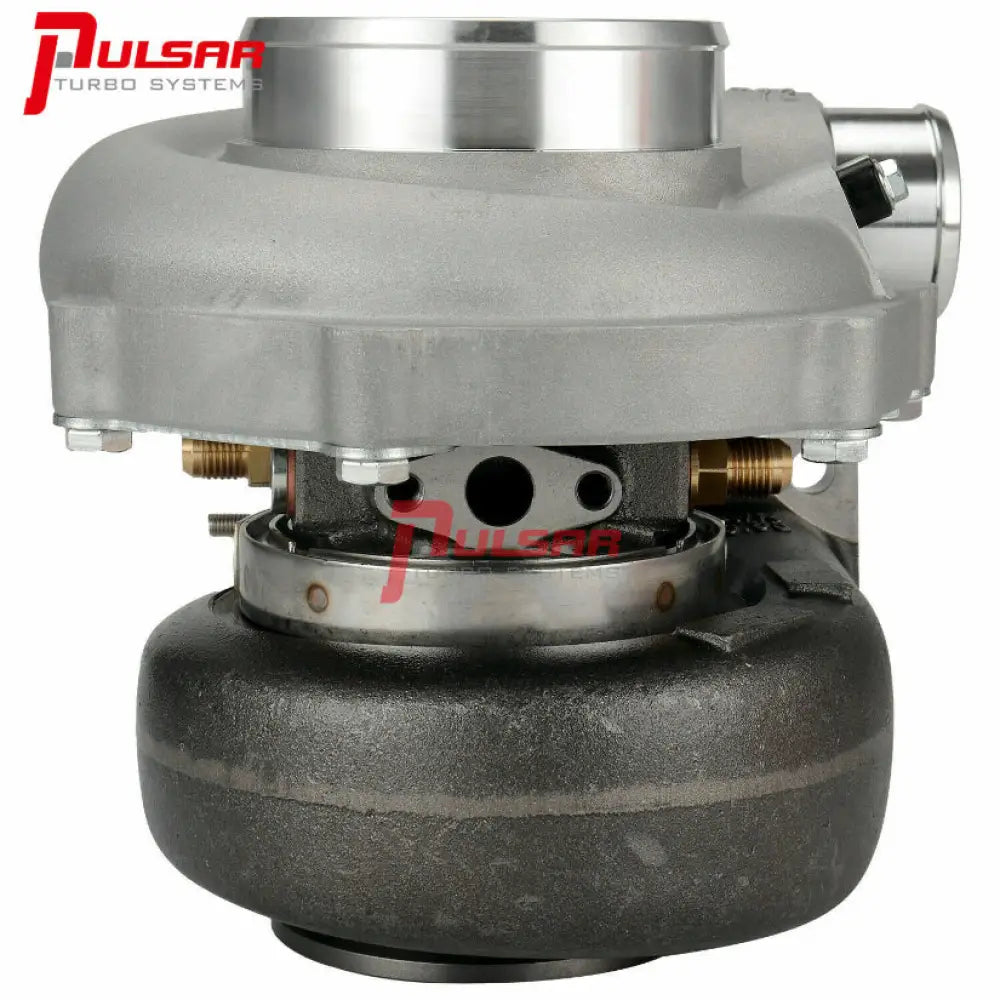

Pulsar PSR6255G
- Please note, T51R housing option requires an extra 7 days handling time
- Recommended displacement 2.0 to 3.5 litres with power outputs up to 900hp possible.
- Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing play in the shaft.

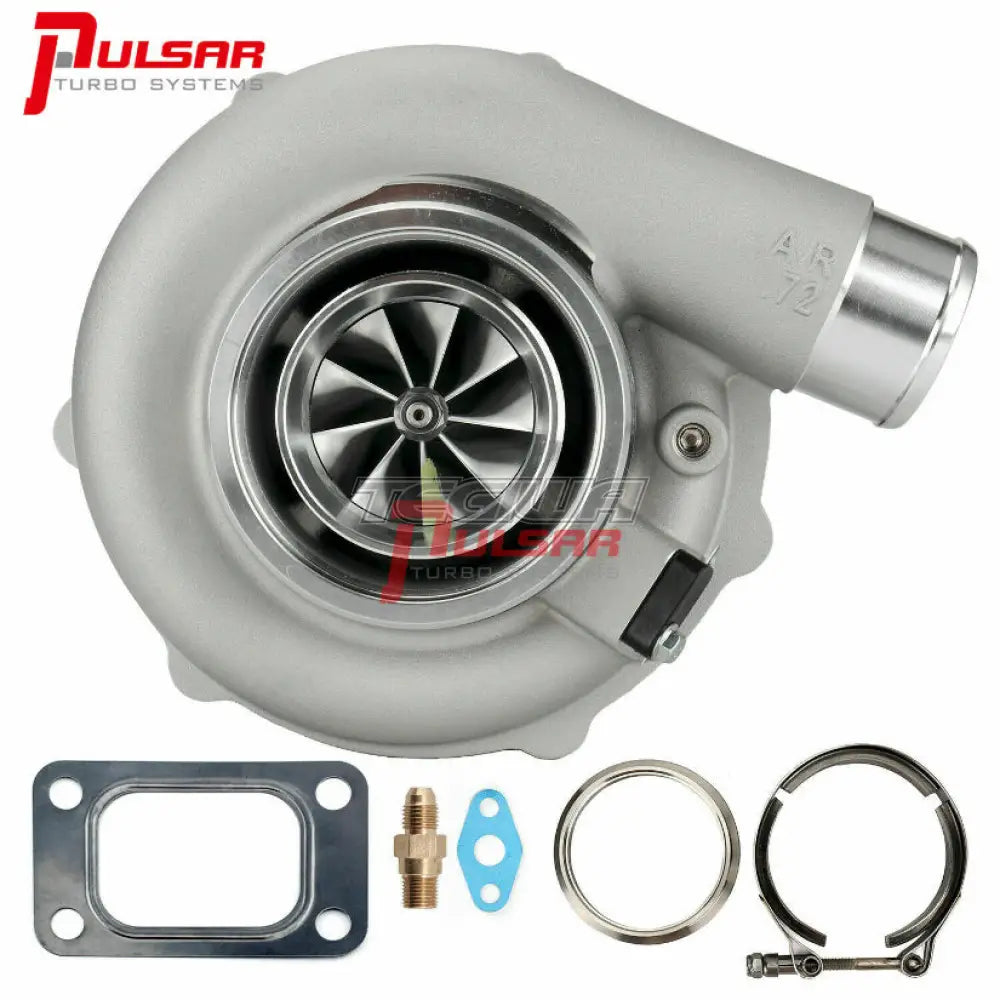

- 9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology

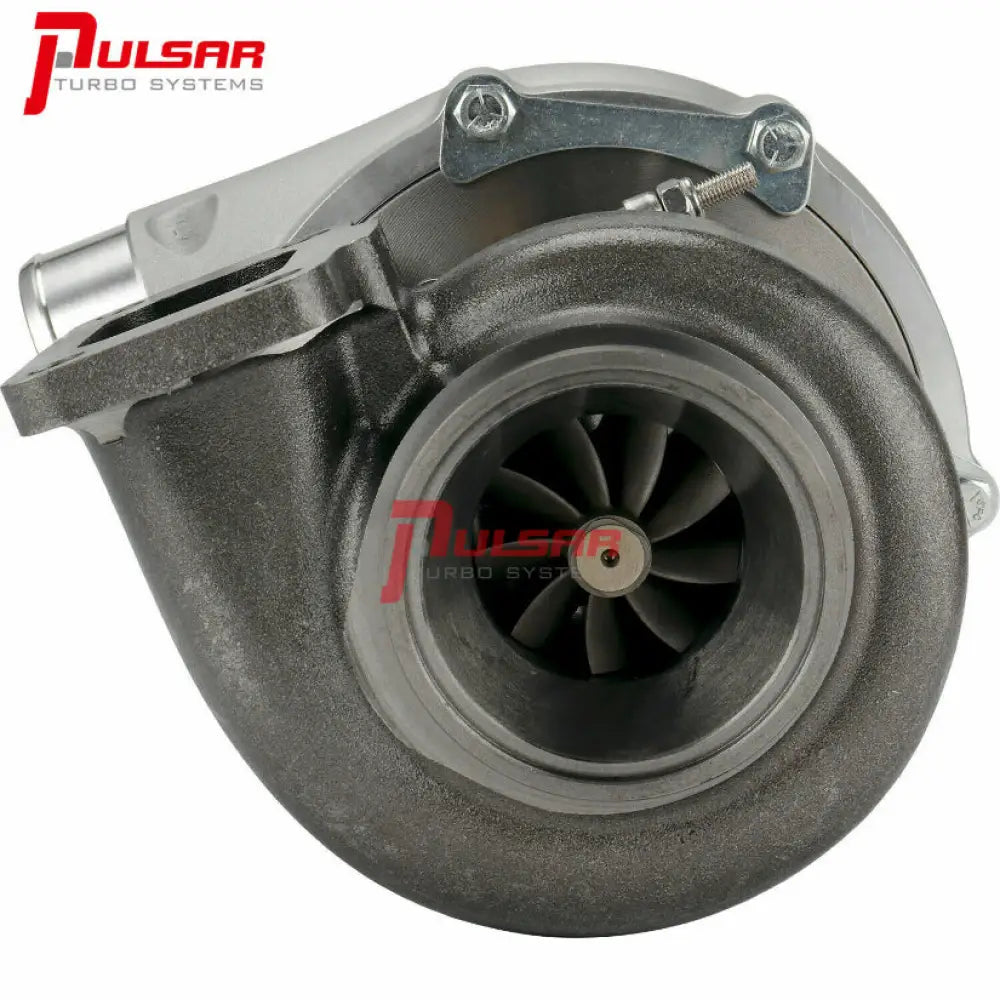

- 9 Blade G-Aero Inconel 713c Turbine Wheel
- T3 1.01 housing option comes with adapter as per image.
- Anti-Surge ported-shroud compressor inlet, cover with integrated speed sensor port
SPEC
- Compressor Wheel: 62*76mm
- Turbine Wheel: 60*55mm
- Compressor Inlet: 4″ Hose
- Compressor Outlet: 2″ Hose
- Turbine Inlet: T3 or T4

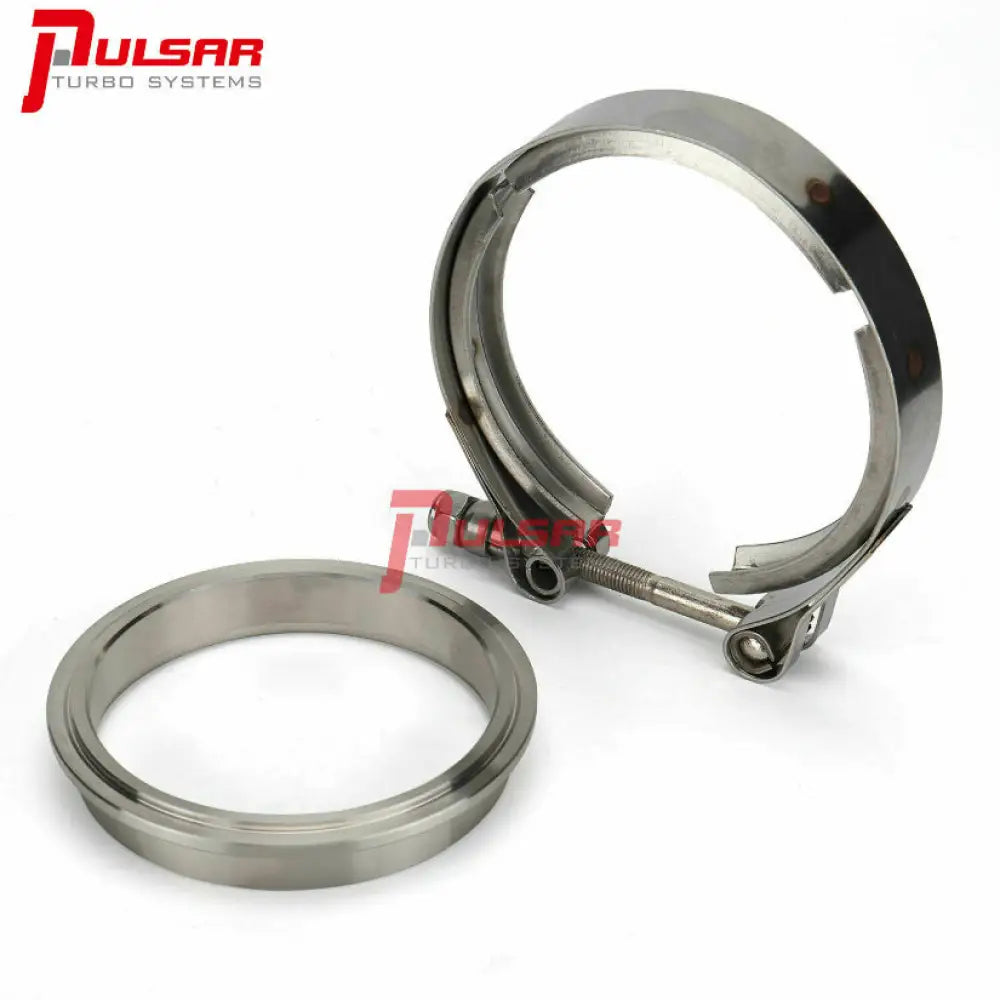

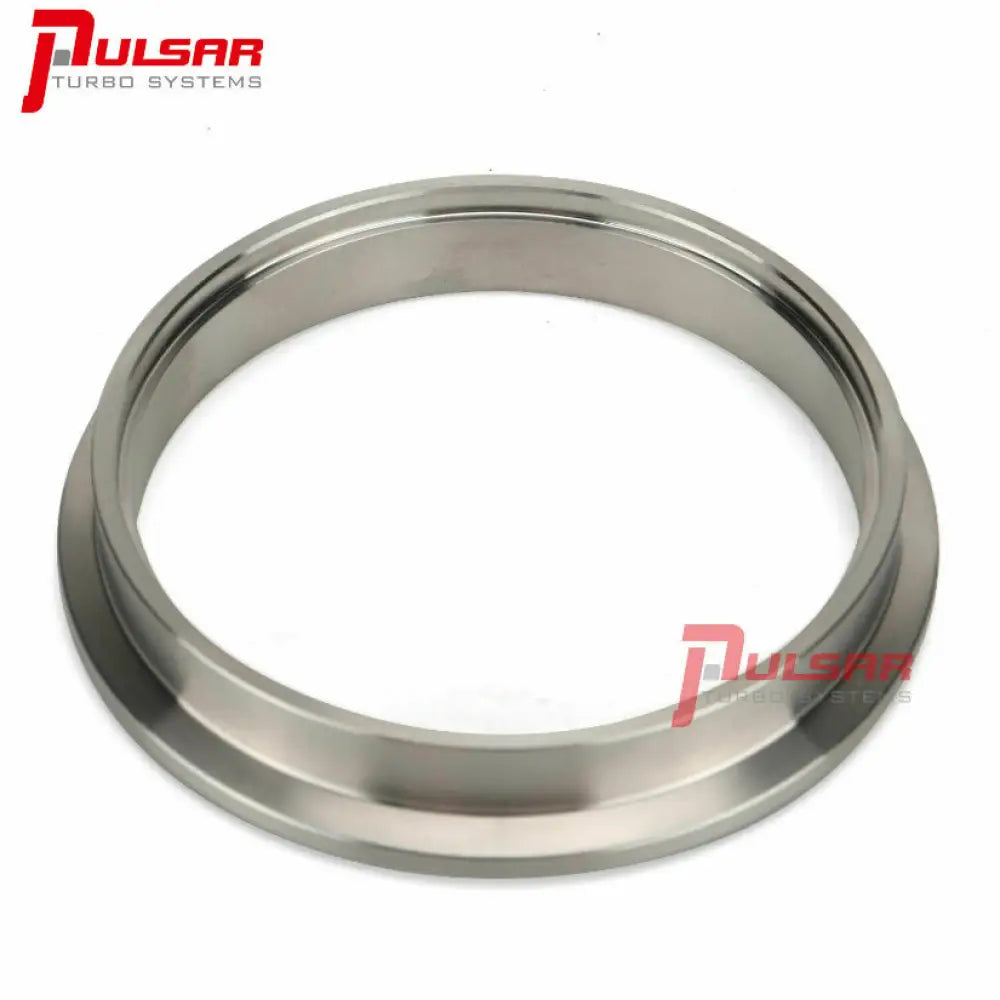

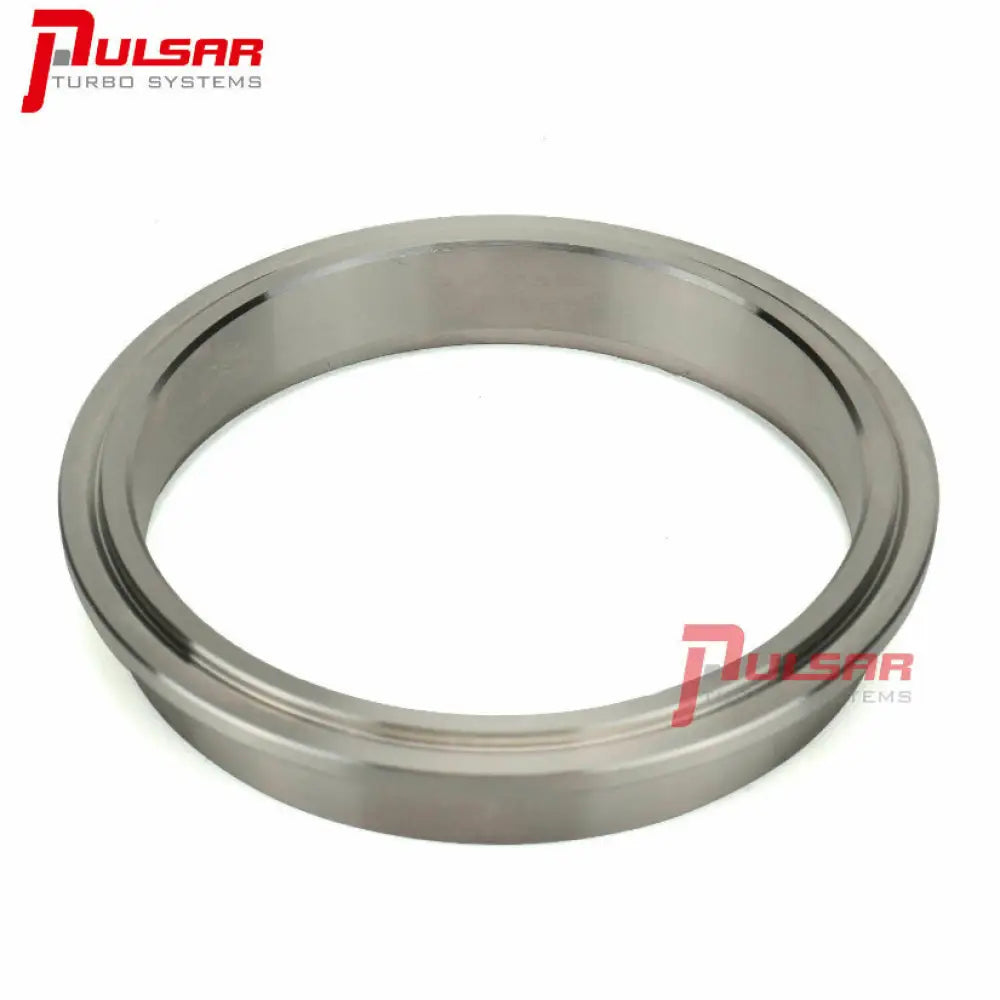

- Turbine Outlet: 3″ V-Band
- Water Ports: 2-M14 X 1.5
- Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
- Oil Outlet: Std T3 Oil Drain Flange
It's strongly recommended to run water cooling to aid reliability.
