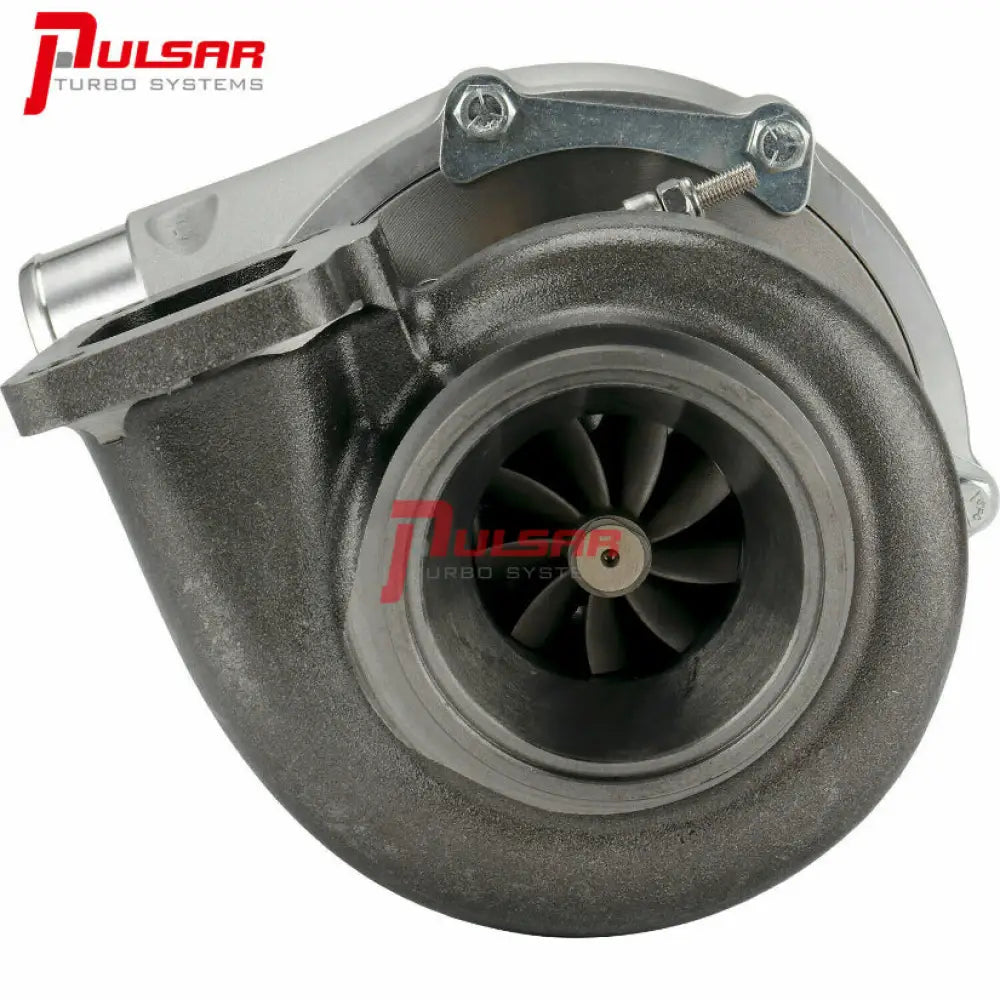

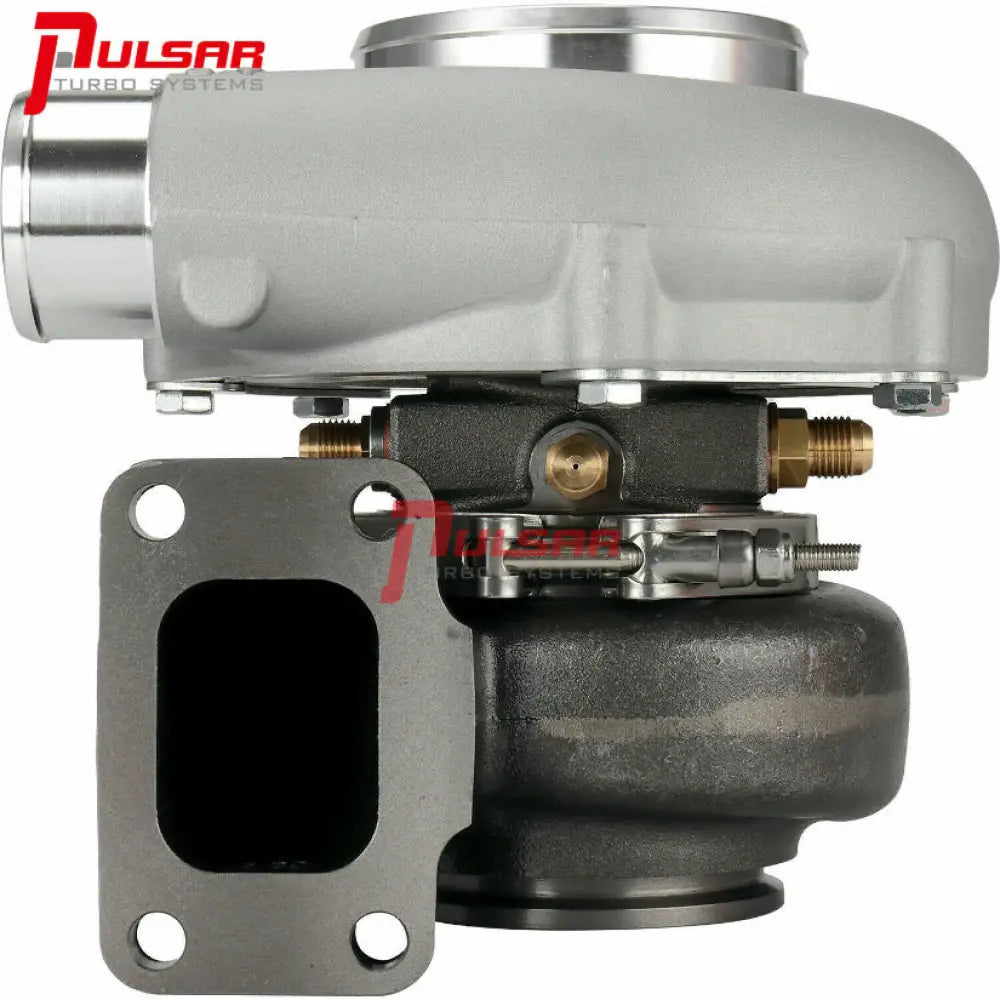

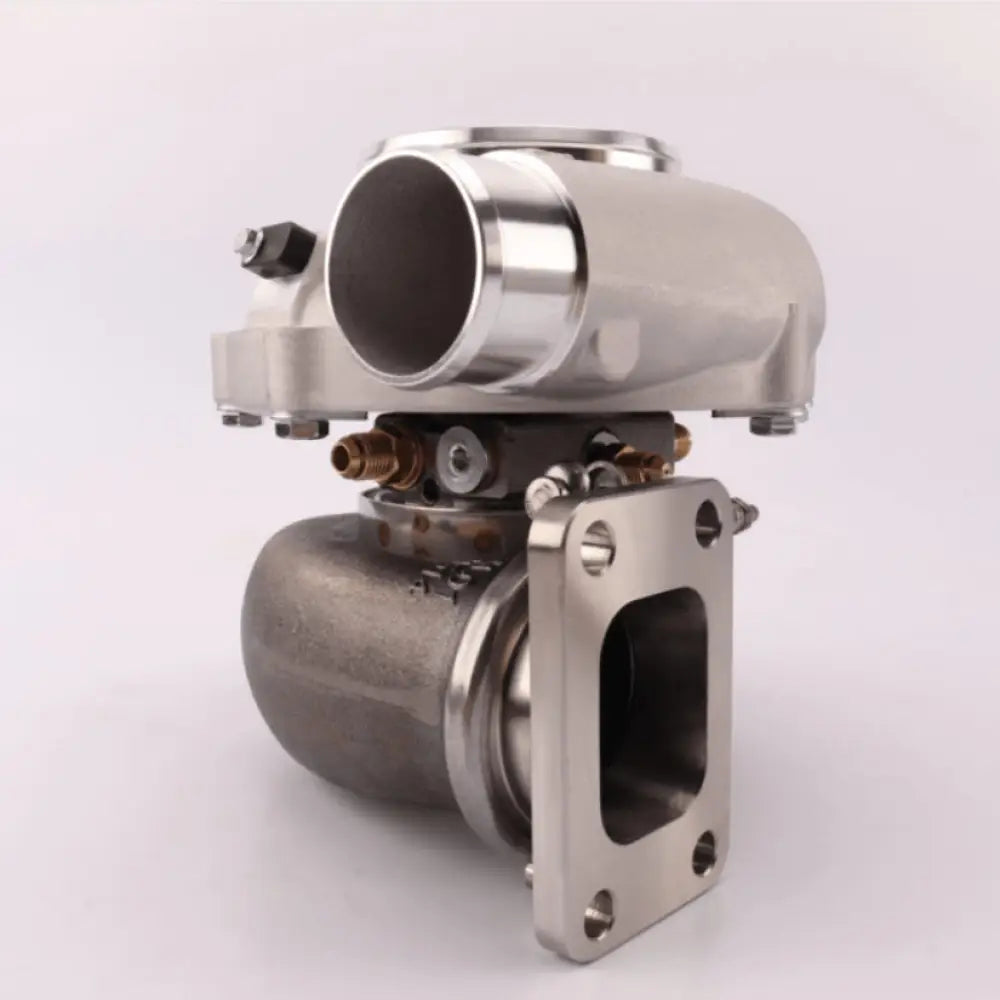

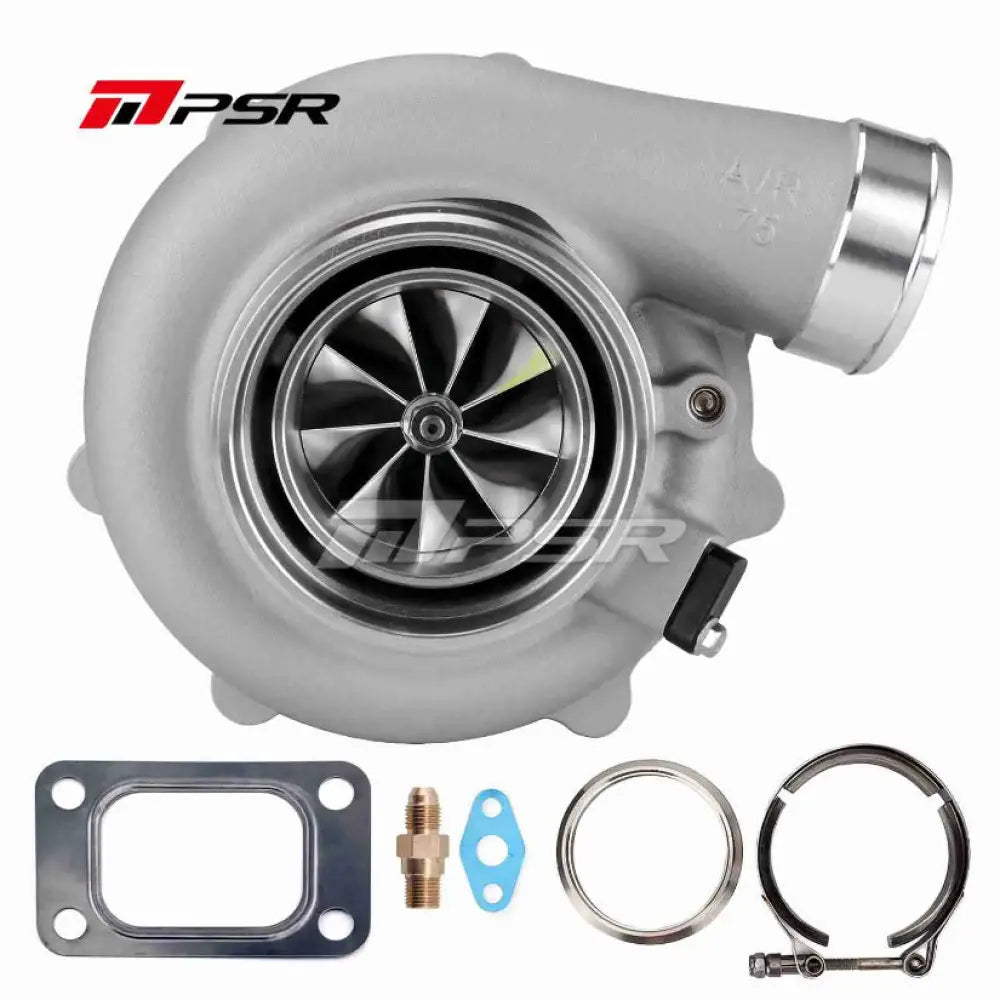

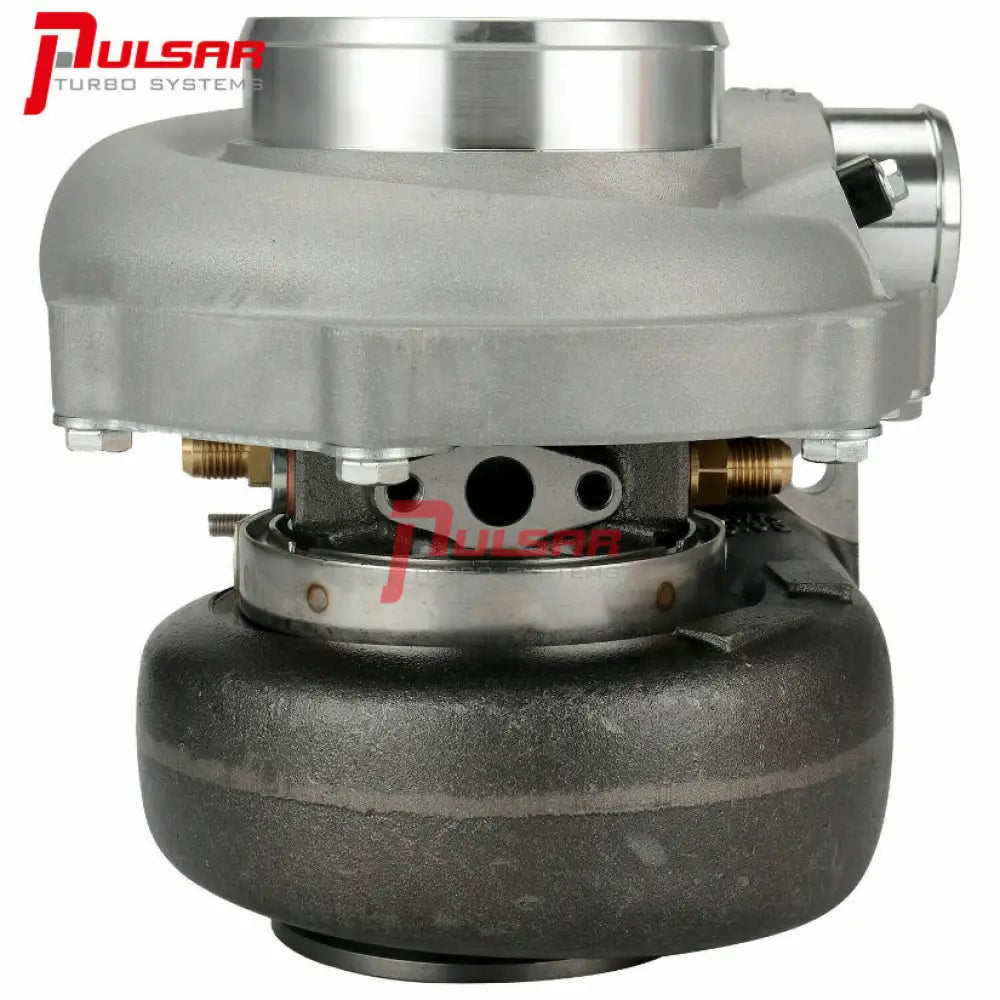

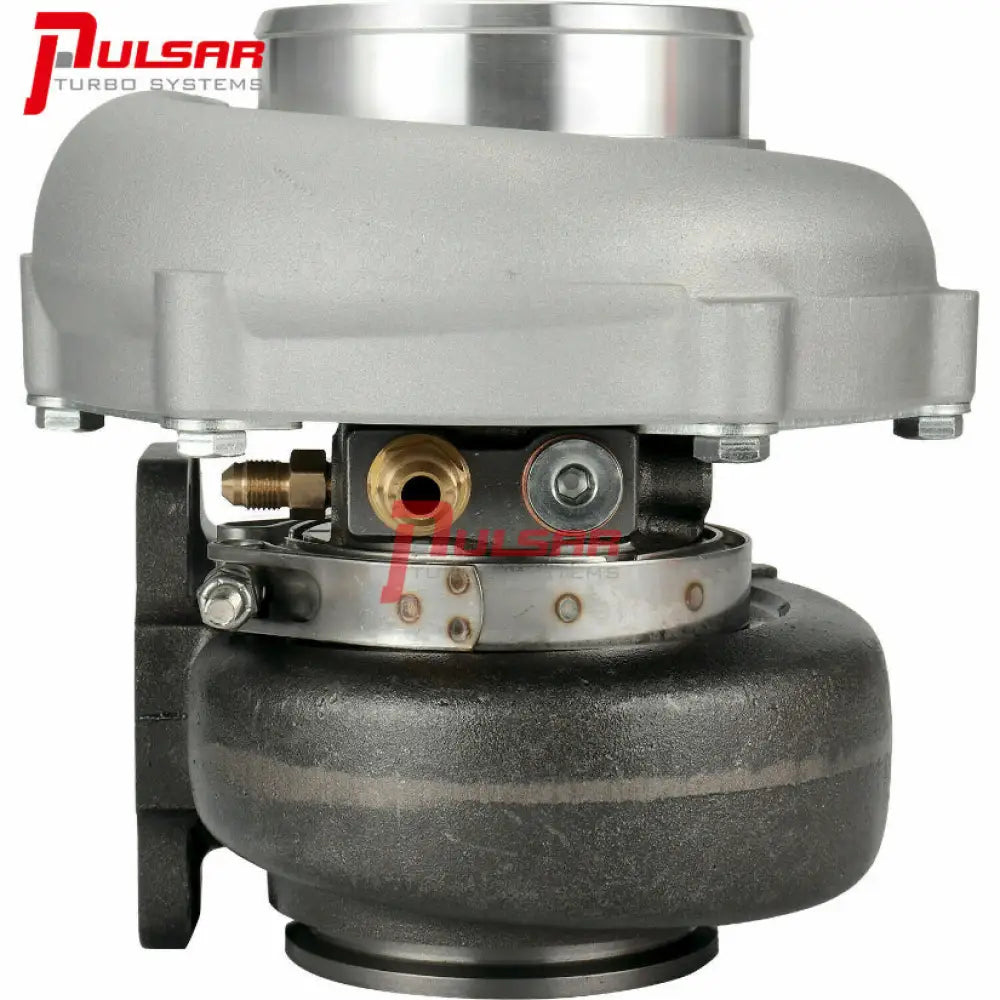

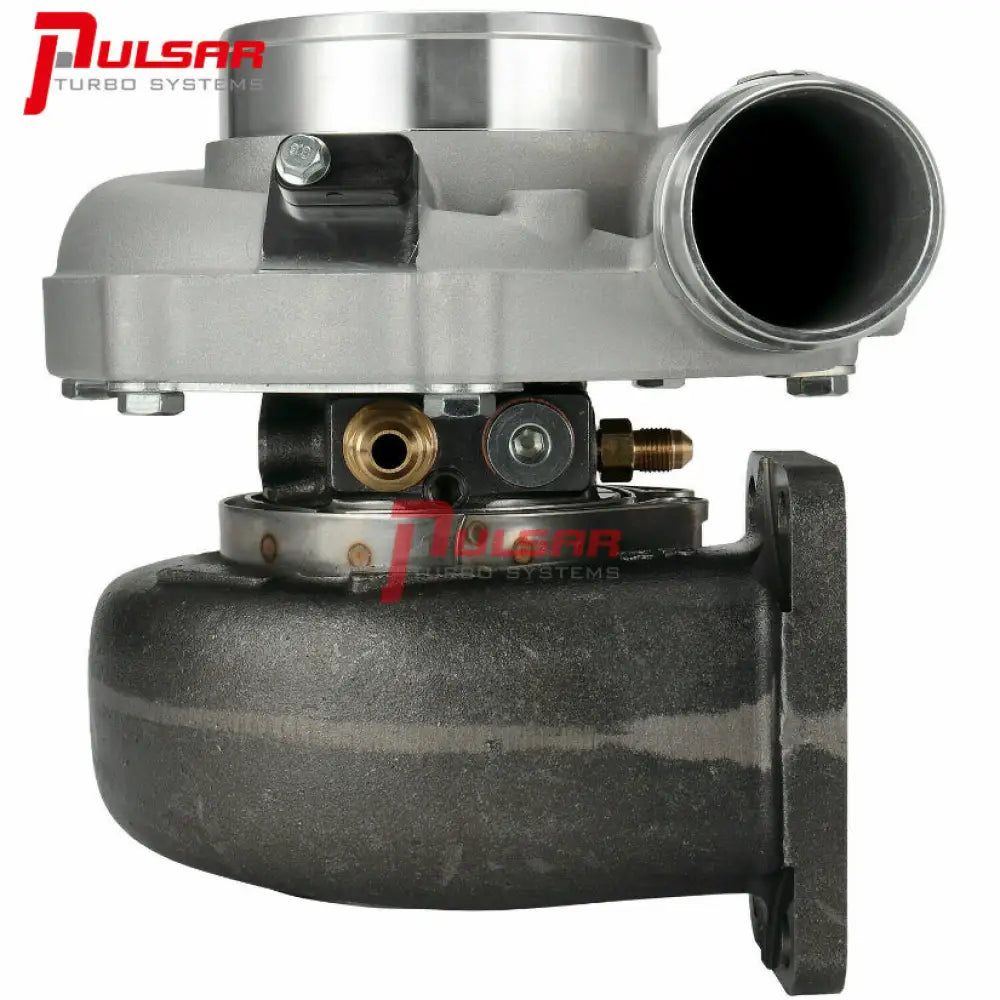

Pulsar PSR5855G
- Please note, T51R housing option requires an extra 7 days handling time
- Recommended displacement 2.0 to 3.5 litres with power outputs up to 770hp possible.
- Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing play in the shaft.
- 9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology
- 9 Blade G-Aero Inconel 713c Turbine Wheel

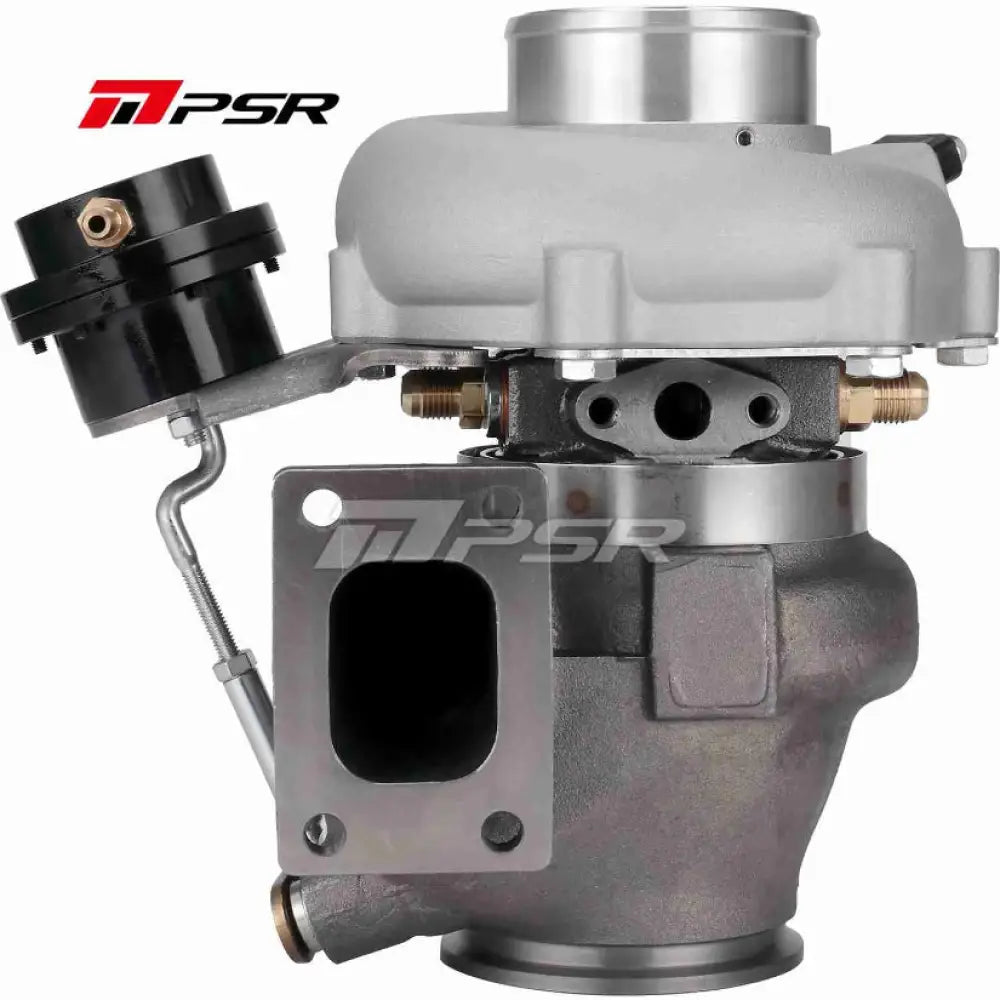

- Some IWG housing T flange options supplied with an adapter - please check images.

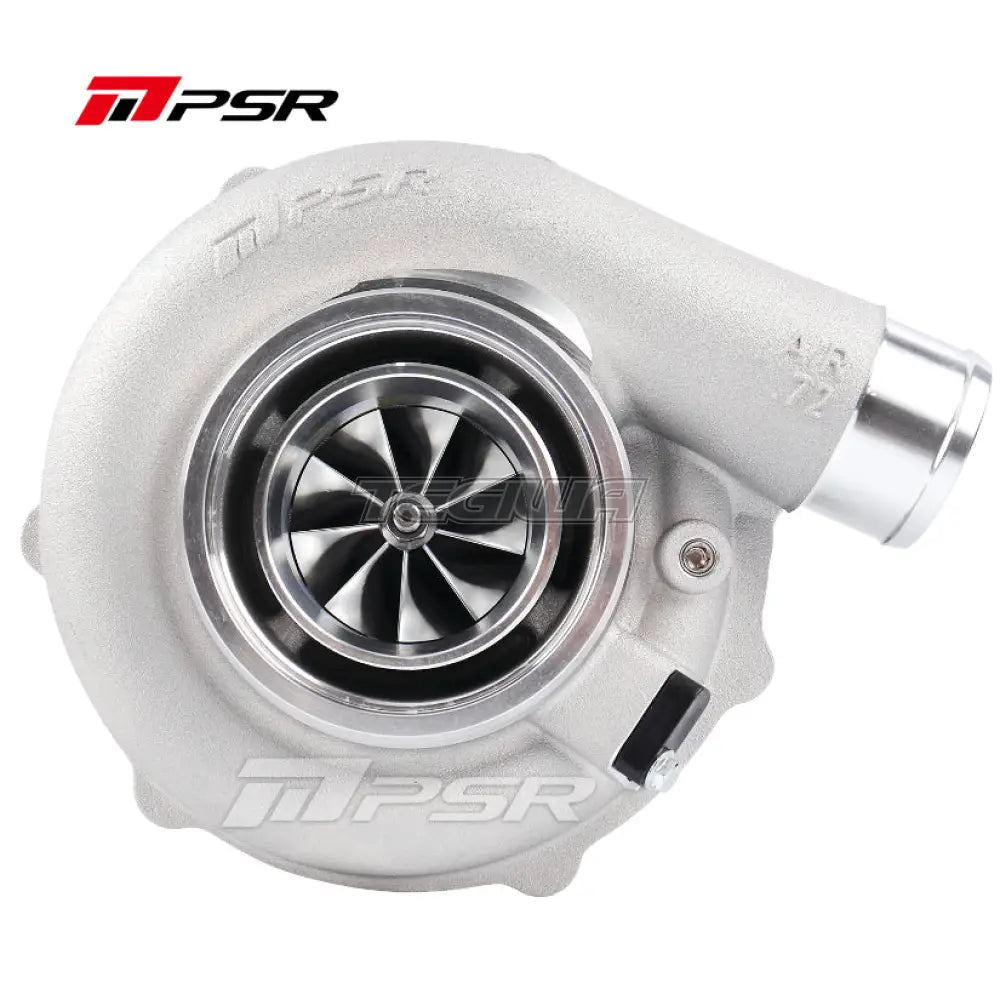

- Anti-Surge ported-shroud compressor inlet, cover with integrated speed sensor port
SPEC
Compressor Wheel: 58*71mm
Turbine Wheel: 60*55mm
Compressor Inlet: 4″ Hose
Compressor Outlet: 2″ Hose
Turbine Inlet: T3 or T4

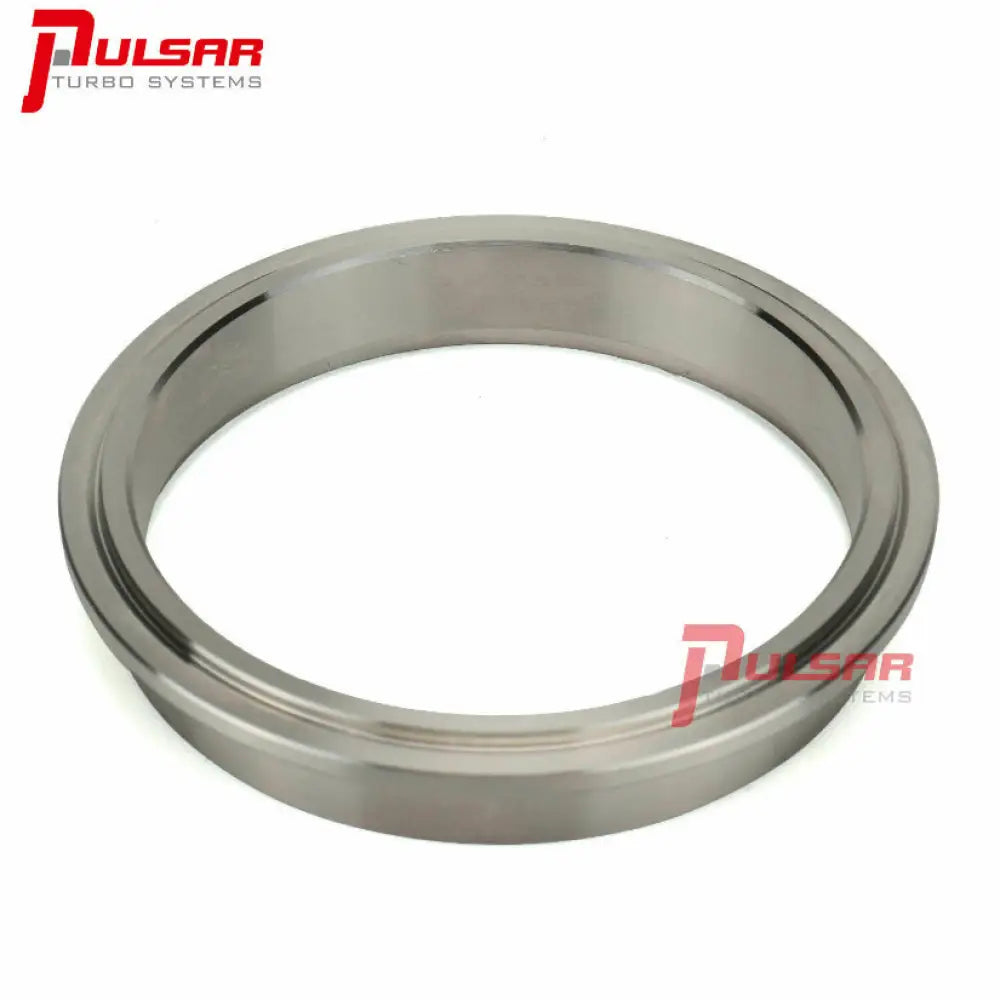

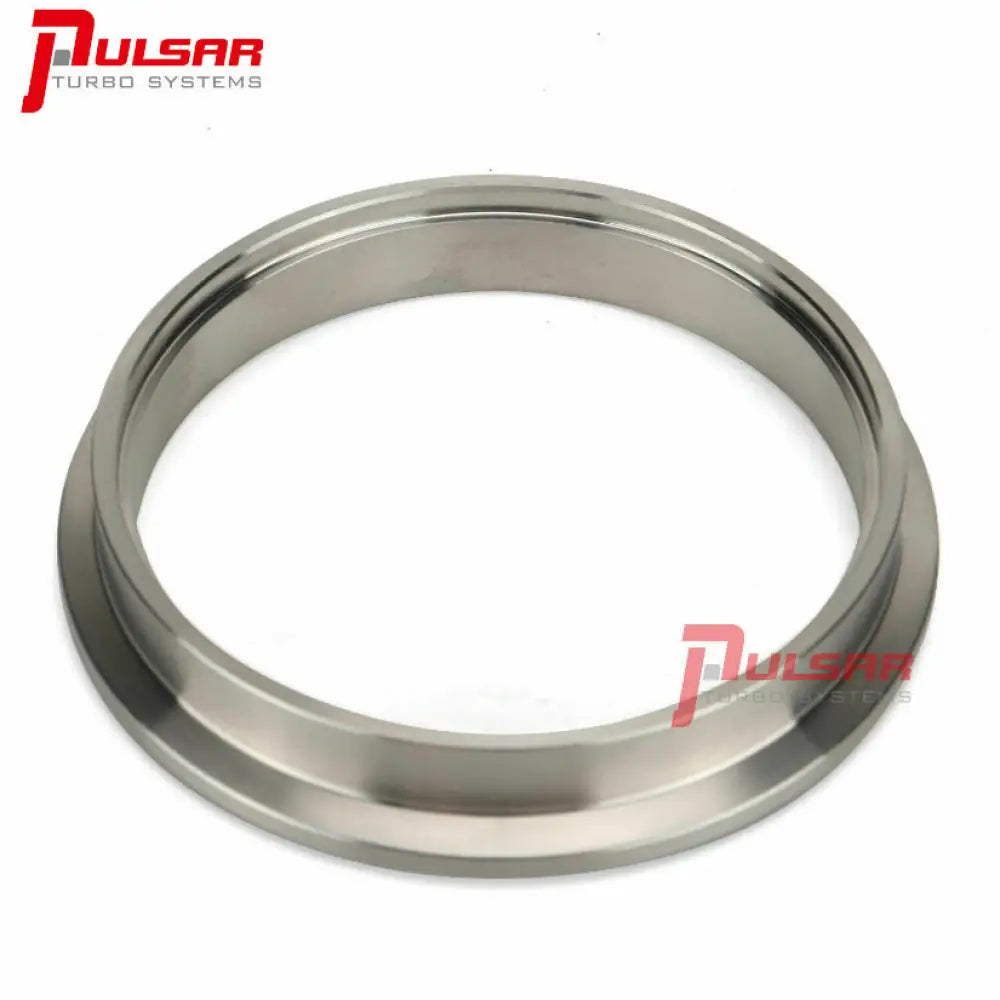

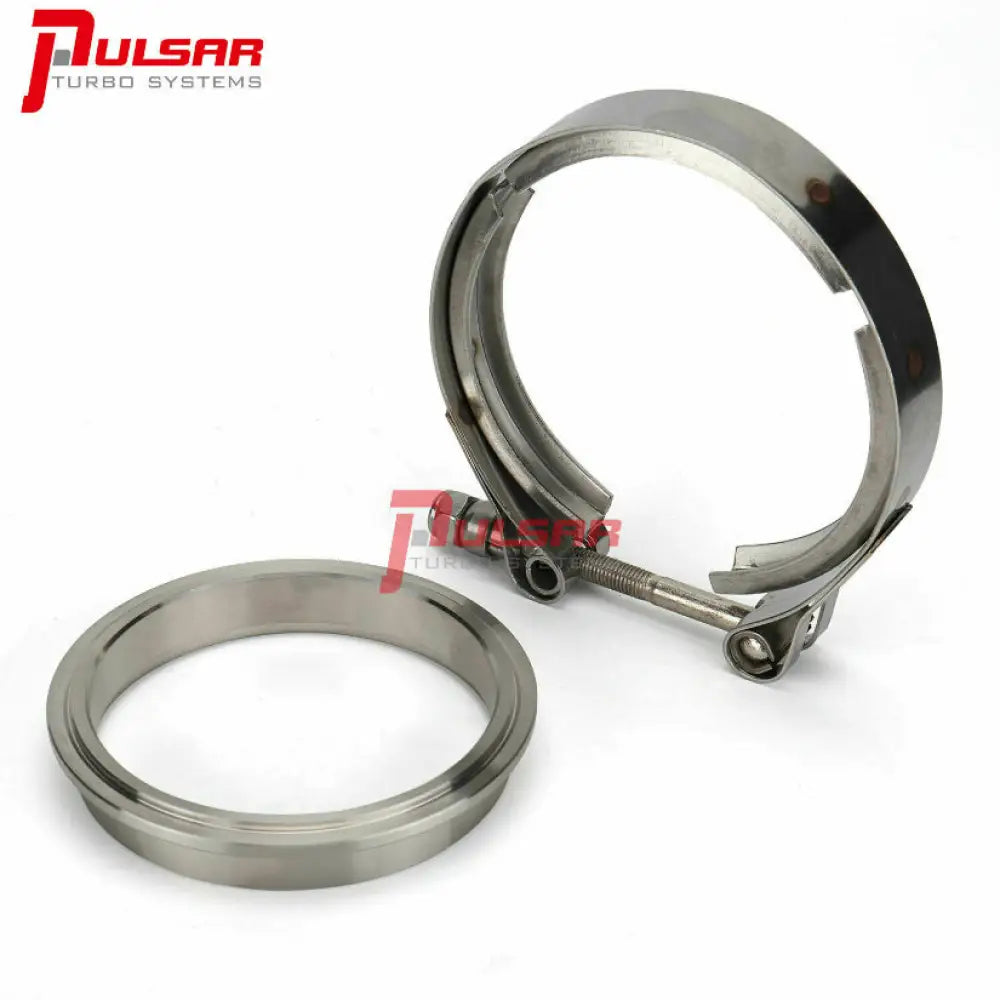

Turbine Outlet: 3″ V-Band
Water Ports: 2-M14 X 1.5
Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
Oil Outlet: Std T3 Oil Drain Flange
It's strongly recommended to run water cooling to aid reliability.
