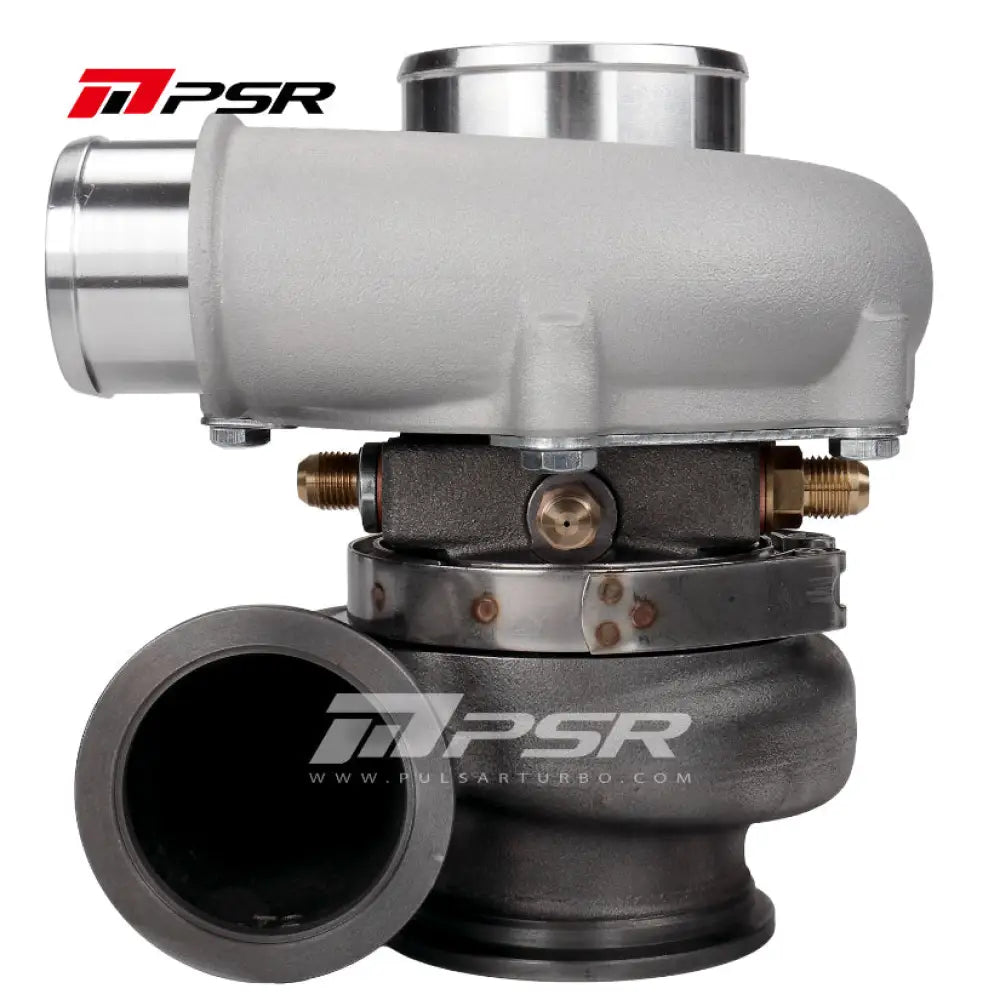

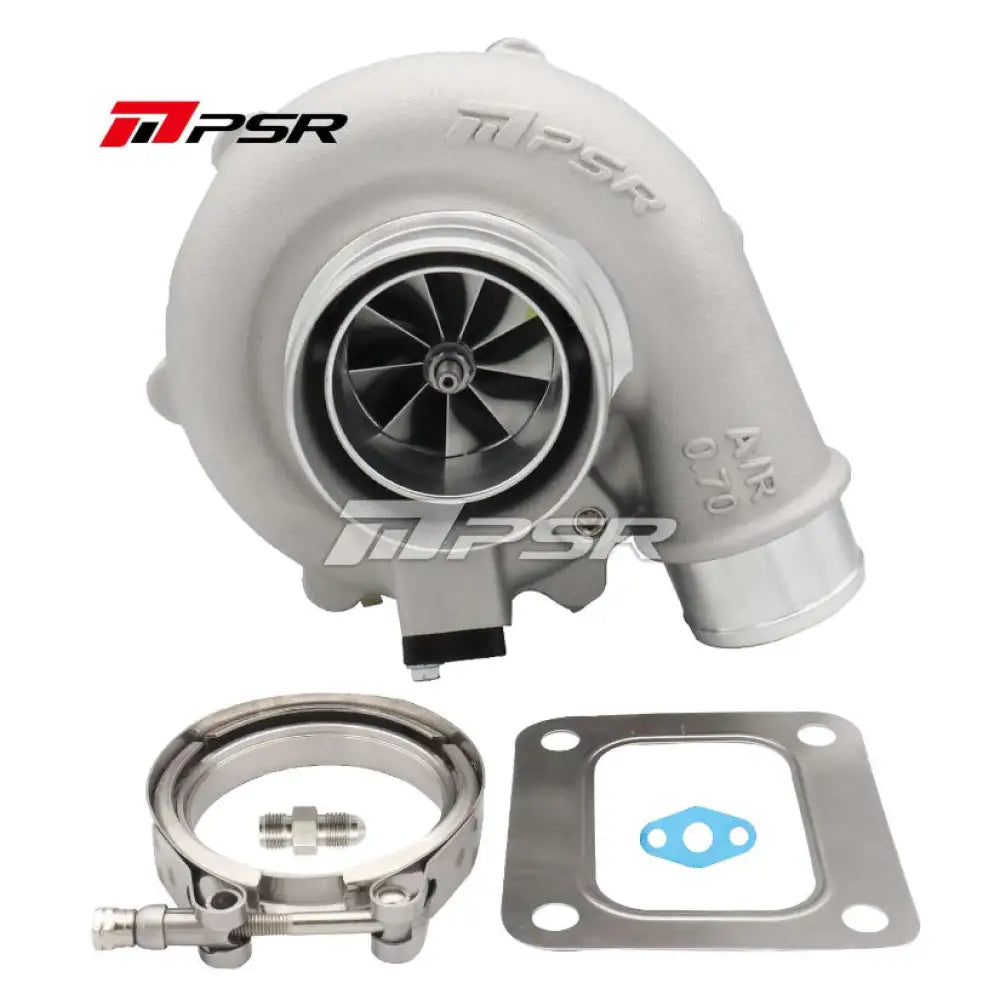

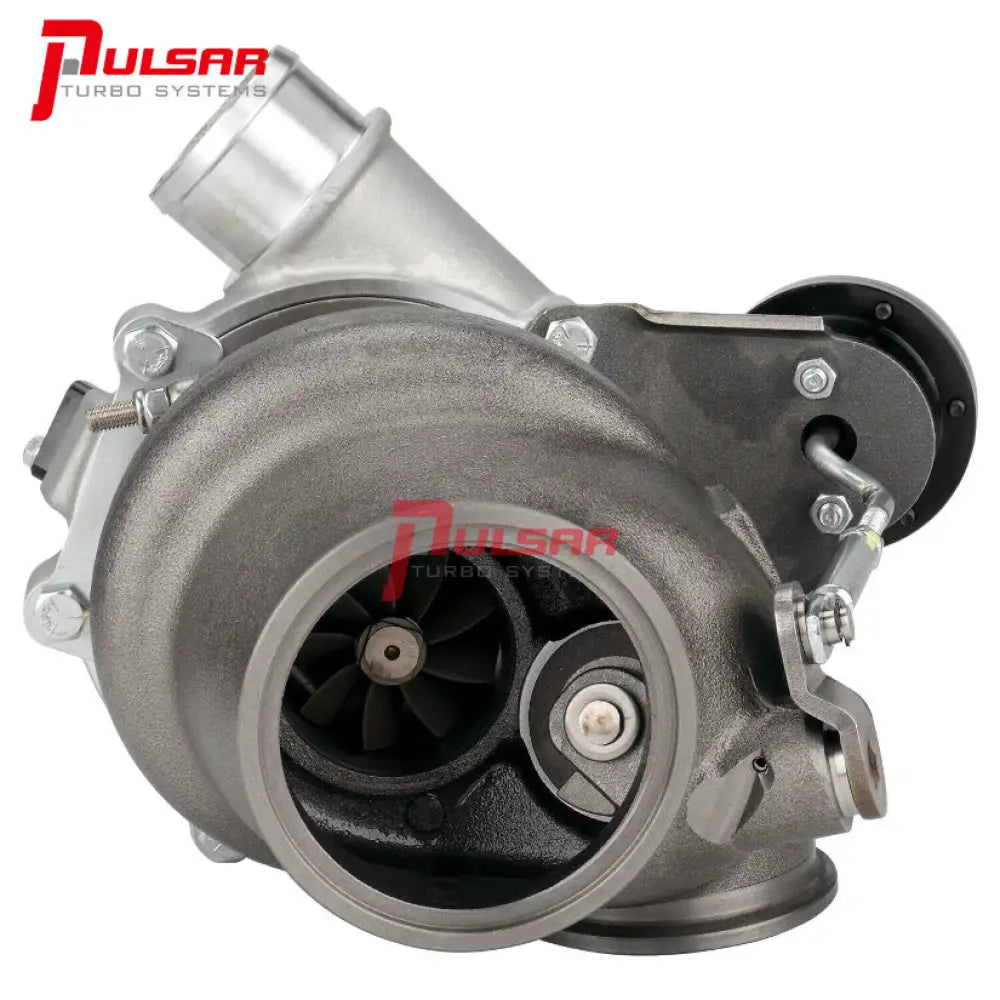

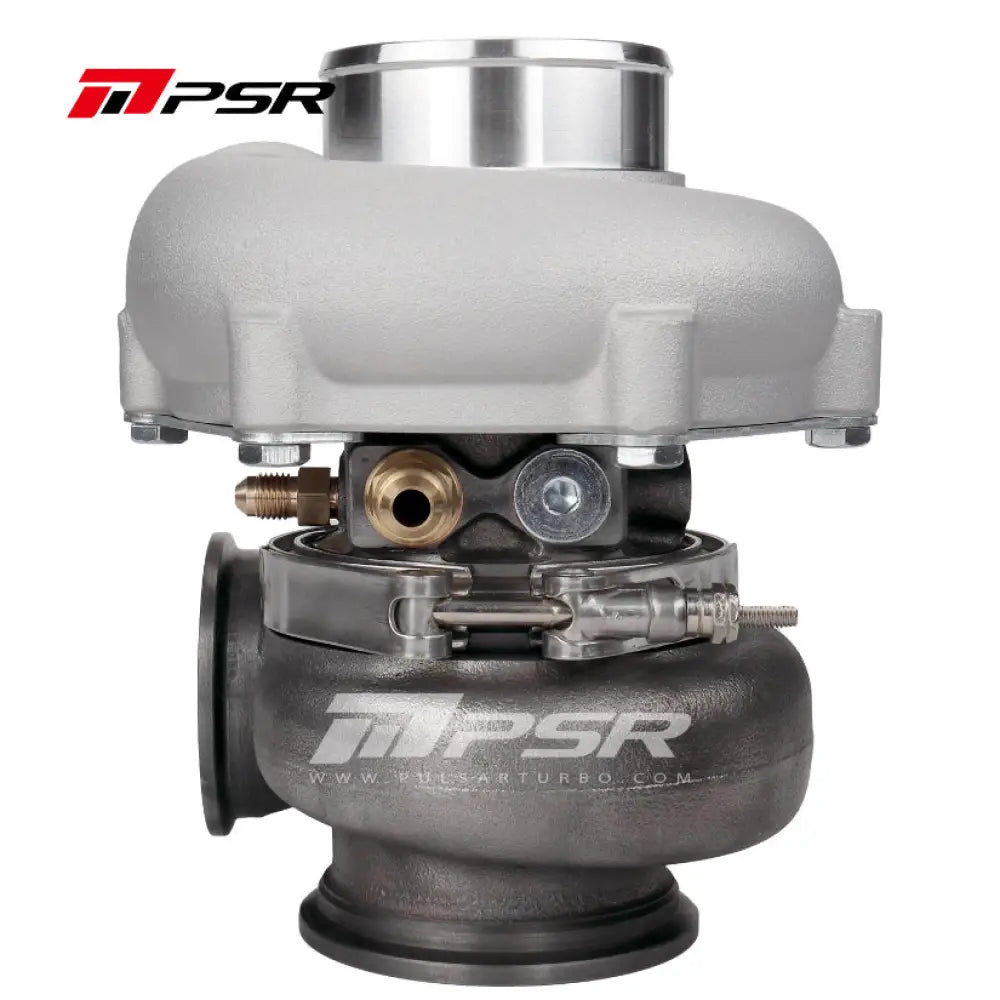

Pulsar PSR5449G
- Please note, T51R housing option requires an extra 7 days handling time
- Recommended displacement 1.6 to 3.0 litres with power outputs up to 660hp possible.
- Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing play in the shaft.

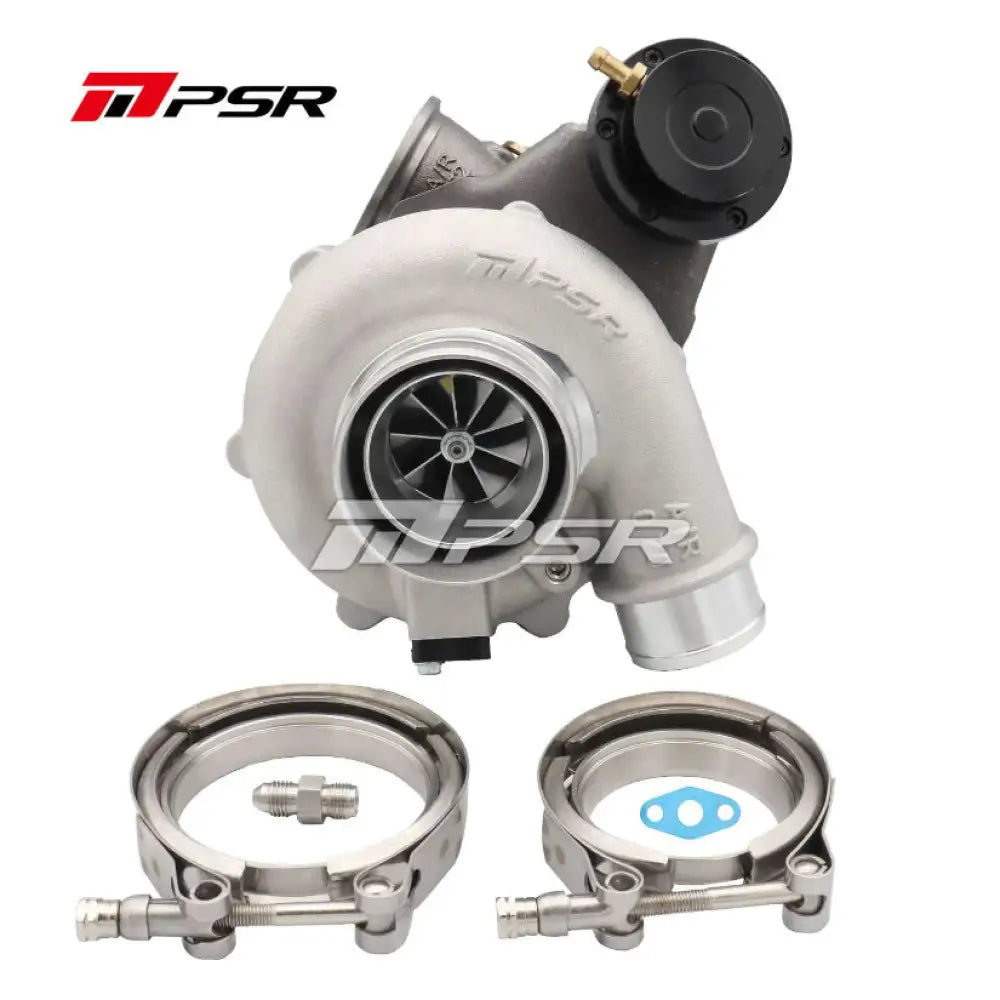

- 9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology

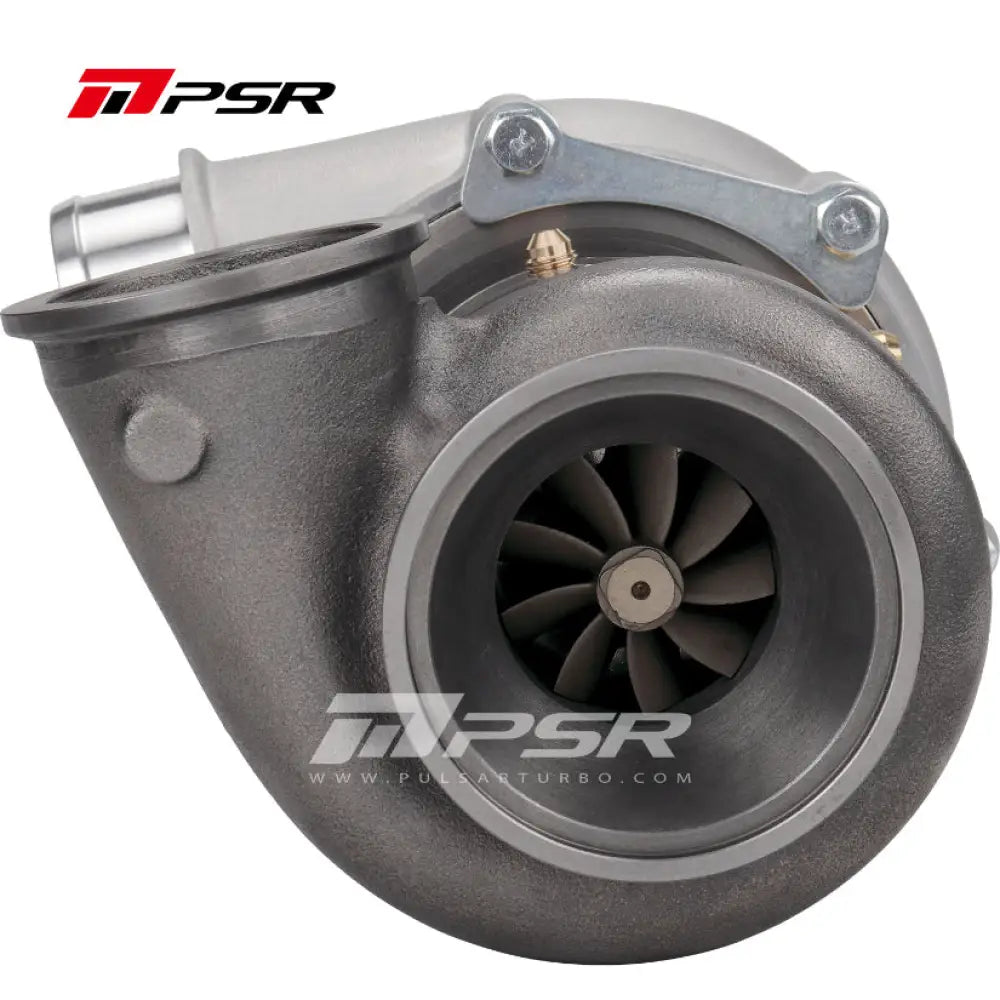

- 9 Blade G-Aero Inconel 713c Turbine Wheel

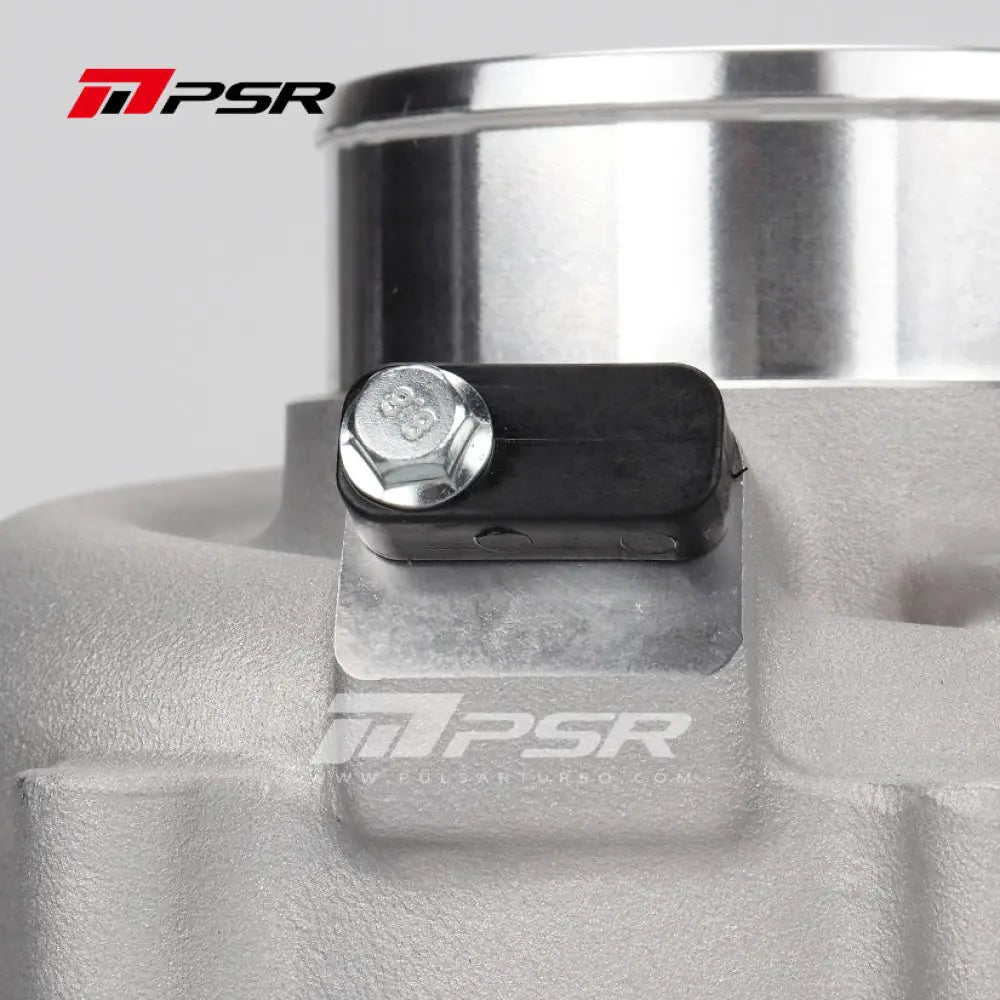

- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port

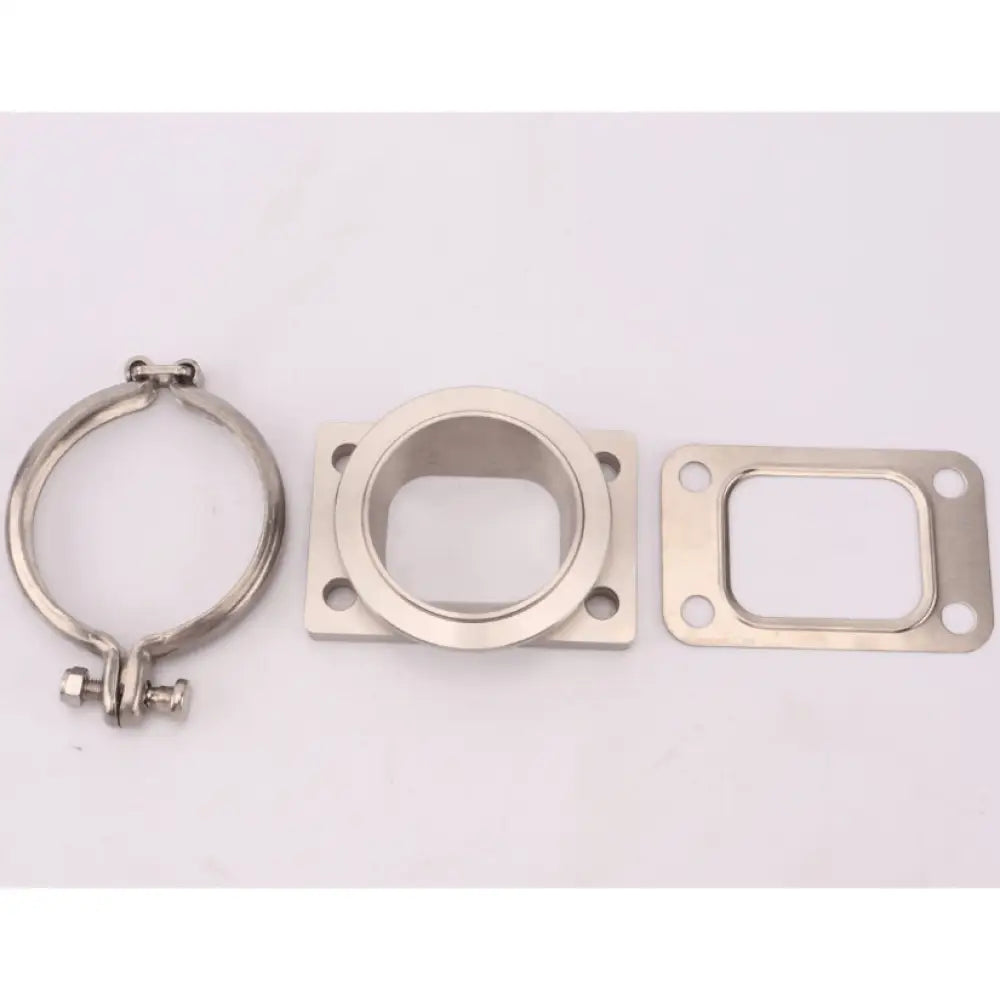

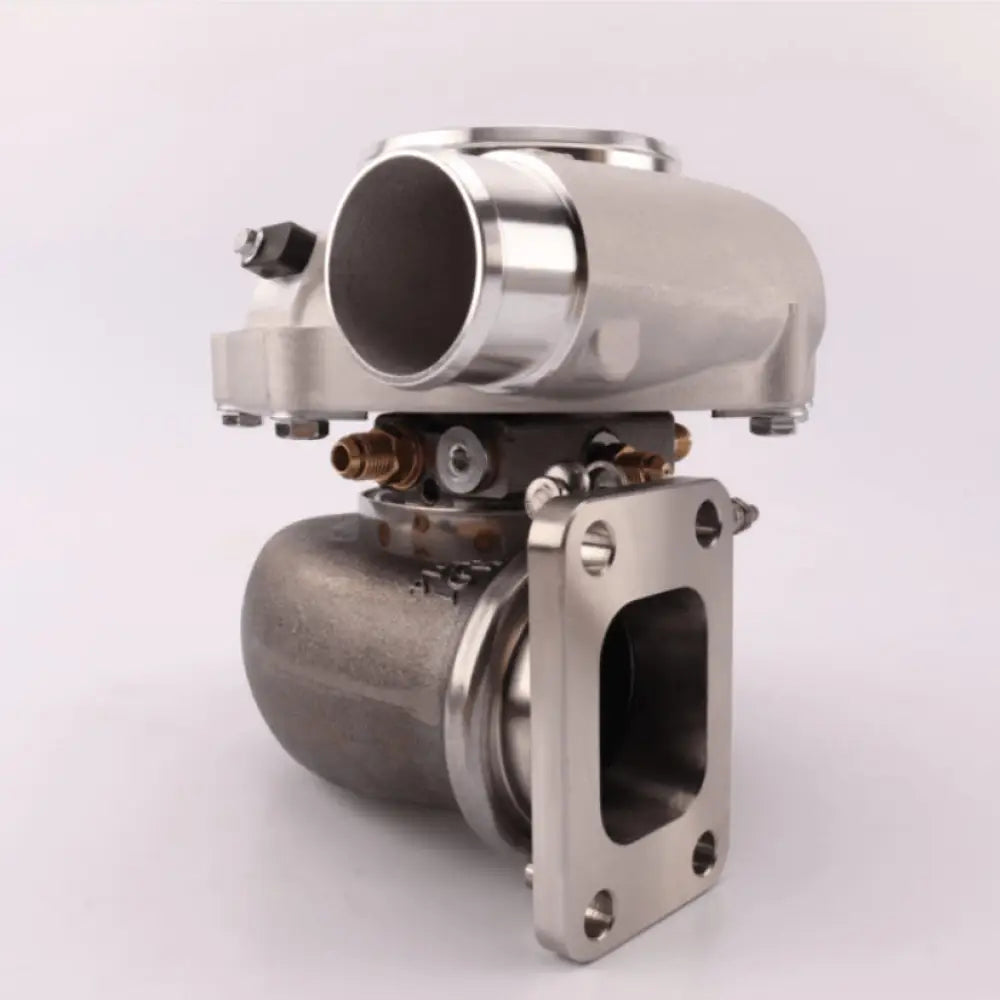

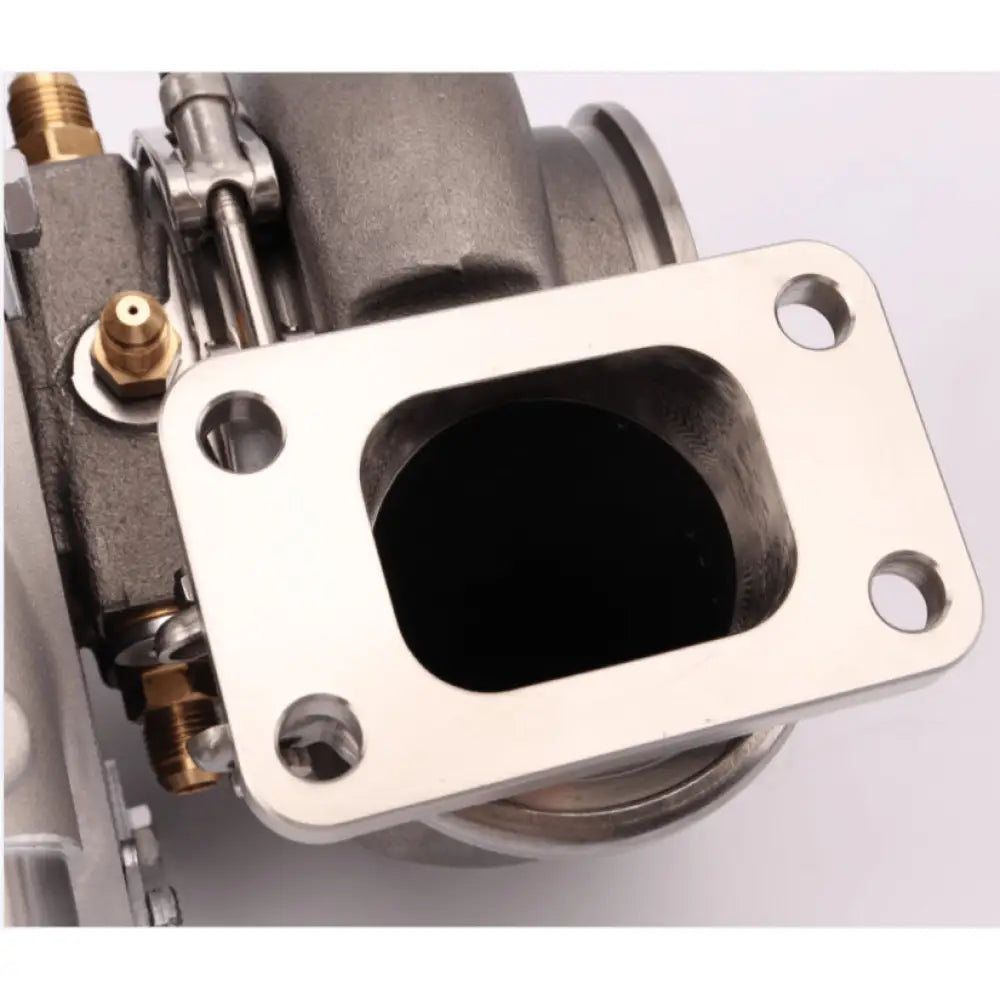

- 0.72 T3 IWG option is supplied with a V band adapter as shown in the image.

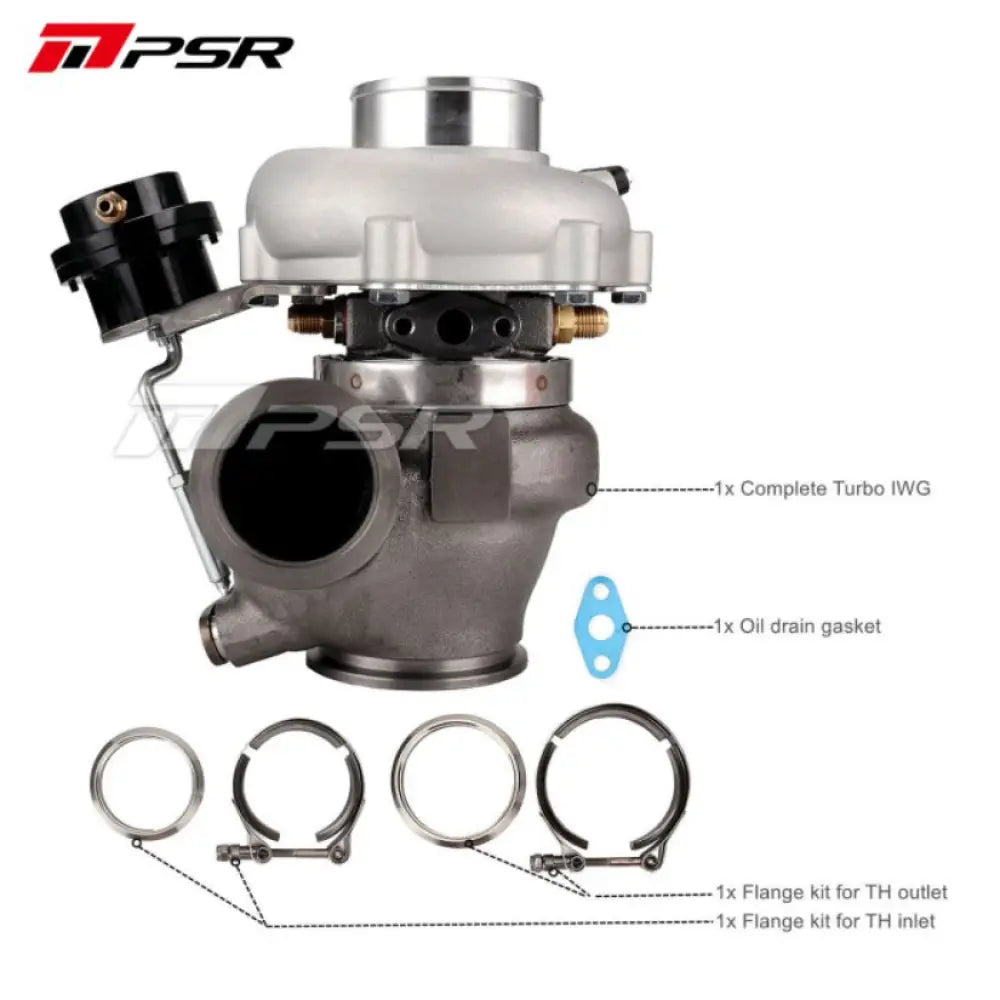

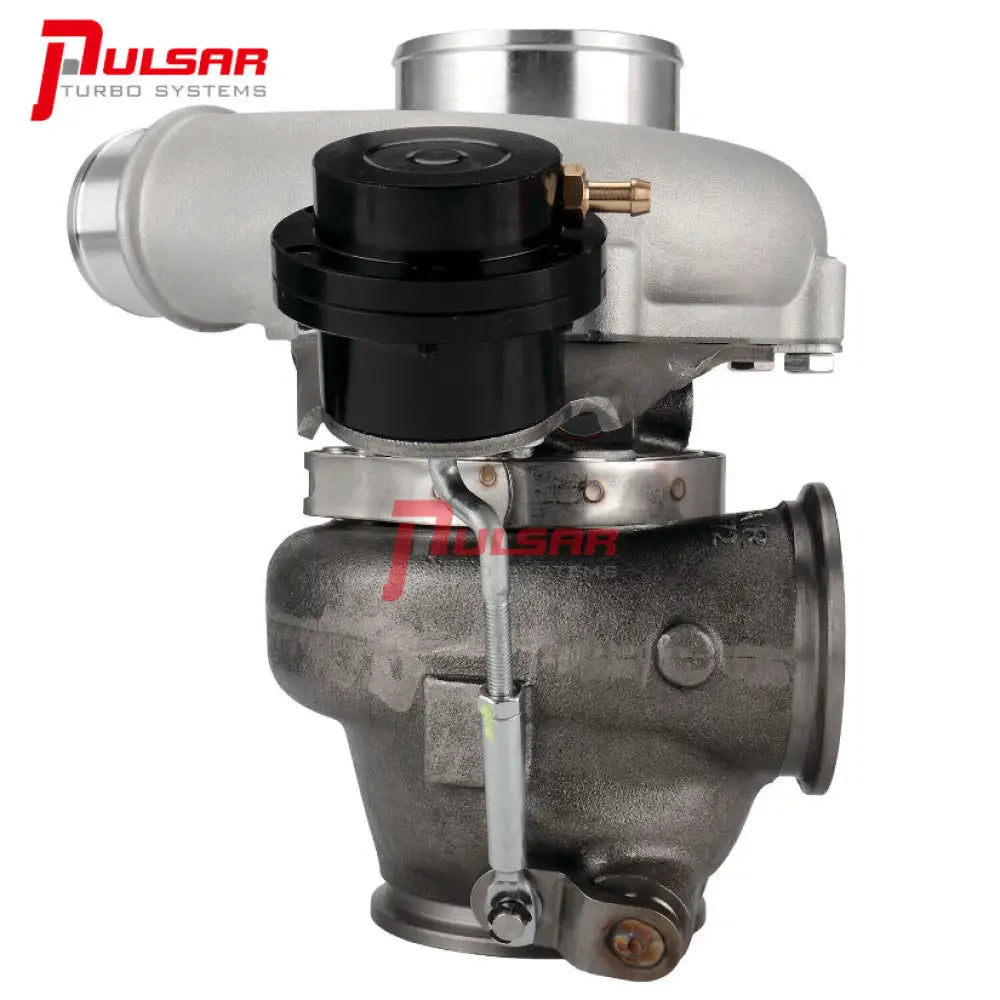

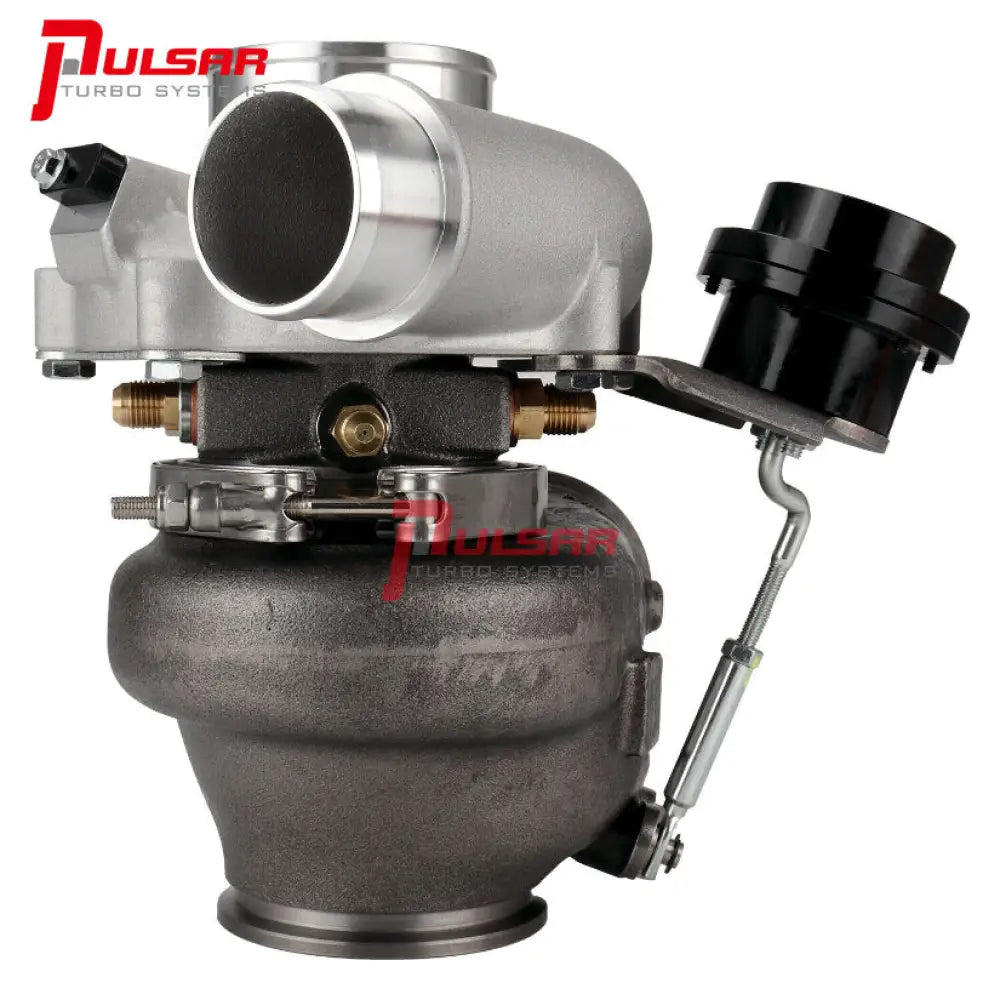

- Internally wastegated units come with Billet Actuator(12-14 psi)
SPEC
- Compressor Wheel: 54*67mm
- Turbine Wheel: 54*49mm
- Compressor Inlet: 3″ Hose
- Compressor Outlet: 2″ Hose
- Turbine Inlet: 2.5″ V-Band
- Turbine Outlet: 3″ V-Band
- Water Ports: -6AN
- Oil Feed: -4AN to the Oil Restrictor
- Oil Drain: Std T3 Oil Drain Flange
- Internally gated units come with billet actuator.

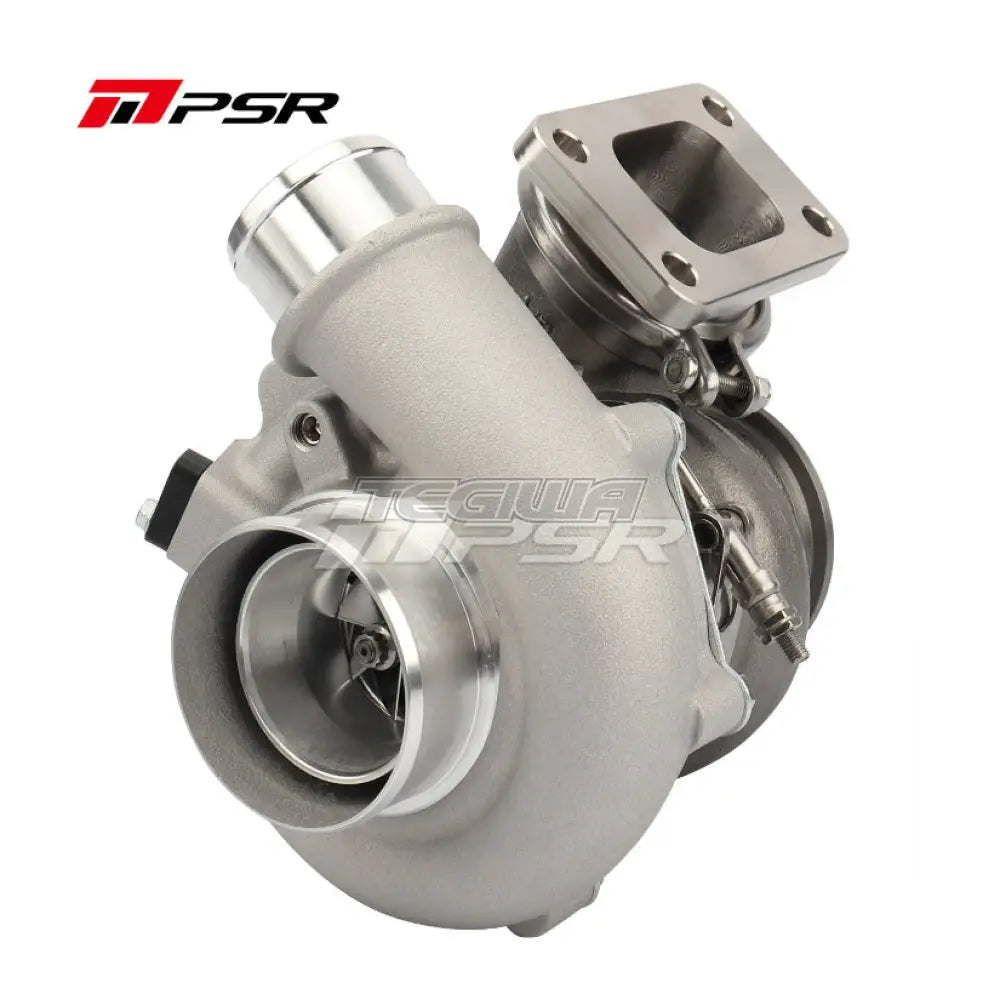

- T3 Option will be supplied as a V band housing and adapter.
It's strongly recommended to run water cooling to aid reliability.
