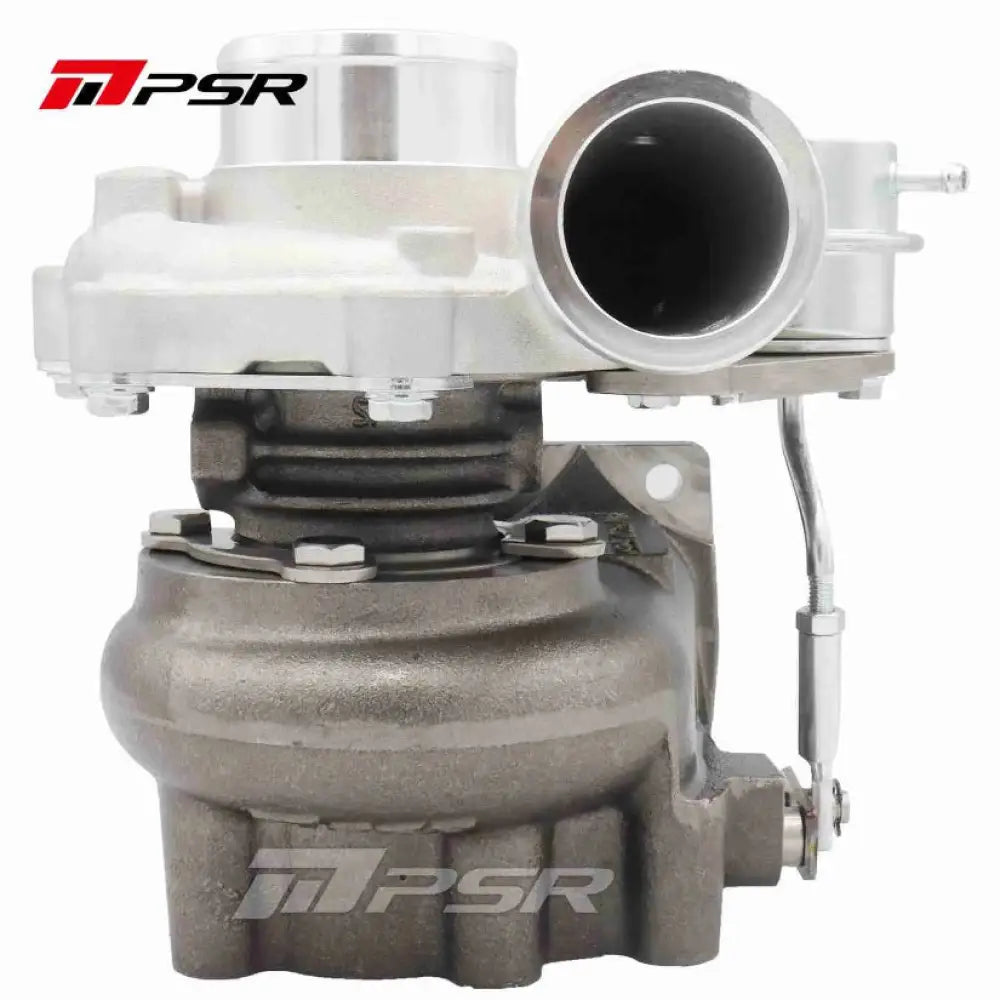

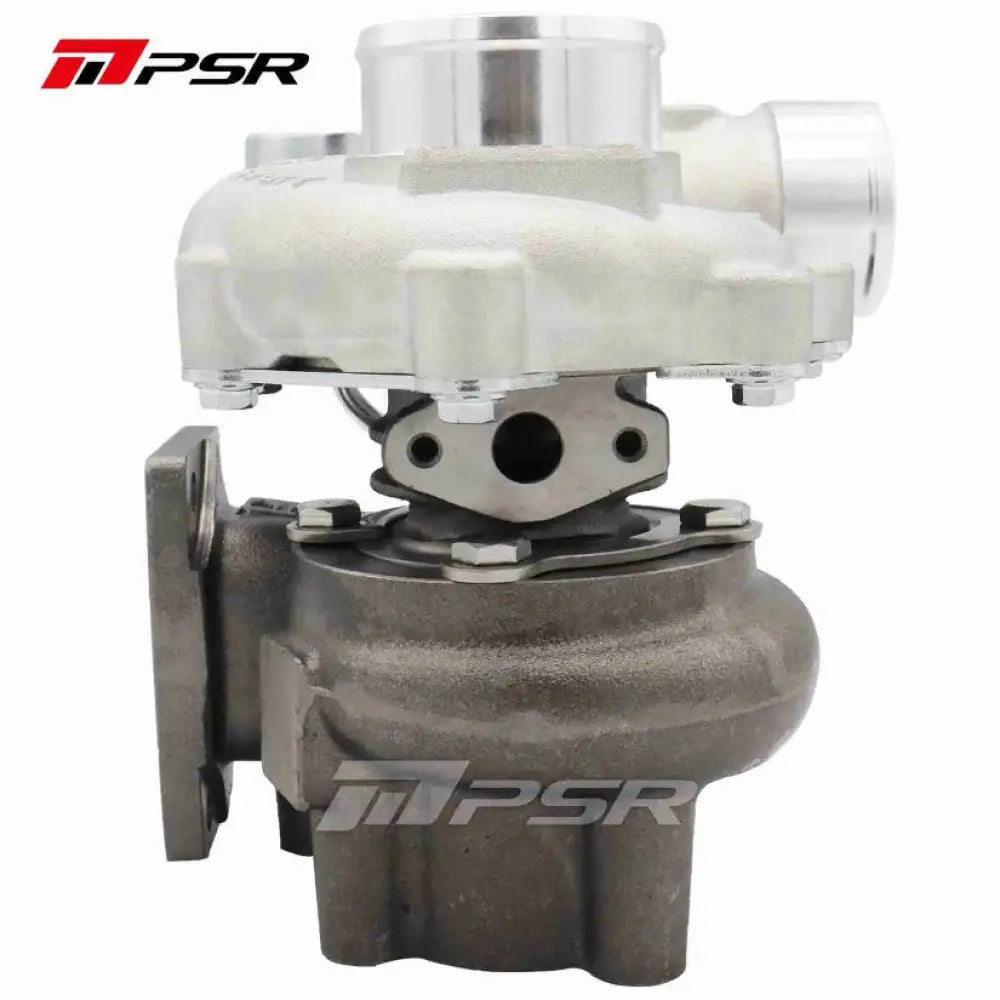

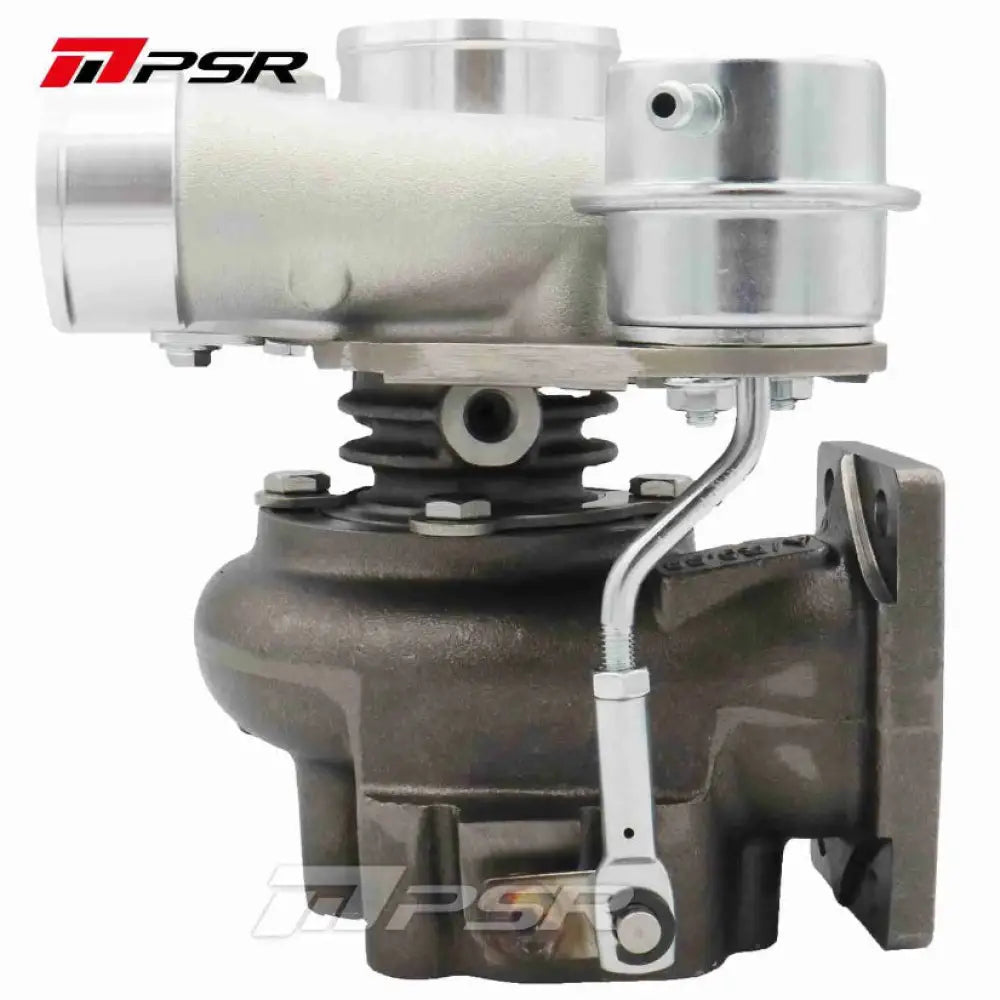

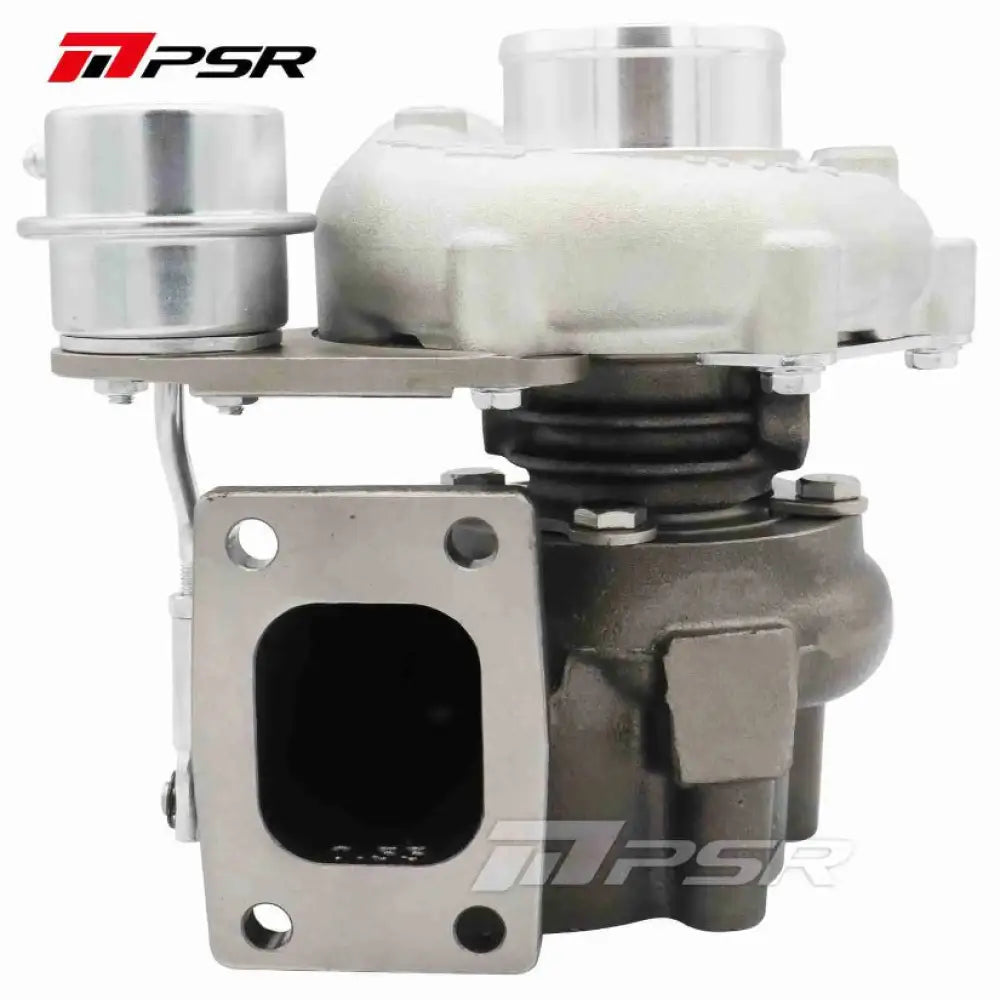

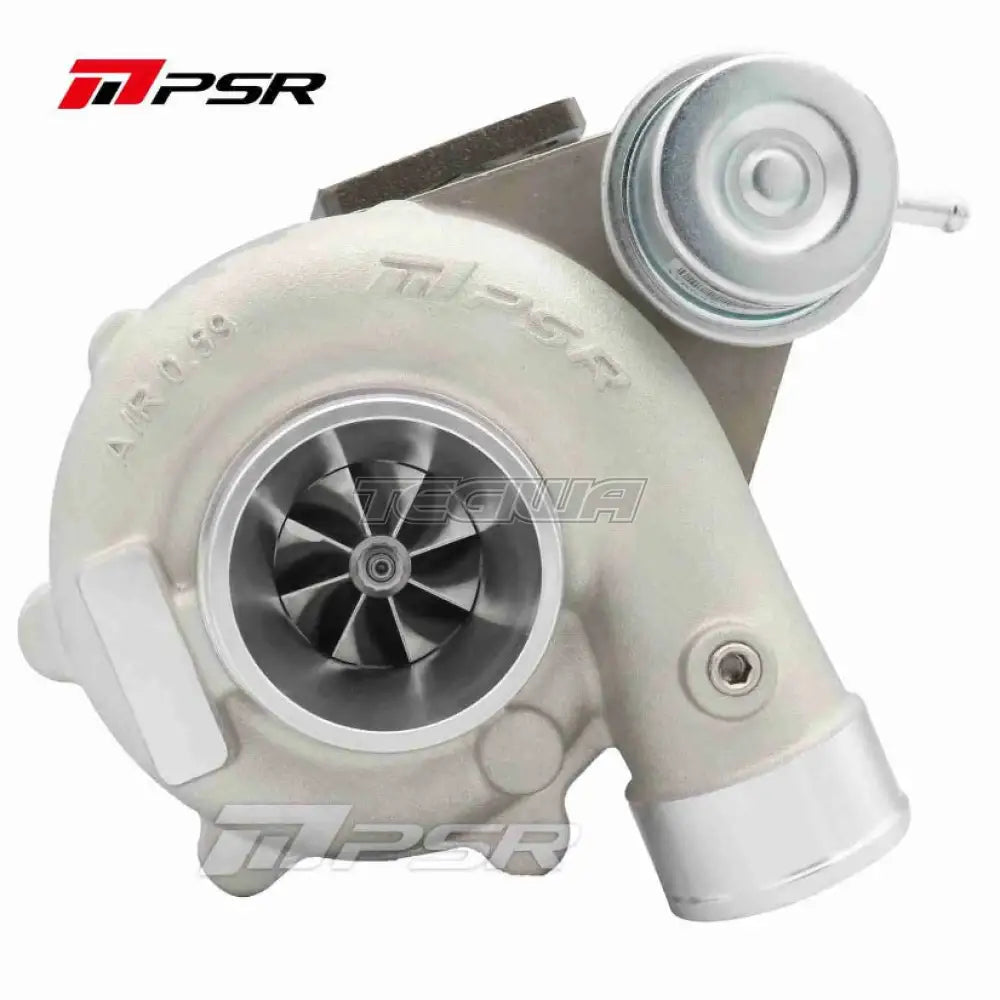

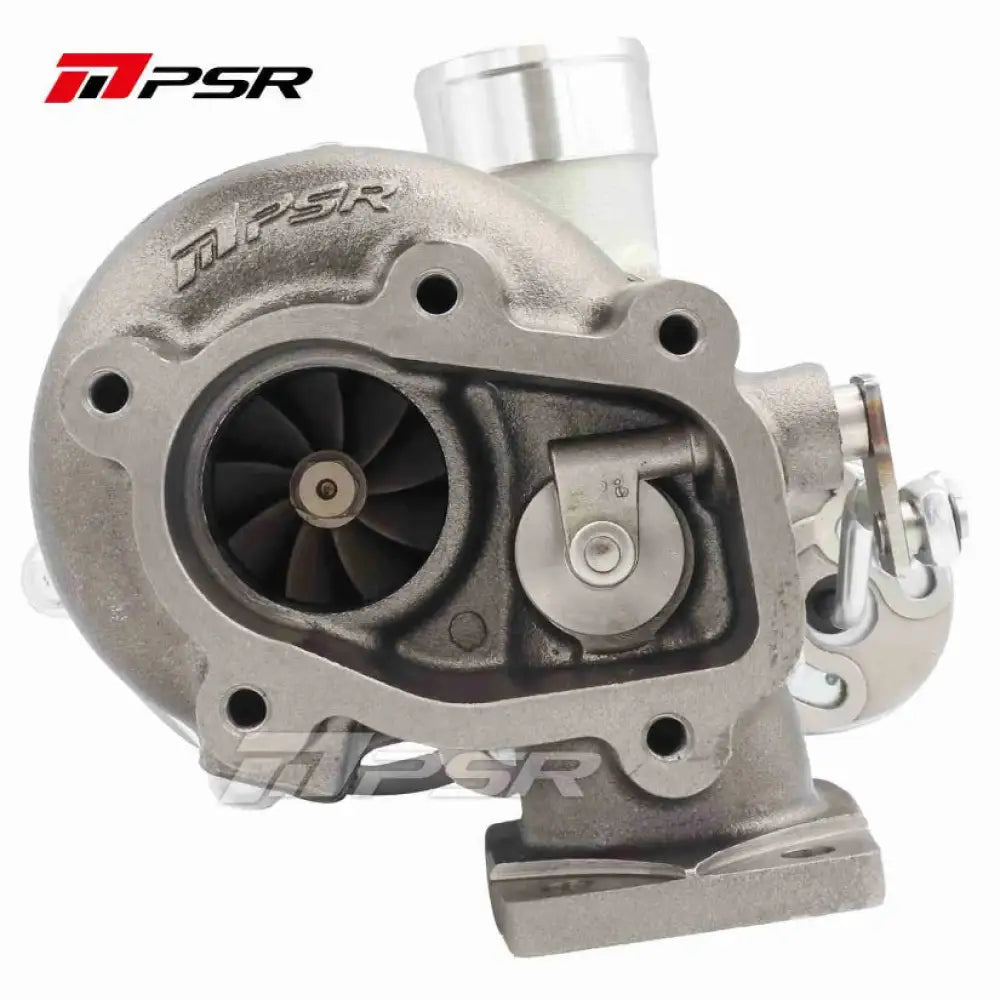

PSR3942G Small capacity Turbo. 300HP Rating
- Meeting Requirements of the smallest engines
- Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing shaft-motion
- Oil-cooled Center Housing
- Forged Fully-Machined Compressor Wheel with Extended Tip Aerodynamics Design
- 9 Blade 713c Turbine Wheel, 47*42mm
- 14 psi actuator spring
- Internal Wastegate Turbine Housing, 0.55A/R
- HP Rated at 300HP at the flywheel
- Suitable Engine Size: 0.8-2.0L
SPEC
- Bearing Systems: Dual Ceramic Ball Bearing
- Compressor Wheel: 39*52mm
- Turbine Wheel: 47*42mm
- Compressor Inlet: 60mm Hose
- Compressor Outlet: 50mm Hose
- Turbine Inlet: T25
- Turbine Outlet: 5 Bolt
- Oil Feed(excl’): M10 x 1
- Internal Wastegate Turbine Housing A/R: 0.55
