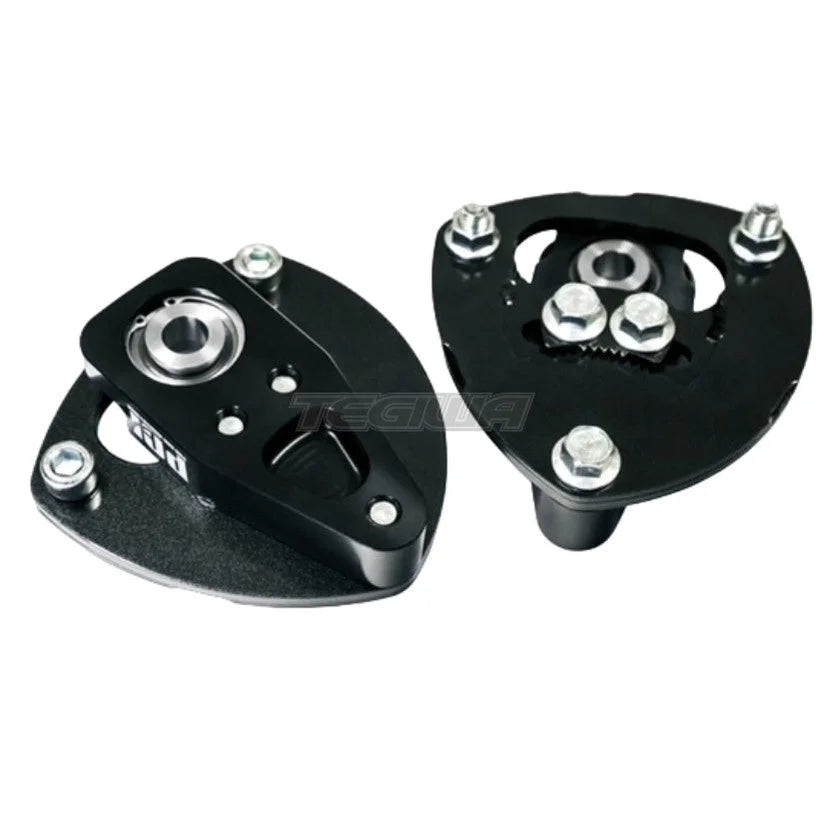

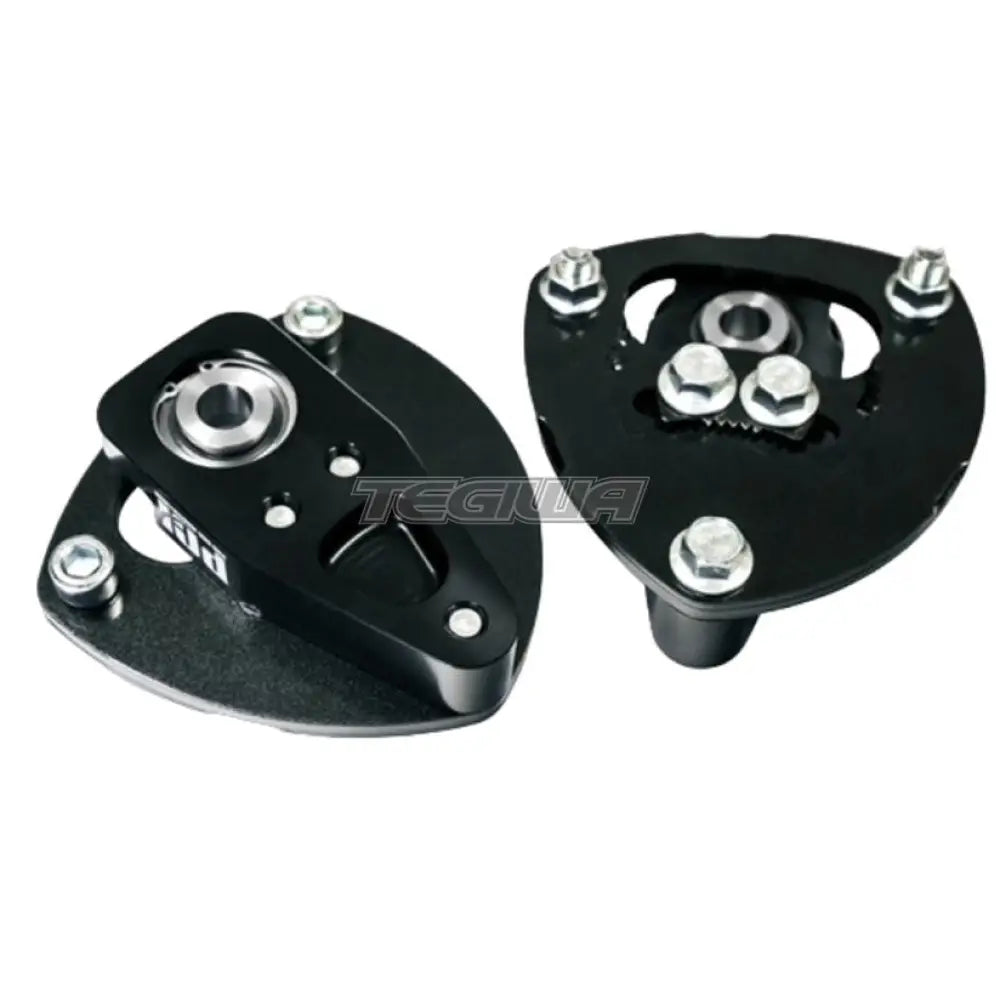

Enhance the handling and adjustability of your vehicle with this Adjustable Camber Plus Caster Spherical Front Top Hat Set, designed for 12mm and 14mm strut shaft threads and compatible with the following applications: 02-06 DC5/RSX and 01-05 Civic.
Key Features:
-
Adjustable Camber and Caster: These top hats offer adjustable camber settings with a positive 1.5 degrees and negative 2.5 degrees over stock, providing you with the flexibility to fine-tune your vehicle's camber for improved handling.
-
Fixed Offset Caster: The top hats come with a fixed offset caster setting of plus 3 degrees over stock, which increases positive caster. This setting enhances stability and handling during your drives.
-
Steering Ackerman Reduction: In addition to improved caster and camber adjustability, these top hats reduce steering ackerman for more precise and responsive steering.
-
Shock Tower Modification: For installation, a small cutout is required in the shock tower, which is easily achieved with the supplied bolt-on steel template. This modification does not weaken the tower or hinder the use of stock or other top hats.
Camber/Caster Specs:
-
Fixed Caster: Plus 3 degrees over stock
-
Adjustable Camber: Positive 1.5 degrees and negative 2.5 degrees over stock
-
Max Camber or Caster Numbers: The maximum achievable camber or caster will be the stock camber or caster numbers plus the specified adjustments above.
Mounting Hardware: All necessary mounting hardware is included, featuring M10x1.25 thread grade 10.9 zinc-plated hex head flange bolts. Please note that the mounting hardware is not shown in the pictures.
With these Adjustable Camber Plus Caster Spherical Front Top Hat Set, you can fine-tune your vehicle's camber, enhance caster, and enjoy improved handling and steering response. The supplied bolt-on steel template simplifies the installation process, ensuring a secure fit without compromising the integrity of the shock tower. Upgrade your vehicle's suspension and handling with confidence.
