EDC Cancellation Kit: 35020-13
This kit DOES NOT come with springs.

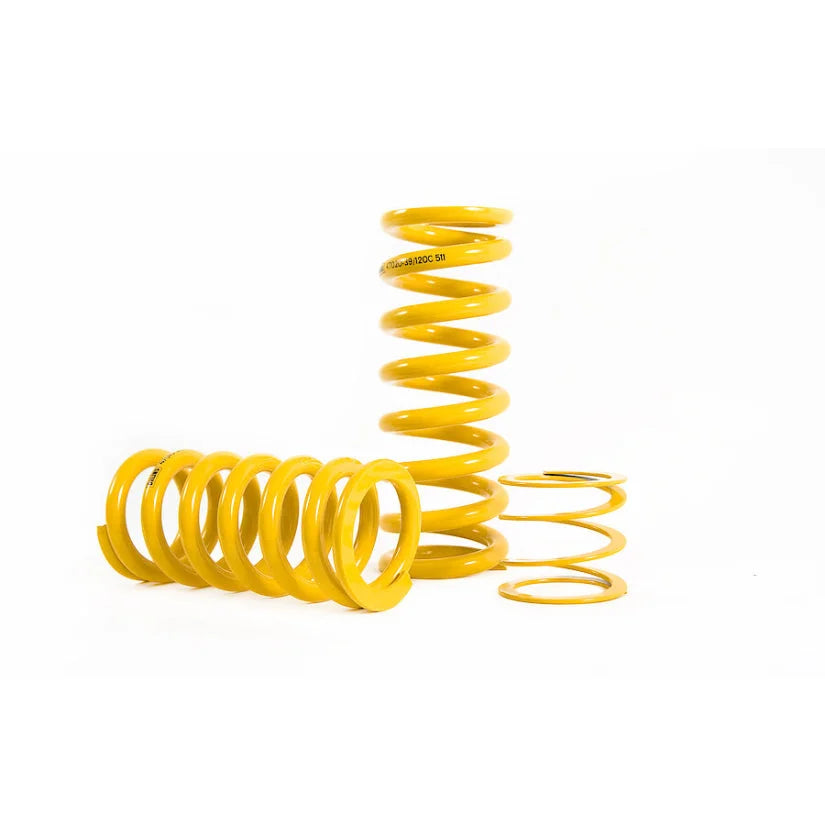

Recommended front springs: 48000-23
Recommended rear springs: 48000-27 main), 05173-20 (help.)
A more than 40 year long tradition of high-end racing commitments and state-of-the-art solutions within advanced suspension technology is now available for street cars all over the world. The focus has been clear from the very beginning – superior road handling without sacrificing comfort in your day-to-day transports. The time of compromises is over. All shocks have suffered through vast corrosion tests according to ISO 9227. The end result is a worldwide 2-year limited warranty on all of our products.
General Features:

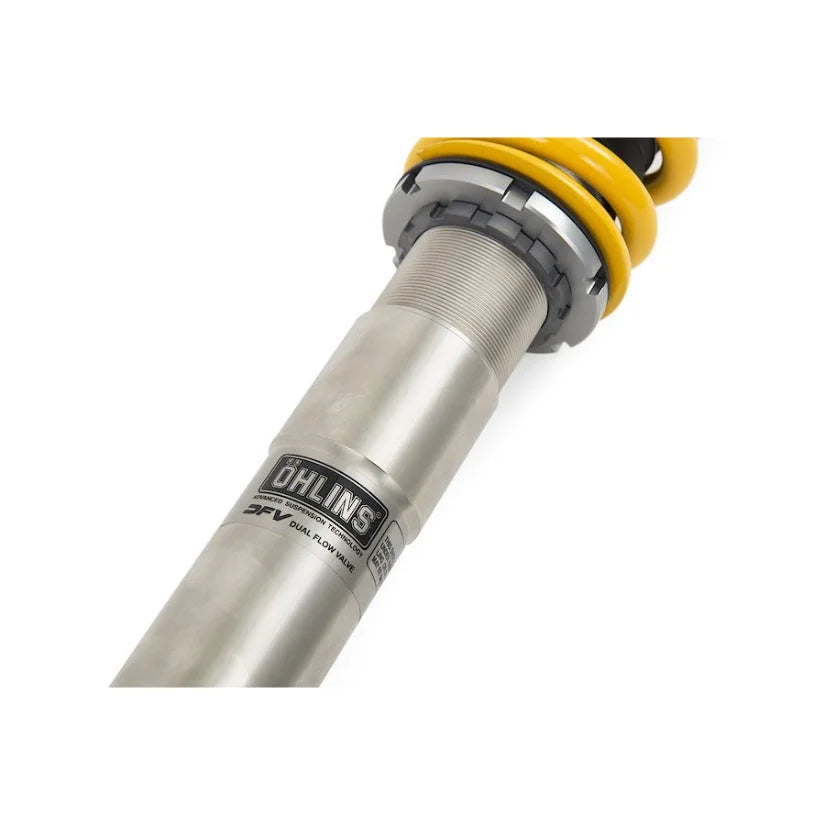

- DFV technology (Dual Flow Valve)
- Individual height adjustment
- Rebuildable
- Corrosion salt spray tested (ISO 9227)
- 2 year warranty
Features Front:
- McPherson strut, upside down
- Compression and rebound damping with one adjuster
- Spring preload adjuster
- Approx. 10 mm lower than standard with Recommendeded setup
- Spring rate 80 N/mm
- Use with original top mounts
Features Rear:
- McPherson strut, upside down
- Compression and rebound damping with one adjuster
- Spring preload adjuster
- Approx. 10 mm lower than standard with Recommendeded setup
- Spring rate 90 N/mm
- Use with original top mounts
Purchased Parts Package:
- Coil over kit incl. springs and mounting parts
- C-Spanner (for spring preload adjustment)
- Owners manual and mounting instructions
- Sticker set
Öhlins EDC Cancellation Kits:
- 981 PASM, Art. Nr. 35020-13
- 718 PASM, Art. Nr. 35020-32
Cancellation kits are not included and need to be ordered separately.
Please note:
Contrary to the product images on the website and in the mounting instructions, the rebound damping on this suspension kit is not adjusted using buttons, but rather using an included Allen key!
