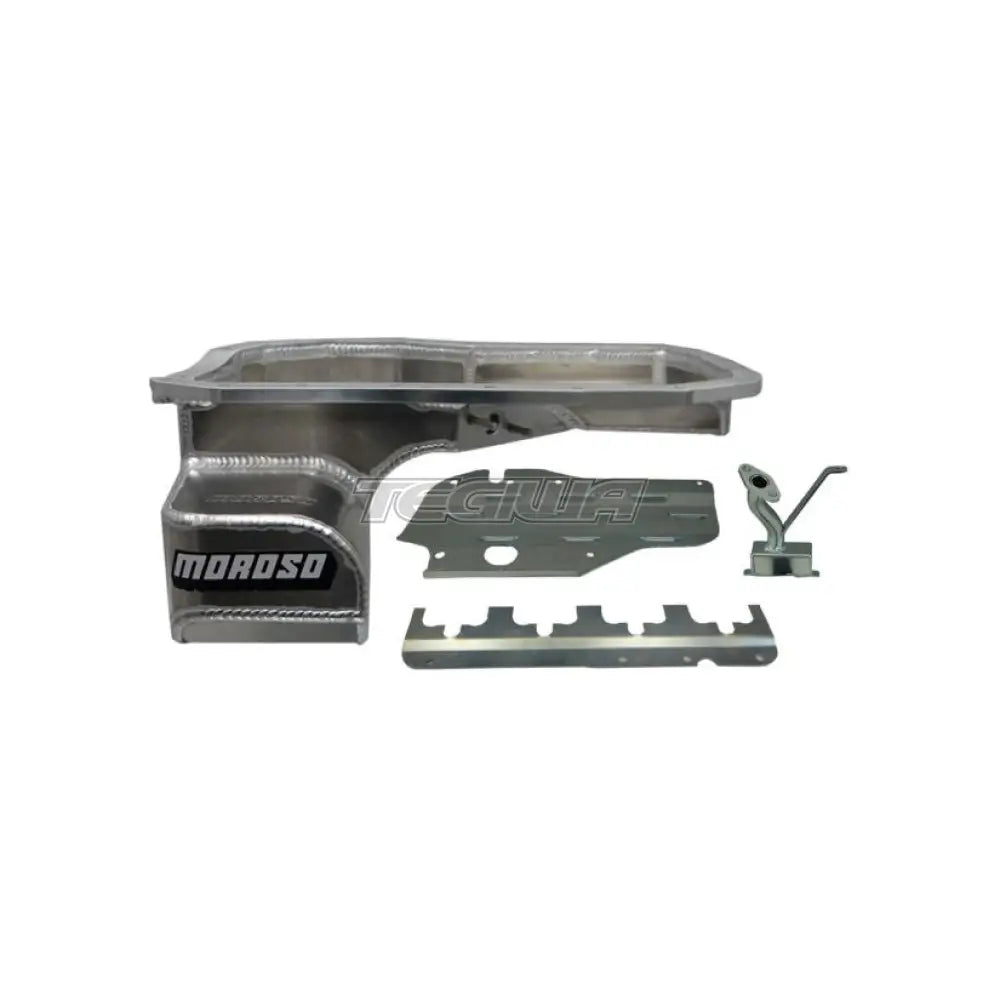

Aluminum, Wet Sump, 6.5 Quart Capacity
Engine Application: Mitsubishi 4G63T 14 Race Baffled
Fits: 2001-'07 Mitsubishi Evo 7, 8, 9 with aftermarket lower intercooler pipe

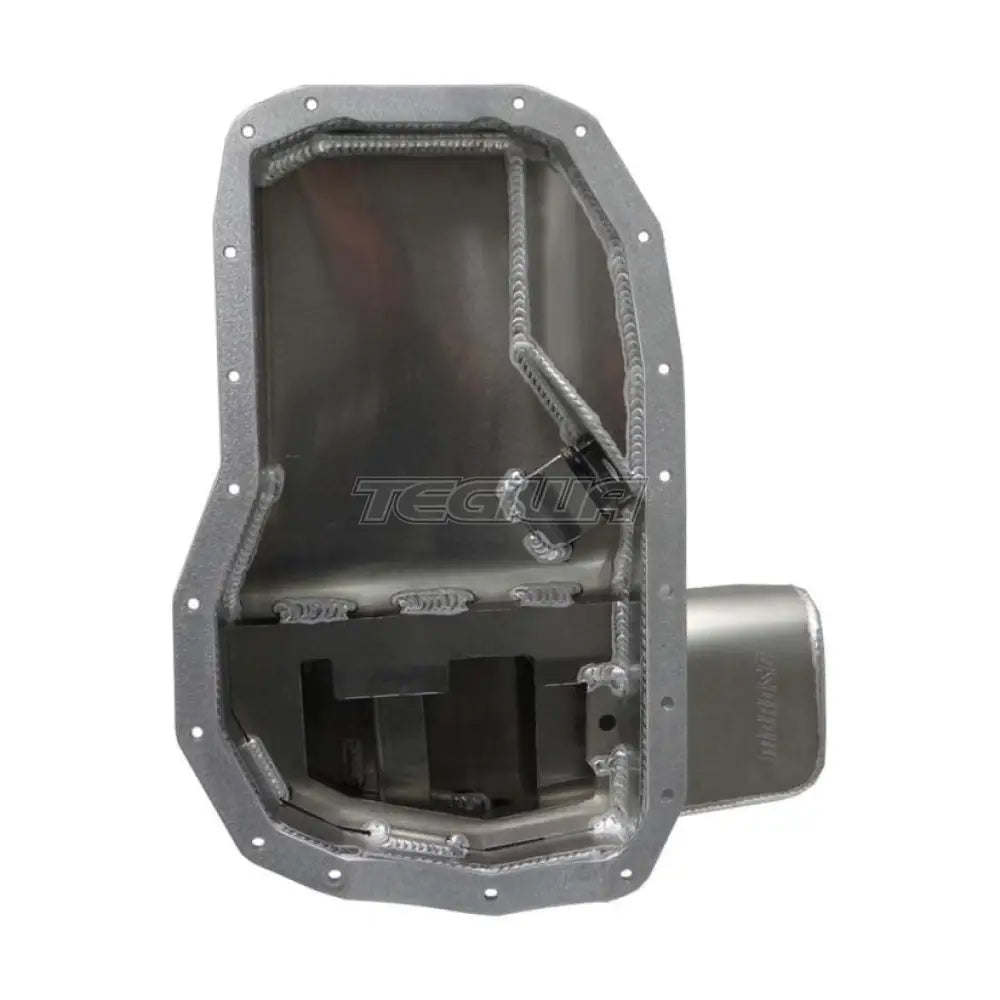

- Has a 3/8"" thick billet aluminum oil pan rail with a fabricated aluminum sump that is 3/4"" deeper than the stock oil pan
- Features a race-proven, trap door assembly and an anti-slosh baffle that keeps oil contained in the oil pump pickup area during road racing and drag racing
- To free up horsepower and to help with oil temps, the oil pan also features a removable windage tray and crank scraper
- Holds 1.5 more quarts than stock, 6.5 quart capacity
- Has an accommodation for stock or aftermarket oil return lines
- Includes a heavy duty, bolt-on oil pump pickup
- Magnetic drain plug and a mounting kit comprised of hex drive steel studs and serrated flange nuts are included
- Uses stock dipstick
- 1/2"" NPT fitting for oil temperature sender
