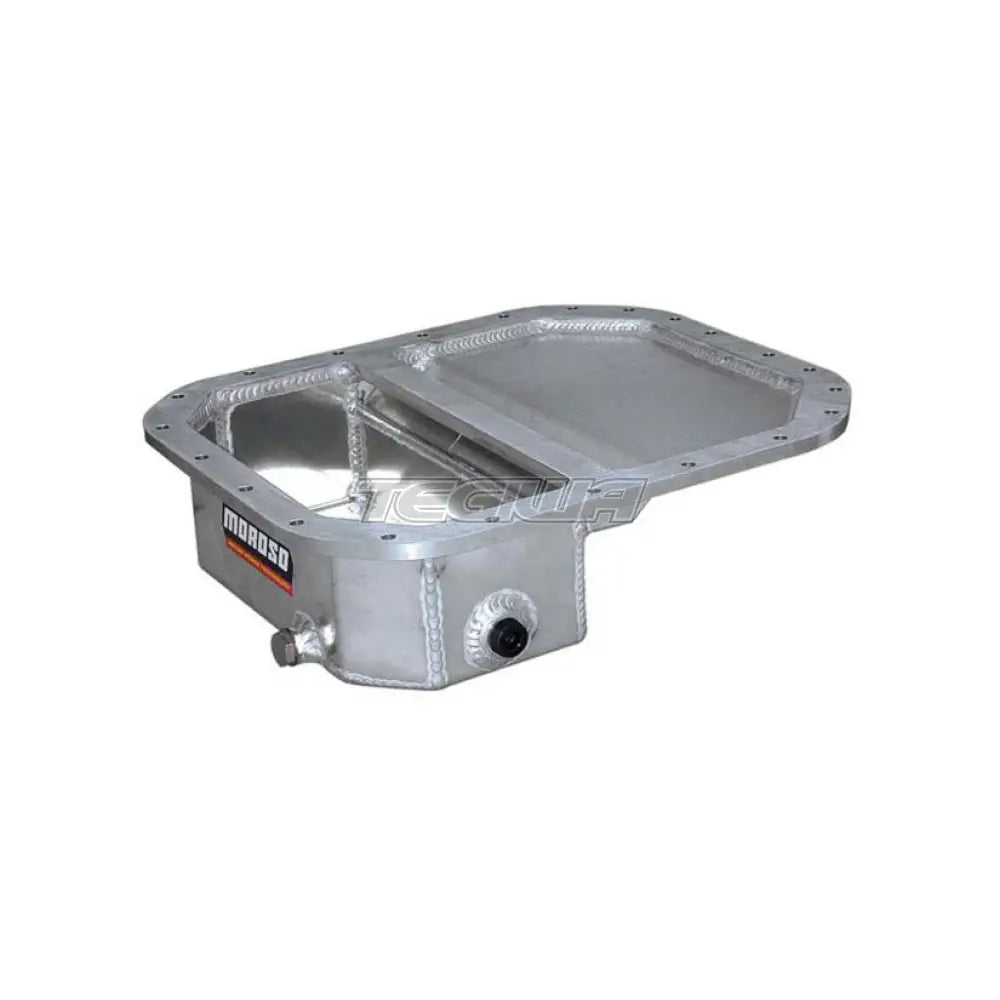

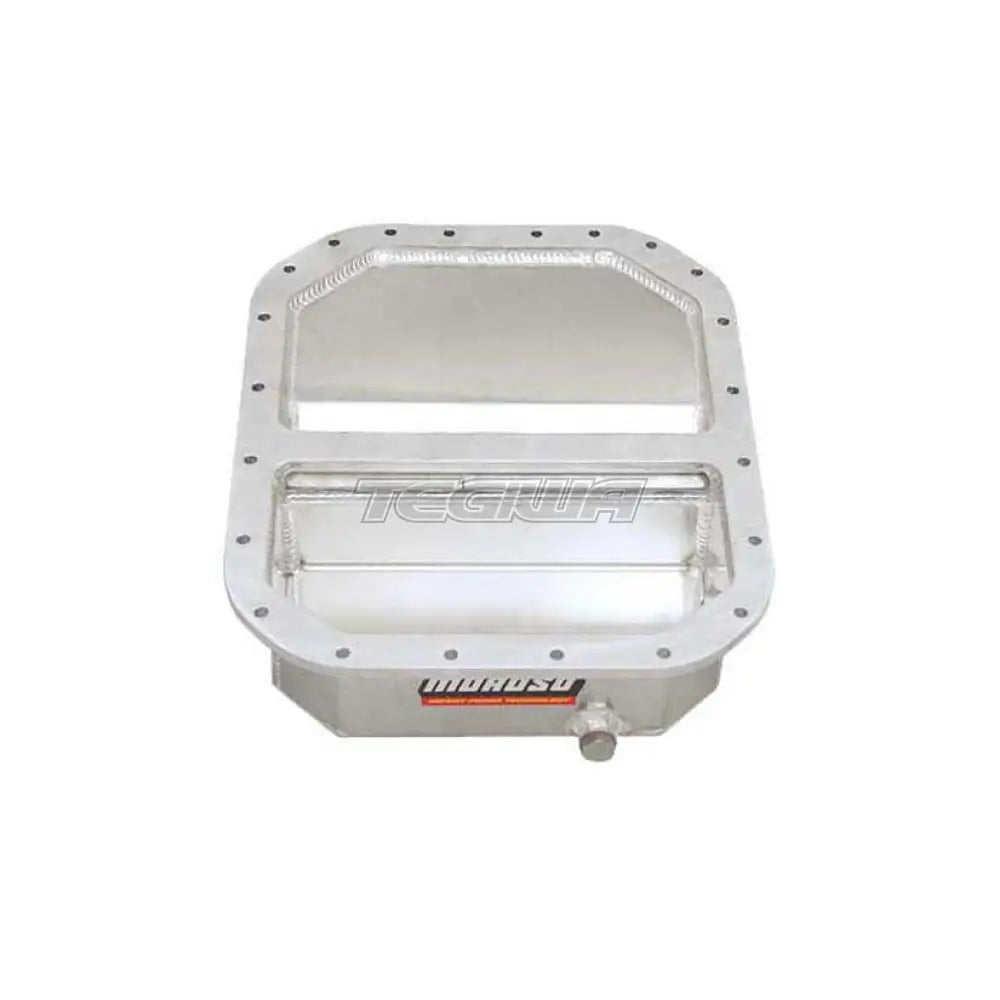

Aluminum, Wet Sump, 6-1/4 Quart Capacity, 4"" Deep
Engine Application: 13B Rotary (non FD or Renesis)
Fits: RX-3 & RX-4 models; several rotary engine conversions including 1981-'84 Toyota Starlet, 1964-'83 Toyota Corolla, 1971-'73 Datsun 1200 & others with little or no cross-member modifications; also tube chassis cars
- Rugged 3/8""-thick billet aluminum gasket rail with integral cross-brace serves as a girdle to greatly stengthen the entire engine assembly and reduce flexing under hard driving
- Fully fabricated
- Dual trap door baffles for Drag Race & Street
- Enlarged sump increases capacity to 6-1/4 quarts (with stock oil cooler installed) while adding only a quarter-inch in depth to provide ample ground clearance
- Includes oil temperature sensor provisions
- Includes magnetic drain plug with extra copper washer and pan mounting kit with hex-drive steel studs to eliminate stripping the engine block and serrated-face flare nuts to withstand vibration
- Accommodates stock pan gasket and dipstick (with modifications)
View Instructions
To purchase any of these products please go to Related Products below.
PART NO. |
RECOMMENDED PICKUP |
Use Stock Oil Pump & Pickup
PART NO. |
AVAILABLE OPTION |
38366 |
Oil Pan Stud Kit |
