TechSpec Overall Height (in): 28.4
TechSpec Overall Length (in): 17.2
TechSpec Overall Width (ins): 2.5
TechSpec Core Length (in): 13.54
TechSpec Core Height (in): 27.24
TechSpec Rows: 3
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.5
TechSpec Core Thickness (in): 2
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 2703
TechSpec Applications: Saab 9-2X H4 (2.0L) 2005--Saab 9-2X H4 (2.5L) 2006--Subaru WRX H4 (2.0) 2002-2005--Subaru WRX H4 (2.5) 2006-2007--Subaru WRX STI H4 (2.5) 2004-2007
TechSpec Engine Codes: EJ205--EJ255--EJ257
TechSpec Chassis Codes: GD
Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.--------The provided Mishimoto radiator cap should replace the stock cap located on the expansion tank. The stock cap attached to the radiator should be installed on the Mishimoto Performance Aluminum Radiator. The Mishimoto radiator cap is a two way valve, while the stock radiator cap is a single valve. Due to the difference in construction, the Mishimoto cap cannot be used on the radiator. If the Mishimoto cap is fit on the radiator, overheating may occur.--------Due to the additional thickness of our 3-row X-Line radiator, trimming the upper hose may be necessary.--------For 2002-2003 Subaru WRX models built before 7/2002, remove fill neck overflow nipple and replace with 1.5875mm NPT plug provided.
TechSpec Includes: Mishimoto Radiator-- Mishimoto Radiator Cap-- 1/16-inch NPT Plug-- Fan Mounting Hardware-- Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:Large three-row aluminum core provides additional coolant capacity, substantial coolant surface contact, and optimal coolant temperatures even in the most demanding environments
Industry-largest 2 inch thick core for ultimate cooling efficiency
Full aluminum construction for increased durability
Mishimoto Lifetime Warranty
Install Difficulty: 3

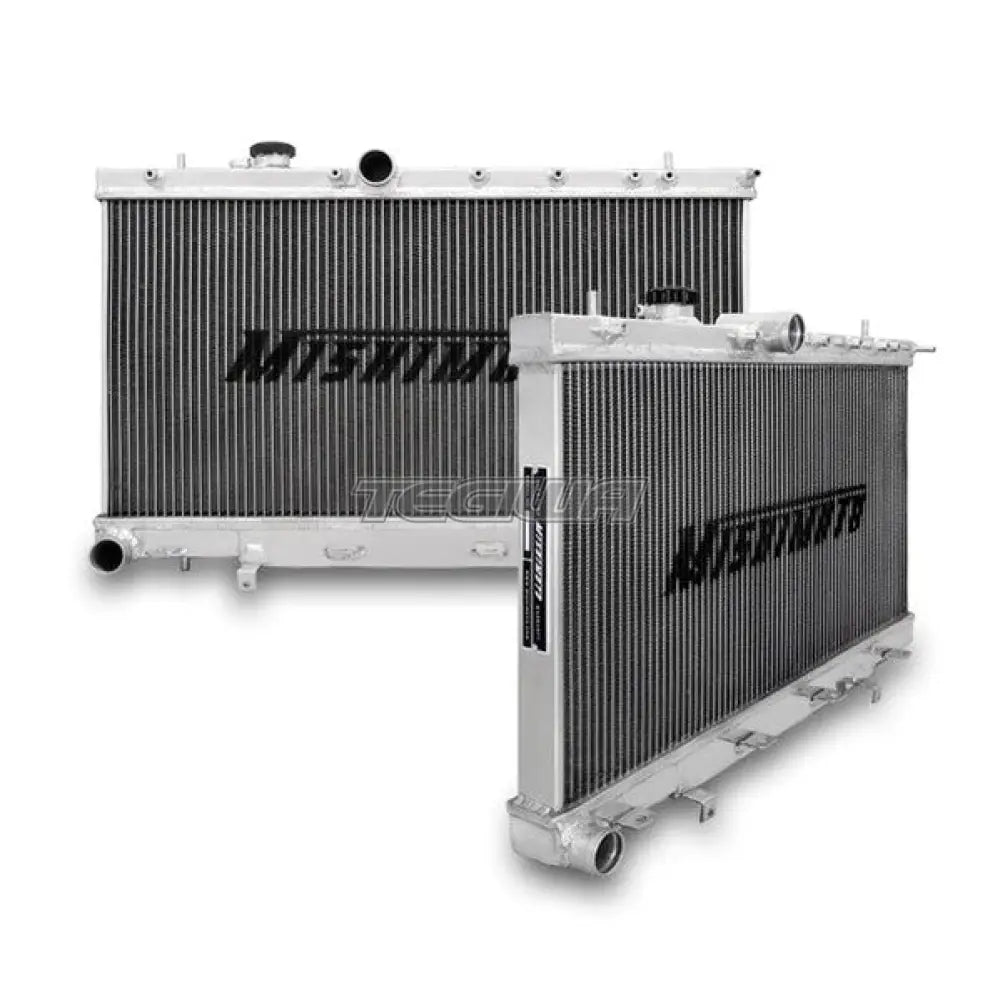

When properly maintained, the Subaru flat-four is well known for its substantial power and impressive reliability. Proper regulation of coolant temperature is key to extending the life of your EJ-powered Subaru. Highly modified turbocharger setups and aggressive driving can result in high temperatures, which increases wear on internal engine components. Mishimoto's X-line radiator is engineered specifically for the 2001-2007 Subaru WRX and STI and features a large three-row core and full aluminum construction. This design yields optimal temperatures even in the most demanding environments. This radiator also features a 100-percent brazed aluminum core with TIG-welded end tanks for increased durability, longevity, and a substantial increase in coolant capacity. The large three-row core enhances surface contact, resulting in improved efficiency, improved heat transfer, and lower engine coolant temperatures for your Subaru. The Mishimoto Subaru WRX and STI radiator includes a high-pressure 1.3 bar radiator cap, which effectively raises the boiling point of coolant to create a safer and more efficient system. Included with this radiator is a Mishimoto magnetic oil drain plug that removes metal fragments circulating in the coolant system, thus further protecting your engine. Whether you are looking for a reliable stock replacement radiator or a heat exchanger efficient enough for track abuse, the Mishimoto Subaru WRX and STI X-line Performance Aluminum Radiator is an ideal choice. As with all our products, this radiator is backed by the Mishimoto Lifetime Warranty.
