TechSpec Overall Height (in): 21
TechSpec Overall Length (in): 29.7
TechSpec Overall Width (ins): 1.92
TechSpec Core Length (in): 28.15
TechSpec Core Height (in): 15.75
TechSpec Fluid Capacity (gal): 1.05
TechSpec Rows: 2
TechSpec Inlet (in): 1.4
TechSpec Outlet (in): 1.4
TechSpec Core Thickness (in): 1.42
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Material: Aluminum
TechSpec Applications: Nissan 350Z V6 (3.5L) 2003-2006
TechSpec Engine Codes: VQ35DE
TechSpec Chassis Codes: Z33
TechSpec Includes: Mishimoto X-Line Performance Aluminum Radiator-- Mishimoto 1.3 Bar Radiator Cap-- Mishimoto M12 X 1.5 Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:Direct fit for the 2003-2006 Nissan 350Z
Strategically engineered core provides 92-percent increase in external fin area over stock
36mm-thick core yields 117-percent increase in core volume over stock
75-percent increase in fluid capacity over stock
Robust TIG-welded aluminum construction
Includes magnetic drain plug with dowty seal

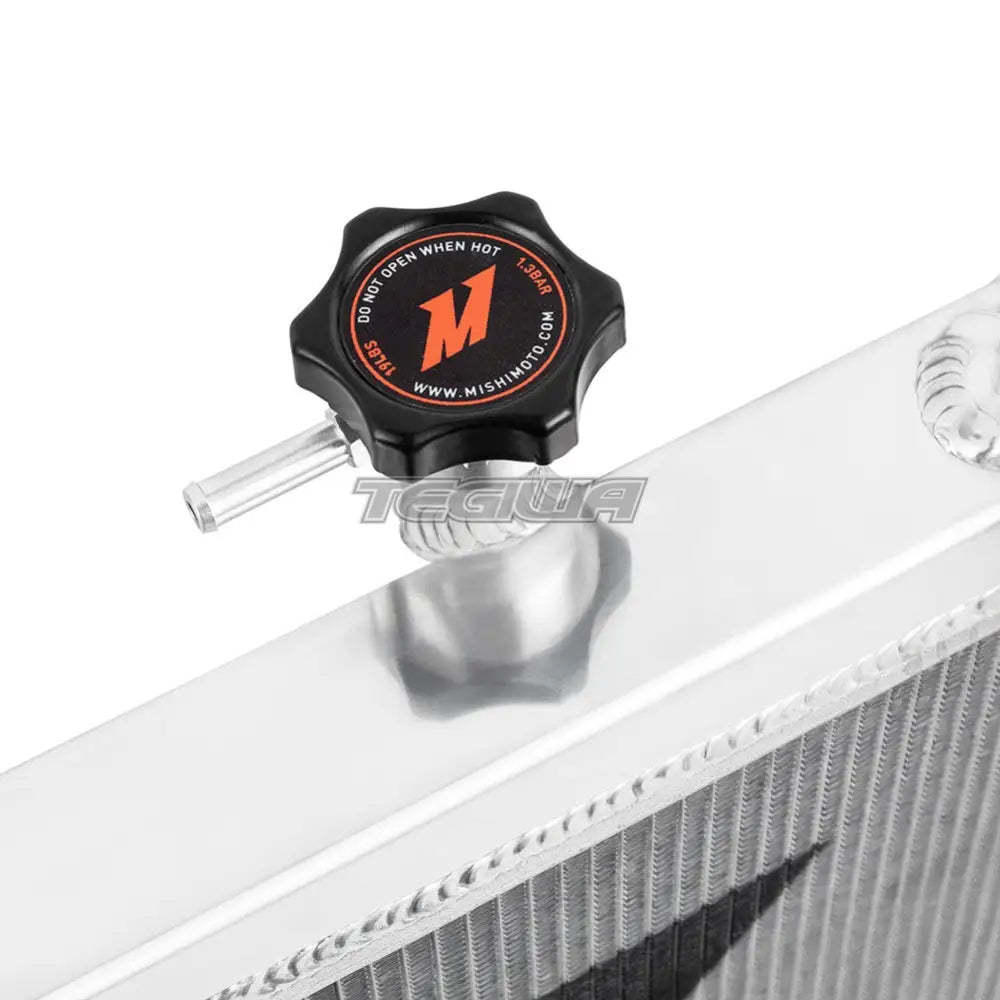

Includes 1.3 bar high-pressure radiator cap

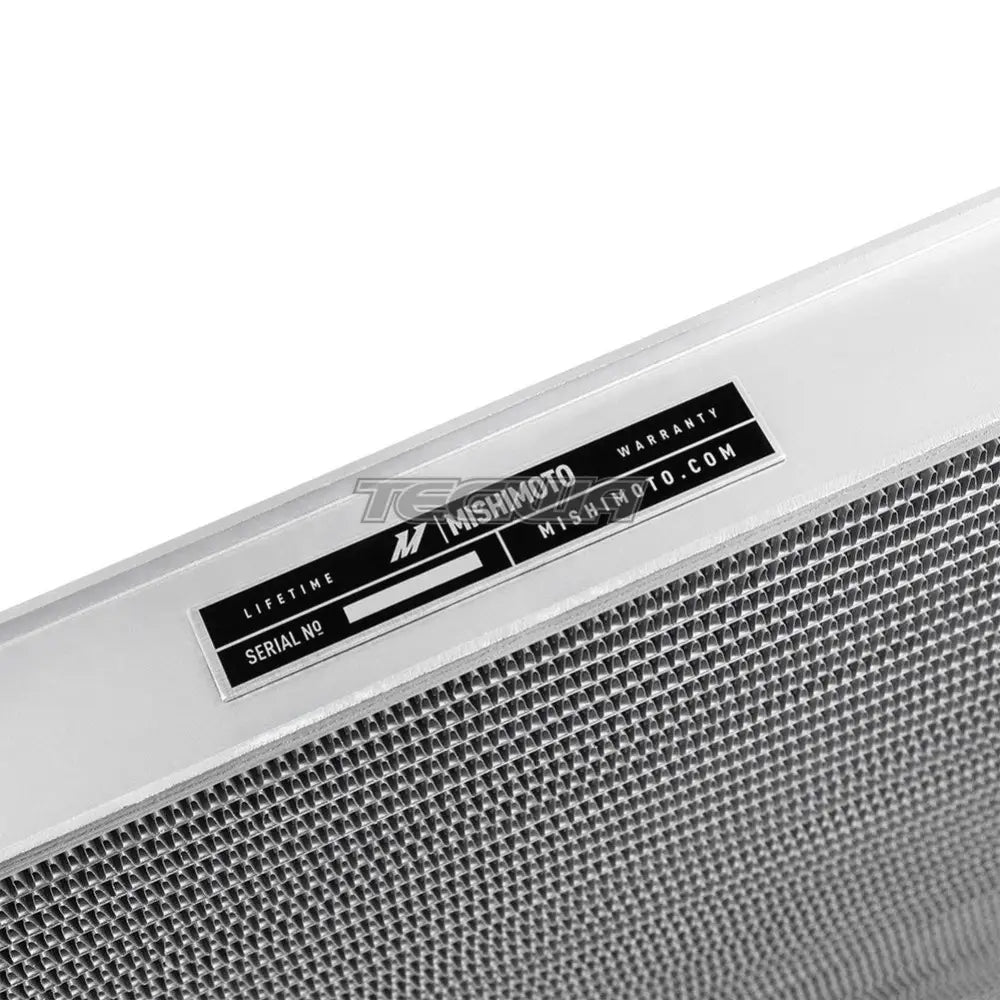

Mishimoto Lifetime Warranty
Install Difficulty: 3
Over the last decade, the 350Z has become one of the best values in used sports cars. The effective suspension, capable engine, and attractive silhouette produce an excellent platform for any form of motorsport from drift to autocross. But, as the modifications and uses for this chassis become more extreme, those pushing their 350Z to the absolute limit need a more efficient radiator. That's why Mishimoto has created this X-Line Performance Aluminum Radiator for the 2002-2006 Nissan 350Z. Our engineering team first focused on improving the radiator's core, specifically the tube and fin specifications. This X-line 350Z radiator's core features more densely packed fins, resulting in a massive 92-percent increase in external fin area over the stock 350Z radiator. Greater fin surface area means improved heat transfer, which translates to cooler engine temperatures. Our 36mm core also dwarfs the 16mm stock unit, providing a 117-percent increase in overall core volume. Our X-line 350Z radiator features precision TIG-welded aluminum end tanks to withstand anything the road or track can throw at it. This radiator also includes a Mishimoto magnetic drain plug to capture any metallic contaminants within your engine coolant and further protect your cooling system. As with all our Nissan 350Z products, this Mishimoto X-line Performance Aluminum Radiator for the 2003-2006 Nissan 350Z includes our signature Mishimoto Lifetime Warranty for a lifetime of cooling performance.
