TechSpec Overall Height (in): 18.5
TechSpec Overall Length (in): 14.6
TechSpec Overall Width (ins): 2.5
TechSpec Core Length (in): 13.78
TechSpec Core Height (in): 14.09
TechSpec Rows: 3
TechSpec Inlet (in): 1.26
TechSpec Outlet (in): 1.26
TechSpec Core Thickness (in): 2
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 1290
TechSpec Applications: 1992-2000 Honda Civic (All)--1993-1997 Honda Civic Del Sol
TechSpec Engine Codes: D15b1D15b7D15b8D15z1D16z6D16y5D16y7D16y8B16a2B16a3
TechSpec Chassis Codes: EG1EH6EG2EH2EH3EH9EJ1EJ2EJ6EJ7EJ8EM1
Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:Premium radiator has 3-row core for improved strength and reliability
16-percent thinner-than-stock tubes allow for more surface contact, increasing cooling efficiency
Greater density of rows for higher cooling capacity.
More contact points for additional heat transfer
3-row design creates more air turbulence, maximizing cooling efficiency
Includes magnetic drain plug
Includes a 1.3 Bar High-Pressure Radiator Cap
Mishimoto Lifetime Warranty
Install Difficulty: 3

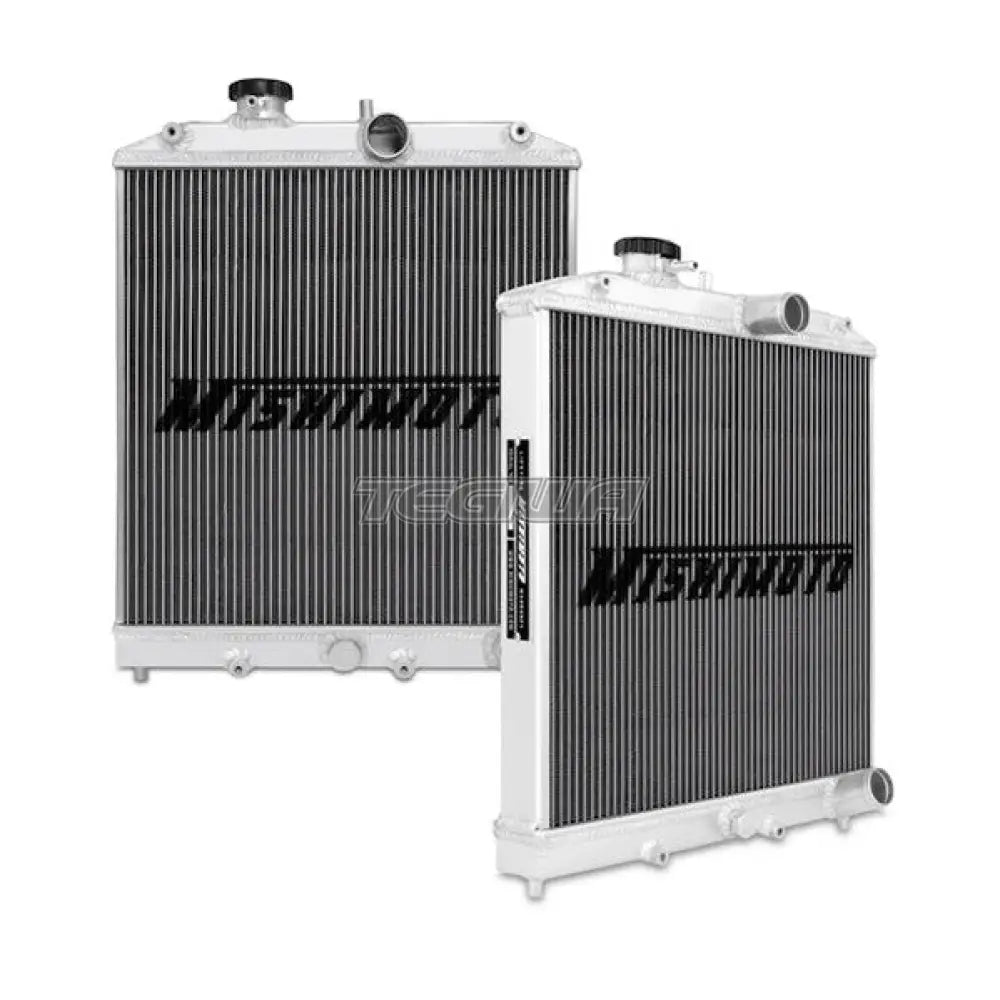

A high-performance Civic demands a cooling system that can keep up on the street and the track. For applications requiring the most efficient heat exchanger, the Mishimoto X-Line Honda Civic Performance Aluminum Radiator provides three cooling rows packaged in a massive 2-inch thick core. The three-row design provides additional surface contact points for higher efficiency and lower temperatures. To provide additional cooling performance this radiator is constructed using a 100-percent brazed aluminum core with TIG-welded aluminum end tanks for superior heat dissipation, reliability, and strength. This performance radiator includes a high-pressure 1.3 bar radiator cap that effectively raises the boiling point of coolant to create a safer and more efficient system, perfect for your time attack EG or all-motor EK. The Mishimoto Honda Civic X-line radiator features a compact yet highly efficient design, making it perfect for custom applications where space constraints limit the use of traditionally sized radiators. Despite featuring a drastic increase in core size compared to stock, this radiator is a direct fit for the 1992-2000 Honda Civic and requires no modification for installation. As with all our products, this radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
